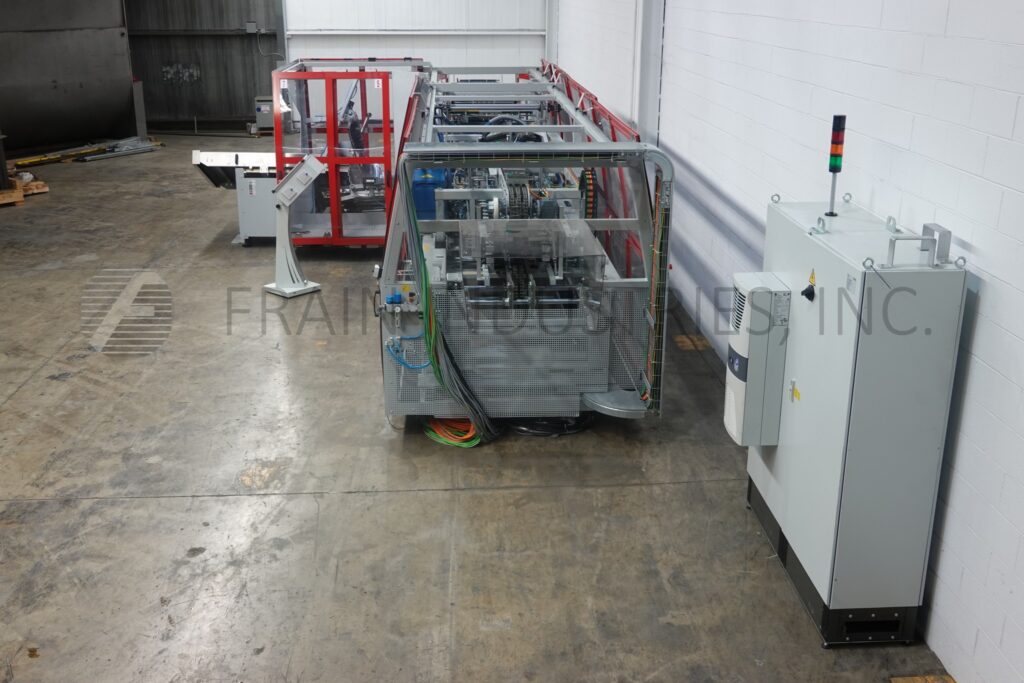

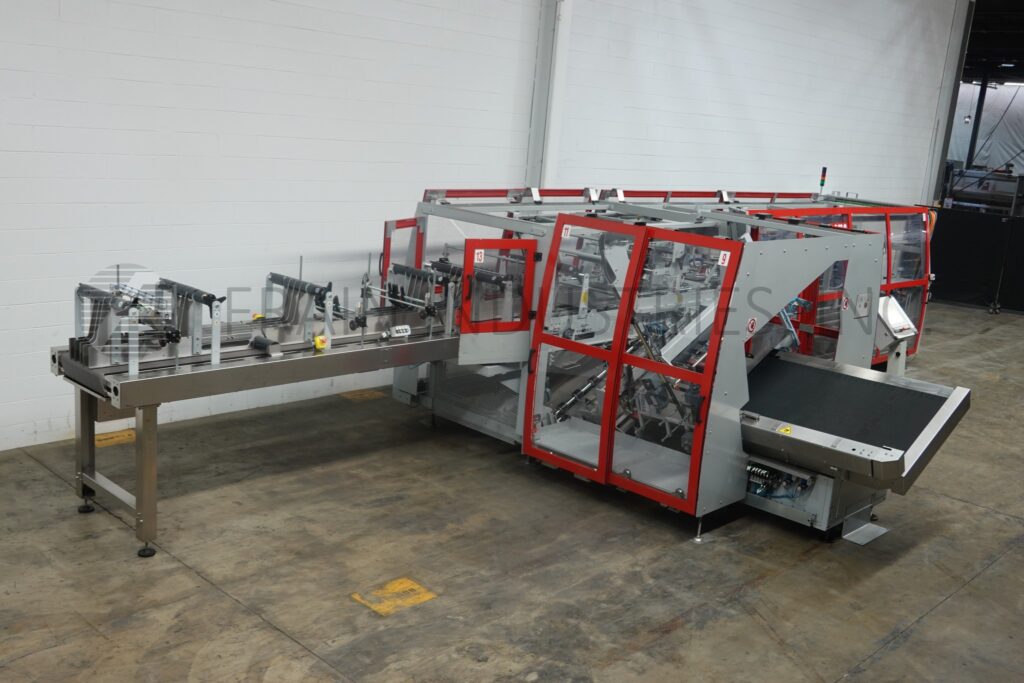

Ocme, Model Altair N 50, Automatic, inline, wrap around cartoner and hot melt glue sealer, rated up to 50 cartons per minute – depending on materials and application. Carton size range: Per application. Capable of packing bottles, cans, jars, canisters and small packages made of plastic, glass and metal, in round, square, oval, triangular and other container shapes and sizes with proper change parts. Can handle various products such as lube oils, edible oils as well as beverage products. Equipped with (3) chains adjustable set on 36" centers and 3" high lugs, 41" wide x 132" long product in feed conveyor with lane divider and squaring device, 96" long auto blank case magazine, 56" long carton despenser and feed ramp carton inserter, top product assist conveyor and Nordson hot melt glue system with wrap station and compression discharge. Remote control panel has PLC controller with OCME swing arm controls and digital readout. Mounted on heavy duty frame with interlock safety guarding.
OAD: 323" L x 88" W x 92" H Cartoner 132" L x 41" W x 50" H Infeed Conveyor 64" L x 20" W x 80" H Control Panel

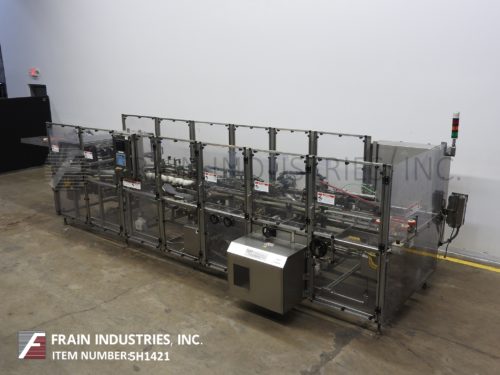

Adco, Model 9WA-150-SS, Automatic, continous motion, stainless steel, hot melt glue cartoner. Rated from 50 to 150 cartons per minute – depending on materials and application. Carton size range: 3" to 8" length, 3" to 5" width, 1" to 4" depth. Equipped with 72" long product in feed conveyor and dual worm screws, 54" long powered blank carton magazine, (3) head rotary pick in place, 90" long powered over head lugged chain system conveyor set on 9" centers and dual 54" long side chain container closing conveyors and is hand crank adjustable, with Nordson hot melt glue unit. Control panel has A/B PLC controller with touch pad controls and Panel View 550 and statis light bar. Mounted on stainless steel frame with casters, leveling lags and safety guarding.
OAD: 280" L x 60" W x 84" H

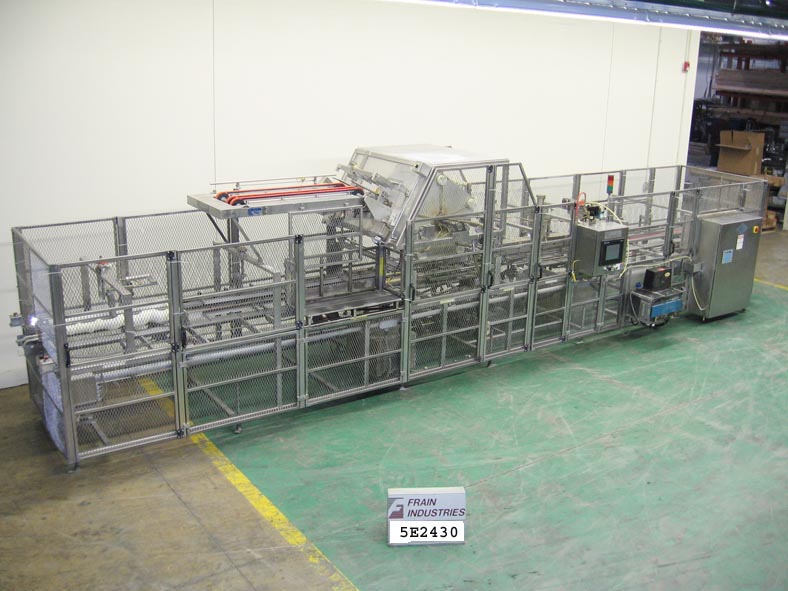

Automatic, sleever rated from 120 to 300 sleeves per minute – speeds depending on materials and application. Equipped with dual lane (over / under) product infeed, 12′ long x 3-1/4" wide plastic delron lugged product conveyor on 10-1/2" centers, 6′ long x 30" wide powered blank carton magazine with 4 head rotary sleeve feeder, which transports sleeve blanks over top of product as it is being conveyed. 60" long x 6" wide servo driven overhead confining belt, sleeve flap plows, and under container closers, Nordson Vista series 3500 hot melt glue system, overhead belt compresses section. Allen Bradley plc, Electro Cam series 5000 PLS controller with an Allen Bradly series 1000 panelvision touch screen display. mounted on stainless steel frame fully enclosed cage style barrier guarding with e-stop on ends

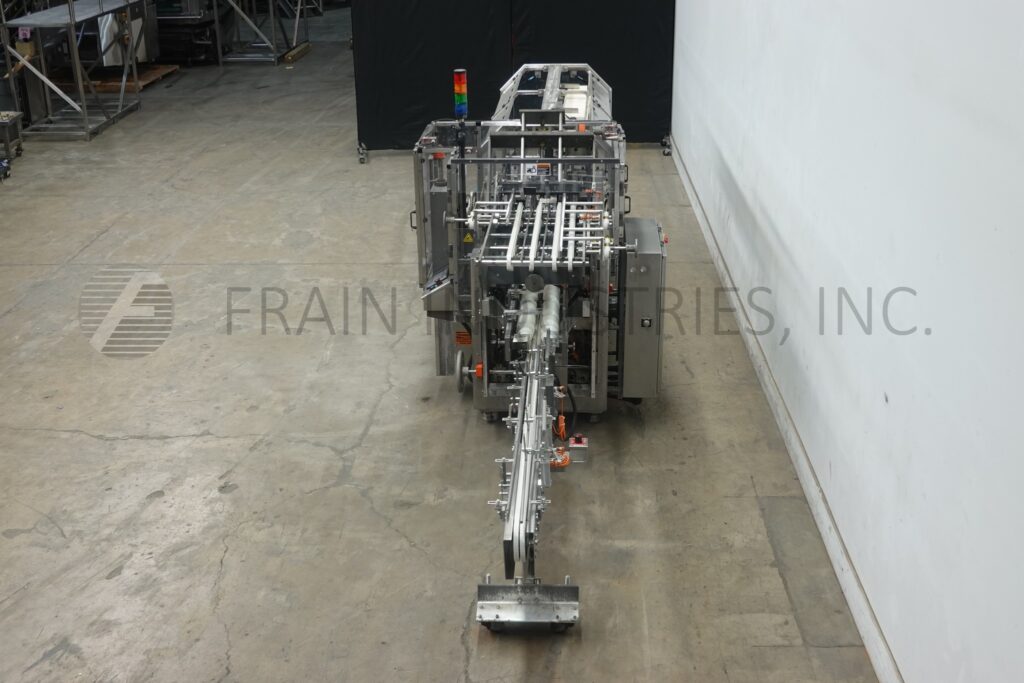

Automatic sleever rated from 80 to 200 sleeves per minute – speeds depending on materials and application. Equipped with extended powered magazine, 5 position rotary vacuum pick and place, twin worm screw in feed, conveyor lugs on 10 1/2" centers, overhead confining belt and Nordson glue system. Additional features include Allen Bradley touch screen controls and stainless steel frame. Maximum product dimensions are 10"(L) x 6"(W) x 5 1/2"(H).
OAD: 351"(L) x 74"(L) x 93"(H)
Davis Engineering, automatic, stainless steel sleever. Rated from 50 to 140 sleeves per minute – depending on materials, application and machine configuration. Equipped with dual lane (over / under) product in feed with (2) 5" wide Intralox style belts, 110" long x 3" wide plastic delron lugged product conveyor set on 9" centers, 60" long x 12" wide powered blank carton magazine with (4) head rotary sleeve feeder, which transports sleeve blanks under product as it is being conveyed. 24" long x 1" wide overhead confining belt, sleeve flap plows, Nordson hot melt glue system, overhead belt compression section and 10" long dual side belt discharge. Control panel has an AB controller with an AB PanelView600 touch screen display. Mounted on stainless steel frame with lexan guarding.
OAD: 245"L x 95"W x 72"H
Tanney, Model 510-280, Automatic, continuous, wraparound, tuck cartoner, rated from 80 to 280 cartons per minute – depending on materials, application and machine configuration. (1) chain fixed unit set on 12" centers. Equipped with 2½" wide x 118" long product in feed conveyor and single 36" long product worm screws, 10" wide x 64" long powered (3) belt blank carton magazine, (4) head rotary pic-n-place, 3¼" wide x 62" long overhead conveyor with rotary tuckers, product clamp assembly with wrap plow closers, 72" long secondary lugged side chain indexing conveyor and 3¾" wide x 22" long product discharge belt conveyor. Control panel has push button controls for start / stop / jam reset and control switches for jog / run, manual / auto, vacuum on / off. Includes variable speed controls. Mounted on heavy duty base frame with safety guarding.
OAD: 296" L x 54" W x 78" H
Tanney, Model 510-280, automatic, continuous, wraparound, tuck cartoner, rated from 80 to 280 cartons per minute – depending on materials, application and machine configuration. (1) chain fixed unit set on 12" centers. Equipped with 2½" wide x 118" long product in feed conveyor with single 36" long product worm screws, 10" wide x 64" long powered (3) belt blank carton magazine, (4) head rotary pic-n-place, 3¼" wide x 62" long overhead conveyor with rotary tuckers, product clamp assembly with wrap plow closers, 72" long secondary lugged side chain indexing conveyor and 3¾" wide x 22" long product discharge belt conveyor. Control panel has push button controls for start / stop / jam reset and control switches for jog / run, manual / auto, vacuum on / off. Includes variable speed controls.

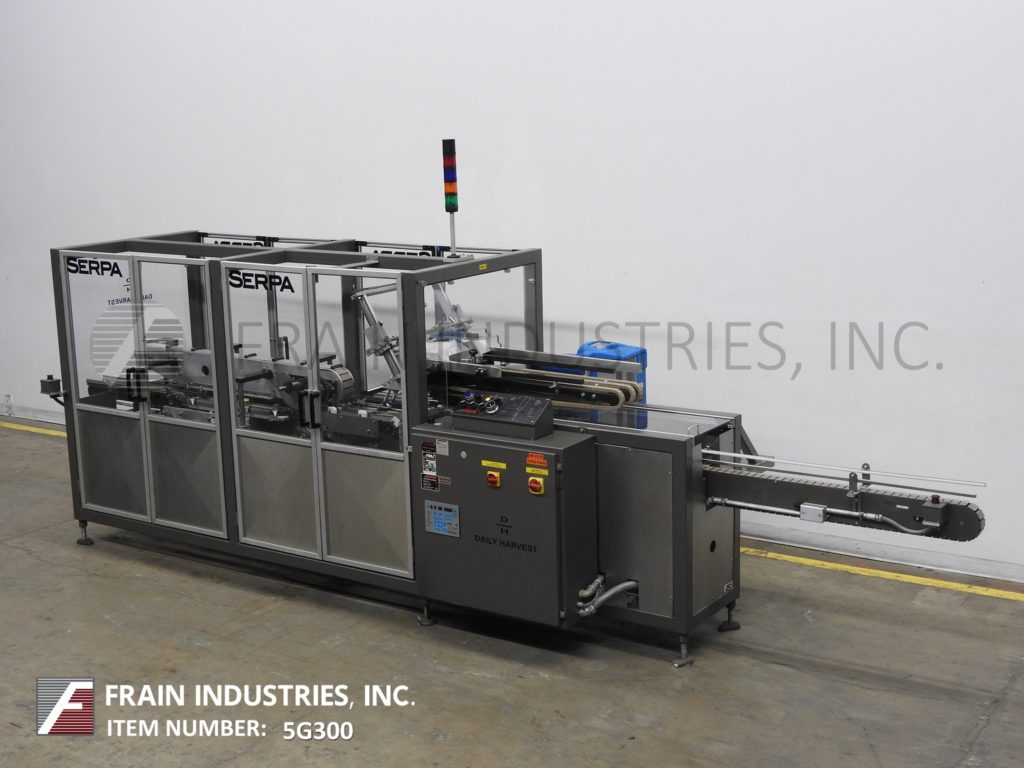

Serpa, Model 2000WA, automatic continuous motion wrap around hot melt glue cartoner rated from 30 to 120 cartons per minute – depending on materials and application. 1 chain unit set on 9" centers with a carton size range of: 1" to 9" in Length; 1 to 3½" in Width; 5" to 9" in Depth. Equipped with 2¼" wide x 90" long product in feed conveyor with dual worm screws, 36" long x 15" wide powered blank carton magazine, (2) head rotary pic-n-place, 70" long fixed overhead product clamp assembly with wrap plow closers, and 36" long secondary lugged side chain indexing conveyor both with 9" centers, Electro Cam plus 5000 control panel, Nordson hot melt glue system, 2" wide x 42" long product discharge belt conveyor, control panel, has start / stop, run/jog, forward/reverse, vacuum on/off, variable speed control and e-stop. Additional features include Siko gauges and interlocking safety guarding.
OAD: 236"L x 60"W x 85"H
Tanney Model 510, Automatic, continuous motion, wraparound, hot melt glue cartoner with number of containers per minute – depending on materials and application. 1 chain fixed unit set on 12" centers Equipped with 40" long product in feed conveyor with dual 24" long worm screws, 36" long x 24" wide powered blank carton magazine, (2) head rotary pic-n-place, 80" long product in feed conveyor with 54" long side chain indexing conveyor, both lugged with 12" centers, 105" long fixed overhead product clamp hold down assembly with wrap plow closers, and 46" long secondary lugged side chain indexing conveyor both with 12" centers, Nordson (1) gun hot melt glue system, 30" long x 4" wide product discharge belt conveyor. Control panel, has start / stop, auto run, jog, vacuum, and speed control switches with e-stop. Mounted on heavy duty base frame with interlocking safety guarding.
OAD: 216" L x 48" W x 68" H
Kodiak model 510-80 automatic, wrap around, hot melt glue, cartoner with number of cartons per minute – depending on materials and application. Equipped with 66" long x 24" wide product magazine with (4) feed belts, (4) head rotary pick and place, (2) 216" long product in feed conveyors with (2) 36" long single side worm screws, (2) 102" bottom lugged chain product conveyors, (2) 35" long bottom lugged over product chain conveyors, Nordson hot melt glue system, rotary flap closers, 125" long x 4.5" wide overhead Delrin conveyor, (2) 36" long lugged chain side conveyors, 12" long x 7" wide skate conveyor, 24" long x 4" wide belt discharge conveyor. Control panel has PLC controller. Mounted on heavy duty base frame with Interlocking Lexan safety guarding.
OAD: 228" L x 60" W x 72" H
