Vertical Glue/Tuck Machines

Clybourn Cartoner Auto Vertical Glue/Tuck CHL

• Manufacturer: Clybourn
• Model Number: CHL
• Frain Number: 5D5332

Clybourn CHL, Vertical cartoner from 40 to 80 cpm – speeds depending on materials and application. Equipped with, dual head rotary carton feed, vibratory bottom rail , hot melt, and ELECTRO CAM pattern control. Additional features include AB PLC & Lexan guarding,
OAD: 265" L x 80" W x 96" H

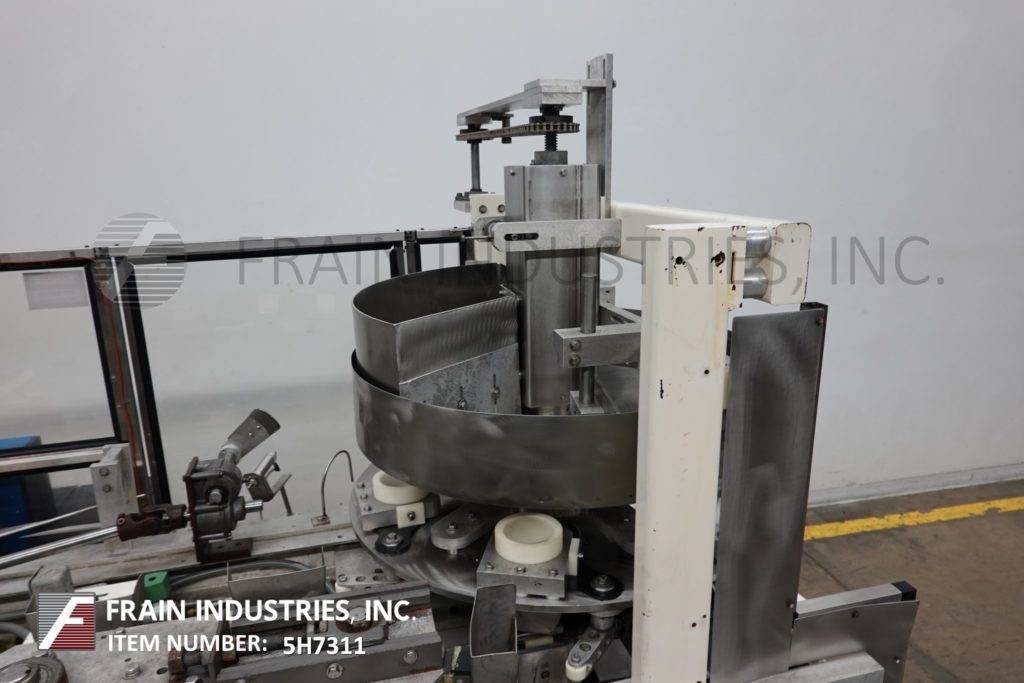

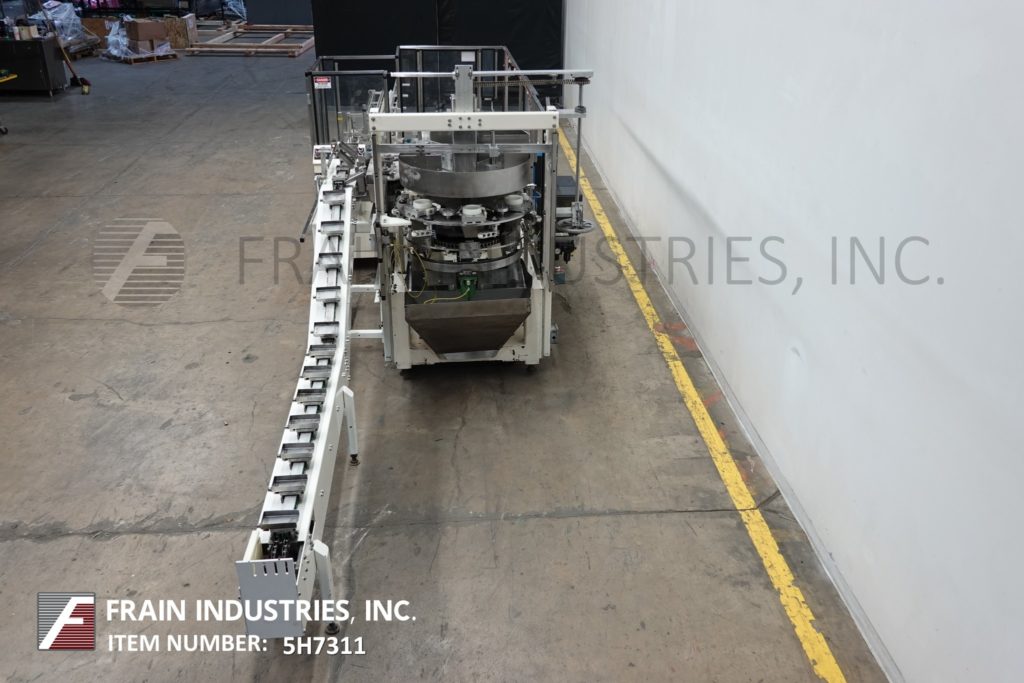

Adco Manufacturing Inc Cartoner Auto Vertical Glue/Tuck VERT

• Manufacturer: Adco
• Model Number: VERT
• Frain Number: 5H7311

Adco, automatic, continuous motion, vertical, hot melt glue cartoner, rated from 40 to 150 cartons per minute – depending on materials and application. Cartons size range: 2" to 9" in Length x ¾" to 3" in Width x 3" to 10" in Depth. Equipped with 108" long blank carton magazine with (4) head rotary suction cup pic n place, fixed carton pockets set on 10" centers, tilt tray pouch loader, 6-cup rotary volumetric filler with carton fill spout, settling carton vibrator track, Nordson hot melt glue system and compression and discharge section. Control panel has start, stop and e-stop push buttons. Mounted on painted steel frame with barrier guarding and height adjustable legs.

OAD: 335" L x 86" W x 80" H

Serpa Packaging Cartoner Auto Vertical Glue/Tuck 2000VCM

• Manufacturer: Serpa Packaging
• Model Number: 2000VCM
• Frain Number: 5G7790

Serpa, Model 2000VCM, semi-automatic, continuous motion, vertical, hot melt glue cartoner. Rated from 40 to 70 cartons per minute – depending on application materials and application. (2) chain adjustable unit currently set on 9" centers. Carton size range: 1" to 6" in Length; ¾" to 3½" in Width; 3¼" to 8¾" in Depth – with proper change parts. Equipped with a 55" long powered blank carton magazine, (2) head suction cup rotary vacuum pick-n- place, suction cup box pre-break, bottom seal section to 4½" wide x 84" long Neoprene transfer belt to hand load area, 2" wide x 86" long Intralox belt from hand load area to top seal section with (2) worm screw feeders and 6½" wide x 38" long Neoprene discharge belt. Nordson Pro Blue hot melt glue system and interlock safety guarding with status light bar. Control panel has an A/B controller with touch pad programmable controls, variable speed dial, vacuum on/off switch, drive reverse/forward switch, drive run/jog switch and start/stop/reset/E-stop push button controls. Mounted on stainless steel base frame.

OAD: 210"L x 80"W x 103"H
