Granulator equipment is designed to produce granules. Granulators turn powders into granules for tableting or coating. Granulators are used to turn powder into granules to powder into free flowing material, to increase the density of the product, and to increase the particle size of the product. Using granulator to turn powders into granules improves the compressibility of the powder and eliminates the dust associated with handling a powder.
Collette Model GRAL 75, high speed, high shear 316 stainless steel, vertical granulator, with gross capacity of 75 liters and working capacity of 60 liters per batch. Jacketed and vacuum mixing bowl with dimensions of 20" ID x 14" Deep. GAMP (good automated manufacturing practice) design for 25% less granulating liquid use resulting in reduction time in drying with no wet sizing required and has (4) 1" ID threaded side / bottom jacket in / outlets and side bottom pneumatic operated discharge valve. Hydraulic lift up top cover with 16" OD (3) blade anchor style mixer with 8" long x 2" wide blades and 6" OD (4) blade high shear mixer with (4) 3" long x 1" wide blades and 2-1/2 ID site port with (1) 3-1/2" top port and (1) 2-1/2" OD sanitary top port with 10 Hp belt to motor drive. Control multiple panels (1) main remote and (1) operator with high and low speed start, stop, jog and hydraulic lift controls with pressure, vacuum, rpm and temperature gauges Mounted on 48" long x 28 " wide x 16" high stainless steel base platform.
OAD: 60" L x 32" W x 74" H Mixer 48" L x 28" W x 16" H Main Control Panel 24" L x 12" W x 39" H Operator Control Panel
Vector Model CF-360 304 S/S Granulator is capable of handling 1.5 to 4kg (bulk density 0.7) of product. Charging capacity: 0.75 – 2kg. Rotor diameter: 360mm. Rotor direction: Clockwise. Rotor speed (variable): 40-400rpm. Main application is agglomeration, granulating, and coating for any kind of powder. The specially designed rotor is installed in a large stationary cylinder (stator) and a bed of powders, granules or pills forms a fluidizing doughnut ring along the wall of the stator with a rope twisting like motion which is created by joint forces of centrifugal force, rotating speed, gravity and fluidization air directed through the slit. When binding or coating solution and powders are sprayed onto this fluidizing twisted doughnut ring of the bed, they are mixed and develop very quickly and uniformly into the ring of the bed and therefore powders, granules or pills can be granulated, agglomerated or coated uniformly within a limited time. Air from high pressure blower is directed to the chamber through heat exchanger to the slit (a 300-500 micron opening) which helps eliminate clogging of powders and granules in the chamber. Last ran in a food application. OAD: 8’L x 3’W x 6’H

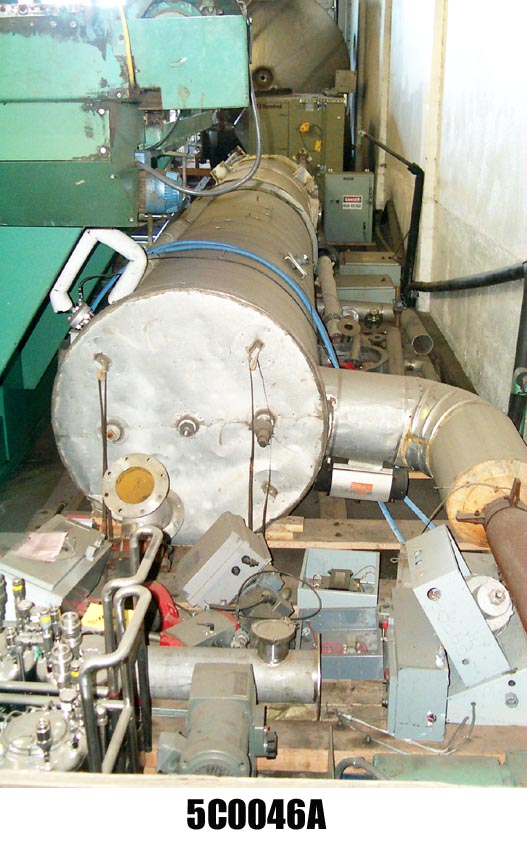

Solvent recovery system consists of 100 gallon solvent recovery tank and 6 pressure pots was last running with a 100 litre fluid bed granulator system.

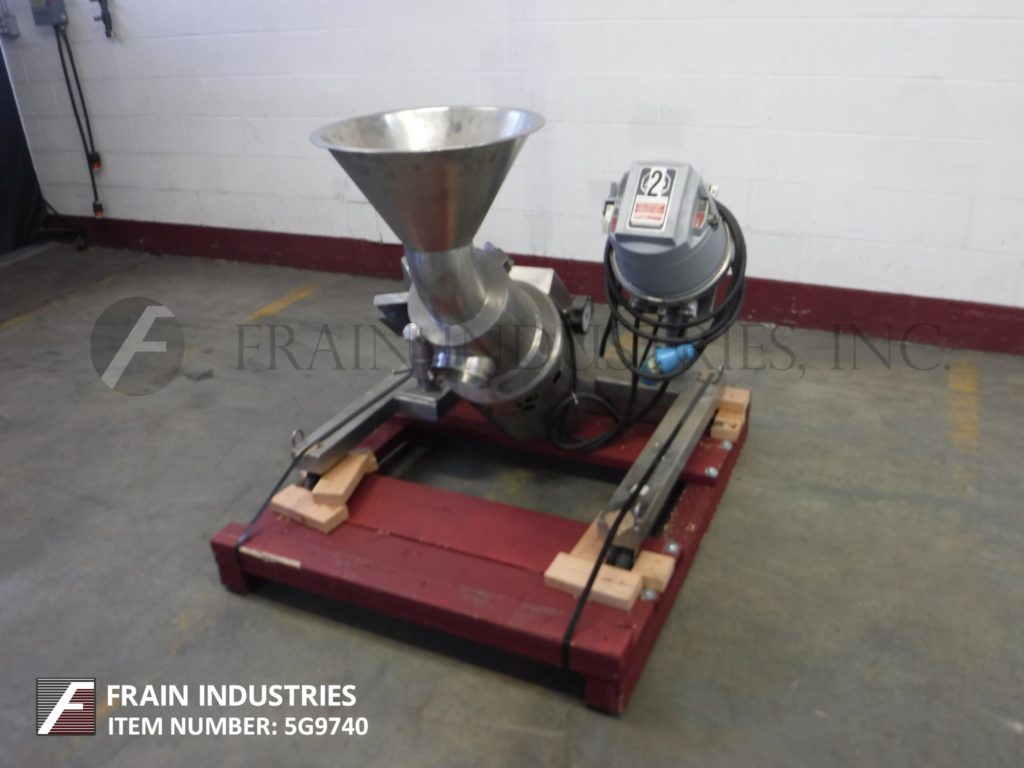

Glatt, Model TR160/02, stainless steel wet or dry granulations screener. Equipped with a 17½" diameter x 9" deep hopper and 6" diameter discharge with 17" ground clearance. Powered by a 2.95 hp drive and mounted on stainless steel stand with casters.
OAD: 42"L x 39"W x 43"H

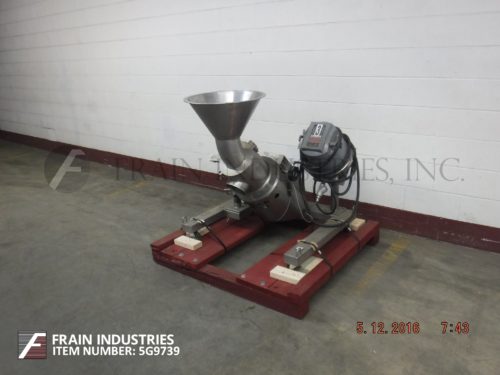

Glatt, TR16002, Stainless steel wet or dry granulations screener to a selected particle size. Features a 4.5 gallon hopper, a 6" diameter discharge at 34"H. Quick Sieve can be used for the de-lumping or milling of raw materials. Mounted on stainless steel stand with four casters.
OAD: 32" (L) x 39" (W) x 62" (H)
Frewitt Model MF-3, 316 stainless steel, oscillating granulator, rated from 200 kilograms to 600 kilograms of product per hour – depending on materials and application. Designed for powders with particle size from 5cm to 250um. Temperature range from -20°C to +60°C. Equipped with 12" long x 10" wide top feed stainless steel product hopper, with clamp down cover and safety grid, (5) removable, stainless steel, hexagonal shaped breaker bars measuring 12" in length; 1-1/2" thick. Center bottom discharge chute has 5" OD discharge with 30" floor clearance and control panel with push button controls and e-stop. Mounted on stainless steel (4) leg base frame with casters. Change parts: Removable screens are required per application for different size particle reduction.
OAD: 24" L x 36" W x 60" H
