Granulator equipment is designed to produce granules. Granulators turn powders into granules for tableting or coating. Granulators are used to turn powder into granules to powder into free flowing material, to increase the density of the product, and to increase the particle size of the product. Using granulator to turn powders into granules improves the compressibility of the powder and eliminates the dust associated with handling a powder.

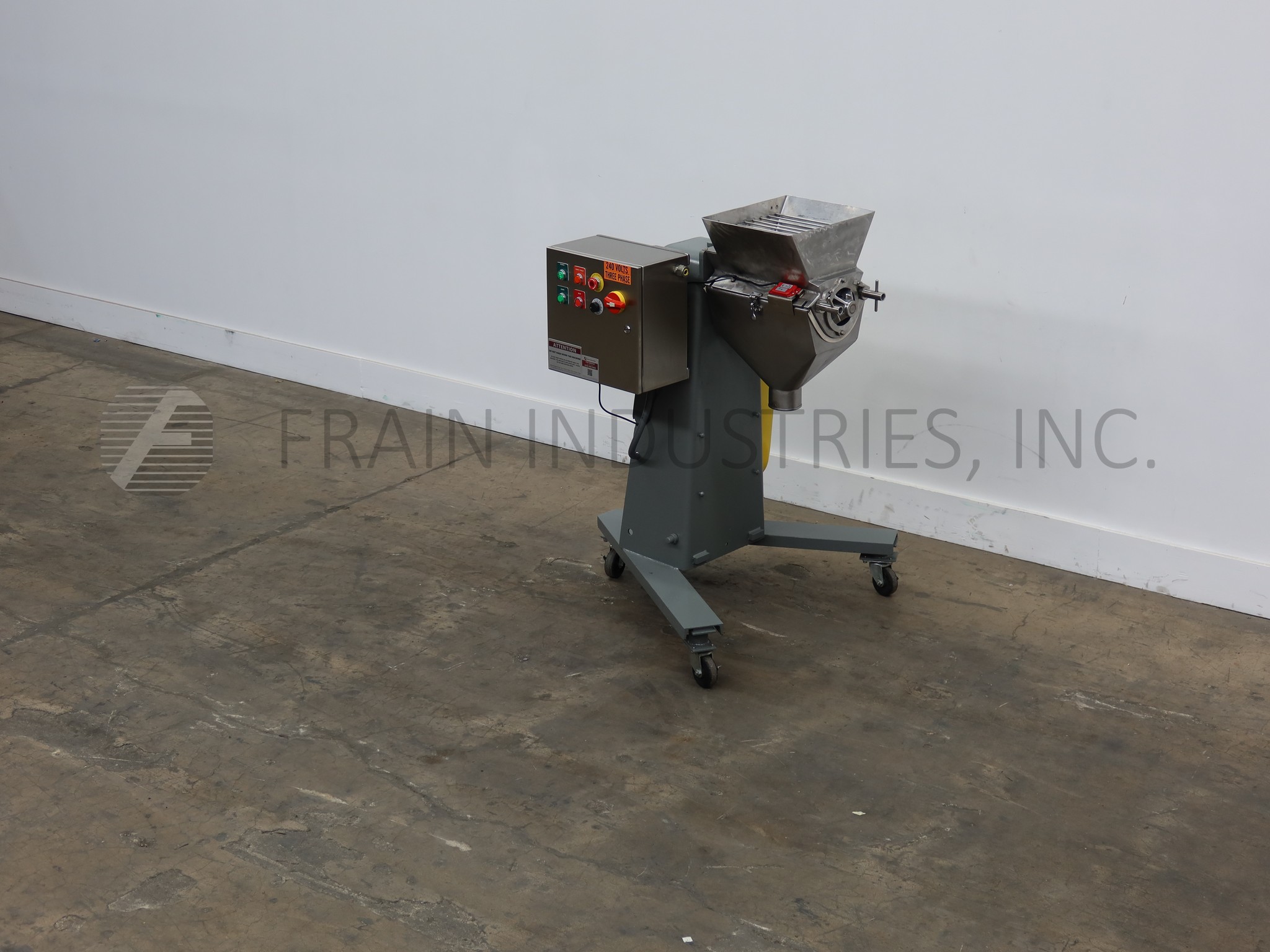

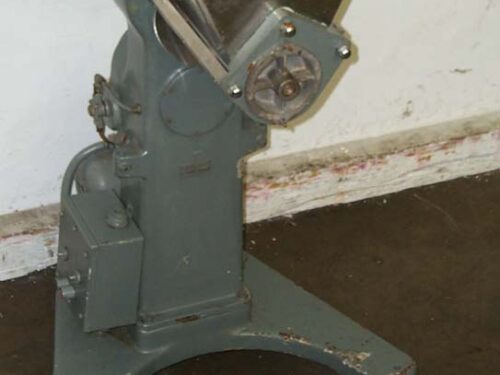

Oscillating granulator. Equipped with a 1 ft³ stainless steel product hopper measuring 16-1/2" in Length x 14" in Width x 8" in Height, six stainless steel hexagonal shaped breaker bars measuring 13" long x 1" diameter, a removable, stainless steel, 12" long x 16" wide bottom discharge chute with a 4" Diameter discharge and a 29-1/2" floor clearance, and push button controls. Mounted on casters. Screens required per application. Rates dependant on materials, application and machine configuration.
OAD: 43"L x 45"W x 55"H

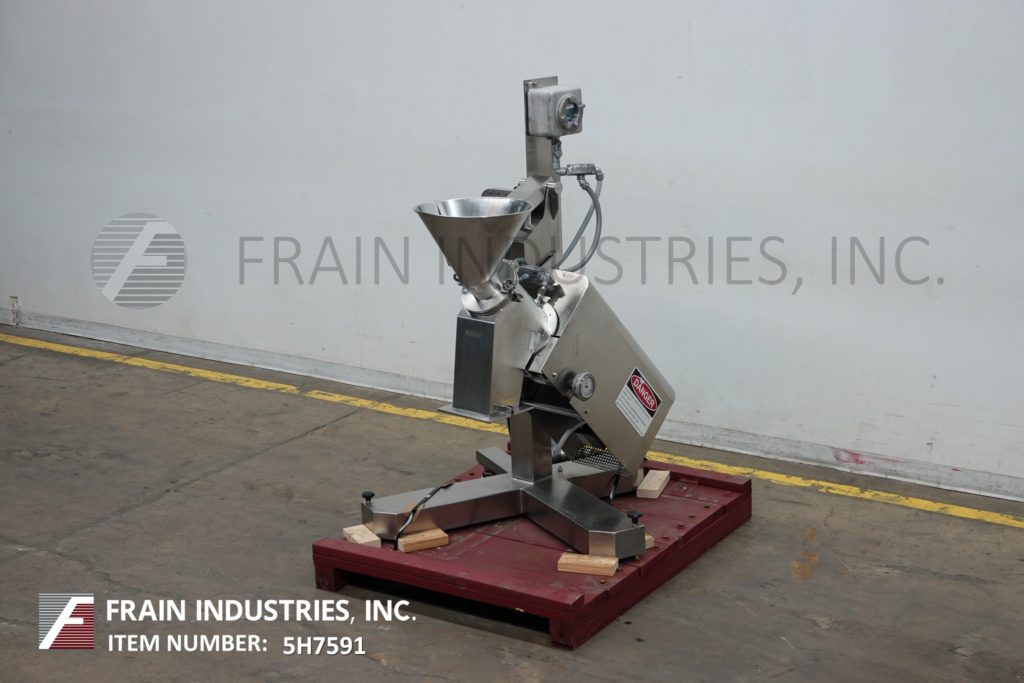

Stainless steel wet or dry granulations screener to a selected particle size. Features a 4.5 gallon hopper, a 6" diameter discharge at 34"H. Quick Sieve can be used for the de-lumping or milling of raw materials. Mounted on stainless steel stand with four casters.
OAD: 32" (L) x 39" (W) x 62" (H)

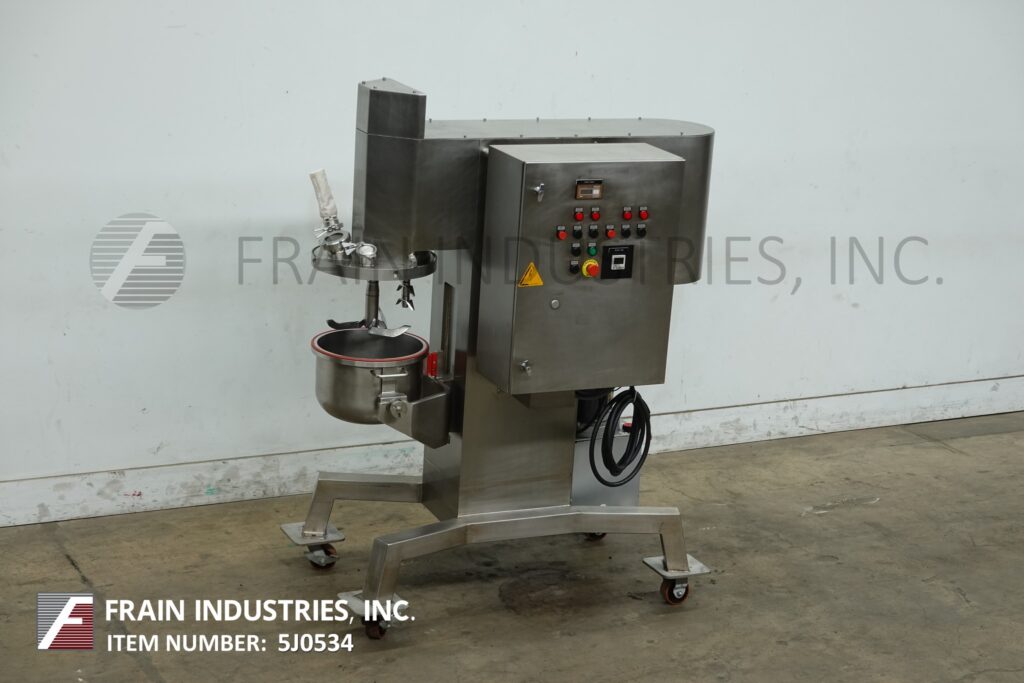

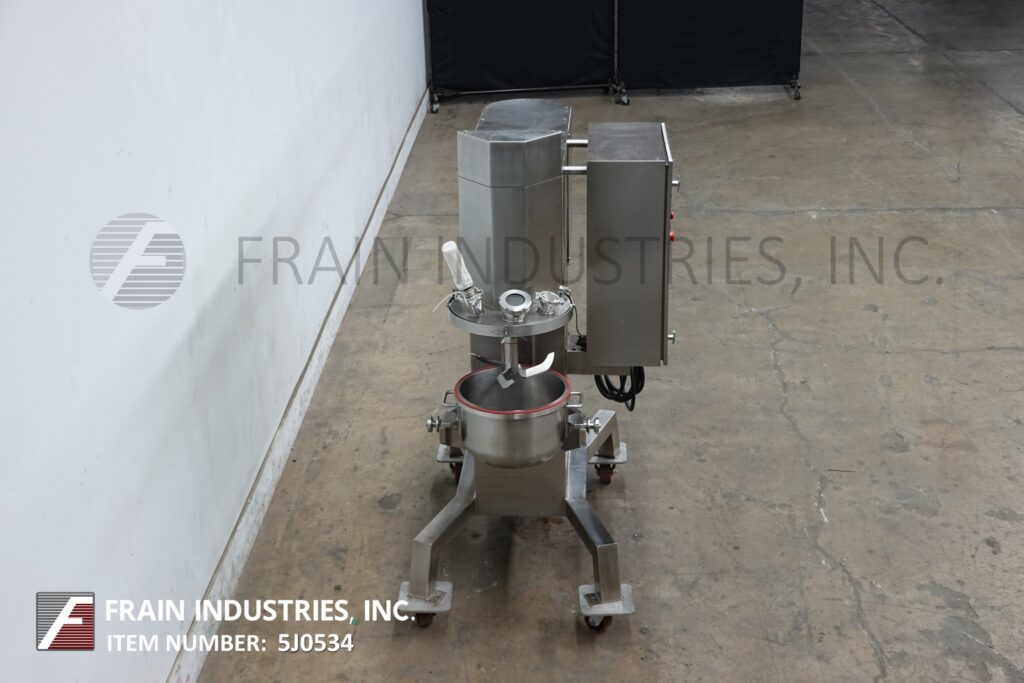

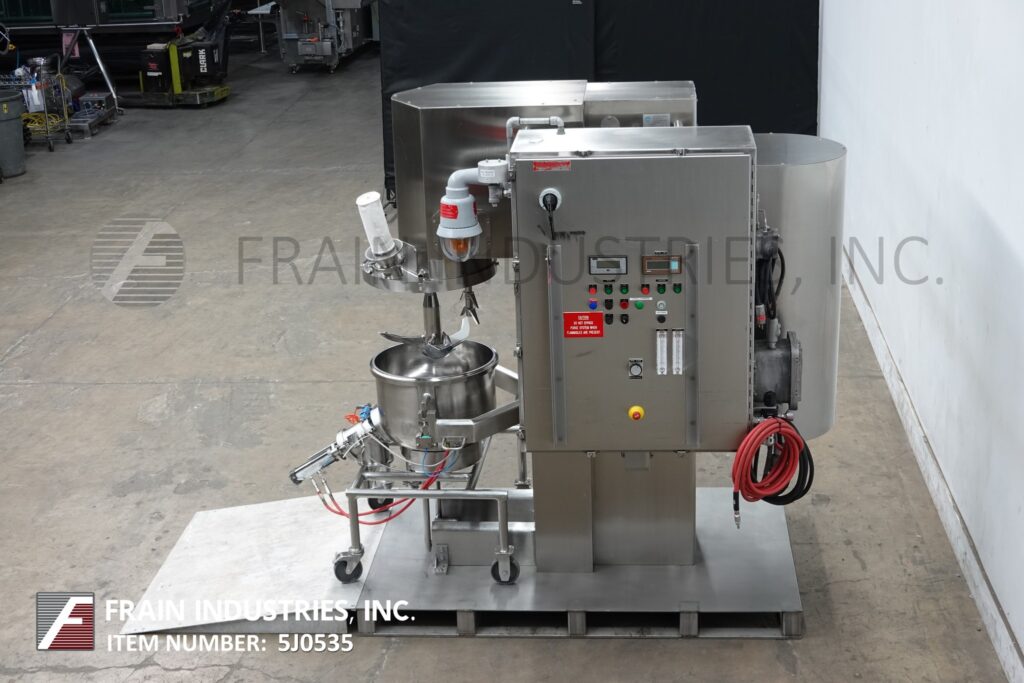

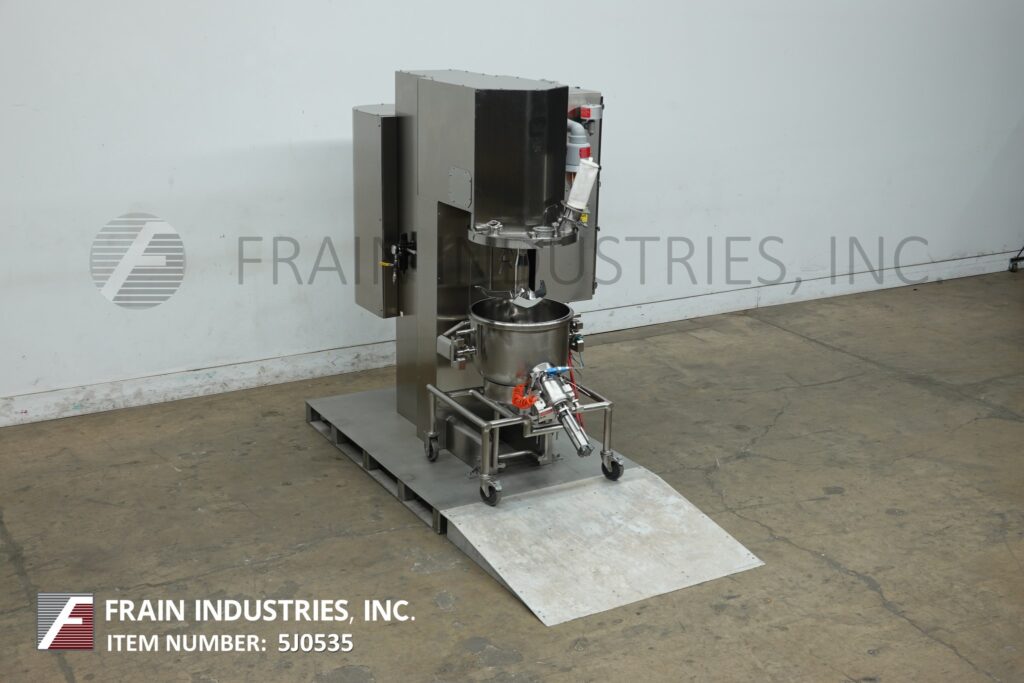

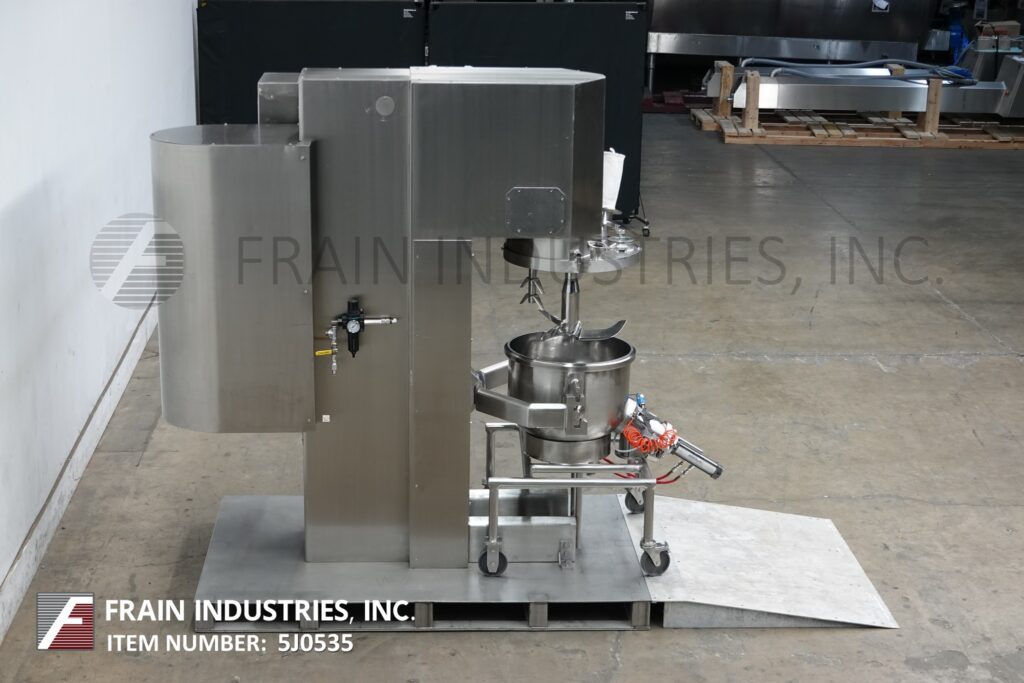

Collette Model UltimaGral 25, Stainless steel, high speed, high shear, single pot, vertical, total containment, R & D granulator, with gross bowl volume capacity of 27 liters and typical batch weight of 11 @ 0.6g/ml (kg). 316 stainless steel construction Equipped with variable speed chopper and impeller, (3) blade main mixer with 12" OD with (3) 7" long x 1½" wide blades and high shear mixer with (3) 4½" long x 1" wide blades. Control panel has PLC controller with high and low speed, start, stop, jog, hydraulic lift controls, vacuum, rpm and temperature gauges. Mounted on stainless steel frame.
OAD: 76" L x 30" W x 72" H Granulator 48"L x 28" W x 72" H Control Panel
Single pot processing is the production of pharmaceutical granules using a wet granulation process in which dry mixing, liquid addition, wet granulation, drying and sizing of the granules is done in one machine.
GAMP (good automated manufacturing practice) design for 25% less granulating liquid use resulting in reduction in drying time with no wet sizing required.

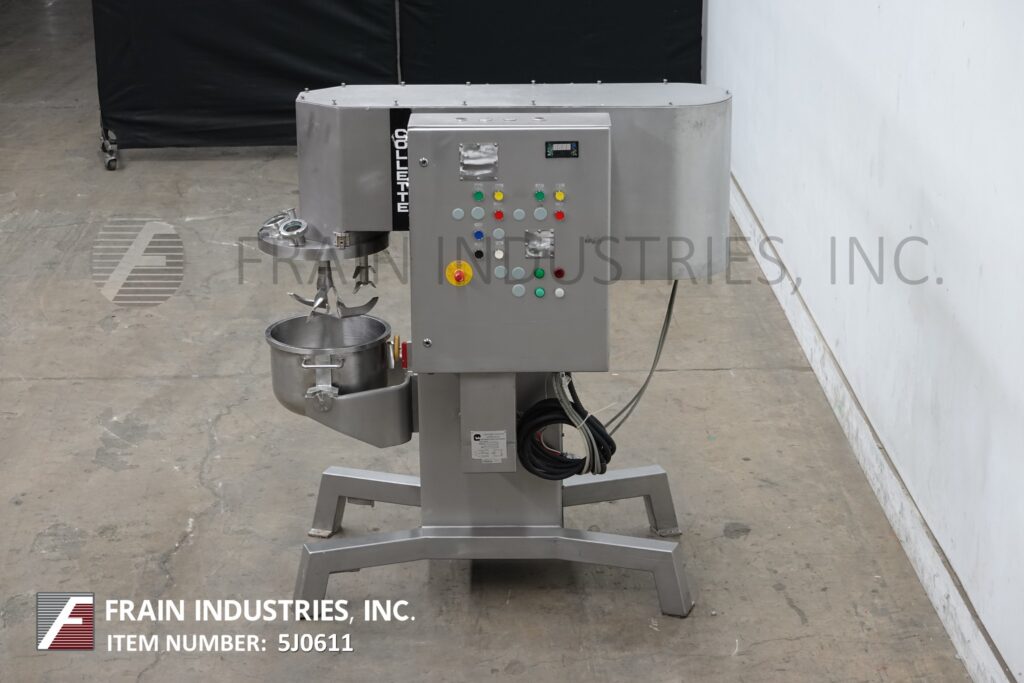

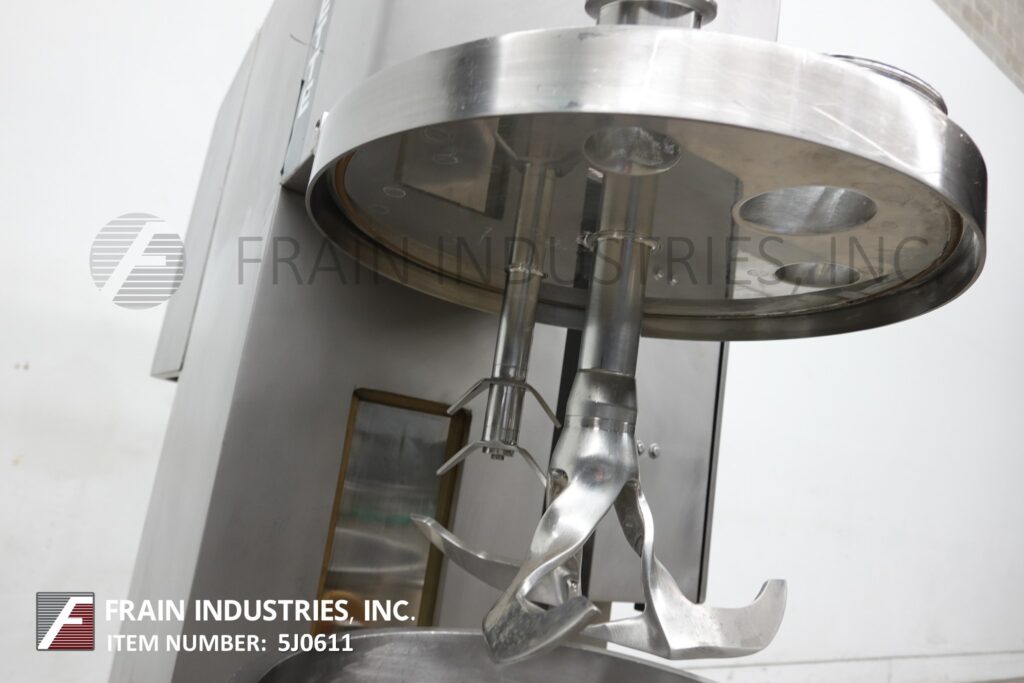

Collette Model GRAL 25, High speed, high shear stainless steel, vertical, single pot, GAMP, R & D, granulator, with gross bowl volume capacity of 27 liters and typical batch weight of 11 @ 0.6g/ml (kg). 316 stainless steel construction. Equipped with removable stainless steel process vessel and has dimensions of 14" ID x 11" Deep. Lift up top cover with 2½" and (2) 3½" OD top ports, (3) blade main mixer with 12" OD and (3) 6" long x 1" wide mixer blades and (2) 4" long x 1" wide high shear mixer blades. Control panel has mixer and chopper start, stop and e-stop push buttons. Mounted on heavy duty stainless steel frame with statis light.
OAD: 60" L x 36" W x 63" H

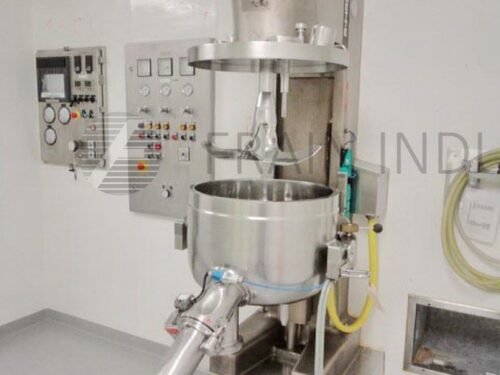

Collette Model GRAL 75, High speed, high shear, stainless steel, jacketed, vertical batch, GAMP granulator with gross bowl volume capacity of 75 liters and typical working capacity of 25 to 50 liters with average product density of 0.5 kg/l 10 to 25 (kg). 316L stainless steel contact parts and 304 stainless steel body construction. Equipped with stainless steel jacketed and vacuum portable process bowl with dimensions of 20½" ID x 18" Deep, side bottom jacket in / outlets, pneumatic operated discharge valve with 27" floor clearence. Hydraulic lift up top cover has sight glass, light, filter and 2" liquid filling ports and top driven (3) blade mixing impeller has dual speed 7½ Hp belt motor drive with 200 and 305 rpm. (2) blade choppers has dual speed 5¼ Hp belt motor drives with 1460 and 2870 rpm, plunger outlet valve (one movement) and hydraulic 2 Hp single speed motor drive. Control panel has PLC controller with mixer and chopper high and low speed controls, start, stop, jog and hydraulic lift controls with pressure and vacuum, temperature rpm gauges with readouts, e-stop and statis light. Mounted on heavy duty stainless steel frame with casters.
GAMP (Good Automated Manufacturing Practice) design for 25% less granulating liquid use resulting in reduction in drying time with no wet sizing required.
OAD: 98" L x 48" W x 78" H

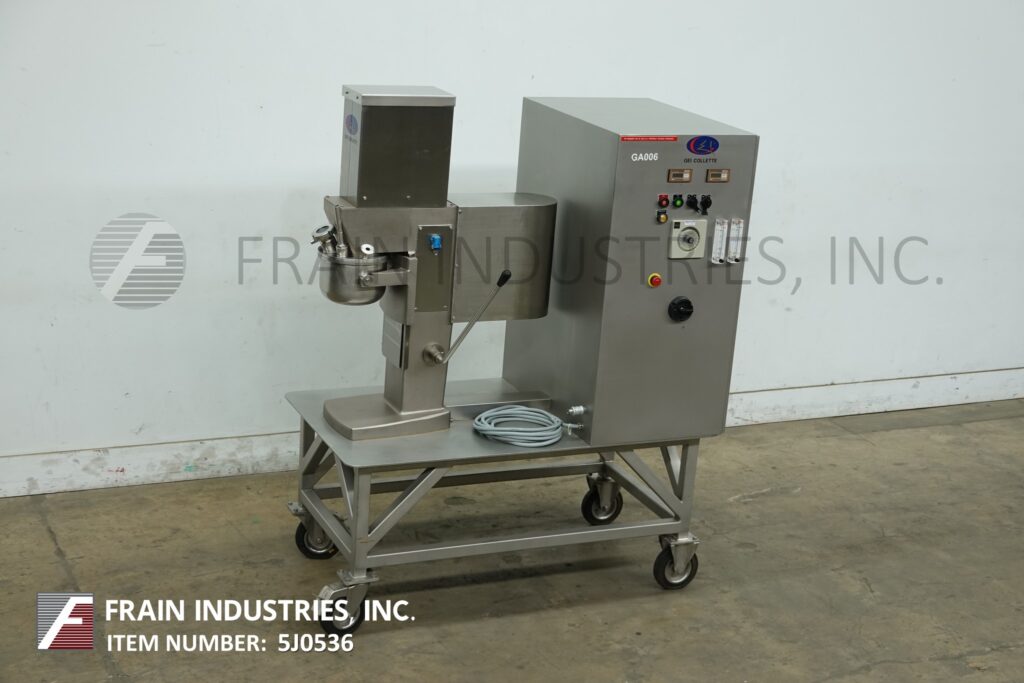

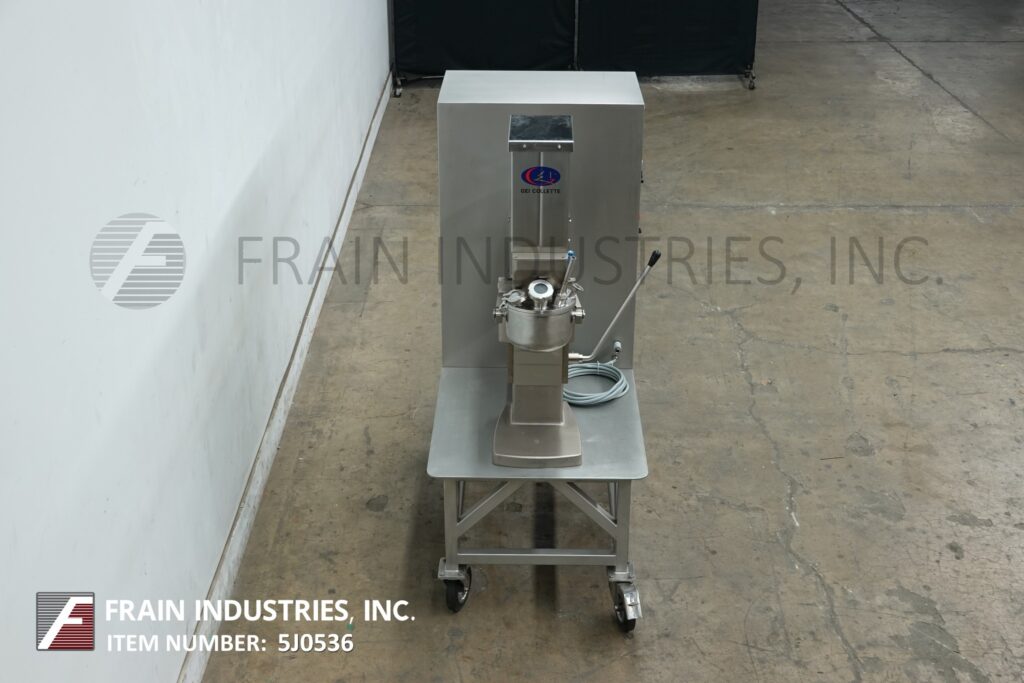

Collette Model GRAL 10, High speed, high shear, stainless steel, vertical GAMP, R & D granulator, with gross bowl volume capacity of 10 liters and working capacity of 7.9 liters. All 316 stainless steel construction. Equipped with process bowl and has dimensions of 10" ID x 6" Deep, with cover and has (2) 2" OD top ports and 3½" OD with 2" OD sight port. (3) main mixer blades and (2) high shear mixer blades with bowl tilt discharge handle. Control panel has mixer and chopper high, low and air guages with start, stop, interlock free and e-stop push buttons. Mounted on stainless steel (4) leg base with casters.
OAD: 44" L x 36" W x 58" H

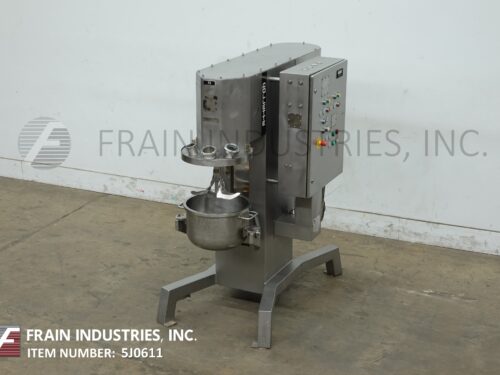

Collette Model GRAL 25, High speed, high shear, stainless steel, vertical, single pot R & D granulator, with gross bowl volume capacity of 27 liters and typical batch weight of 11 @ 0.6g/ml (kg). 316 stainless steel construction. Equipped with variable speed chopper and impeller, (3) blade main mixer with 12" OD (3) 7" long x 1½" wide blades and high shear mixer with (3) 4½" long x 1" wide blades. Control panel has power on, mixing time gauge, mixer low, high speed start, stop, bowl up, chopper low, high speed start, stop and e-stop push buttons. Mounted on stainless steel (4) leg base with casters.
OAD: 55" L x 48" W x 69" H
Frewitt, TurboWitt, Stainless steel wet or dry granulations screener to a selected particle size. Features a 16" diameter x 12" deep hopper, 7" x 6" discharge at 23"H. Quick Sieve can be used for the de-lumping or milling of raw materials. Mounted on stainless steel stand with casters and leveling legs.
OAD: 48"L x 44"W x 67"H
Frewitt Model MGI-628, stainless steel, oscillating granulator. Rated from 100 to 1500 lbs per hour – depending on materials, application and machine configuration. Equipped with 19" long x 11" wide x 6" deep top feed stainless steel product hopper with safety grid, (5) stainless steel breaker bars measuring 17" in Length x ¾" thick center bottom discharge and has 11" diameter discharge chute with 35" floor clearance. Control panel has push button controls start / stop / reset. Mounted on stainless steel (4) leg base frame with casters. Change parts: Removable screens are required per application for different size particle reduction.
OAD: 64"L x 34"W x 62"H
Collette Model GRAL 75, High speed, high shear 316 stainless steel, vertical, single pot, jacketed, GAMP rated granulator, with gross capacity of 75 liters and working capacity of 60 liters per batch. Jacketed and vacuum mixing bowl with dimensions of 20" ID x 14" Deep, and has (2) ¾" NPT side / bottom jacket in / outlets. Equipped with hydraulic lift up top cover with 4¼" ID site port, 16" OD (3) blade anchor style mixer with 8" long x 2" wide blades and 6" OD (4) blade high shear mixer with (4) 3" long x 1" wide blades powered by 7½ Hp belt to motor drive. Control panel with push button start / stop, analog timer and push button up / down controls. Mounted on forkable platform style base.
Top Access:(1) 4"OD / 3½"ID Tri Clamp(1) 2"OD / 1½" ID Tri Clamp
MAWP: 29 psi
GAMP (Good Automated Manufacturing Practice) design for 25% less granulating liquid use resulting in reduction time in drying with no wet sizing required
OAD: 50" L x 45" W x 92" H
Lodige, Model L50, 50 Liter ( 1¾ ft³), 316 stainless steel mixer. Chamber dimensions: 15¾" diameter x 15¾" long. Equipped with (4) plows on 2" diameter shaft powered by a 5.3 Hp motor, 7" diameter (12) blade chopper with 5.3 Hp drive, front mounted bolt down access door, 13" diameter x 7" deep conical charge hopper and 9" OD / 8¼" ID Tri-clamp center bottom discharge with flush mounted flow valve and 25½" ground clearance. Control panel with push button start / stop and variable speed controls. Mounted on stainless steel frame with casters.
OAD: 54"L x 43"W x 65"H
Glatt, Model TR160/02, stainless steel wet or dry granulations screener. Equipped with a 17½" diameter x 9" deep hopper and 6" diameter discharge with 17" ground clearance. Powered by a 2.95 hp drive and mounted on stainless steel stand with casters.
OAD: 42"L x 39"W x 43"H
