Tube filling equipment fills tubes with product and seals the tubes. Tube fillers and tube sealers can be made out of plastic or metal. Using a toothpaste tube as an example, a standard tube machine will take an empty tube upside down (cap pointing toward the floor), insert the product into the tubes, open upper end, and seal the tube after the product has been inserted. Different types of sealing are available for both plastic and metal tube equipment. Frain supplies these machines and this equipment for sale, rent and also buys.

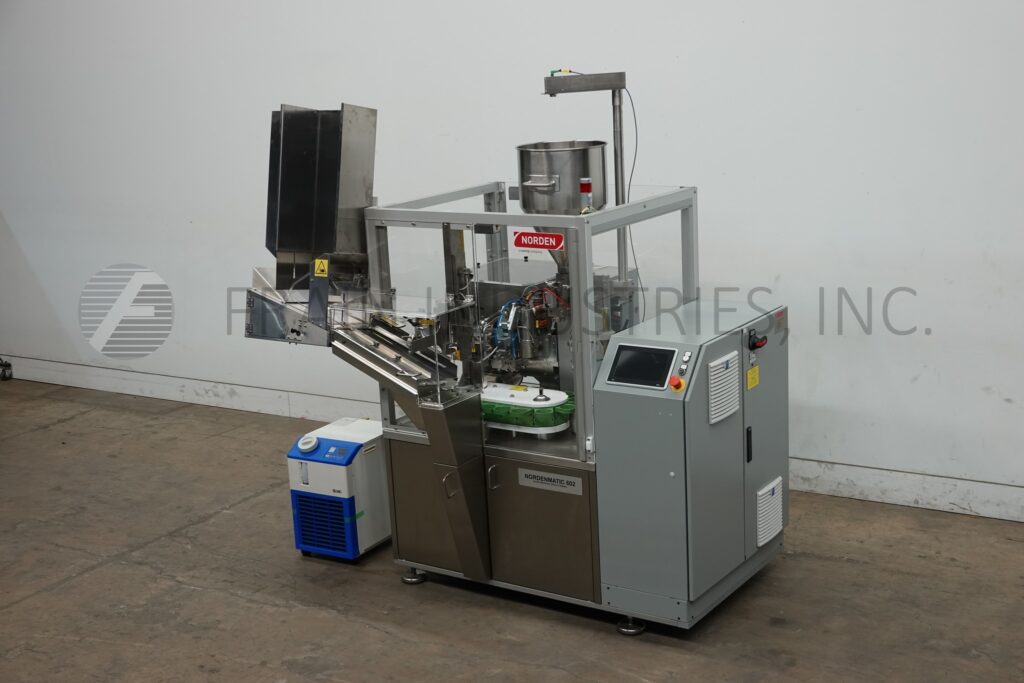

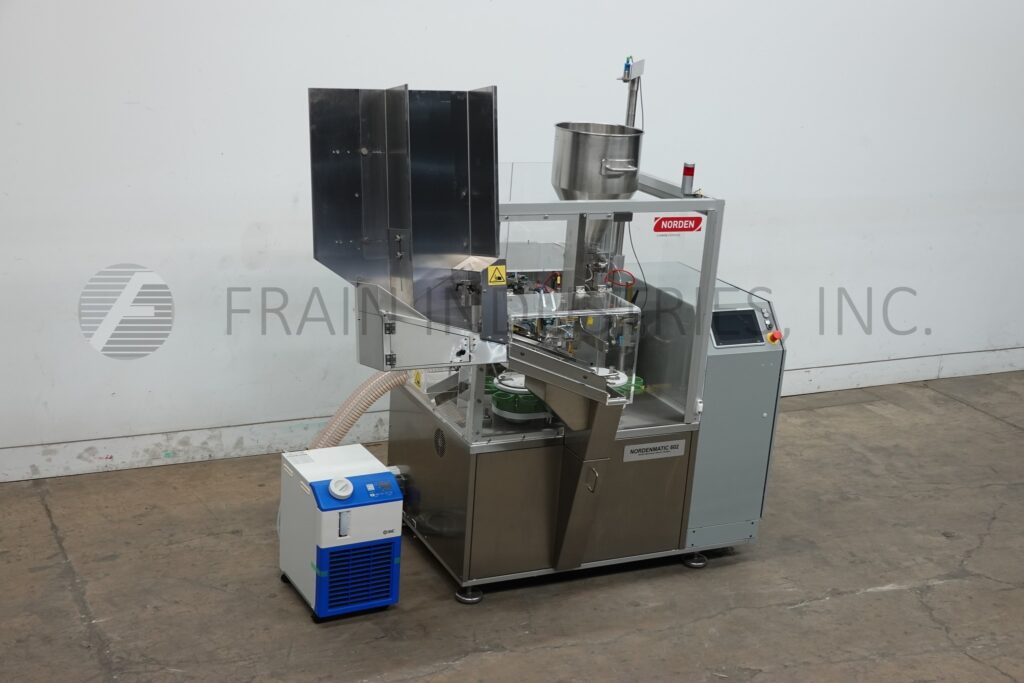

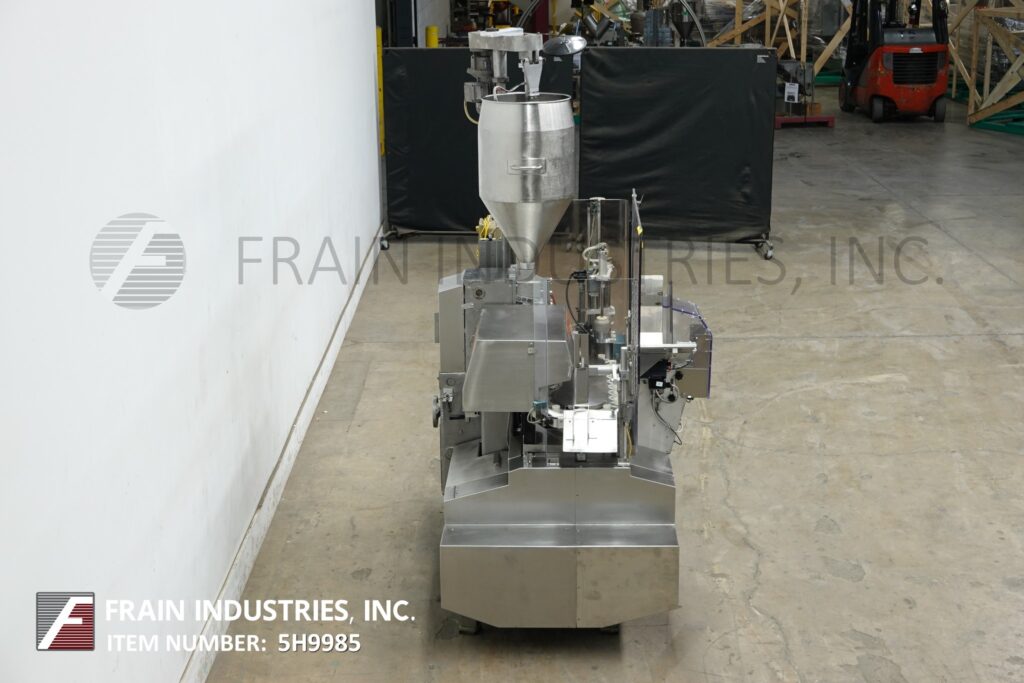

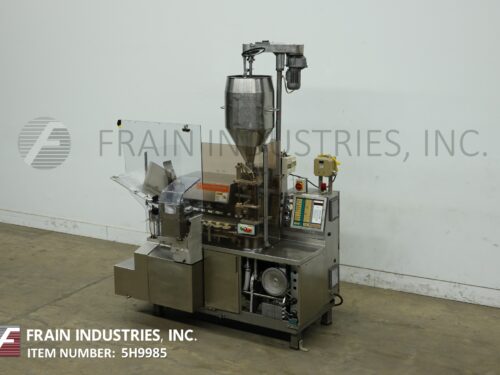

Norden 602 automatic, metal tube filler and sealer with number of tubes per minute – depending on materials and application. Tube size range: 10mm to 50mm in Diameter; 50mm to 250mm in Height. Fill size range: to 300ml Equipped with cassette style tube magazine, 18 pocket rotary turret, print registration, product hopper with level sensor, positive displacement fill station, bottom up fill, no tube / no fill, metal tube closure and faulty tube stop. Additionally features PLC controller with touch screen, 10 character code slot (able to code one or two side), E-stop, status light, interlocked guarding, stainless steel contact parts. Mounted on anodized aluminum frame with leveling legs. Change parts required to accommodate type of seal and size / fill range.
OAD: 89" L x 40" W x 88" H

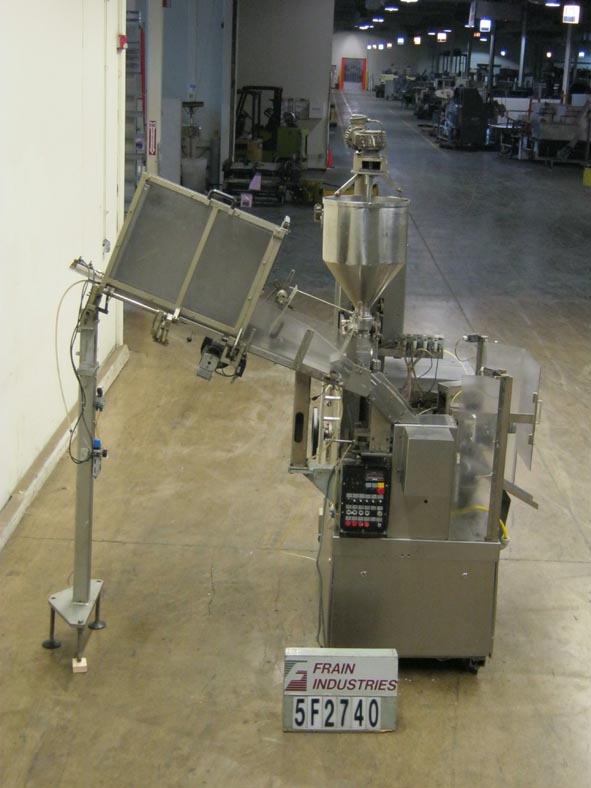

Norden Model AM1000, Automatic, stainless steel, metal tube filler and sealer rated from 20 to 100 tubes per minute and tube size: 10mm to 50mm in Diameter; 50mm to 250mm in Length with volume of fills – depending on materials, application and proper change parts. Equipped with 30" long empty tube magazine, stainless steel conical product hopper with auger and level detection, (22) 3" ID tube pockets set on 4" centers with no tube / no fill, bottom up fill and crimp fold seal. Control panel has hand / auto, run / jog switches, stirrer and heater controls with start, stop, e-stop and hand held controller. Mounted on stainless steel frame.
OAD: 78" L x 58" W x 99" H

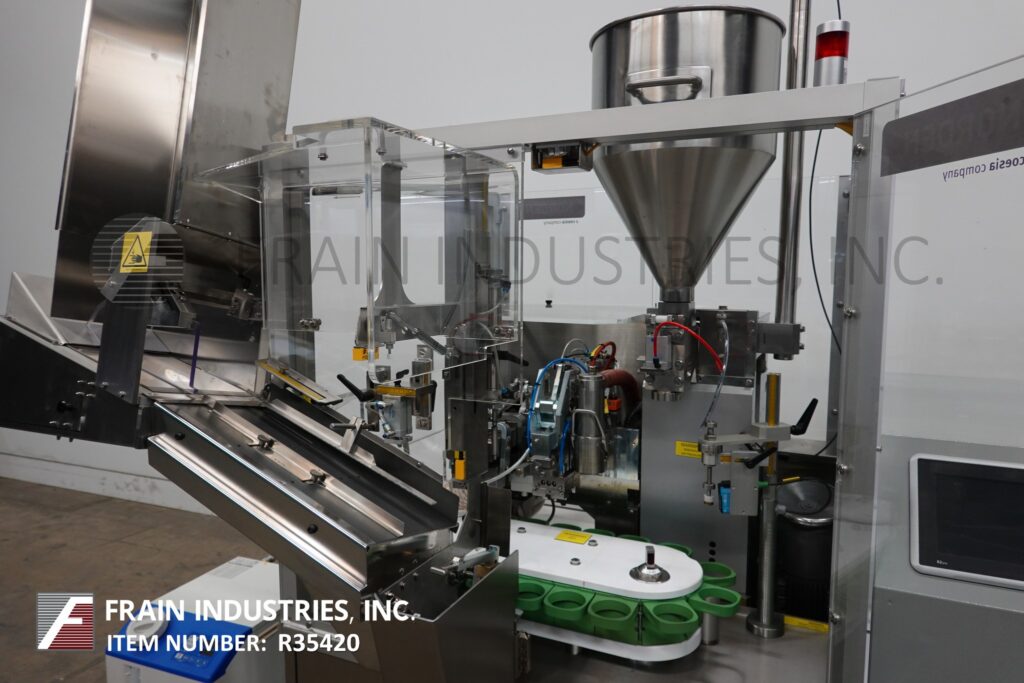

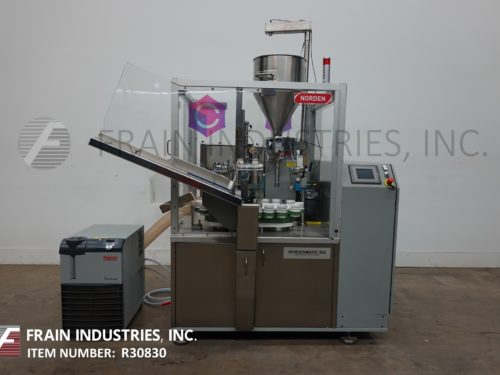

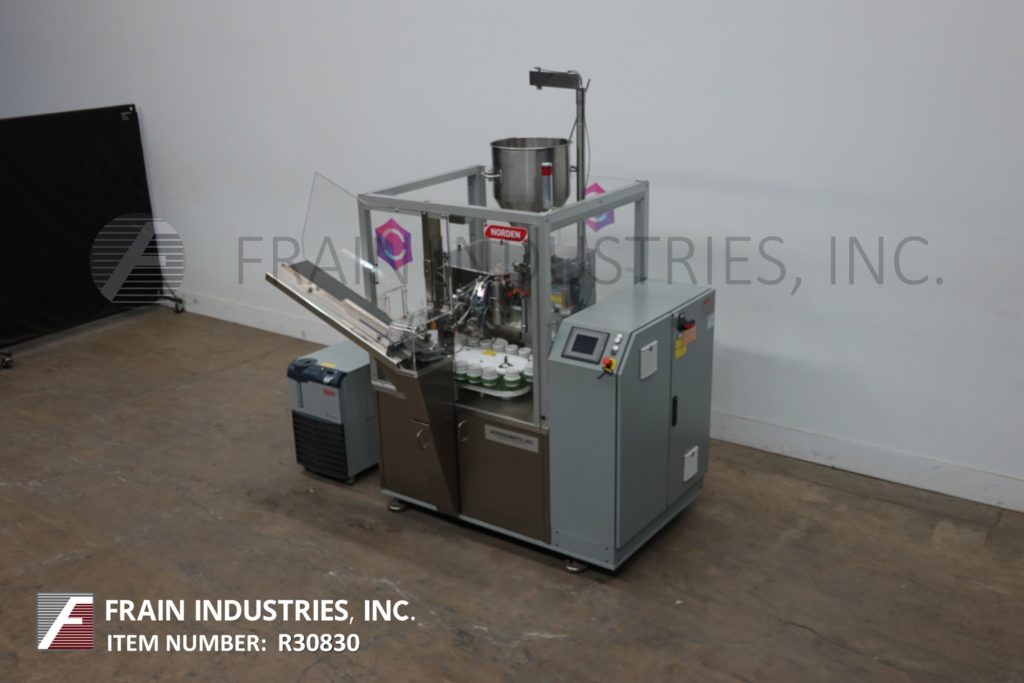

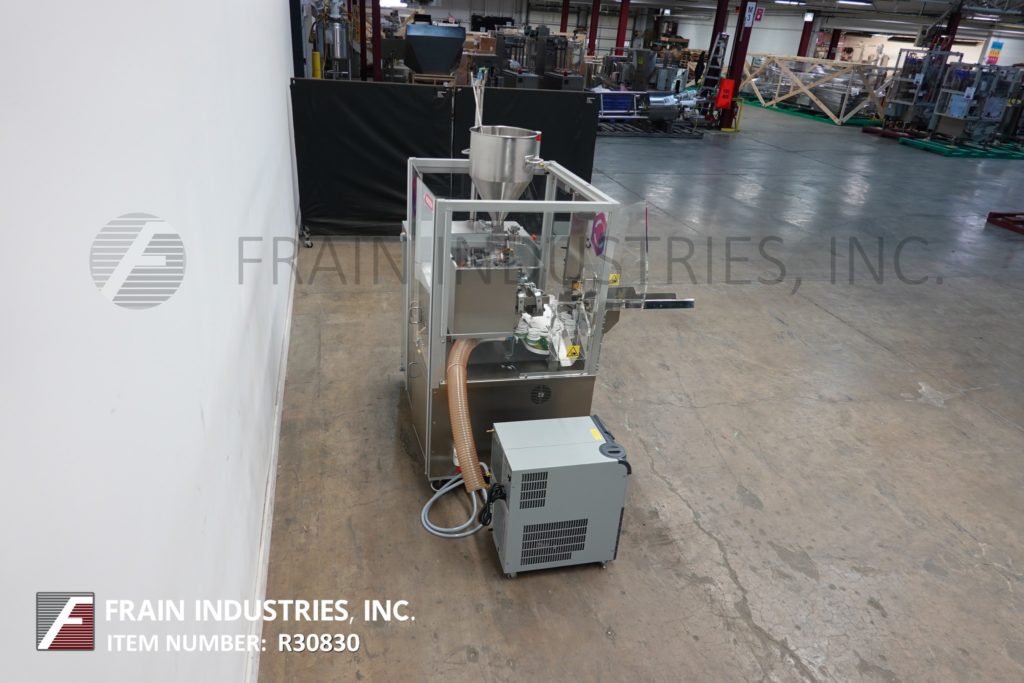

Norden, Model 602, automatic, hot air, plastic or laminate tube filler and sealer. Rated from 10 to 60 tubes per minute – depending on materials and application. Tube size range: 10mm to 50mm in Diameter; 50mm to 250mm in Height cap included. Fill size range: 1ml to 360ml (both with proper change parts). Equipped with stainless steel product hopper, cassette style empty tube magazine and feed chute,18 pocket rotary turret, tube registration and orientation, no tube / no fill, bottom up fill, hot air sealing jaws, with Thermo Scientific Thermoflex 2500 recirculating water chiller and level controller. Control panel has Norden Easyware ELAU controller with color touch screen control panel and start, stop, e-stop push buttons and statis light. Mounted on stainless steel frame with interlocking safety guarding and leveling legs.

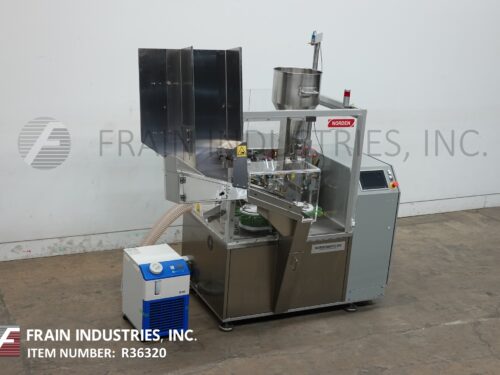

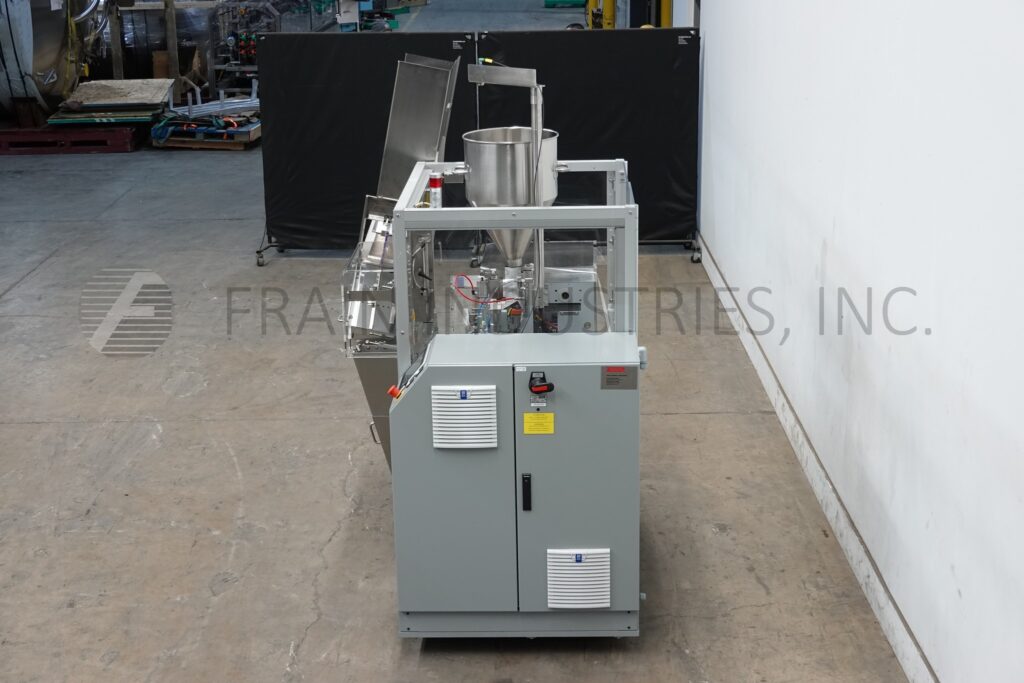

Norden Model 602, automatic, hot air, plastic or laminate tube filler and sealer rated from 10 to 40 tubes per minute – depending on materials and application. Tube size range: 10mm to 50mm in Diameter; 50mm to 250mm in Height. Fill size range: 1ml to 300ml all with proper change parts. Equipped with stainless steel product hopper, cassette style empty tube feed chute with 18 pocket rotary turret, tube registration, orientation, no tube / no fill, bottom up fill, hot air sealing jaws, with recirculating water chiller and level controller. Control panel has Norden Easyware ELAU controller with color touch screen control panel and start, stop, e-stop push buttons and statis light. Mounted on stainless steel frame with interlocking safety guarding and leveling legs.
OAD: __" L x __" W x __" H
Cotupas, Model RS58-D, semi-automatic, tube filler and sealer with number of tubes per minute – depending on materials, application and operator dexteriy. Equipped with 21" ID x 16" deep dual stacked stainless steel product hoppers and temperature probe, 24" OD rotary turret, with (12) 1-1/4" ID tube holders set on 5-1/2" centers with 1/4" OD product nozzle, bottom up fill, no tube / no fill, and ejection station. Control panel has water bath, pre-dose and purge on / off switches, with power on, start, stop, e-stop push buttons and vari-speed controller. Mounted on (4) leg base frame with height adjustable legs.
OAD: 55" L x 24" W x 68" H
Saga FS22P, Semi automatic, plastic tube filler and sealer . Tube size range: 1/4" to 2-3/16" in Diameter. Fill size: up to 9oz. Equipped with a 2.5 ft³ stainless steel product hopper, air tube cleaner, twin piston filler, fill nozzle, 22 pocket rotary turntable, hot jaw tube sealer, water cooled seal jaws and variable temperature and speed controls. Stainless steel contact parts. Mounted on height adjustable legs. Speed dependant on materials and application. Change parts required to accommodate size range.
OAD: 84" L x 60" W x 84" H

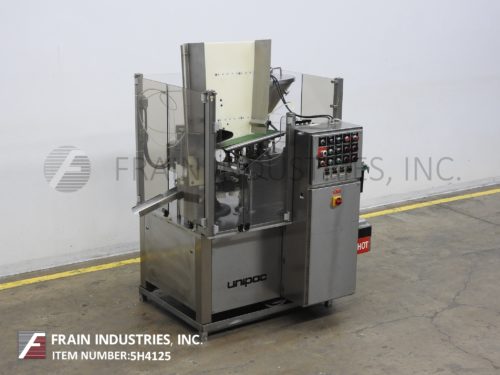

Unipac, Model Silver 80, automatic, plastic or laminate tube filler and sealer. Rated from 10 to 40 tubes per minute – depending on materials, application and machine configuration. Tube size range: 10mm to 50mm in Diameter; 50mm to 250mm in Height. Fill size range: 3ml to 450ml, Proper change parts required per different applications. Equipped with tube magazine, tube depressor, 18" ID x 20" Deep jacketed stainless steel product hopper with level detection, 12 pocket rotary turret, registration, bottom up fill, hot jaw sealing system, trim station and interlocking safety guarding. Control panel has push button start / stop and digital temperature controls. Mounted on heavy duty base frame.
OAD: 55"L x 50"W x 85"H
Norden Model AM1000, automatic, stainless steel, metal tube filler and sealer rated from 20 to 100 tubes per minute – depending on materials, application and machine configuration. Tube size range:10mm to 50mm in Diameter; 50mm to 250mm in Length with proper change parts. Equipped with empty tube magazine, stainless steel conical product hopper with level detection, tube registration, air cleaner, bottom up fill, saddle fold seal, emboss code and Control panel with e-stop. Mounted on stainless steel frame with safety guarding.
OAD: 78" L x 57" W x 90" H
IWKA TU100, Automatic, stainless steel, plastic or laminate tuber filler, sealer rated from 40 to 100 tubes per minute – depending on materials and application. Tube size: 11mm to 50mm in Diameter; 52mm to 250 mm in Height. Fill Volume: 3.5 cm³ to 377 cm³. Equipped with 100 liter stainless steel product hopper with agitation, cassette tube magazine, tube depressor, 12 pocket rotarty turret, registration, bottom up fill, no tube / no fill, heat sealing jaws, stations, cooling station, trim station with blow off scrap discharge, stainless steel tube discharge chute, variable seal temperature controls and interlocking safety guarding. Mounted on height adjustable legs.
OAD: 60" L x 48" W x 108" H

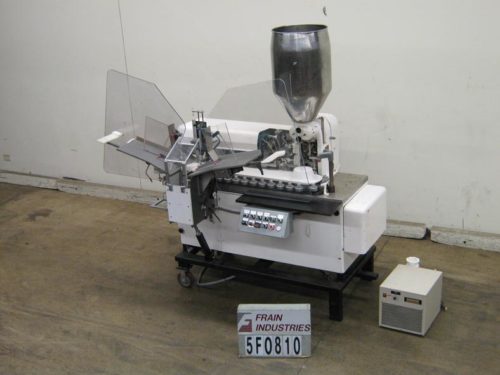

Arenco Model GAN, automatic tube filler and sealer. with number of containers per minute – depending on materials and application. Tube size: up to 1-1/2" in Diameter; up to 7-1/4" in Height. Equipped with empty tube magazine, stainless steel product hopper, 40 pocket turret, tube cleaner station, registration, 4-1/2" Long by 3/8 ID piston with 1/4" OD nozzle, bottom up fill, heat sealing, cooling jaw assembly with chiller and trim station. Control panel start, stop and e-stop controls. Mounted on base frame with casters
80" L x 48" W x 70" H
Unipac, Model Silver 100, automatic, hot air, plastic or laminate tube filler and sealer. Rated from 10 to 40 tubes per minute – depending on materials, application and machine configuration. Tube size range: 10mm to 50mm in Diameter; 50mm to 250mm in Height. Fill size range: 3ml to 230ml, Proper change parts required per application. Equipped with tube depressor, air blast cleaning, 18" ID x 20" Deep jacketed stainless steel product hopper with agitation and level detection, 16 pocket rotary turret, registration, bottom up fill, no tube / no fill, hot air sealing system with emboss coder, trim station and interlocking safety guarding. Control panel has push button start / stop and digital temperature controls. On / off switches for orientator, no product, product level, agitation, tube cleaning, blower and heater. Mounted on heavy duty base frame.
OAD: 60"L x 60"W x 87"H

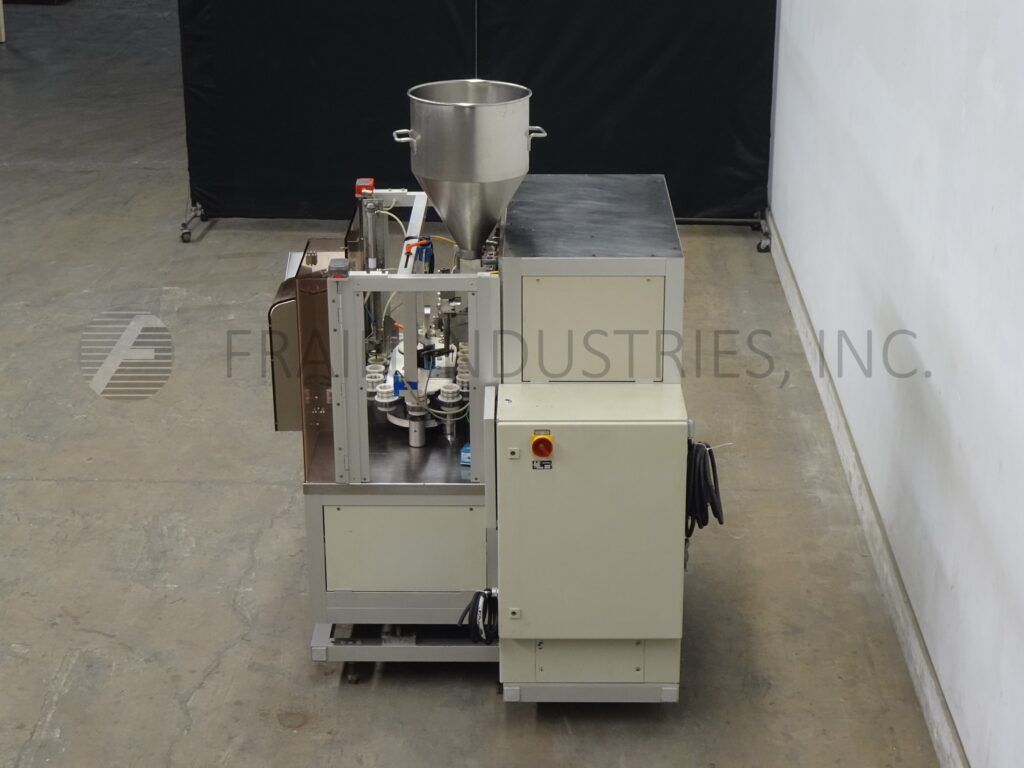

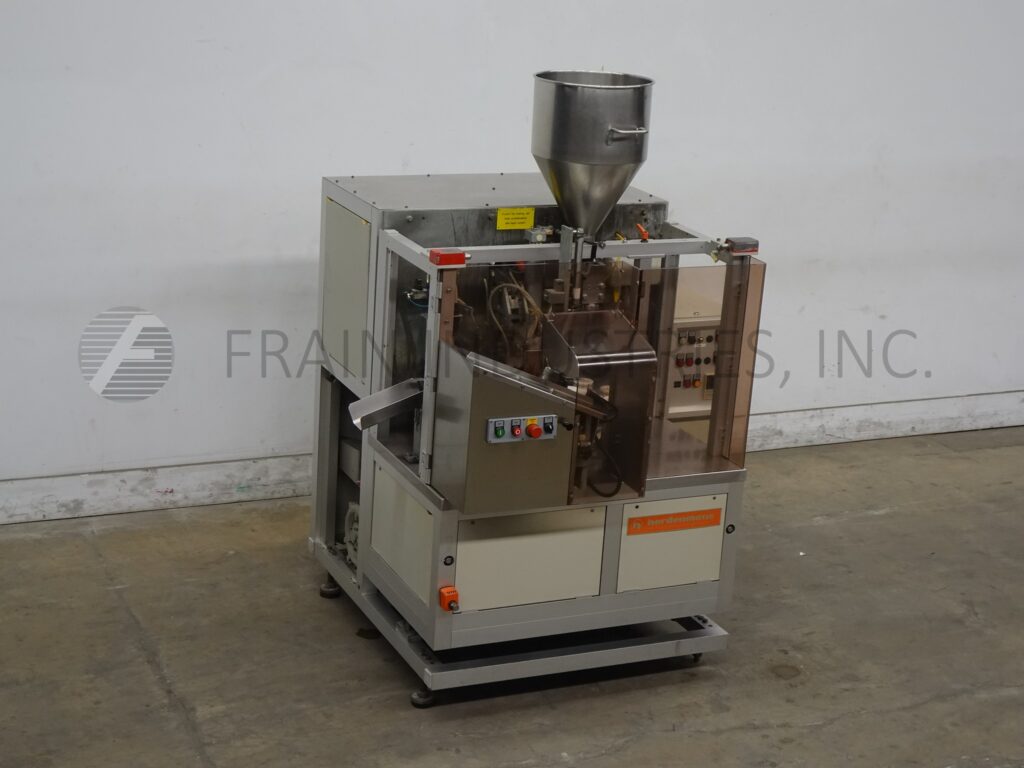

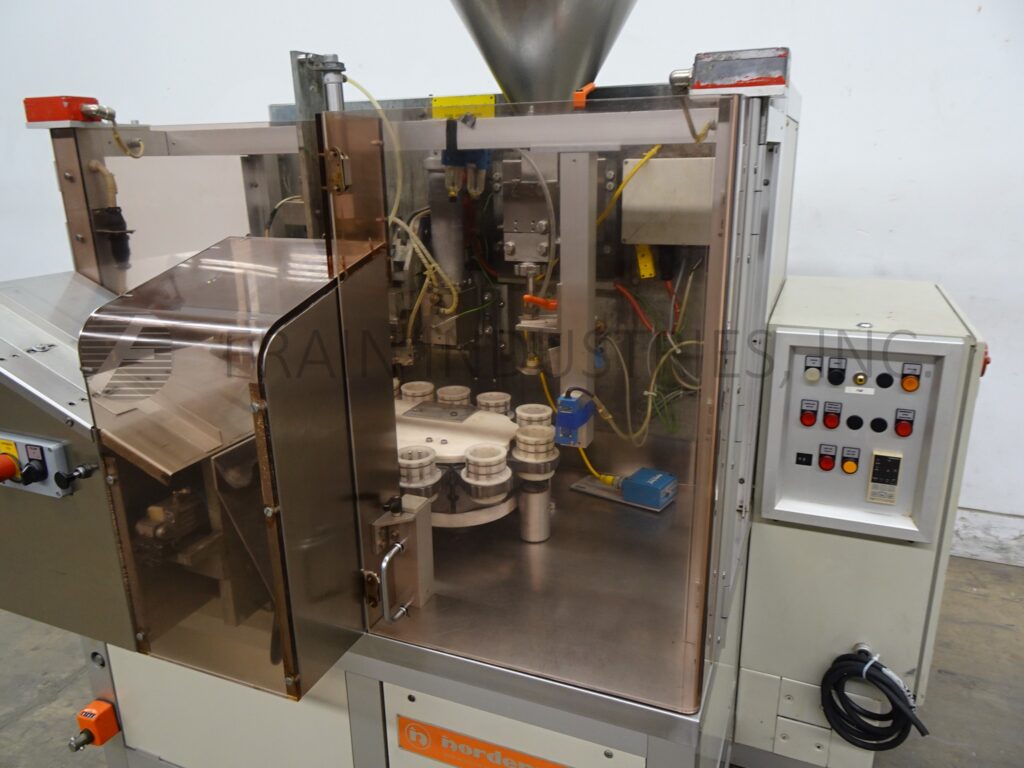

Norden, Model NM400HA, Automatic, hot air, plastic or laminate tube filler. Tube size range: 3/8" to 2" in Diameter; 2" to 10" in Height. Fill range: 1oz to 10oz. Equipped with cassette style magazine, tube depressor, 16 pocket rotary turret, registration, 16" diameter by 22" Deep stainless steel product hopper, bottom up fill, no tube / no fill, hot air sealing system, trim station and interlocking safety guarding. Control panel has an AB controller with start, stop, e-stop controls. Speed dependent on materials, application and machine configuration. Change parts required to accommodate size / fill range.
OAD: 68"L x 58"W x 83"H
