Cotuplas Filler Paste Single RS58-D

  Back to All Equipment

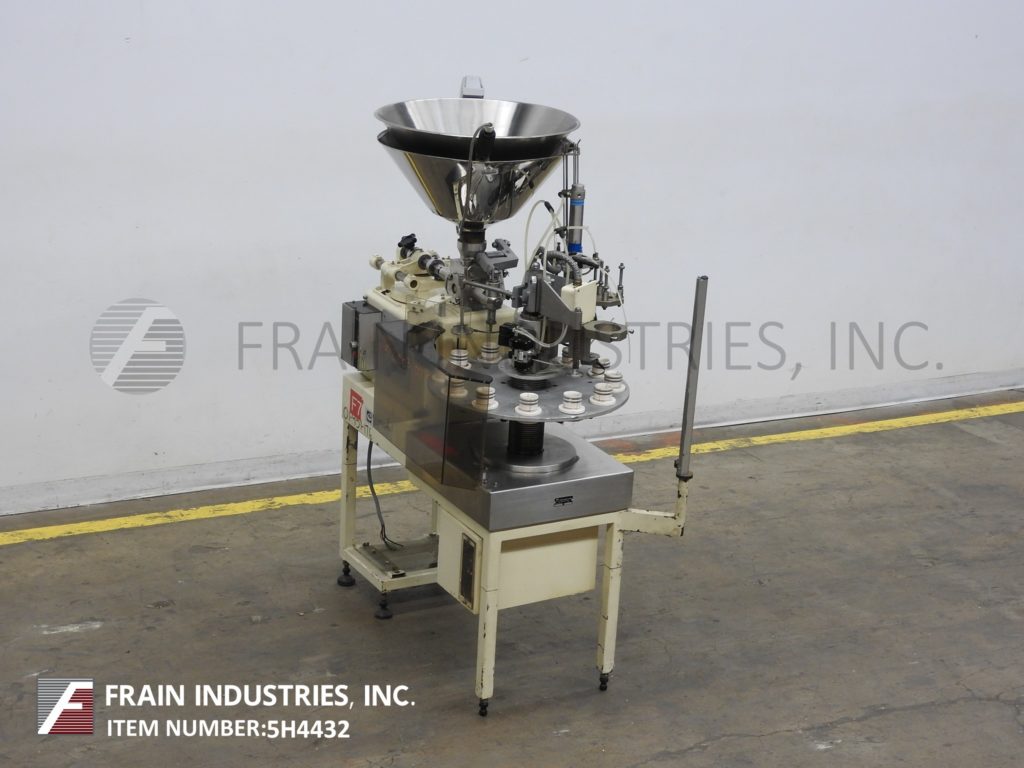

Cotupas, Model RS58-D, semi-automatic, piston filler and capper with number of tubes per minute – depending on materials, application and operator dexteriy. Equipped with 21" ID x 16" deep dual stacked stainless steel product hoppers and temperature probe, 24" OD rotary turret, with (12) 1-1/4" ID tube holders set on 5-1/2" centers with 1/4" OD product nozzle, bottom up fill, no tube / no fill, cap chute, cap placer with single head chuck style cap tighner and ejection station. Control panel has water bath, pre-dose and purge on / off switches, with power on, start, stop, e-stop push buttons and vari-speed controller. Mounted on (4) leg base frame with height adjustable legs.

OAD: 55" L x 24" W x 68" H
