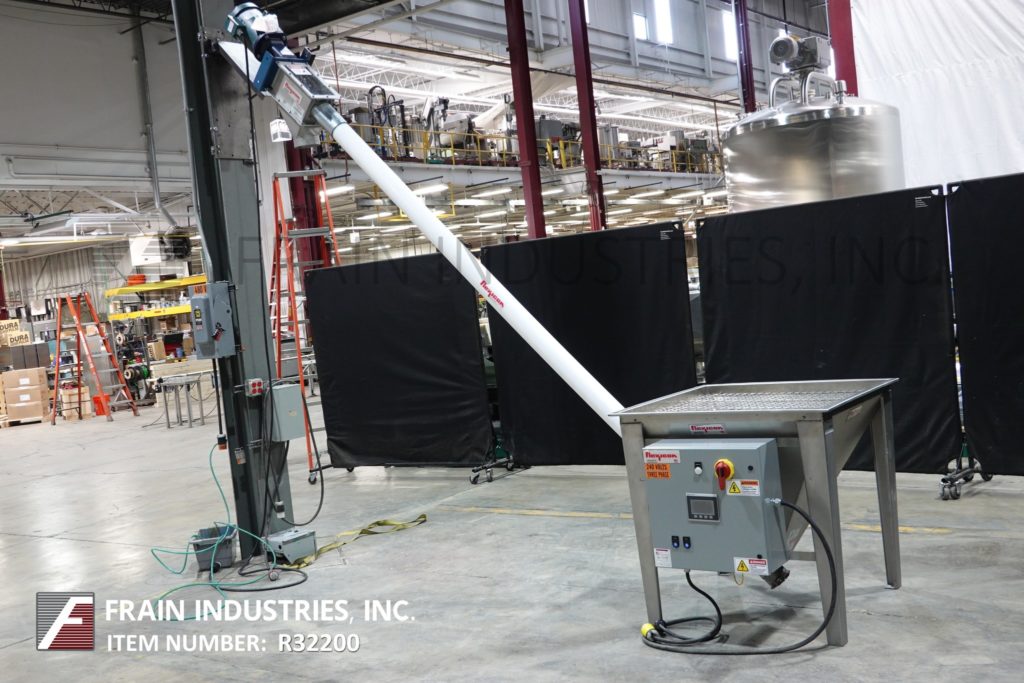

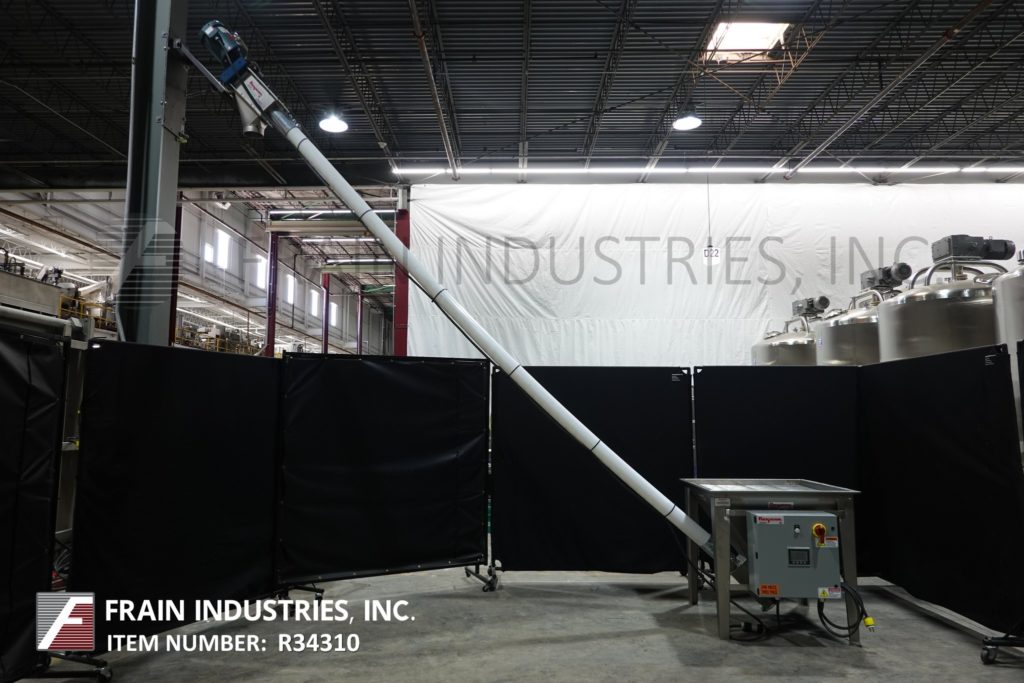

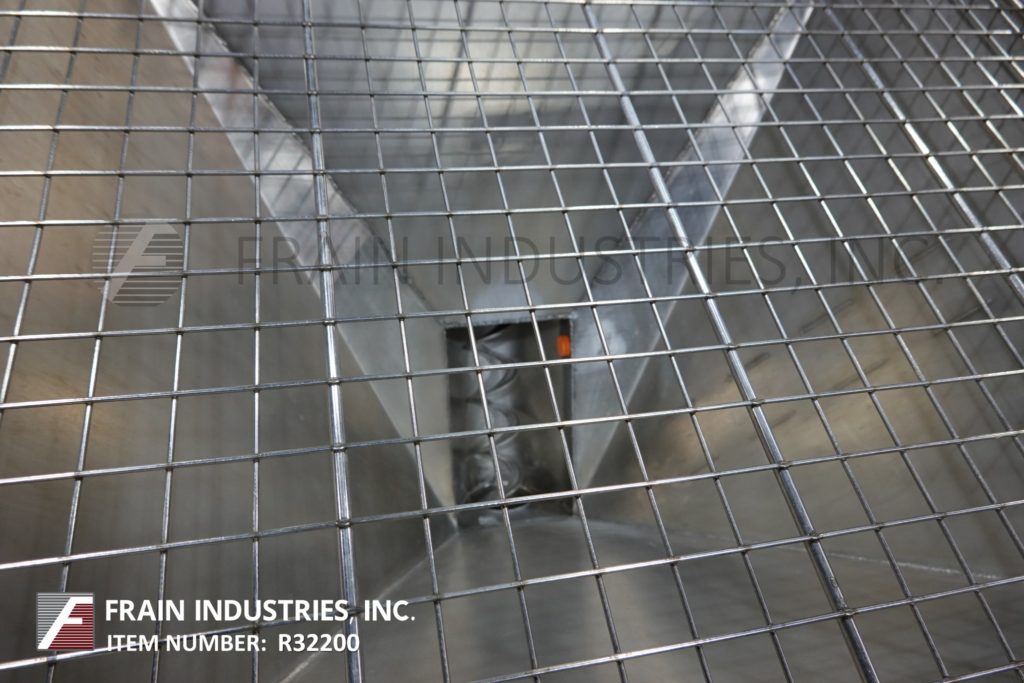

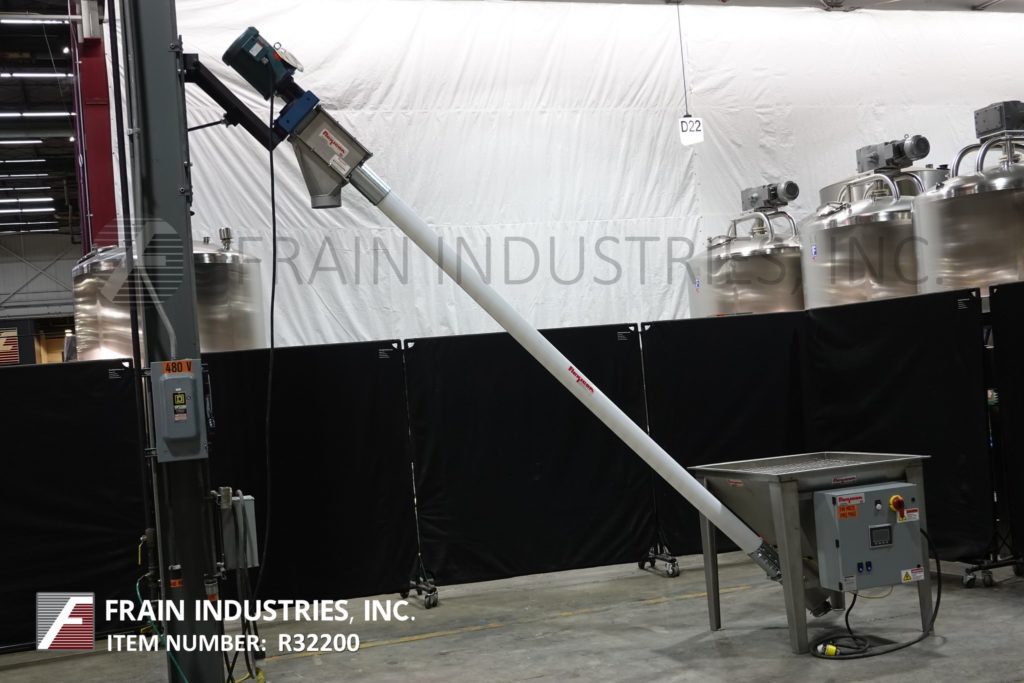

Flexicon, Model 1450, Rated up to 140 ft³ of product per hour – depending on materials, application and product density. Equipped with 30” long x 30” wide x 24” deep stainless steel agitated product hopper and cover with ½ Hp agitator drive, and mounted on (4) legs, with 3" OD x 151" long stainless steel product conveying screw, 4" OD x 120" long flexible poly tube and has top mounted 3 Hp motor drive with 6” ID product discharge port Control panel has start, stop, e-stop controls. Mounted on stainless steel Model PB1-S-X Portable base with support mast and has (2) 6" swivel casters with brake under hopper and (2) 6" rigid casters with extended length base and Tilt-Down support mast with manually actuated hydraulic jack.
OAD: 152" L x 46" W x 132" H
Flexicon, Model BFC-C, Bulk bag, super sack unloading system rated up to 135 cubic feet per hour with number bulk bags – depending on materials, application and operator dexterity. 304 stainless steel refined finish. 103" long I-beam extending 43" beyond frame with spider lift bag attachment rated to 3200 lbs. that allows lifting of various size bulk bags. Harrington 2 ton (4000 lb.) capacity powered hoist and trolley with bag massagers. Equipment with 12" diameter Tele-Tube discharge with clamp ring to secure sac chute. Mounted on heavy-duty box tube structural design frame. With Model 1450 Flexicon 10 foot long x 4½" OD screw conveyor with a discharge height of 96".
OAD: 134" L x 103" W x 200" H Bag Dumper
Flexicon, Model 1450, Rate up to 140 ft³ of product per hour – depending on materials, application and product density. Equipped with 36” long x 36” wide x 27” deep stainless steel agitated product hopper with cover and ½ Hp agitator drive, and mounted on (4) legs, with 3" OD x 151" long stainless steel product conveying screw, 4" OD x 120" long flexable poly tube and has top mounted 3 Hp motor drive with 6” ID product discharge port Control panel has start, stop, e-stop controls. Mounted on heavy duty frame.
Flexicon, Model 1450, 4" diameter x 120" long screw conveyor. Capable of transferring up to 140 ft³ of product per hour – depending on materials, application, and product density. Equipped with a 36” long x 36” wide x 27” deep product hopper with grated cover and ½ Hp agitator, 3" diameter x 151" long stainless steel product conveying screw, 4" diameter x 120" long flexable poly tube, top 3 Hp motor drive with 6” inside diameter product discharge port.
Flexicon, Model 1450, Capable of transferring up to 140 ft³ of product per hour – depending on materials, application and product density. Equipped with 30” long x 30” wide x 33” deep, 5 cubic foot stainless steel agitated product hopper with cover and ½ Hp agitator drive, and mounted on (4) legs, with 3" OD x 151" long stainless steel product conveying screw, 4" OD x 120" long flexable poly tube and has top mounted 3 Hp motor drive with 6” ID product discharge port Control panel has start, stop, e-stop controls. Mounted on stainless steel Model PB1-S-X Portable base with support mast and has (2) 6" swivel casters with brake under hopper and (2) 6" rigid casters with extended length base and Tilt-Down support mast with manually actuated hydraulic jack.
OAD: 150"L x 38"W x 132"H
Flexicon, Model 1450, Capable of transferring up to 140 ft³ of product per hour – depending on materials, application and product density. Equipped with 36” long x 36” wide x 27” deep stainless steel agitated product hopper with cover and ½ Hp agitator drive, and mounted on (4) legs, with 3" OD x 151" long stainless steel product conveying screw, 4" OD x 120" long flexable poly tube and has top mounted 3 Hp motor drive with 6” ID product discharge port Control panel has start, stop, e-stop controls.
Flexicon, Model 1450, Capable of transferring up to 140 ft³ of product per hour – depending on materials application and product density. Equipped with 18” long x 18” wide x 12” deep 1ft³ stainless steel agitated product hopper with cover and ½ Hp agitator motor drive, 3" OD x 151" long stainless steel product conveying screw, 4" OD x 120" Long flexable poly tube and has top mounted 3 Hp motor drive with 6” ID product discharge port with 88" floor clearance. Control panel touch screen HMI.
OAD: 132"L x 46"W x 124"H
Flexicon, Bulk bag, super sack unloading system rated up to 3,200 lbs. capacity with number bulk bags per hour – depending on materials, application and operator dexterity. Equipped with Harrington 2 ton powered hoist, 108" long I-beam extending 40" beyond frame, 52" x 52" spider lift bag attachment and "Flow Flexer" paddle massagers. . Mounted on heavy-duty box tube structural design frame.
OAD: 108" L x 60" W x 201" H
Flexicon, Model 1450, 4" diameter x 120" long screw conveyor. Capable of transferring up to 140 ft³ of product per hour – depending on materials, application, and product density. Equipped with a 36” long x 36” wide x 27” deep product hopper with grated cover, 3" diameter x 151" long stainless steel product conveying screw, 4" diameter x 120" long flexable poly tube, top 3 Hp motor drive with 6” inside diameter product discharge port.
Flexicon, Model 1450, 4" diameter screw conveyor rated from 10 to 60 ft³ of product per hour – depending on materials, application and machine configuration. Equipped with 36” x 36” x 28” deep product hopper with bag dump hood, 4" diameter x 108" long stainless steel screw within 4½" diameter rigid stainless steel tube and 6” diameter product discharge port with 69"discharge height. Powered by a two speed 3 / 2 Hp top drive motor. Control box features forward / reverse, stop and reset buttons. Mounted on four leg frame with locking casters.
OAD: 125"L x 42"W x 96"H
Flexicon, Model 1450, 4" diameter x 120" long screw conveyor. Capable of transferring up to 140 ft³ of product per hour – depending on materials, application and product density. Equipped with a 36” long x 36” wide x 27” deep product hopper with grated cover, 3" diameter x 151" long stainless steel product conveying screw, 4" diameter x 120" long flexable poly tube, top 3 Hp motor drive with 6” inside diameter product discharge port.
