Lee 30 Gal Triple Motion Kettle

• Manufacturer: Lee
• Model Number: 30D12T
• Frain Number: R39590

Lee, Model 30D12T, 30 gallon 316 stainless steel jacketed vacuum kettle. Vessel Dimensions: 23″ ID x 28½” deep. Equipped with a tilt out bridge mounted double motion scrape agitator powered by a 3 Hp drive, high shear agitator powered by a 5 hp direct drive, flush mounted sensor and 2″ tri-clamp style discharge with ball valve and 18″ ground clearance.

Top Fittings:
(1) 6″ Tri-Clamp
(1) 4″ Tri-Clamp
(5) 1½” Tri-Clamp

Jacket Fittings: (2) ¾” NPT

MAWP: 90 PSI @ 332° F (jacket)
MDMT: -20°F @ 90 PSI   (jacket)

MAWP: 30 PSI @ 275° F (vessel)
MDMT: -20°F @ 30 PSI   (vessel)

OAD: 86″L x 42″W x 107″H

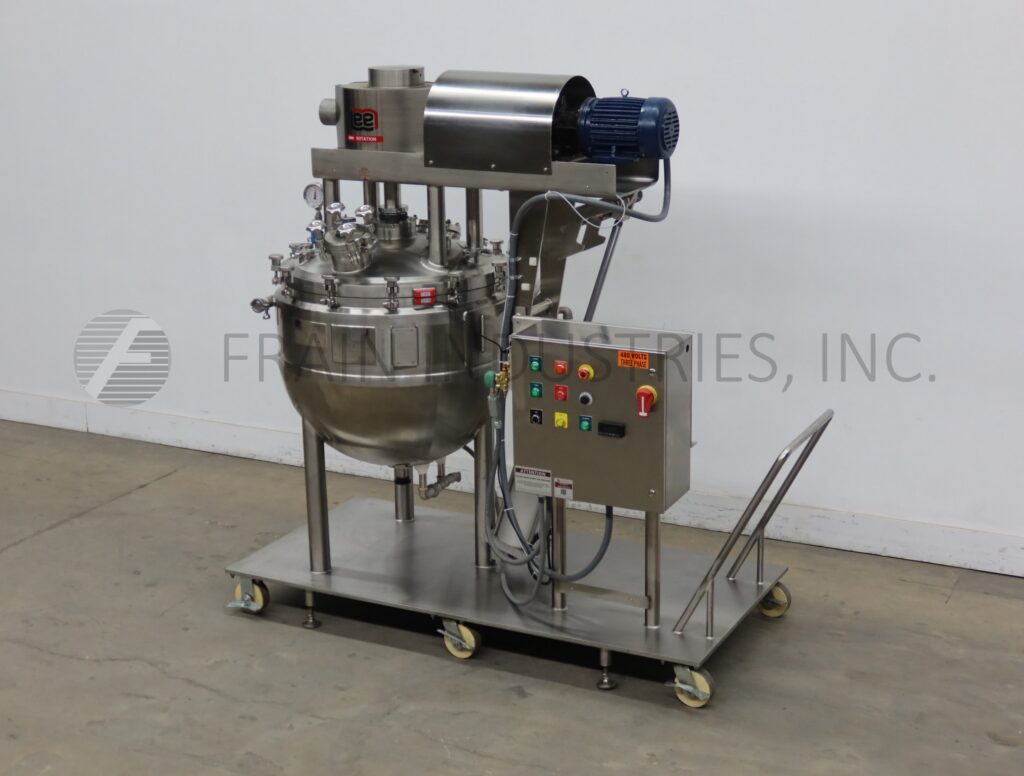

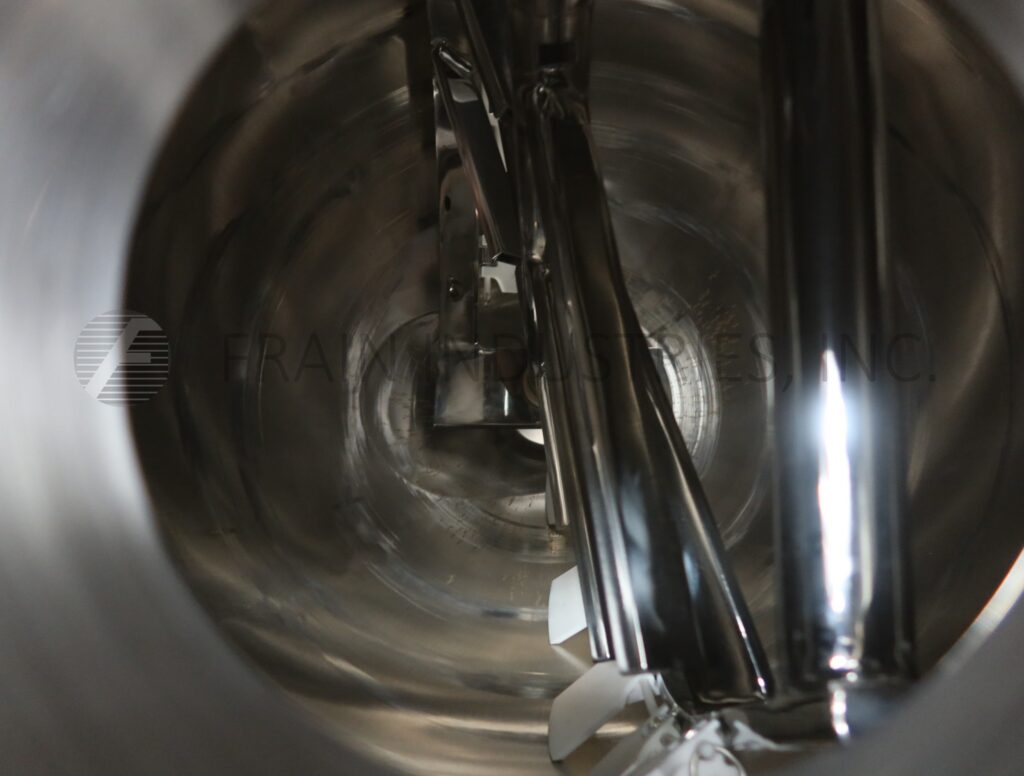

Lee Kettle Double Motion 80D9MT

• Manufacturer: Lee
• Model Number: 80D9MT
• Frain Number: R39150

Lee, Model 80D9MT, 80 gallon 316 stainless steel jacketed kettle. Vessel Dimensions: 38" ID x 30" deep. Equipped with tilt out bridge mounted double motion agitator powered by 5 Hp drive, flush mounted sensor and 2½" OD / 2"ID tri-clamp style discharge with radial diaphragm valve and 24" ground clearance.

Jacket Fittings: 1" NPT

Nat’l Brd:13223

MAWP: 90 PSI @ 332° F (jacket)
MDMT: -20°F @ 90 PSI (jacket)

MAWP: 20/FV PSI @ 250° F (vessel)
MDMT: -20°F @ 20/FV PSI (vessel)

OAD: 90"L x 48"W x 92"H

Lee Tank Processors 200 L U

• Manufacturer: Lee
• Model Number: 200 L U
• Frain Number: 5J5696

Lee, model 200 L U, 200 liter, 52.8 gallons, 316L stainless steel, jacketed and insulated, internal vacuum tank. Vessel dimensions: 26" ID x 28.69" total depth with a 24" straight wall. Equipped with a bolt down lid with hydraulic lift, magnetic prop agitation powered by a ¾ hp drive, (1) CIP ball fed by a 1" Tri-clamp, 1½" Tri-clamp discharge with butterfly valve and 15" ground clearance. Mounted on stainless steel frame with castors.

Top ports:
(1) 4" Tri-clamp
(1) 3" Tri-clamp
(7) 1½" Tri-clamp

Jacket Fittings:
(2) ¾" NPT

Vessel:
MAWP: 45 PSI @ 300°F
MDMT: -20°F @ 45 PSI

Jacket:
MAWP: 100 PSI @ 338°F
MDMT: -20°F @ 100 PSI

Nat’l Brd: 13669

OAD: 60" L x 33" W x 62" H

Lee Tank SS JKT 500 L U

• Manufacturer: Lee
• Model Number: 500 L U
• Frain Number: 5J5692

Lee, model 500 L U, 500 Litre, 132 gallon, 316 stainless steel, jacketed and insulated, internal vacuum tank. Vessel dimensions: 36" diameter x 38" deep with a 32" straight wall. Equipped with 12" bolt down manway with 1½" diameter glass viewing port, hydraulic lid lift, magnetic prop agitation powered by a ¾ hp drive, (1) thermowell, (2) CIP balls fed by 1½" Tri-clamp, (1) pressure gauge on 1½" Tri-clamp, 1½" Tri-clamp discharge with 22½" ground clearance. Mounted on stainless steel frame with castors

Top Ports:
(6) 1½" Tri-clamp

Jacket Ports:
(2) 1" NPT

Vessel:
MAWP: 45 PSI @ 300°F
MDMT: -20°F @ 45 PSI

Jacket:
MAWP: 100 PSI @ 338°F
MDMT: -20°F @ 100 PSI

Nat’l Brd: 14213

OAD: 74" L x 44" W x 86" H

Lee Tank Processors 100 L U

• Manufacturer: Lee
• Model Number: 100 L U
• Frain Number: 5J5691

Lee, model 100 L U, 100 liter, 26.4 gallon, 316L stainless steel, jacketed and insulated, internal vacuum tank. Vessel dimensions: 24" ID x 17.125" total depth with a 13" straight wall. Equipped with a bolt down lid with hydraulic lift, magnetic prop agitation, (1) CIP ball fed by a 1" Tri-clamp, thermowell, 1½" Tri-clamp discharge with 14" ground clearance. Mounted on stainless steel frame with locking castors.

Top Ports:
(1) 4" Tri-clamp
(1) 3" Tri-clamp with glass viewing port
(7) 1½" Tri-clamp

Jacket Ports:
(2) ¾" NPT

Vessel:
MAWP: 45 PSI @ 300°F
MDMT: -20°F @ 45 PSI

Jacket:
MAWP: 100 PSI @ 338°F
MDMT: -20°F @ 100 PSI

Nat’l Brd: 13668

OAD: 57" L x 32" W x 41" H

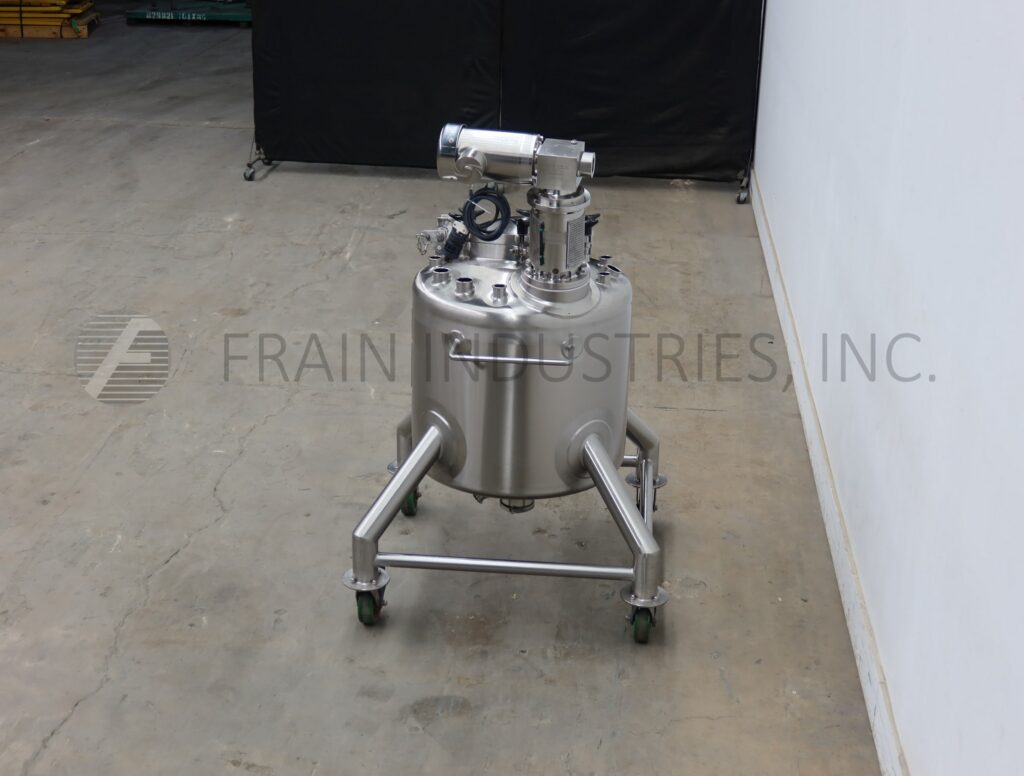

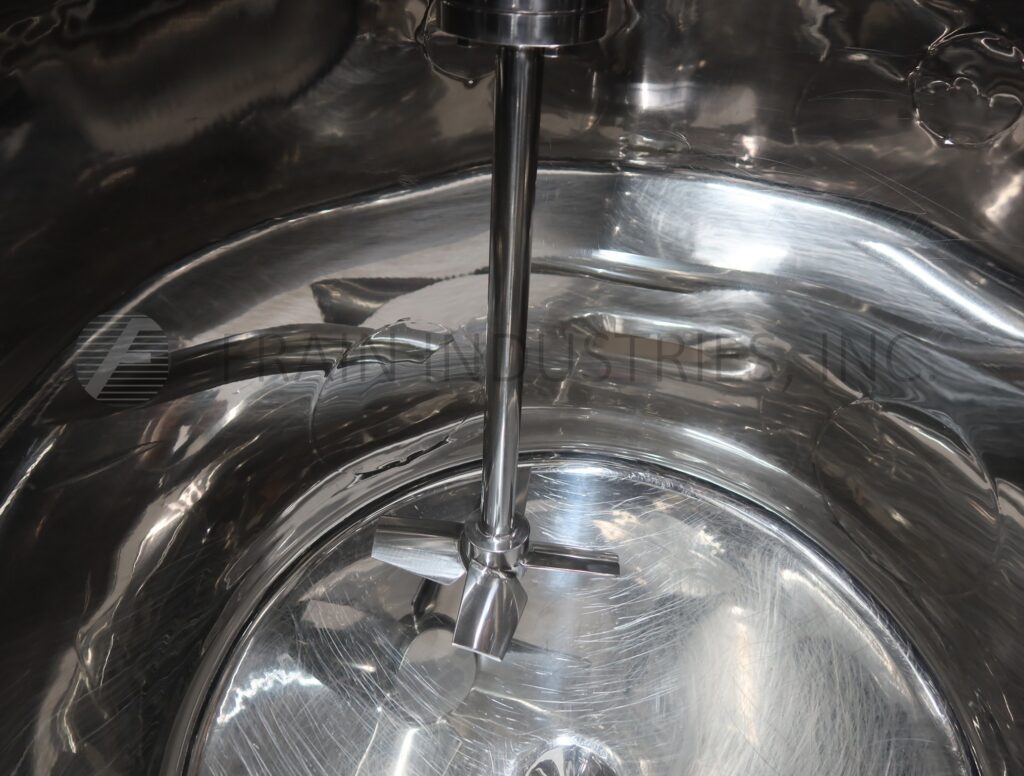

Lee Tank Reactor SS 75 DBT

• Manufacturer: Lee
• Model Number: 75 DBT
• Frain Number: 5J5680

Lee, model 75 DBT, 75 gallon (283 litres) working capacity, 316L stainless steel, single wall internal pressure reaction tank. Vessel dimensions: 31" diameter x 33½" deep with a 24" straight wall. Equipped with prop style agitation powered by top mounted 1 hp drive, 16" boltdown manway, side mounted 3¼" glass viewing port, 1½" Tri-clamp discharge with 10½" ground clearance. Mounted on tubular frame on castors.

Top ports:
(3) 2" Tri-clamp
(4) 1½" Tri-clamp

Nat’l Brd: 10411

MAWP Internal: 45 PSI @ 292°F
MDMT Internal: -20°F @ 45 PSI

OAD: 45" L x 45" W x 68" H

Lee Kettle Single Motion 225LD

• Manufacturer: Lee
• Model Number: 225LD
• Frain Number: 5J5087

Lee, Model 225LD, 225 liter 316 stainless steel jacketed kettle. Vessel Dimensions: 32" diameter x 24" deep with a 10" straight wall. Equipped with prop agitation powered by a ¼ hp drive, flip up cover and 1½" tri-clamp center bottom discharge with ball valve and 15" ground clearance. Mounted on (4) tubular leg frame with locking casters.

Top Access:
(1) 1½"ID Tri-Clamp

Jacket Fittings:
(2) ¾" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 14550

OAD: 35"L x 35"W x 65"H

Lee Kettle Single Motion 225LD

• Manufacturer: Lee
• Model Number: 225LD
• Frain Number: 5J5088

Lee, Model 225LD, 225 liter 316 stainless steel jacketed kettle. Vessel Dimensions: 32" diameter x 24" deep with a 10" straight wall. Equipped with prop agitation powered by a ¼ hp drive, flip up cover and 1½" tri-clamp center bottom discharge with ball valve and 15" ground clearance. Mounted on (4) tubular leg frame with locking casters.

Top Access:
(1) 1½"ID Tri-Clamp

Jacket Fittings:
(2) ¾" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 14560

OAD: 35"L x 35"W x 65"H

Lee Kettle Single Motion 225LD

• Manufacturer: Lee
• Model Number: 225LD
• Frain Number: 5J5082

Lee, Model 225LD, 225 liter 316 stainless steel jacketed kettle. Vessel Dimensions: 32" diameter x 24" deep with a 10" straight wall. Equipped with prop agitation powered by a ¼ hp drive, flip up cover and 1½" tri-clamp center bottom discharge with ball valve and 15" ground clearance. Mounted on (4) tubular leg frame with locking casters.

Top Access:
(1) 1½"ID Tri-Clamp

Jacket Fittings:
(2) ¾" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 14573

OAD: 35"L x 35"W x 65"H

Lee Kettle Single Motion 225LD

• Manufacturer: Lee
• Model Number: 225LD
• Frain Number: 5J5083

Lee, Model 225LD, 225 liter 316 stainless steel jacketed kettle. Vessel Dimensions: 32" diameter x 24" deep with a 10" straight wall. Equipped with prop agitation powered by a ¼ hp drive, flip up cover and 1½" tri-clamp center bottom discharge with ball valve and 15" ground clearance. Mounted on (4) tubular leg frame with locking casters.

Top Access:
(1) 1½"ID Tri-Clamp

Jacket Fittings:
(2) ¾" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 14551

OAD: 35"L x 35"W x 65"H

Lee Kettle Single Motion 225LD

• Manufacturer: Lee
• Model Number: 225LD
• Frain Number: 5J5085

Lee, Model 225LD, 225 liter 316 stainless steel jacketed kettle. Vessel Dimensions: 32" diameter x 24" deep with a 10" straight wall. Equipped with prop agitation powered by a ¼ hp drive, flip up cover and 1½" tri-clamp center bottom discharge with ball valve and 15" ground clearance. Mounted on (4) tubular leg frame with locking casters.

Top Access:
(1) 1½"ID Tri-Clamp

Jacket Fittings:
(2) ¾" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 14572

OAD: 35"L x 35"W x 65"H

Lee Kettle Single Motion 225LD

• Manufacturer: Lee
• Model Number: 225LD
• Frain Number: 5J5086

Lee, Model 225LD, 225 liter 316 stainless steel jacketed kettle. Vessel Dimensions: 32" diameter x 24" deep with a 10" straight wall. Equipped with prop agitation powered by a ¼ hp drive, flip up cover and 1½" tri-clamp center bottom discharge with ball valve and 15" ground clearance. Mounted on (4) tubular leg frame with locking casters.

Top Access:
(1) 1½"ID Tri-Clamp

Jacket Fittings:
(2) ¾" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 14575

OAD: 35"L x 35"W x 65"H
