Ohlson Machines


Ohlson Machines In Stock

Ohlson Scale Linear 2XL2SS

  • Manufacturer: Ohlson
  • Model Number: 2XL2SS
  • Frain Number: R28870

Ohlson Model 2XL2, automatic, stainless steel, (2) scale, weighing system with inclined cleated feeder capable of weighing from 10lbs to 50lbs and up to 20 weighments per minute with number of bags or containers per hour – depending on materials. application and machine configuration. Equipped with 36" wide x 36" wide x 26" deep stainless steel floor level product hopper with 32" long x 16" wide product feed chute, stainless steel cleated incline conveyor with 28" in feed section and 176" long x 19" wide inclined cleated conveyor section with 2" high cleats set on 10-1/4" centers, to Ohlson Model 2XL2 dual lane, bulk / trickle scale capable of weighs up to 200 lbs (100 lbs per lane). 1-3/4 cu.ft. (3000 cu.in.) weigh buckets, (2) 30" long x 15" wide x 6" dep vibratory pans per lane and 98" long x 12" wide discharge conveyor. Control panel has PLC Controller with panel view and start, stop, work on and e-stop push buttone and auto / manual switch. All mounted on stainless steel base frames.

OAD: 272" L x 112" W x 129" H System

Get a Free Quote Call: 630-629-9900

Ohlson Scale Combination 14 HEAD

  • Manufacturer: Ohlson
  • Model Number: 14 HEAD
  • Frain Number: R27960

PART OF COMPLETE LINE R27960A

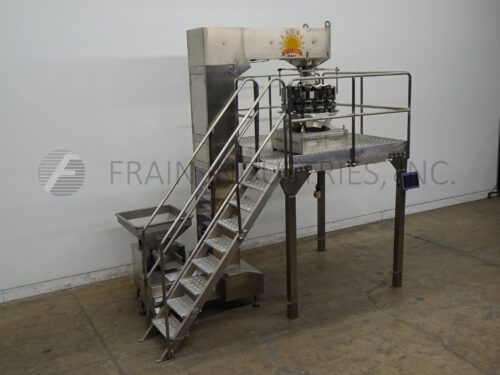

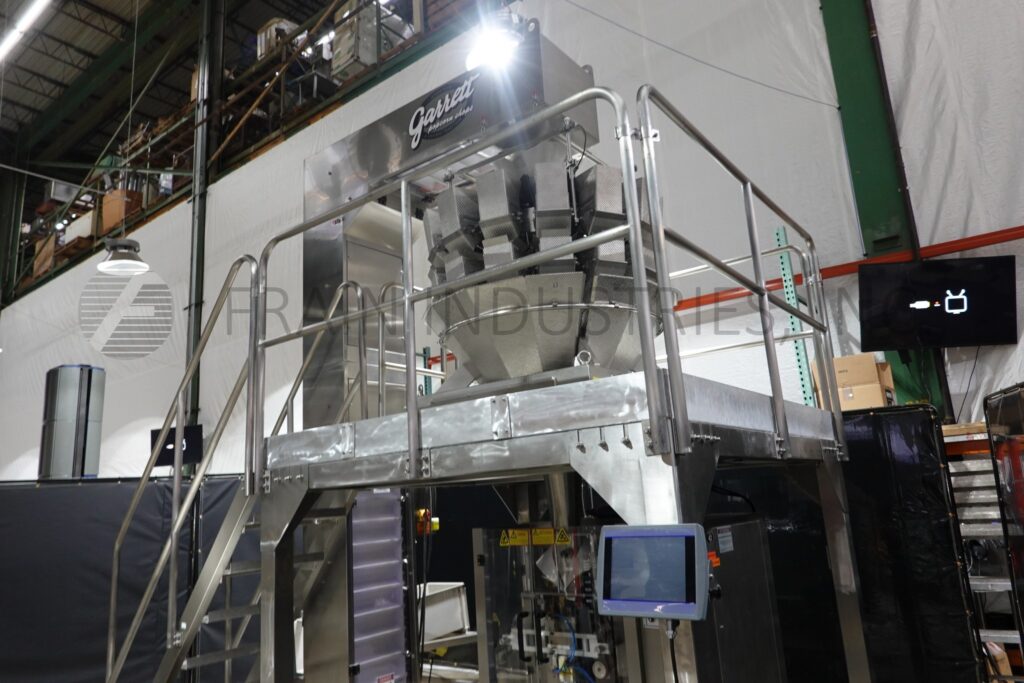

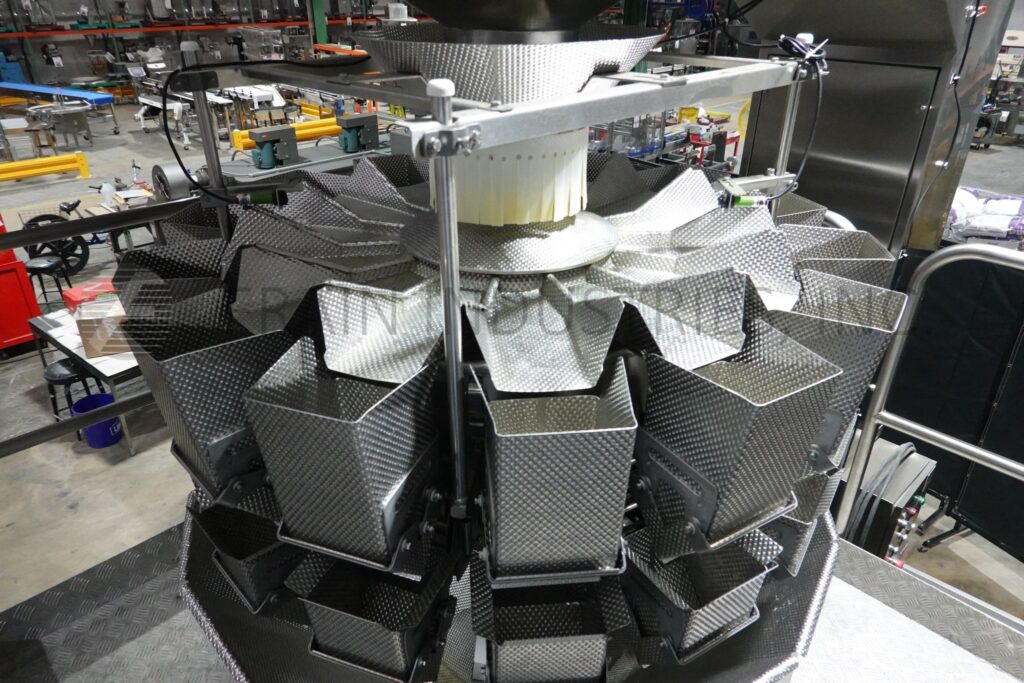

Ohlson, Model 14 head, rotary combination, weigh scale. Capable of doing 5 to 120 weighs per minute – depending on materials, application and machine configuration. Equipped with strain gauge load cells, weight capacity range of: 10 to 3000 grams with an accuracy of ± 1 gram. Equipped with (14) 11½" long stainless steel vibratory feed conveyors, (14) 6" long x 4¾" wide x 8" deep stainless steel weigh buckets, (14) 6" long x 4¾" wide x 6" deep stainless steel feed buckets and dual chute discharge. Scale is mounted on a 78" x 78" stainless steel platform with stair access and safety rail. Supplied by a bucket elevator with a 31½" long x 31½" wide x 19" deep hopper with 27" long x 9" wide vibratory conveyor, 15" long x 4½" wide x 2½" deep plastic buckets, 26" long bottom horizontal run, 120" vertical run, 16" wide body, 60" top horizontal run with a 122" high discharge. Combination scale is controlled by a touch screen interface. Hopper and bucket elevator with push button start / stop, auto / manual switch and variable speed control. Height of bucket elevator 165".

Get a Free Quote Call: 630-629-9900

Ohlson Complete Line Snack 14 HEAD/FFS

  • Manufacturer: Ohlson
  • Model Number: 14 HEAD/FFS
  • Frain Number: R27960A

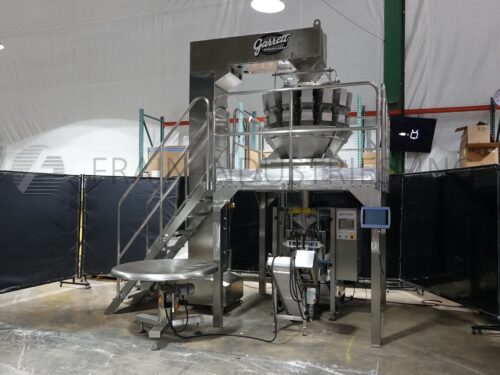

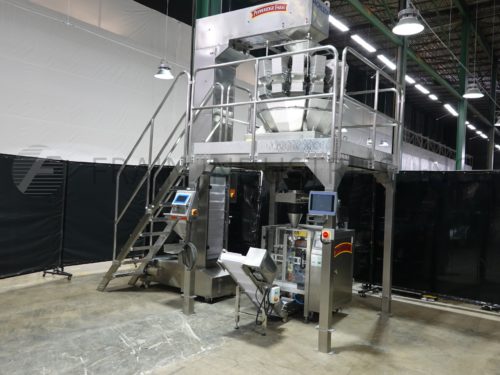

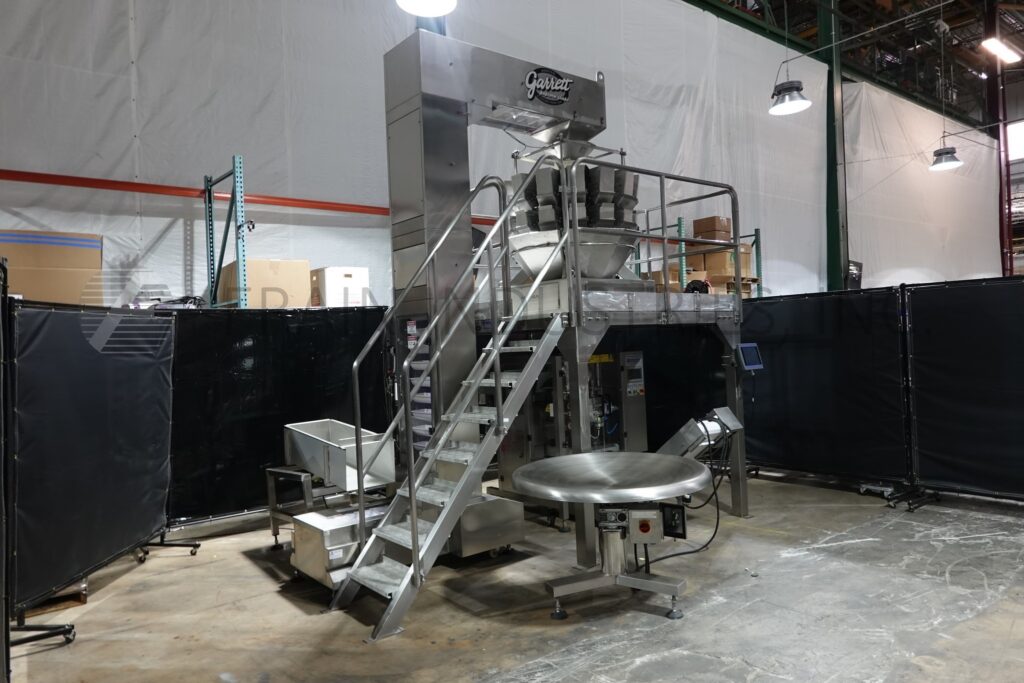

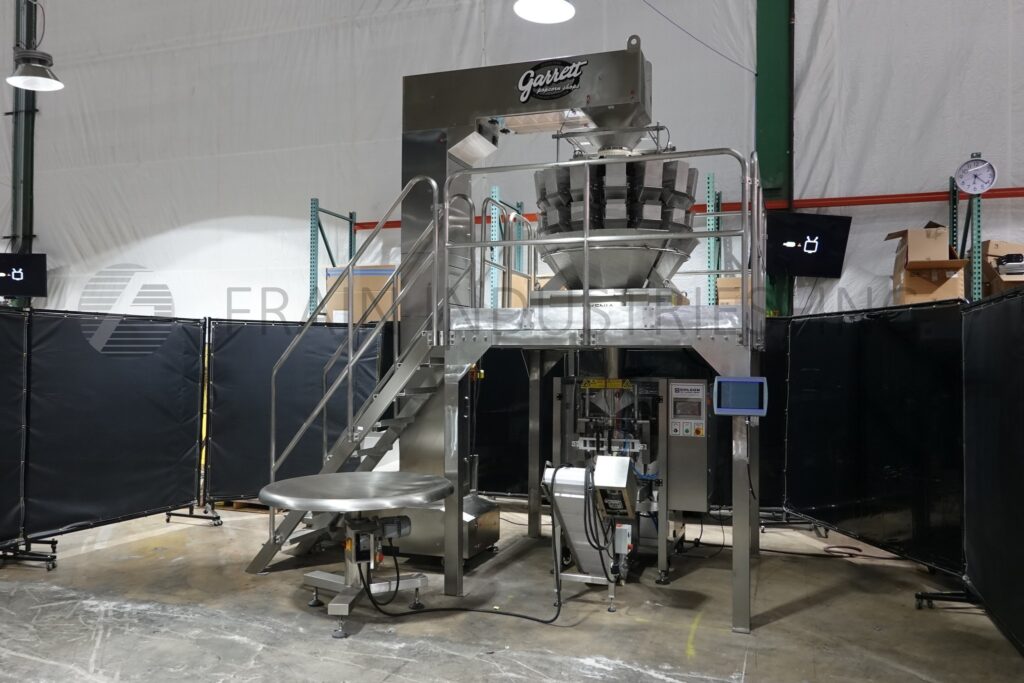

Ohlson, Complete form, fill, seal line with 14 head, combination weigh scale system, rated from 5 to 80 weighs per minute with number of bags – depending on materials and application. All stainless steel construction. Consists of Ohlson 14 head rotary combination weigh scale system with strain gauge load cells, weight capacity range: 10 to 3000 grams and accuracy of ± 1 gram. (14) 11½" long stainless steel vibratory product feed conveyors to (14) 6" long x 4¾" wide x 8" deep stainless steel weigh buckets, to (14) 6" long x 4¾" wide x 6" deep stainless steel feed buckets with dual discharge chutes. Ohlson Model VFFX-539, stainless steel, continous motion, vertical form, fill, seal machine. Bag size range: 3" to 9" in Width; 2" to 11" in length. Has dual side film positioning belts, servo drive motor, film detection, tracking and registration with 10" wide seal jaws and 11" long lap seal. Maximum film roll: 15" OD x 19.5" Wide. Come with product bucket elevator with 27" long x 9" wide vibratory product feed conveyor, 31½" long x 31½" wide x 19" deep product hopper and 15" long x 4½" wide x 2½" deep plastic buckets. 60" long incline cleated discharge conveyor with 10" wide white flexlink belt and 1" high lugs set on 9" centers to 46" OD disc accumulator. 80" long x 80" wide x 83" high stainless steel platform with access stairs and 42" high safety guard rails.

OAD: 180" L x 168" W x 164" H

Get a Free Quote Call: 630-629-9900

Ohlson Form & Fill Scale VFFX-539

  • Manufacturer: Ohlson
  • Model Number: VFFX-539
  • Frain Number: R28510

PART OF COMPLETE LINE R27960A
Ohlson Model VFFX-539, automatic, stainless steel, continuous motion, vertical form, fill, seal machine. Rated from 20 to 100 bags per minute – depending on materials, application and machine configuration. Bag size range: 3" to 9" in Width; 2" to 11" in length with proper change parts. Equipped with 11" long lap seal, 10" wide seal jaw, with dual side auto film positioning belts, horizontal seal actuator with high speed servo drive motor, film detection and tracking, registration with servo driven film advance. Maximum film roll size: 15" OD x 19.5" Wide. Touch pad controller and E-stop. Mounted on stainless steel base frame with interlocking Lexan guarding and leveling legs. 60" long incline cleated discharge conveyor has 10" wide white flex link belt with 1" high lugs on 9" centers and 46" OD stainless steel disc accumulator both with start, e-stop push button controls.

OAD: 60" L x 48" W x 70" H Bagger
60" L x 20" W x 40" H Inclined Conveyor
46" L x 46" W x 32" H Accumulator

Get a Free Quote Call: 630-629-9900

Ohlson Scale Combination 10 HEAD

  • Manufacturer: Ohlson
  • Model Number: 10 HEAD
  • Frain Number: R25660

10) Ten Weigh Scales With Strain Gauge Load Cell
(10) Ten Feed Buckets And (10) Ten Weigh Buckets
All Product Handling Parts Of Heavy Duty Highly Polished Stainless Steel
(10) Ten Drive Unit/Weighing Mechanism Modules accurate to 0.1 gram
Ring Gate Infeed Assembly To Assist Product Feed Control
Weigher Base Welded Body Construction
All Microprocessor And Electronic Control Hardware Is Contained Within The Weigher Base And Remote Control Unit
Remote TFT Color Touch Screen Display
(100) One Hundred Product Programs
Battery Backup Memory

Get a Free Quote Call: 630-629-9900

Ohlson Scale Combination MHW10F

  • Manufacturer: Ohlson
  • Model Number: MHW10F
  • Frain Number: R27510

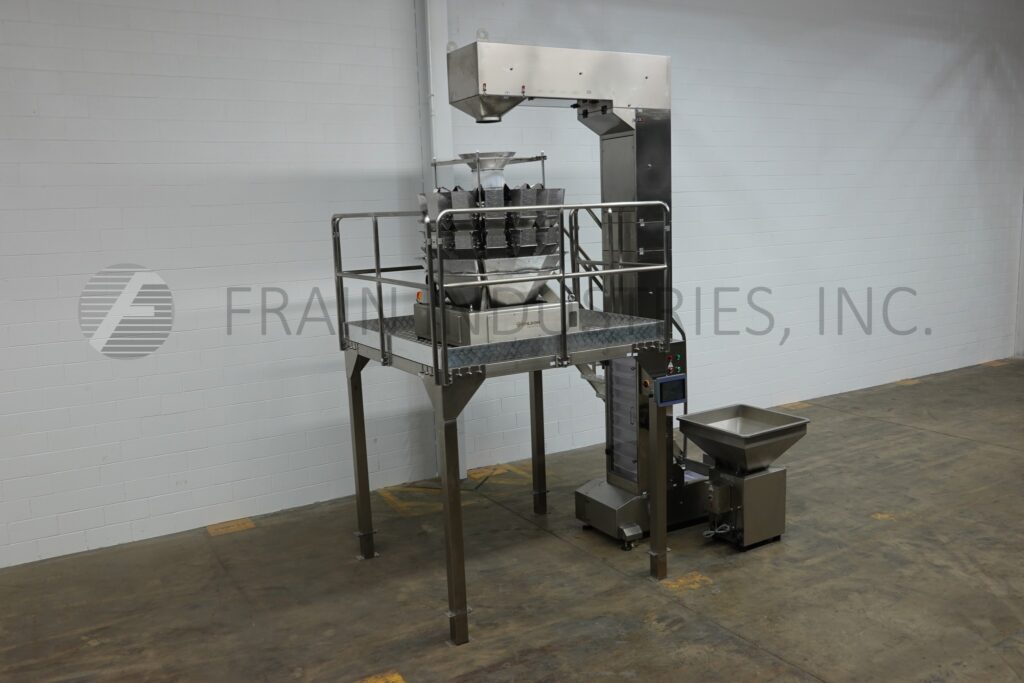

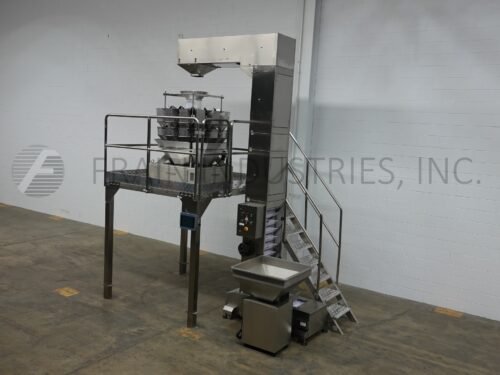

Ohlson, Model MHW10F, 10 head, rotary combination, weigh scale system with integrated vibratory hopper feeder, bucket elevator and platform. Capable of doing 5 to 80 weighs per minute – depending on materials, application and machine configuration. Equipped with strain gauge load cells, weight capacity range of: 25 to 500 grams with an accuracy of ± 1 gram. Equipped with (10) 11½" long stainless steel vibratory feed conveyors, (10) 6" long x 4¾" wide x 8" deep stainless steel weigh buckets, (10) 6" long x 4¾" wide x 6" deep stainless steel feed buckets and single chute discharge with 60" ground clearance. Scale is mounted on a 78" x 78" stainless steel platform with stair access and safety rail. Supplied by a bucket elevator with a 31½" long x 31½" wide x 19" deep hopper with 27" long x 9" wide vibratory conveyor, 15" long x 4½" wide x 2½" deep plastic buckets, 26" long bottom horizontal run, 120" vertical run, 16" wide body, 60" top horizontal run with a 122" high discharge. Combination scale is controlled by a touch screen interface. Hopper and bucket elevator with push button start / stop, auto / manual switch and variable speed control.

OAD: 120"L x 87"W x 118"H (Scale and Platform)
OAD: 110"L x 35"W x 139"H (Elevator)
OAD: 43"L x 33"W x 45"H (Hopper)

Get a Free Quote Call: 630-629-9900

Ohlson Scale Combination 10 HEAD

  • Manufacturer: Ohlson
  • Model Number: 10 HEAD
  • Frain Number: R25661

PART OF COMPLETE LINE

10) Ten Weigh Scales With Strain Gauge Load Cell
(10) Ten Feed Buckets And (10) Ten Weigh Buckets
All Product Handling Parts Of Heavy Duty Highly Polished Stainless Steel
(10) Ten Drive Unit/Weighing Mechanism Modules accurate to 0.1 gram
Ring Gate Infeed Assembly To Assist Product Feed Control
Weigher Base Welded Body Construction
All Microprocessor And Electronic Control Hardware Is Contained Within The Weigher Base And Remote Control Unit
Remote TFT Color Touch Screen Display
(100) One Hundred Product Programs
Battery Backup Memory

Get a Free Quote Call: 630-629-9900

Ohlson Scale Linear 3M2

  • Manufacturer: Ohlson
  • Model Number: 3M2
  • Frain Number: R25550

Ohlson Model 3M2, Three lane, stainless steel, weigh scale system rated from 5 to 30 weighments per minute – depending on materials and application. Weight range: 1oz to 5 lbs with accuracies of +/- 0.5 to 1.0 grams. Equipped product hopper, 16" by 7" by 3" feed pans, dual accumulation buckets, product funnel and discharge chute with 32" of floor clearance. PLC with100 programs storage and operator interface. Foot pedal activation. Heads can be programmed independently and capable of running 2 separate products and discharge into same funnel. Mounted on stainless steel base.

OAD: 60" L x 60" W x 91" H

Get a Free Quote Call: 630-629-9900

Ohlson Scale Linear 2M2

  • Manufacturer: Ohlson
  • Model Number: 2M2
  • Frain Number: R24980

Ohlson Model 2M2, automatic dual lane weigh scale system rated from 5 to 30 weighments per minute – depending on materials and application. Weight range: 1oz to 5 lbs with accuracies of + / – 0.5 to 1.0 grams. Equipped with weigh hopper and supply hopper, control panel, has a PLC with 100 programs storage standard, 7 color touch pad controller with operator interface, FMC syntron drives with Mac valves and mounted on (4) leg base frame. Ideal for snack foods, candy, hardware, plastic pieces and other free flowing items.

Get a Free Quote Call: 630-629-9900

Ohlson Scale Linear 2XL2

  • Manufacturer: Ohlson
  • Model Number: 2XL2
  • Frain Number: 5D7881

Stainless steel, dual lane, bulk / trickle scale capable of weighs up to 200 lbs (100 lbs per lane). Features 1 3/4 cu.ft. (3000 cu.in.) weigh buckets,two 30"L x 15"W x 6"deep vibratory pans per lane, bottom pan with a 2"W trickle, and stop gates for bulk feed of lower pan. Equipped with Control Technology automation controller, push button controls with LED display, low product detection sensor, and vibratory isolated control panel. Mounted on an epoxy coated mild steel base.

Get a Free Quote Call: 630-629-9900

Ohlson Scale Linear 2XL2-462D310010PI

  • Manufacturer: Ohlson
  • Model Number: 2XL2-462D310010PI
  • Frain Number: 5D7876

Stainless steel, dual lane, bulk / trickle scale capable of weighs up to 200 lbs (100 lbs per lane). Features 1 3/4 cu.ft. (3000 cu.in.) weigh buckets, 100"H infeed, 63 1/2"H discharge, two 30"L x 15"W x 6"deep vibratory pans per lane, bottom pan with a 2"W trickle, and stop gates for bulk feed of lower pan. Equipped with Control Technology automation controller, push button controls with LED display, foot pedal activation, low product detection sensor, and vibratory isolated control panel. Mounted on an epoxy coated mild steel base.
OAD: 86"L x 63"W x 101"H

Get a Free Quote Call: 630-629-9900
