Powell Systems Machines

Lee Kettle Double Motion PSI-320

• Manufacturer: Powell Systems
• Model Number: PSI-320
• Frain Number: R41386

Lee, model 30GALD9MT, 30 gallon capacity, 316 stainless steel contact parts, variable speed, tilt out double motion agitation, cart mounted, jacketed kettle. Vessel dimensions: 23" diameter with a 10" straight wall and 22" total depth. Equipped with bolt down lid with a 44" infeed height, tilt out bridge mounted scrape surface agitation powered by a 2 Hp drive, flush mounted temperature probe, 5" diameter sight glass, 3" Tri-clamp discharge with ball valve and 6½" clearance to cart. Mounted on stainless steel cart with locking casters.

Top ports:
(1) 3" Tri-clamp
(2) 2" Tri-clamp
(1) 1½" Tri-clamp

Jacket ports:
(4) ¾" NPT

Vessel MAWP: 30 PSI @ 250°F
Jacket MAWP: 90 PSI @ 332°F

Vessel MDMT: -20°F @ 30 PSI
Jacket MDMT: -20°F @ 90 PSI

Nat’l Brd: 7020

OAD: 75" L x 36" W x 72" H

Powell Systems Form, Fill & Seal Bagging Line PSI-RP10SS SYS

• Manufacturer: Powell Systems
• Model Number: PSI-RP10SS SYS
• Frain Number: R41410a

PSI-RP10SS SYS  Powell Systems complete form, fill and seal bagging line. Bag size range: 6″ to 10″ in Width; 8″ to 14″ in length with proper change parts. Equipped with a dimpled vibratory feed hopper with 31″ long x 31″ wide x 16″ deep hopper, 10¾” wide x 27½” long bed with 4″ high side walls and 19″ discharge height. Bucket elevator with white plastic product buckets with inside dimensions of 15″ long x 4½” wide x 4″ deep, 36″ long horizontal floor run with a 17″ long load area, 18″ feed height, 124″ vertical lift with 18½” wide frame, 65″ overhead horizontal top run with 8″ diameter discharge funnel with a 123″ discharge height. 14 head combination scale capable of up to 140 weighs per minute from 14g to 2700g with an accuracy of ± 0.1grams. 8-station, pre-made pouch filler and sealer, equipped with 52″ long automatic (2) belt pre-made pouch magazine, reciprocating suction cup pic-n-place, 8 stations for pouch loading, hot stamp date coder, zipper open, bag open, bag filling, spare station, pouch heat sealing, pouch cooling and discharge, with 43″ long x 12″ wide discharge belt conveyor.

OAD: 182″ L x 84″ W x 143″ H

Powell Systems Form & Fill Seal Bagging Line PSI-620 SYS

• Manufacturer: Powell Systems
• Model Number: PSI-620 SYS
• Frain Number: R40150a

PSI-620 SYS Powell Systems complete form, fill and seal bagging line. Bag size range: 3.5″ to 11.8″ in Width; 2″ to 15.75″ in length with proper change parts. Equipped with a dimpled vibratory feed hopper with 31″ long x 31″ wide x 16″ deep hopper, 10¾” wide x 27½” long bed with 4″ high side walls and 19″ discharge height. Bucket elevator with white plastic product buckets with inside dimensions of 15″ long x 4½” wide x 4″ deep, 36″ long horizontal floor run with a 17″ long load area, 18″ feed height, 124″ vertical lift with 18½” wide frame, 65″ overhead horizontal top run with 8″ diameter discharge funnel with a 123″ discharge height. 14  head combination scale capable of up to 140 weighs per minute from 14g to 2700g with an accuracy of ± 0.1grams. Vertical bagger with 16″ long vertical seal jaws, 12″ wide horizontal seal jaws, dual side film assist belts, film detection and tracking, registration film advance, hot stamp coder and servo drive motors, maximum film roll size: 12″ OD x 24.4″ Wide. Cleated take away conveyor with 17¾” wide x 72″ long belt with 1¼” high x 14″ wide cleats set on 12″ centers with 12″ long horizontal run has 9″ in feed height, 60″ long incline section with 36″ discharge height and variable speed controller.

OAD: 182″ L x 84″ W x 143″ H

Powell Systems complete form, fill and seal bagging line

• Manufacturer: Powell Systems
• Model Number: PSI-320 SYS
• Frain Number: R40590A

Powell Systems complete form, fill and seal bagging line. Bag size range: 2″ to 7″ in Width; 2″ to 8″ in length with proper change parts. Equipped with a dimpled vibratory feed hopper with 31″ long x 31″ wide x 16″ deep hopper, 10¾” wide x 27½” long bed with 4″ high side walls and 19″ discharge height. Bucket elevator with white plastic product buckets with inside dimensions of 15″ long x 4½” wide x 4″ deep, 36″ long horizontal floor run with a 17″ long load area, 18″ feed height, 124″ vertical lift with 18½” wide frame, 65″ overhead horizontal top run with 8″ diameter discharge funnel with a 123″ discharge height. 14 head combination scale capable of up to 140 weighs per minute from 14g to 2700g with an accuracy of ± 0.1grams. Vertical bagger with 9″ long vertical seal jaws, 8″ wide horizontal seal jaws, dual side film assist belts, film detection and tracking, registration film advance, hot stamp coder and servo drive motors, maximum film roll size: 12″ OD x 15″ Wide. Cleated take away conveyor with 12″ wide x 72″ long belt with 1½” high x 8″ wide cleats set on 12″ centers with 12″ long horizontal run has 9″ in feed height, 60″ long incline section with 36″ discharge height and variable speed controller.

OAD: 182″ L x 84″ W x 143″ H

Powell Systems Conveyor Bucket Elevator PSI-BEDSS

• Manufacturer: Powell Systems
• Model Number: PSI-BEDSS
• Frain Number: 5J4940

Powell Systems, model PSI-BE2-DSS, Z style bucket elevator. Number of lbs of product per hour – depending on materials and application. Equipped with white plastic product buckets with inside dimensions of 15" long x 4½" wide x 4" deep, 36" long horizontal floor run with a 17" long load area, 18" feed height, 124" vertical lift with a 18½" wide frame, 65" overhead horizontal top run with 8" diameter discharge funnel with a 123" discharge height. Control panel with push button start, E-stop and variable speed control.

OAD: 115"L x 24"W x 143"H

Powell Systems Form & Fill Scale PSI-320 SYS

• Manufacturer: Powell Systems
• Model Number: PSI-320 SYS
• Frain Number: R40140A

Powell Systems complete form, fill and seal bagging line. Bag size range: 2" to 7" in Width; 2" to 8" in length with proper change parts. Equipped with a dimpled vibratory feed hopper with 31" long x 31" wide x 16" deep hopper, 10¾" wide x 27½" long bed with 4" high side walls and 19" discharge height. Bucket elevator with white plastic product buckets with inside dimensions of 15" long x 4½" wide x 4" deep, 36" long horizontal floor run with a 17" long load area, 18" feed height, 124" vertical lift with 18½" wide frame, 65" overhead horizontal top run with 8" diameter discharge funnel with a 123" discharge height. 14 head combination scale capable of up to 140 weighs per minute from 14g to 2700g with an accuracy of ± 0.1grams. Vertical bagger with 9" long vertical seal jaws, 8" wide horizontal seal jaws, dual side film assist belts, film detection and tracking, registration film advance, hot stamp coder and servo drive motors, maximum film roll size: 12" OD x 15" Wide. Cleated take away conveyor with 9¾" wide x 69" long belt with 1¼" high x 8¼" wide cleats set on 12" centers with 12" long horizontal run has 7½" in feed height, 85" long incline section with 36" discharge height and variable speed controller.

OAD: 182" L x 84" W x 143" H

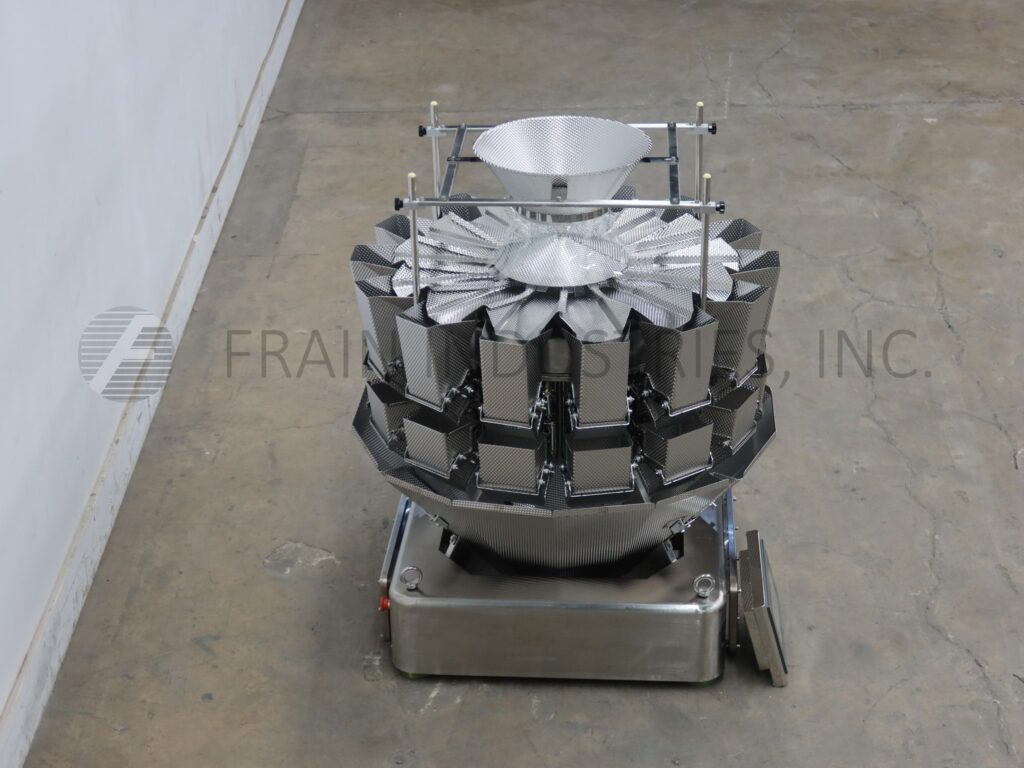

Powell Systems Scale Combination PSI-14-3SS-D

• Manufacturer: Powell Systems
• Model Number: PSI-14-3SS-D
• Frain Number: R40150

Powell Systems, model PSI-14-3SS-D dimpled bucket, combination weigh scale. Rated up to 140 WPM. Equipped with 14 head dimpled, stainless steel combination weigh scale system with 3 liter buckets and strain gauge load cells. Weight range from 14 to 2700 grams with accuracies of ± 0.1 grams. Product in feed funnel, with (14) vibratory linear dimpled feed pans to (14) dimpled feed buckets, to (14) dimpled weigh buckets, product collating discharge chutes and pooling hopper. Control panel with touch screen HMI.

OAD: 48"L x 48"W x 55"H

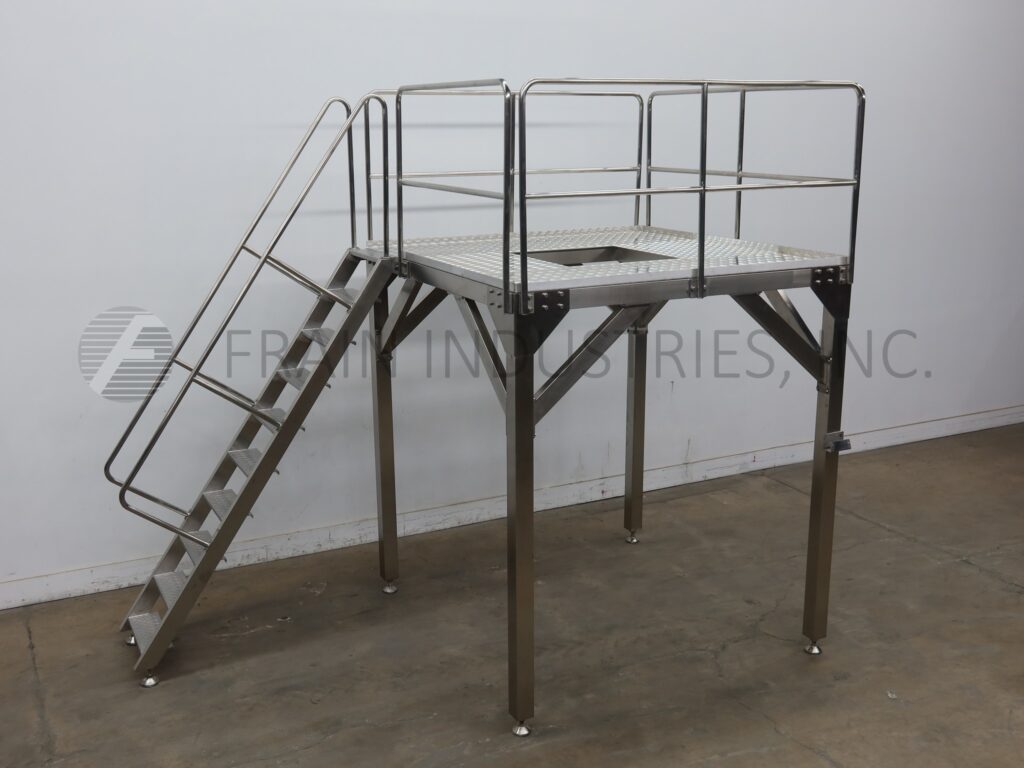

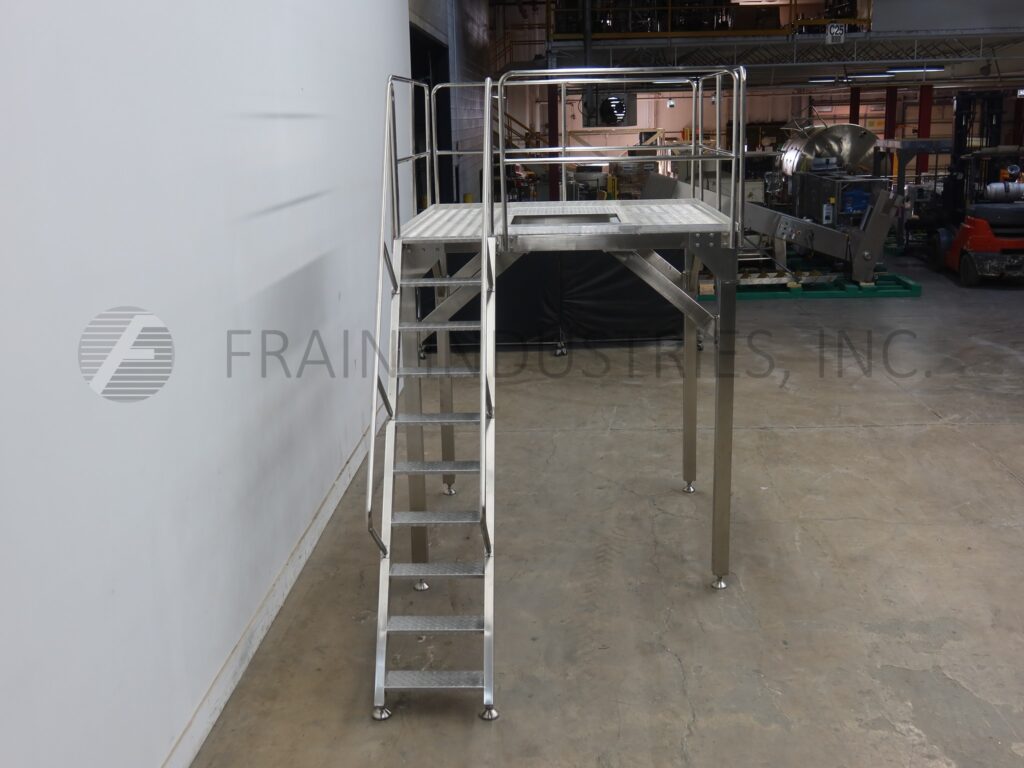

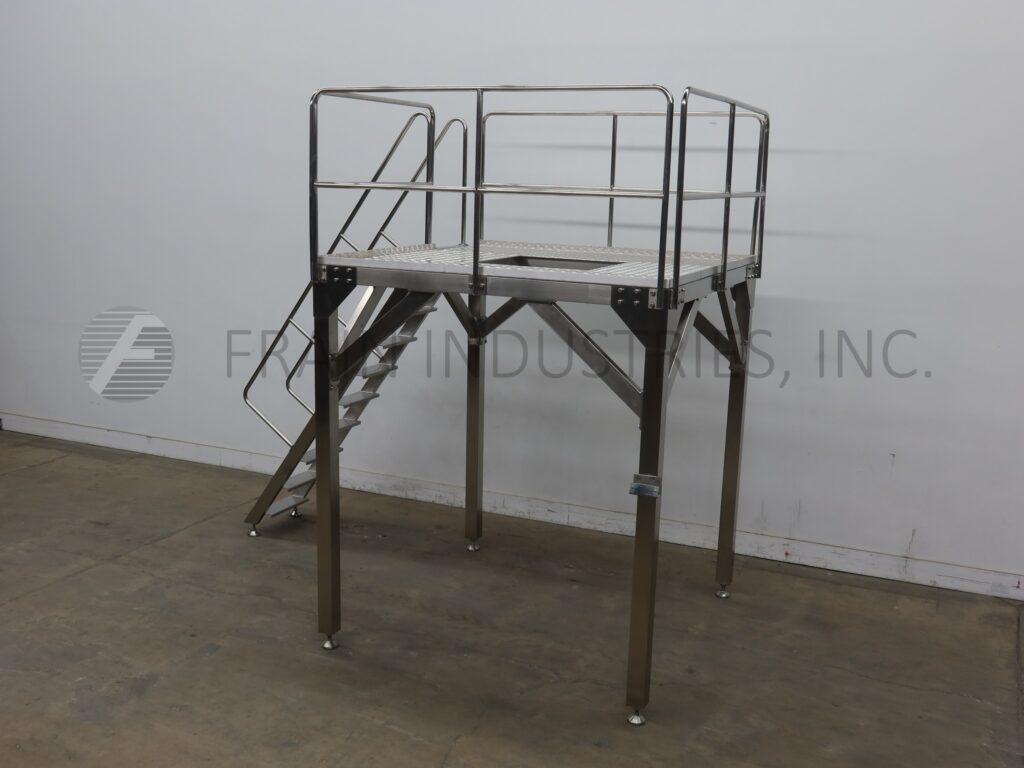

Powell Systems Material Handling PSI-PSS

• Manufacturer: Powell Systems
• Model Number: PSI-PSS
• Frain Number: R40153

Powell Systems, model PSI-PSS, stainless steel scale mezzanine. Equipped with a 74½" wide x 74½" long standing platform set 71" off the ground, 29½" wide x 29½" long center cut out, (6) step staircase and 38½" high guard rail from platform.

OAD: 136"L x 78"W x 110"H

Powell Systems Feeder Incline/Cleated PSI-BI10

• Manufacturer: Powell Systems
• Model Number: PSI-BI10
• Frain Number: R40154

Powell Systems, Model PSI-BI10, stainless steel inclined cleated conveyor with amount of product per hour – depending on materials and application. Equipped with 9¾" wide x 69" long belt with 1¼" high cleats set on 12" centers. 12" long horizontal run has 7½" in feed height. 85" long incline section with 36" discharge height and variable speed controller. Mounted on stainless steel frame with casters.

OAD: 69"L x 20"W x 39"H

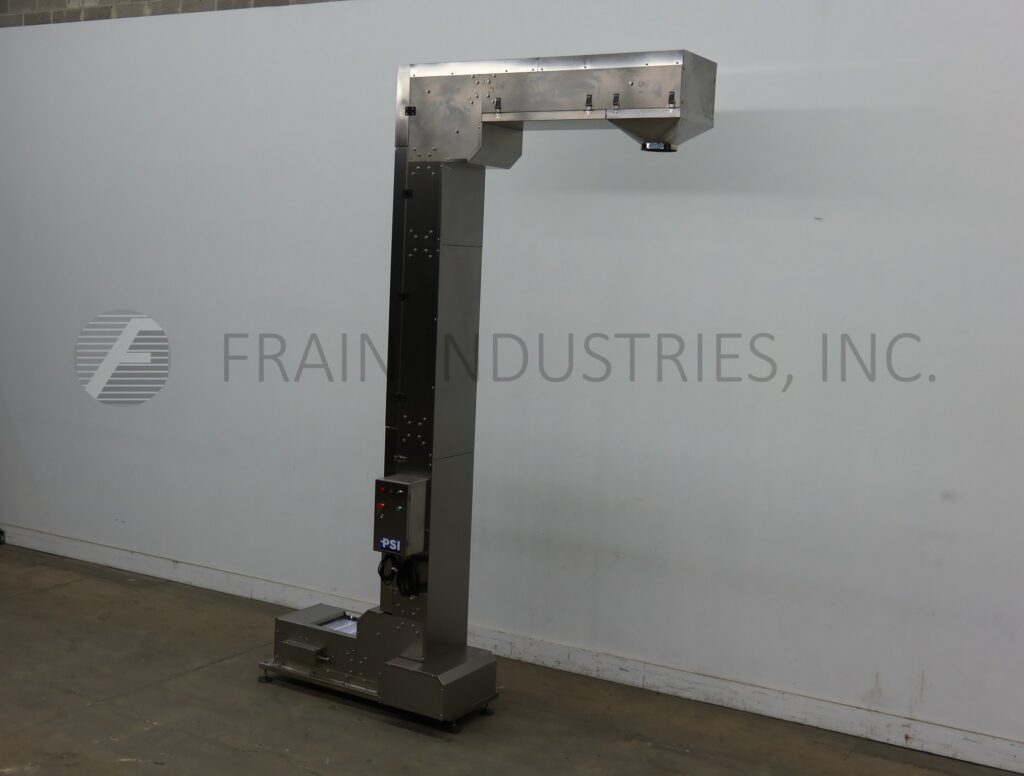

Powell Systems Conveyor Bucket Elevator PSI-BE2DSS

• Manufacturer: Powell Systems
• Model Number: PSI-BE2DSS
• Frain Number: R40411

Powell Systems, Z style bucket elevator. Number of lbs of product per hour – depending on materials and application. Equipped with white plastic product buckets with inside dimensions of 15" long x 4½" wide x 3" deep and has 36" long horizontal floor run with a 16" long load area and 19" feed height to 142" vertical lift with a 12" wide frame, to 60" overhead horizontal top run with 8" discharge funnel with a 142" discharge height. Control panel with push button start, E-stop and variable speed control.

OAD: 122"L x 31"W x 163"H

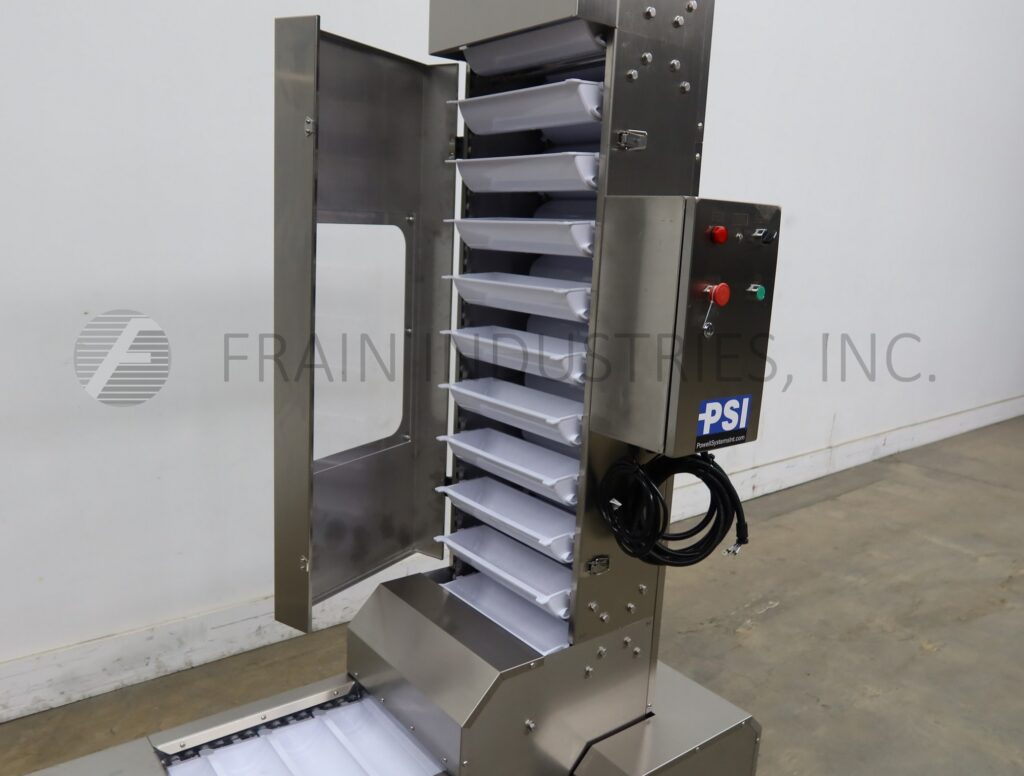

Powell Systems Conveyor Bucket Elevator PSI-BE2DSS

• Manufacturer: Powell Systems
• Model Number: PSI-BE2DSS
• Frain Number: R40412

Powell Systems, Z style bucket elevator. Number of lbs of product per hour – depending on materials and application. Equipped with white plastic product buckets with inside dimensions of 15" long x 4½" wide x 3" deep and has 36" long horizontal floor run with a 16" long load area and 19" feed height to 142" vertical lift with a 12" wide frame, to 60" overhead horizontal top run with 8" discharge funnel with a 142" discharge height. Control panel with push button start, E-stop and variable speed control.

OAD: 122"L x 31"W x 163"H

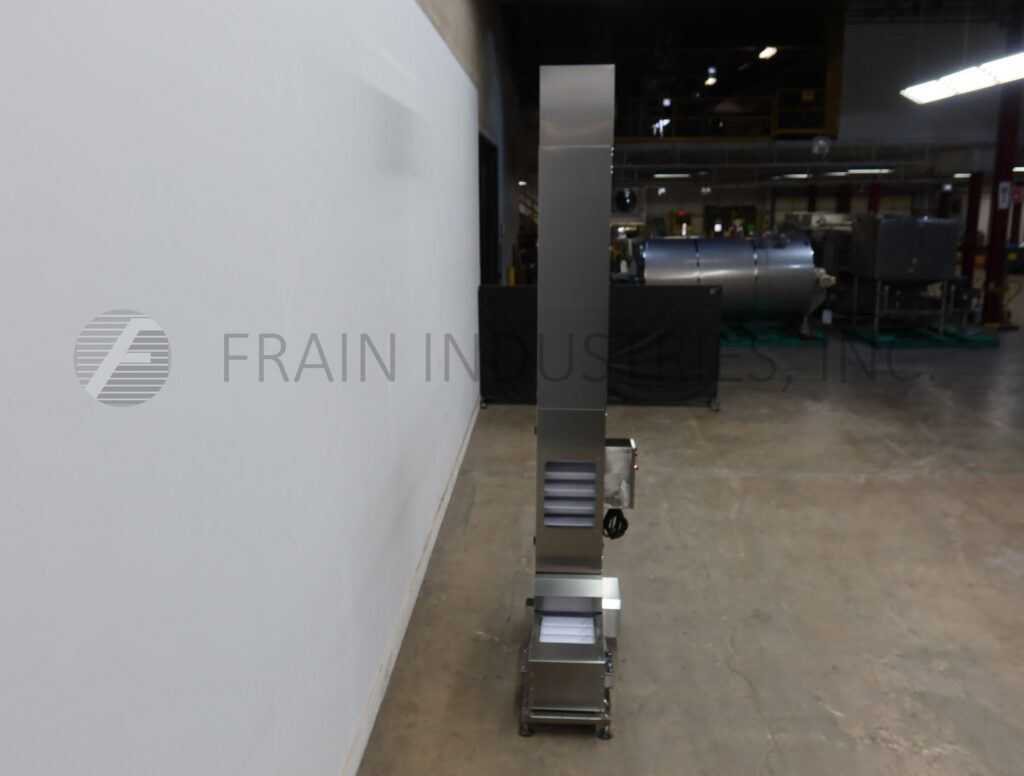

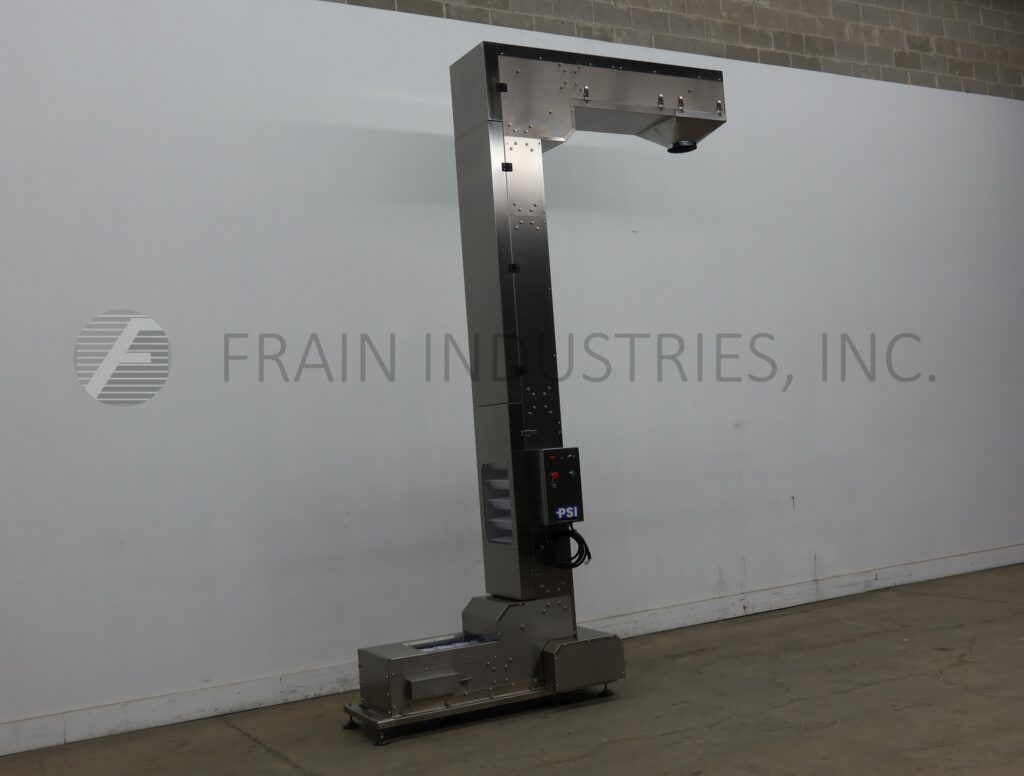

Powell Systems Conveyor Bucket Elevator PSI-BE2DSS

• Manufacturer: Powell Systems
• Model Number: PSI-BE2DSS
• Frain Number: R40410

Powell Systems, Z style bucket elevator. Number of lbs of product per hour – depending on materials and application. Equipped with white plastic product buckets with inside dimensions of 15" long x 4½" wide x 3" deep and has 36" long horizontal floor run with a 16" long load area and 19" feed height to 142" vertical lift with a 12" wide frame, to 60" overhead horizontal top run with 8" discharge funnel with a 142" discharge height. Control panel with push button start, E-stop and variable speed control.

OAD: 122"L x 31"W x 163"H
