Home » Rietz
Rietz, Model RS-10-K3632-4, 304 stainless steel jacketed dual trough vacuum paddle blender. Pounds of product per hour – depending on materials and application. Capacity: 5 ft³ (3 ft³ working). Trough dimesions: 28" in Length; 20½" in Width; 16" in Depth. Equipped with lift up top cover, (2) sets of 3" x 4" paddles powered by ¾ hp drives, 3 hp vacuum pump and (2) 8" x 3¾" pneumatic end gate discharges with 26" ground clearance. Mounted on heavy duty frame.
Jacket Access:(3) 1" NPT(3) ¼" NPT
Nat’l Brd: 562MAWP: 100 psi @ 338°F (Jacket)
OAD: 63"L x 34"W x 58"H
Rietz, 4½ ft³ (3 ft³ working capacity) 304 stainless steel jacketed, dual trough mixer with single ribbons and amount of product per hour – depending on materials and application. Jacketed mixing chamber dimensions of: 28" in Length; 20" in Width; 16" in Depth. Equipped with open top and has 3" OD dual mixing shafts with 1½" wide x ½" thick stainless steel ribbons powered by (2) 5 Hp motor drives and has (2) 8½" wide x 3½" high end discharge ports has dual pneumatic flip up covers with 38" ground clearence. Control panel has run, forward / reverse, start and stop controls. Mounted on stainless steel frame with casters.
MAWP: 45 PSI @ 292°F (Jacket)
OAD: 68" L x 48" W x 78" H
Reitz, Model RS-15-K5203, 22 ft³ total, (15 ft³ workable), twin screw mixer with amount of product per hour – depending on material and application. All stainless steel contact parts. Inner mixing chamber dimensions of: 42" in Length; 30" in Width; 19" in Depth. Equipped with lift up cover, (2) 14½" OD screw mixing shafts independently powered by 2 Hp motor drives, with (2) 11½" wide x 4½" high end discharges with pneumatic covers and 25" ground clearance.
OAD: 80"L x 47"W x 60"H
Rietz, Model RS-28-K5606, Dual trough paddle blender with working capacity of 60 ft³ pounds of product per hour – depending on materials and application. 304 stainless steel construction. Dual trough dimensions: 72" in Length; 56" in Width; 36" in Depth. Equipped with (2) 25" diameter paddles with 10" x 9" blades on 7" diameter shafts and has dual 22" x 8" pneumatic discharge gates with 32" ground clearance. Powered by (2) 30 Hp chain to sprocket motor drives. Mounted on (4) leg frame.
OAD: 106"L x 72"W x 86"H
Reitz, Model RS-18K5405, Stainless steel 28 ft³ total / 20 ft³ working capacity, twin ribbon mixer with pounds of product per hour – depending on materials and application. Mixing chamber inner dimmensions; 60" in Length; 36" in Width; 25" in Depth total, with dual flip safety grates. Equipped with dual mixing troughs and mixing ribbons set on 4" OD shafts with 2" wide x ½" thick ribbons, dual 5 Hp motor drives with safety guarding and dual air operated end bottom product discharge doors with 36" floor clearance. Mounted on (4) leg base frame.
OAD: 94" L x 55" W x 64" H

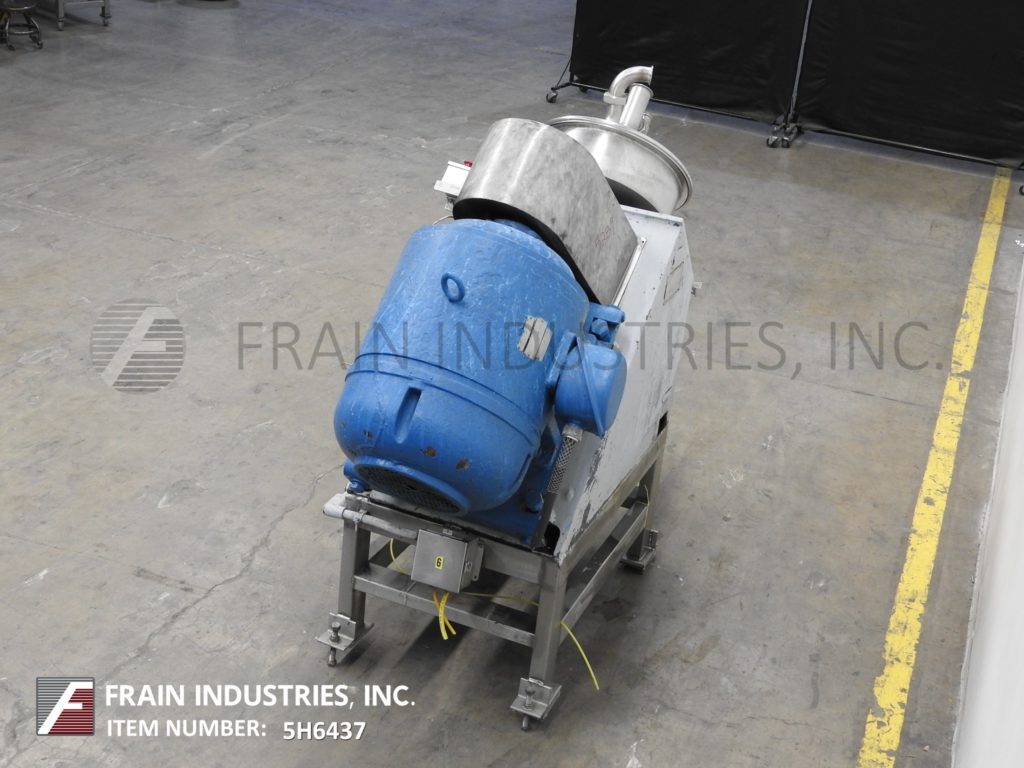

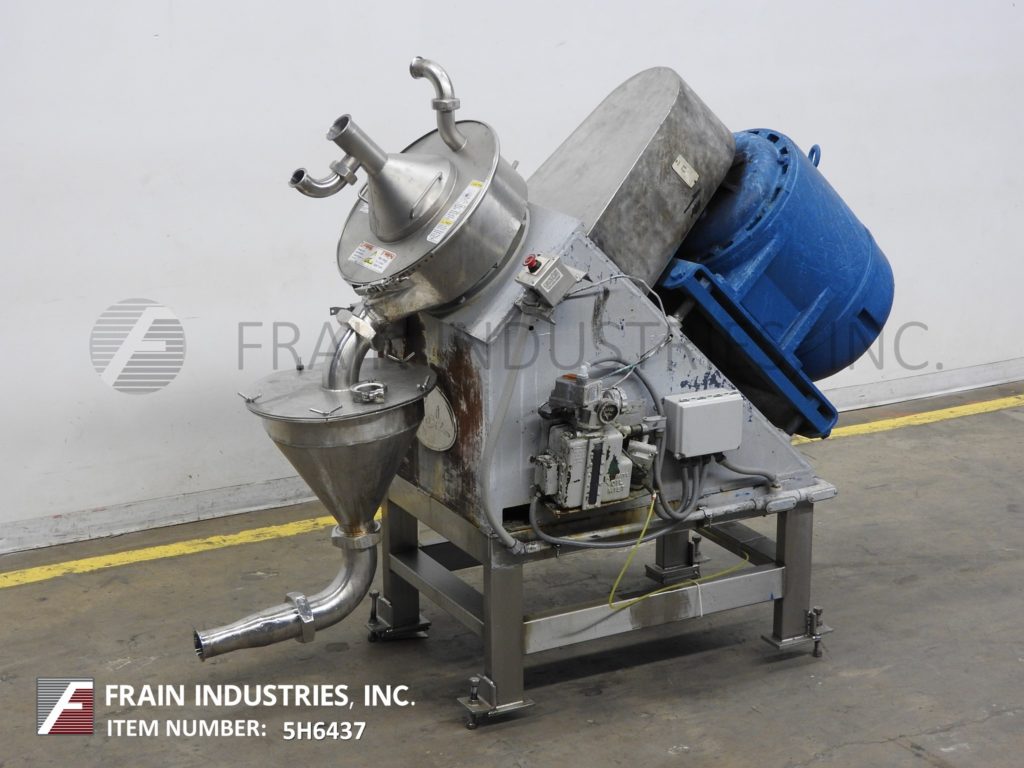

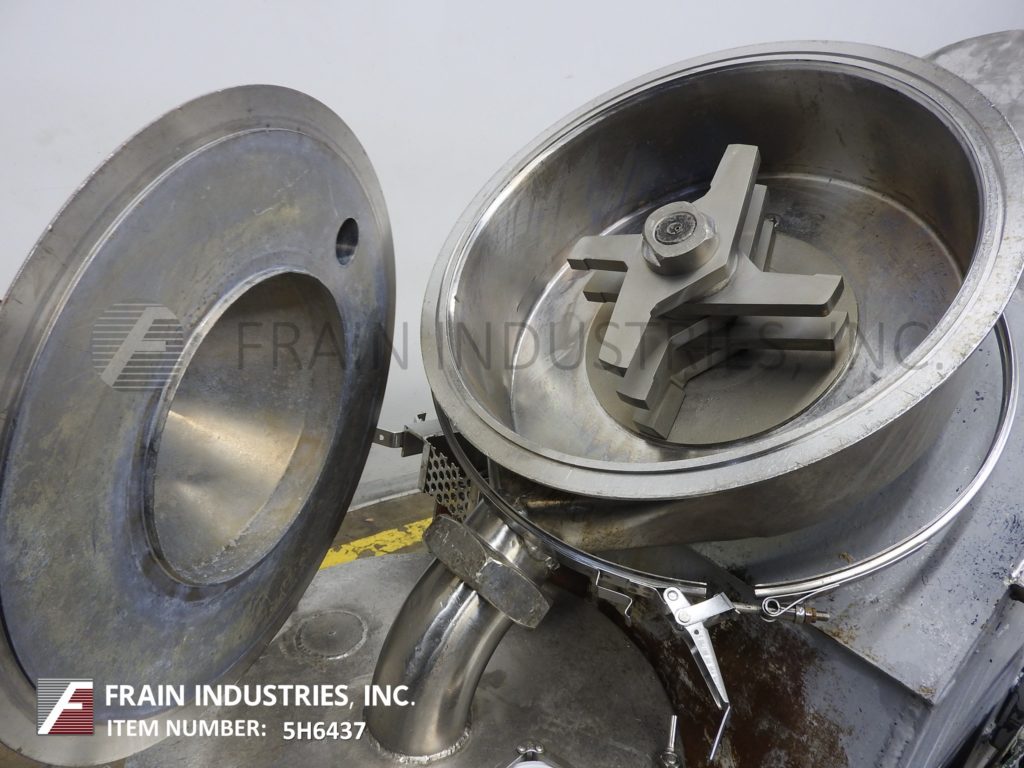

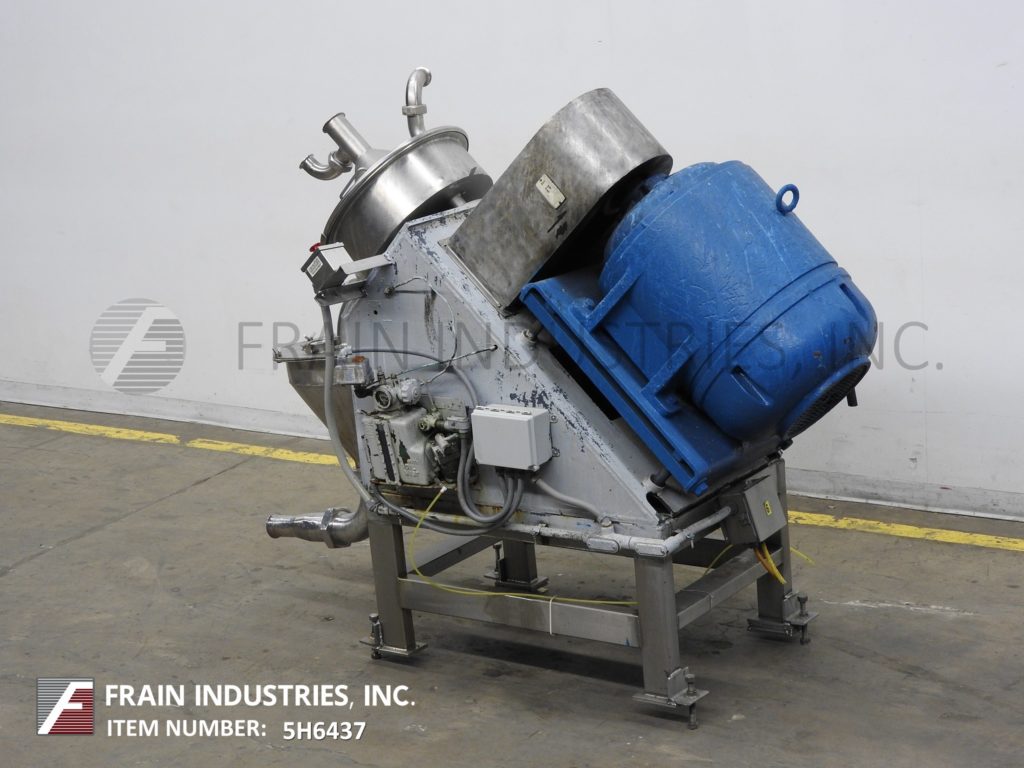

Rietz Model RA3-12-K122, versatile, variable speed 45 degree angle disintegrator with pounds of product per hour – depending on materials and application. Equipped with 24" OD reduction chamber and has (5) sets of 3 impellers 12" OD stacked on top of each othe rwith 24" OD cover and 360 degree reduction screen (change part per application) which is held between the housing cradle and has clamp down access door with attached product funnel and 4" OD product port. Belt driven rear mounted 50 Hp motor drive with safety guarding and e-stop. 18" OD x 18" funnel style discharge with 4" floor clearence (with funnel) and 43" discharge height (without funnel). Mounted on heavy duty (4) leg frame with leveling screws.Used for high-speed shredding and wet grinding of fibrous and other tough materials, also used for fine pulping dispersing and homogenizing.
OAD: 94" L x 50" W x 70" H
Rietz Model RA3-12-K122, versatile, variable speed 45 degree angle disintegrator with pounds of product per hour – depending on materials and application. Equipped with 24" OD reduction chamber and has (5) sets of 3 impellers 12" OD stacked on top of each othe rwith 24" OD cover and 360 degree reduction screen (change part per application) which is held between the housing cradle and has clamp down access door with attached product funnel and 4" OD product port. Belt driven rear mounted 75 Hp motor drive with safety guarding and e-stop. 18" OD x 18" funnel style discharge with 4" floor clearence (with funnel) and 43" discharge height (without funnel). Mounted on heavy duty (4) leg frame with leveling screws.Used for high-speed shredding and wet grinding of fibrous and other tough materials, also used for fine pulping dispersing and homogenizing.
Rietz, Model RS-28-K5406, 304 stainless steel dual trough ribbon blender with pounds of product per hour – depending on materials and application. Working Capacity: 60 ft³. Dual trough dimensions: 72" in Length; 56" in Width; 36" in Depth. Equipped with (3) lift up top safety grates, (6) steam injection ports, 2½" wide x (3/8)" thick stainless steel ribbons and has dual pneumatic discharge gates with 42" ground clearance. Powered by (2) 15 Hp chain to sprocket motor drives with safety guarding. Mounted on (4) leg base frame.
OAD: 102"L x 75"W x 85"H
Rietz, Model RE15-K5E328, stainless steel extructor designed for grinding frozen, partially frozen, or thawed 40 lb. blocks of product. Equipped with 28" x 21" OD (23" x 15" ID) crevice free product hopper, with 6" OD shaft and 4" x 2" stationary anvils, with 15" ID product reduction port. Chain to sprocket 40 Hp motor drive with safety guarding. Mounted on heavy duty (4) leg base frame. Reduction screen is change part per application. Rates dependent on materials, application and machine configuration.
OAD: 82" L x 34" W x 75" H
Rietz Model RE24K7E,Stainless steel, extructor, designed for grinding frozen, partially frozen, or fully thawed 40 lb blocks of product and is rated from 40 to 30,000 lbs per hour – depending on materials and application. Equipped with 30" long x 27" wide x 34" deep stainless steel crevice free product hopper with (6) 10" long x 7" high hammer blades on 8" OD shaft and (6) 5" long x 8 high stationary anvils (no knives / no sharpening, low maintenance), 24" ID rotary product reduction port, with swing open, bolt down cover, reduction screen (change part per application) with 75" floor clearance, chain to sprocket 40 Hp motor drive with safety guarding, start / stop push button controls, with e-stop. Mounted on (4) leg bolt down base frame. Reduction screen is change part per application.
OAD: 90" L x 48" W x 107" H
Reitz, Model stainless steel, twin paddle mixer with pounds of product per hour – depending on materials and application. Mix chamber inner dimmensions; 72" in Length; 48"in Width; 30" in Depth with dual flip up covers. Equipped with dual mixing paddles set on 3" OD shafts with 1-1/2" OD spokes. dual 7-1/2 Hp double chain to motor drives with safety guarding and dual air operated, swing up, end bottom product discharge doors with 30" floor clearance. Control panel with start. stop, e-stop push button controls. Mounted on (4) leg base frame.
OAD: 100" L x 60" W x 64" H
Rietz Model RSV23K6405, 2000 lb. stainless steel, dual shaft ribbon mixer with amount of product per hour – depending on materials and application. Chamber dimensions: 64" in Length; 48" in Width; 32" in Depth. Equipped with pneumatically actuated cover, dual reversing ribbons set on 4" shafts with 2" wide x 1/4" thick ribbons, with dual drives and has pneumatically operated end discharge with 36" floor clearance. Mounted on (4) leg heavy duty frame.
OAD: 100" L x 84" W x 82" H
