U S Bottlers Machines

U S Bottlers Complete Line Liquid 48HD

• Manufacturer: U S Bottlers
• Model Number: 48HD
• Frain Number: 5D8002

U S Bottlers, automatic pressure gravity bottle filling and capping line rated from 100 to 420 bottles per minute – depending on materials and application. All stainless steel contact parts. Container size range: 1" to 4" in Diameter x 4-1/2" to 12" in Height. Cap size range: 1/2" (13mm) to 3-1/2" (89mm) OD x 1" to 2" in Height with proper change parts. Line consists of US Bottlers model GE48LS, 48 head rotary pressure gravity filler with 3/8" OD filling nozzles set on 4-1/4" centers to Pneumatic Scale 12 head rotary air chuck capper, set on 6-1/2" centers with cap feeder and hopper with worm screw to star wheel container in feed and discharge. Remote control panel and statis light bar. Mounted on individual base frames.

U S Bottlers Filler Liquid Scale WSF56

• Manufacturer: U S Bottlers
• Model Number: WSF56
• Frain Number: 5E1832

****PART OF COMPLETE LINE****

Fully automatic, 56 head, 316 S/S, rotary net weigh filler capable of up to 600 cpm. (depending on application). 82" diameter table, with 56 heads, set on 5 1/2" centers. Has a container size range of: (1" to 4" diameter) x (4 1/2" to 12" H). star wheel infeed / discharge, centering bells, no container/no fill, and centrifugal pump for overflow return, fill/clean, gross/net weigh, air valve logic controls, barrier innerlocking, lexan guarding, and all stainless steel construction mounted on a stainless steel base.

OAD: 156" L x 132" W x 120" H

U S Bottlers Cleaner Air DS24

• Manufacturer: U S Bottlers
• Model Number: DS24
• Frain Number: 5E0483

Fully automatic, 24 station rotary air cleaner capable of speeds up to 500 cpm depending on size of container. Has a container size range of: 1" – 4 1/2" Dia x up to 14" High. All S/S constructed unit is designed to run with worm screw to star wheel infeed. Bottles are inverted, an air tube is inserted, a blast of air and a vacuum are simultaneously applied inside the container for complete and positive cleaning.

OAD: 104" L x 79" W x 80" H

U S Bottlers Capper 4 Head (Capper) TC-4-14

• Manufacturer: U S Bottlers
• Model Number: TC-4-14
• Frain Number: 5H3794

U S Bottlers Model TC-4-14, stainless steel, 4 head rotary chuck capper and feeder rated from 16 to 40 containers per minute – depending on materials and application Equipped with 201" long x 4-1/2" wide plastic delrin belt conveyor with worm screw in feed, cap feed chute and 16" OD rotary turret with top mounted motor drive and cone style cover and (4) pneumatic chucks, set on 10" centers with 84" long x 4-1/2" wide plastic delrin belt conveyor with star wheel discharge. Control panel has A/B controller and A/B Panel view with start, stop, reset, e-stop push button controls and statis light bar, with air chuck controls and gauges. Mounted on a stainless steel base frame with safety door guarding. Also a
stainless steel, cleated cap feeder has 32" wide x 38" long x 30" deep stainless steel cap hopper and 16" wide x 130" long belt conveyor with 1" high cleats set on 6" centers and 125" discharge height into the capper feed chute with top motor drive. Mounted on base frame with leveling legs.

OAD: 84" L x 48" W x 120" H Capper
80" L x 72" W x 157" H Feeder
117" L x 6" W x 36" H In Feed Conveyor

U S Bottlers Cleaner Air DS24

• Manufacturer: U S Bottlers
• Model Number: DS24
• Frain Number: 5C3011

U S Bottlers Model DS24, Automatic 24 station, stainless steel, rotary air cleaner rated up to 500 containers per minute – depending on materials, application and machine configuration. Container size range: 1" to 4-1/2" in Diameter; up to 14" in Height. Equipped with worm screw to star wheel in feed, to inverted cleaning stations where an air tube is inserted to blast of air and vacuum simultaneously applied inside the container for positive cleaning. Start and stop controls with statis light bar. Mounted on stainless steel frame with safety guarding.

OAD: 110" L x 60" W x 65" H

U S Bottlers Filler Liquid Grav/Press GE48LS

• Manufacturer: U S Bottlers
• Model Number: GE48LS
• Frain Number: 5D8011

PART OF COMPLETE LINE

48 Valve rotary, 316 S/S, gravity pressure filler rated 80 to 420 cpm – depending on materials and application. Container size range: 1" to 4" in Diameter; 4-1/2" to 12" in Height. Equipped with 3/8" OD nozzles on 4 1/4" centers, worm screw to star wheel in-feed, star wheel discharge, centering bells, no container/no fill, and centrifugal pump for overflow return. Mounted on a S/S base.

OAD: 96"(L) x 84"(W) x 96"(H)

U S Bottlers Filler Liquid Vacuum VA32

• Manufacturer: U S Bottlers
• Model Number: VA32
• Frain Number: 5F4790

U S Bottlers Model VA32 automatic 50 head, rotary, vacuum filler rated from 50 to 320 container per minute – depending on materials and application. Container size range: 1" to 3-1/4" in Diameter x 4-1/4" to 12" in Height. Equipped with 32 filling heads, 1/2" OD and 1/4" ID nozzles set on 4" centers with 56" long x 2-1/2" wide product conveyor with worm screw to star wheel in feed and discharge, overhead product feed system with overflow, bottom up fill, no container / no fill vacuum system with diaphram pump, safety guarding and mounted on 4 leg base frame.

OAD: 72" L x 65" W x 82" H

U S Bottlers Filler Liquid Vacuum VE40L

• Manufacturer: U S Bottlers
• Model Number: VE40L
• Frain Number: 5G4117

U S Bottlers Model VE40L automatic 40 head, rotary, vacuum filler rated from 40 to 340 containers per minute – depending on materials and application. Container size range: 1" to 4-3/4" in Diameter x 4-1/2" to 12" in Height. Equipped with with 48" long x 2-1/2" wide product conveyor, worm screw to star wheel in feed and discharge, 72" turrett has 40 filling heads and 5/8" OD nozzles set on 5" centers overhead product feed system with overflow, bottom up fill, no container / no fill. Control panel with product volume, machine clean on / off switches, jog, manual vacuum start and e-stop push button controls. Mounted on heavy duty base frame.

OAD: 100" L x 72" W x 83" H

U S Bottlers Filler Liquid Vacuum VE36L

• Manufacturer: U S Bottlers
• Model Number: VE36L
• Frain Number: 5G4113

U S Bottlers Model VE36L, automatic 36 head, rotary, vacuum filler rated from 40 to 300 containers per minute – depending on materials and application Container size range: 1" to 5-1/4" in Diameter x 4-1/2" to 12" in Height. Equipped with 48" long x 2-1/2" wide product conveyor, with star wheel in feed and discharge,72" turret has 36 filling heads, with 1/2" OD nozzles set on 6" centers, overhead product feed system with overflow, bottom up fill, no container / no fill. Control panel with auto, manual start and e-stop push button controls. Mounted on heavy duty base frame.

OAD: 96" L x 74" W x 89" H

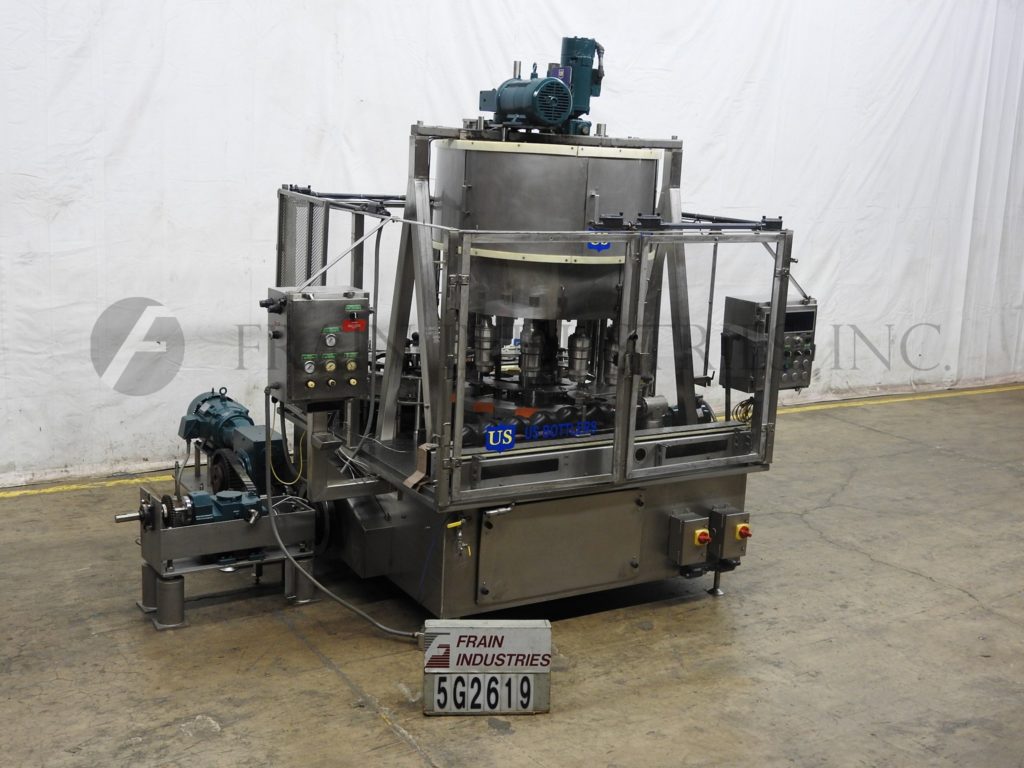

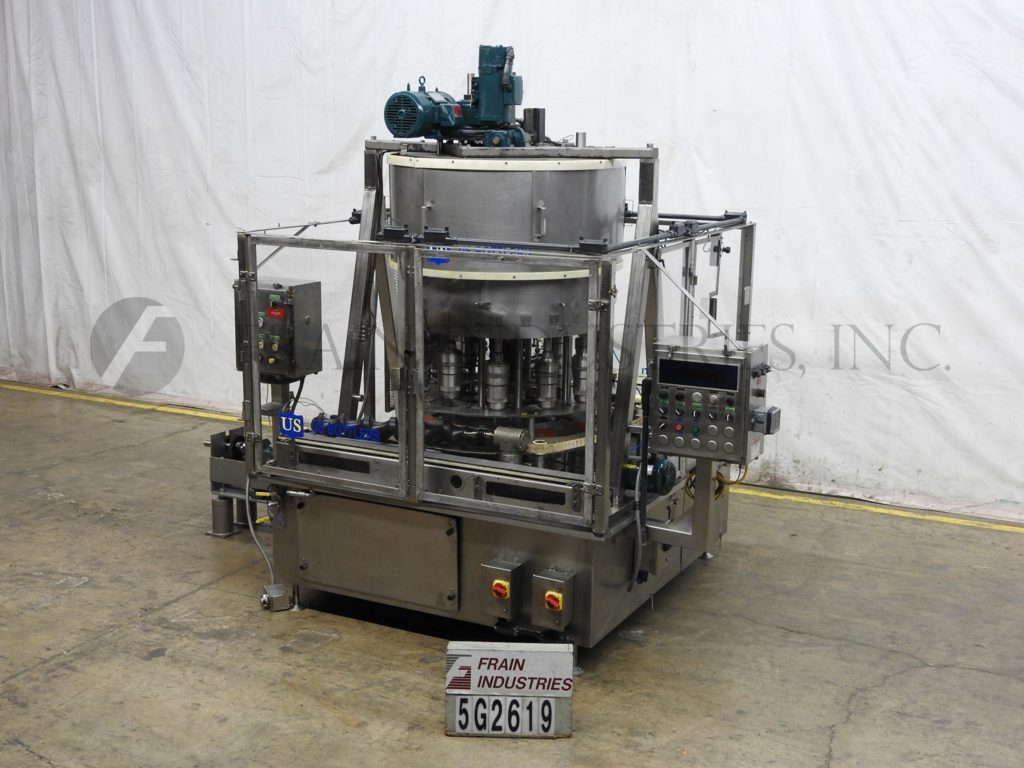

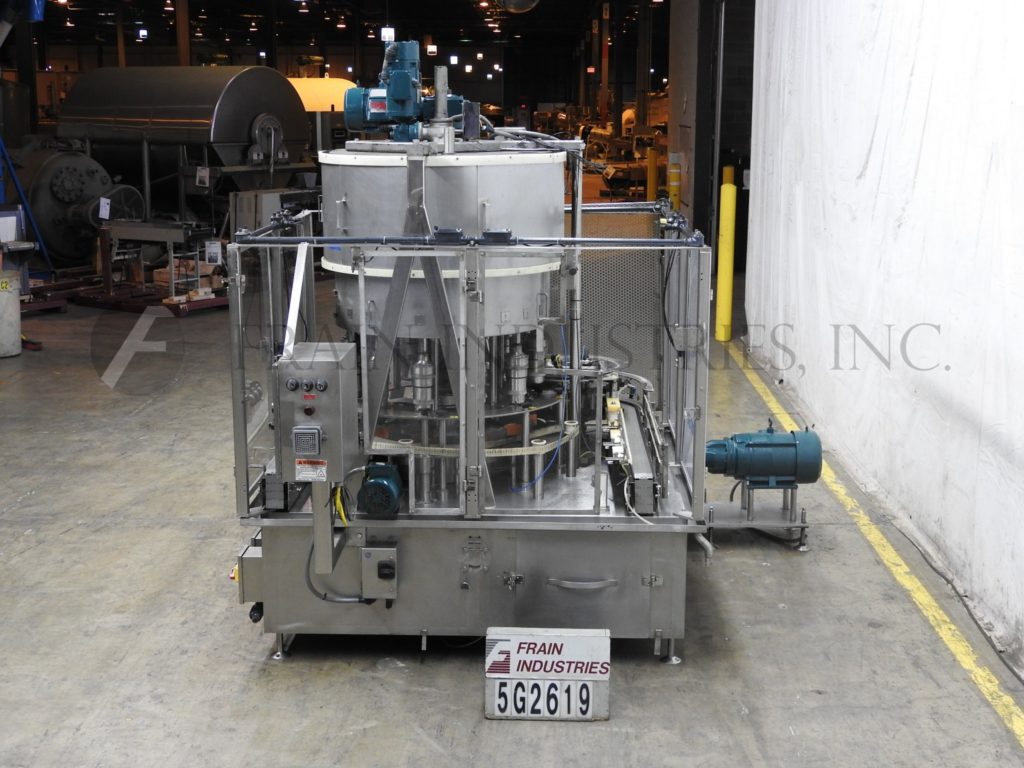

U S Bottlers Capper 8 Head of More 12 HD

• Manufacturer: U S Bottlers
• Model Number: 12 HD
• Frain Number: 5G2619

U S Bottlers automatic 12 Head, stainless steel, rotary chuck capper rated from 120 to 350 containers per minute – depending on materials and application. Containers size range: up to 6" in Diameter x up to 6-1/2" in Height. Equipped with 68" long x 3-1/4" wide container conveyors, star wheel in feed and discharge, 36" OD turret currently with 12 precision torque air chuck capping heads set on 12" centers, no bottle / no cap and turret safety guarding. Control panel with cap lift up, down and off switch, controls and line, chuck, sorter and chute air gauges. Mounted on heavy duty stainless steel base frame.

OAD: 96" L x 96" W x 102" H

U S Bottlers Capper 8 Head of More PMC8

• Manufacturer: U S Bottlers
• Model Number: PMC8
• Frain Number: 5F6980

U S Bottlers Model PMC8, automatic 8 head, stainless steel, rotary chuck capper rated from 100 to 240 containers per minute – depending on materials and application. Containers size range: up to 6-7/8" in Diameter; up to 14" in Height. Equipped with 3-1/4" wide x 84" long conveyor, worm screw to star wheel in feed and discharge. 8 precision torque air chuck capping heads on 8" centers, no bottle / no cap, turret and machine guarding.

OAD: 105" L x 56" W x 90" H

U S Bottlers Capper 8 Head of More PMC24

• Manufacturer: U S Bottlers
• Model Number: PMC24
• Frain Number: 5F4766

U S Bottlers Model PMC24 automatic 24 Head, stainless steel, rotary chuck capper rated from 240 to 700 containers per minute – speeds depending on materials and application. Containers size range: up to 4" in Diameter x up to 6-1/2" in Height. Equipped with 3-1/4" wide x 96" long conveyor, star wheel in feed and discharge and 24 precision torque air chuck capping heads on 5" centers, no bottle / no cap, turret guarding, and gauge panel with line, chuck, sorter and chute air gauges.

OAD: 108" L x 84" W x 129" H
