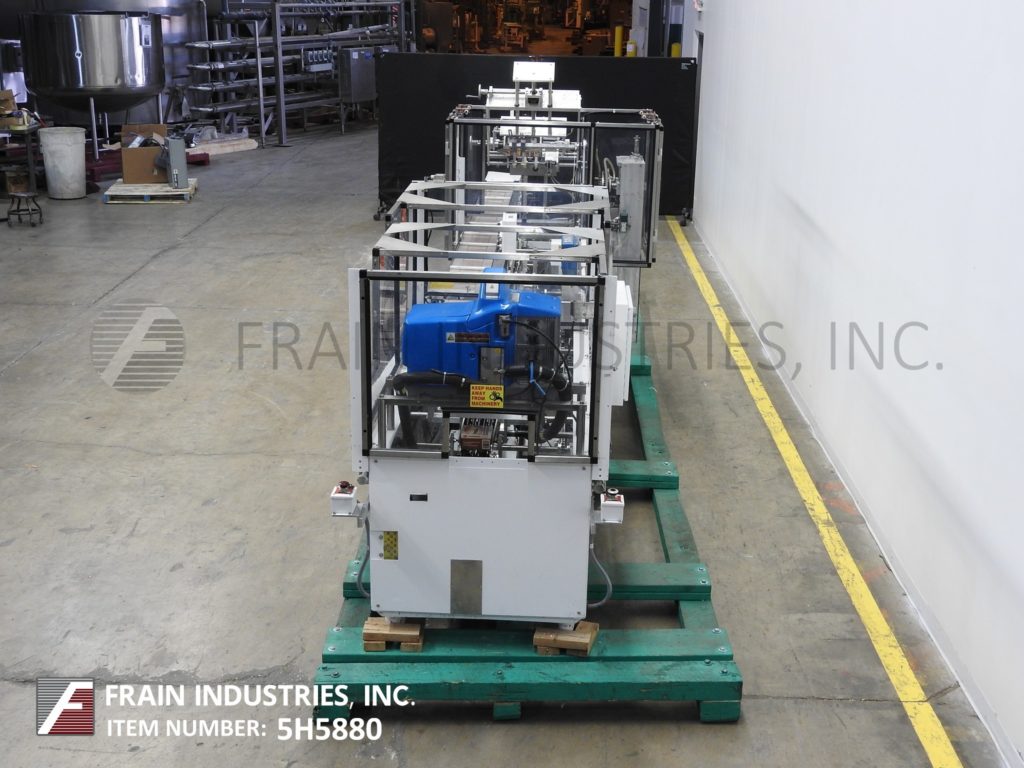

Photo of Adco Cartoner Semi Horiz. Glue (Semi) 15D100-ES

Adco Cartoner Semi Horiz. Glue (Semi) 15D100-ES

  Back to All Equipment

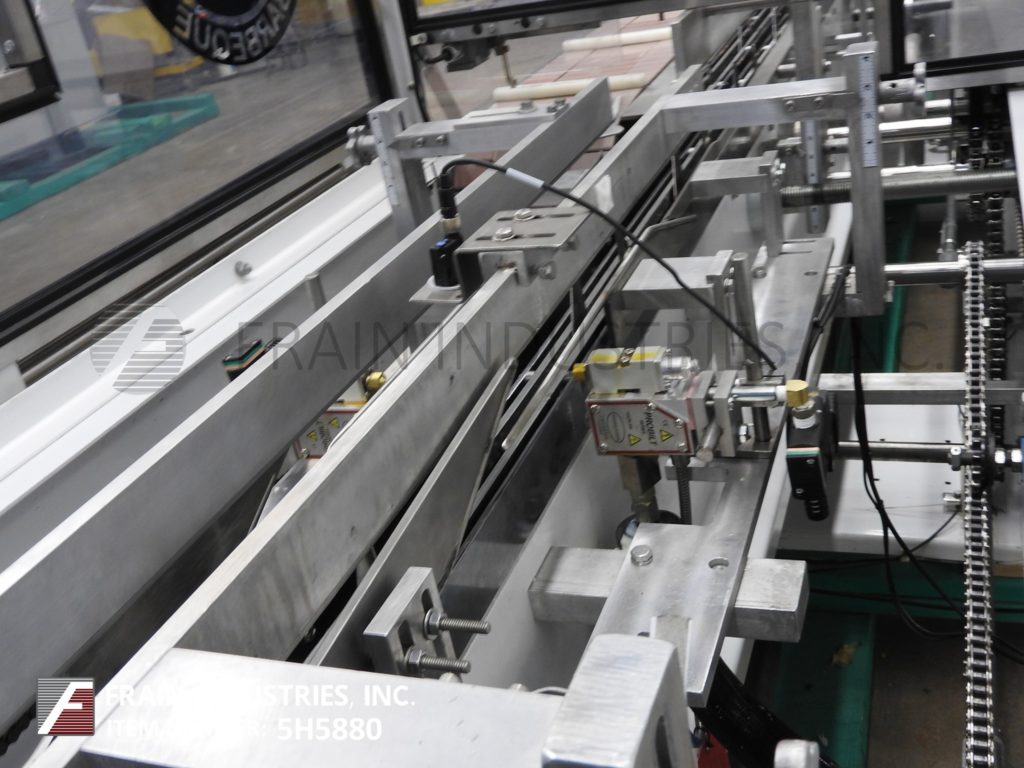

Adco, Model 15D100-ES, semi automatic, continous motion, horizontal, hot melt glue, cartoner. Rated from 25 to 100 cartons per minute – depending on materials, application, machine configuration and operator dexterity. (4) chains adjustable set on 15" centers, with 1½" wide x 2" high lugs. Carton size range: 1" to 13-1/2" in Length; ¾" to 4" in Width; 4½" to 12" in Depth. Equipped with 183" long x 10" wide cleated product feed conveyor with 10" long x 1" wide x 3/4" high cleats. 44" long automatic blank carton magazine, (2) head rotary vacuum pick and place, top carton hold down rail, 54" long hand loading area, with Nordson hot melt glue system, flap closers, vacuum pump with interlock safety guarding and hand held controller. Control panel AB CPU, with on / off controls, run, jog, vacuum, hopper, and glue switches with start, stop, e-stop push button controls, and conveyor speed control dial. Mounted on a heavy duty base frame with casters and height adjustable leveling legs.

OAD: 294" L x 64" W x 75"H
