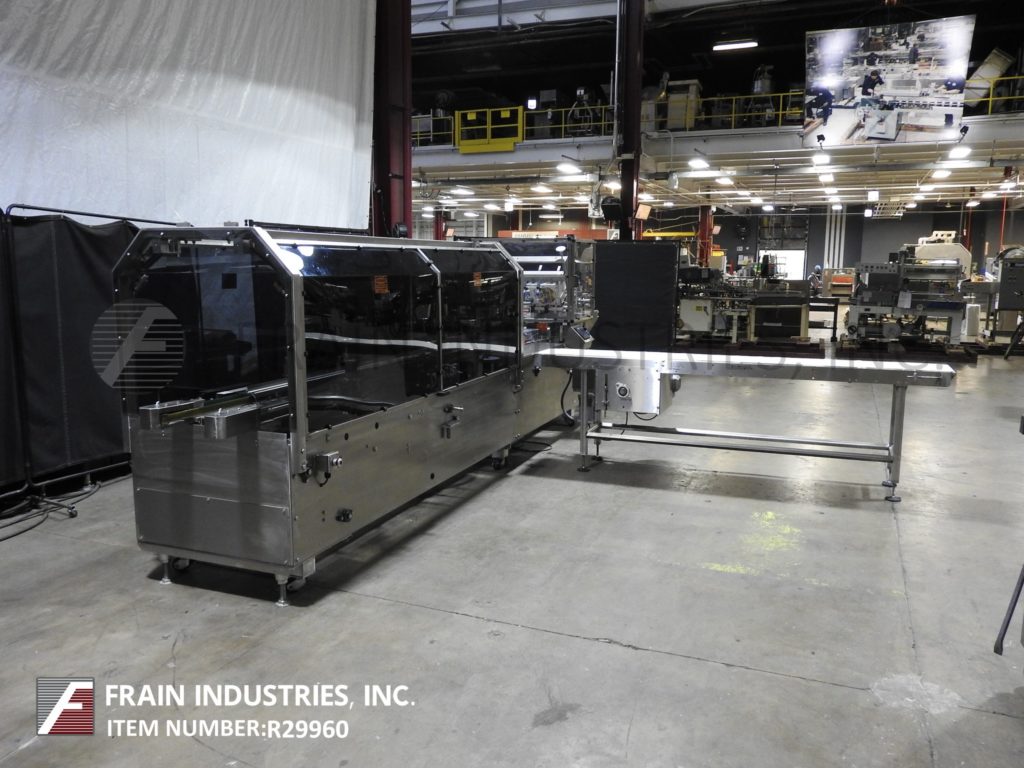

Photo of Adco Cartoner Semi Horiz. Glue (Semi) 15D105

Adco Cartoner Semi Horiz. Glue (Semi) 15D105

  Back to All Equipment

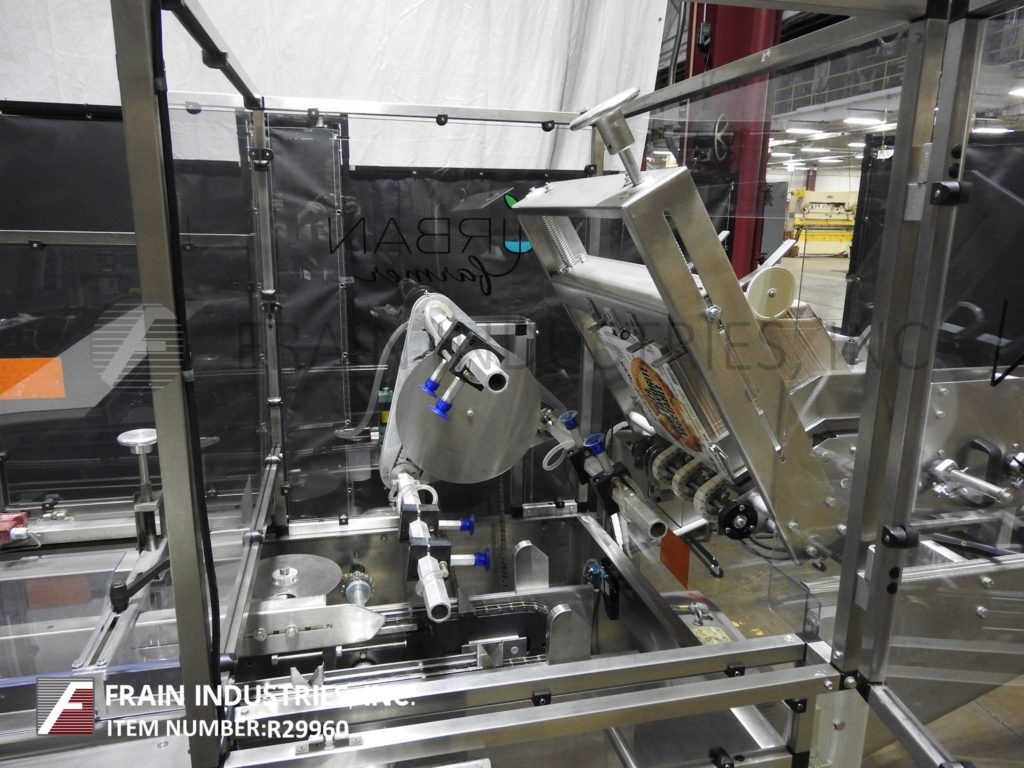

Adco, Model 15D105, semi automatic, stainless steel, horizontal, right to left, continuous motion, hot melt glue cartoner, rated from 20 to 80 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 1" to 10½" in Length; ¾" to 4" in Width; 4½" to 12" in Depth. Equipped with (3) chains adjustable set on 12" centers, with 1-½" wide x 4" high lugs, 36" long (3) belt automatic blank carton magazine, with (3) head rotary pick and place, with 16" wide x 120" long, neoprene belt product in feed conveyor. Equipped with a 35" infeed and discharge 44" long operator hand load area, Nordson 2-gun hot melt glue system with major and minor flap closers and 36" long x 1-1/2" wide compression and discharge conveyor belt section, with self contained vacuum system and a top mounted ventilation fan. Control panel has A/B controller with A/B panelview controls and readout with glue, vacuum and vari speed controls, start, reset and e-stop push buttons. Mounted on stainless steel base frame with flip-up interlock safety guarding and casters.

OAD: 240" L x 60" W x 76" H
