Arpac Shrink Bundler 55GI20CX

  Back to All Equipment
  • Manufacturer: Arpac
  • Model: 55GI20CX
  • Frain Number: 5H5590
  • Category: Shrink
  • Subcategory: Bundler
  • Condition: Used, in excellent condition
  • Availability: In Stock

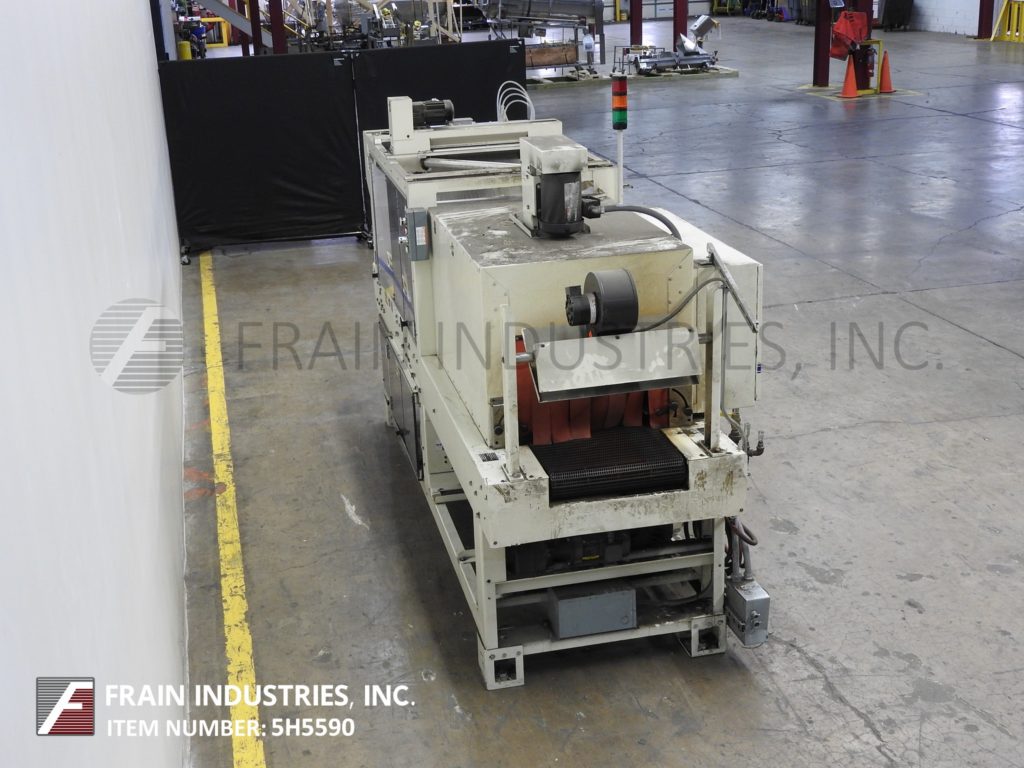

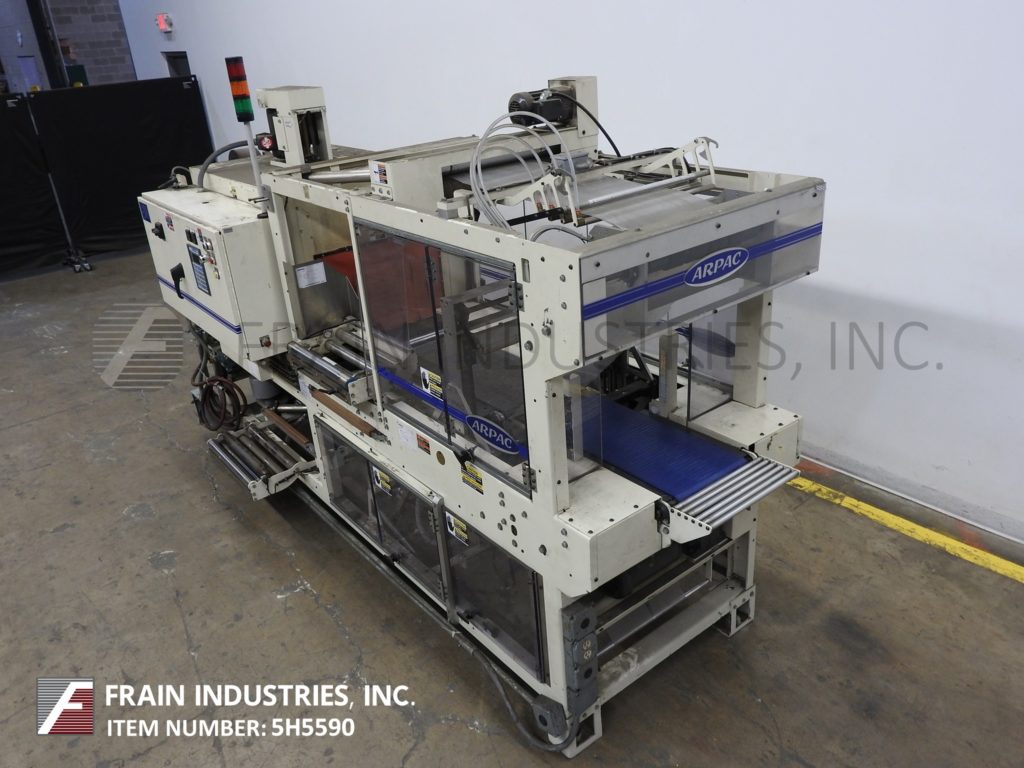

Arpac, Model 55GI-20CX, Inline, continuous motion, shrink bundler. Rated from 10 to 55 bundles per minute – depending on materials, application and machine configuration. Equipped with 13" wide x 28" long in feed conveyor, (2) 20" wide film roll holders with film splicing stations, 21" wide walking beam seal jaws with 11" vertical travel with film roll diameter up to 14" with 3" core and 13" wide x 36" long transfer conveyor to shrink tunnel. 50" long single zone shrink tunnel has 18” wide x 15" high total aperture, 75" long x 20" wide product conveyor and cooling fan discharge. Control panel with AB controller, touch pad controls with readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.

OAD: 150"L x 52"W x 85"H

The Frain Advantages

  • Complete Line Integration
  • Machinery Retrofit and Recondition
  • In-House Testing, Proof of Concept, Trial Runs
  • On-Site Installation and Training
  • Factory Acceptance Testing
  • 35 Years In Business


Call us to discuss your packaging or processing project with an experienced Frain Industries engineer
