Shrink bundlers are designed to wrap a single piece or bundle of product in heat shrinkable plastic film. Shrink bundlers are designed to form the plastic wrap around the product or bundle using two rolls or plastic film (with only one notable exception). Shrink bundlers create bundles or product that have open ends know as bulls-eyes on each side of the package. By using film that is much wider than the bundle on a shrink bundler, the size of the bulls-eye can be reduced. By using a film that is narrower than the bundle on a shrink bundler, the bundle of product is wrapped by a band of plastic.
Shrink bundlers take in product and pass the product bundle through a barrier of film that is created by heat sealing the film ends of two rolls of plastic film. As the bundle passes through the film barrier, the top roll of the film wraps around the top of the bundle and the bottom roll of the film wraps around the bottom of the bundle. After the container has passes the heat sealing station, the seal jaws on the shrink bundler come together again to seal the films together after the bundle and to separate the wrapped bundle from the remainder of the film. This action leaves a film barrier created by heat sealing the ends of the film together, which allows the next shrink bundle to pass through the film barrier. The shrink bundle then passes through a heat shrink tunnel to shrink the film around the bundle of product.

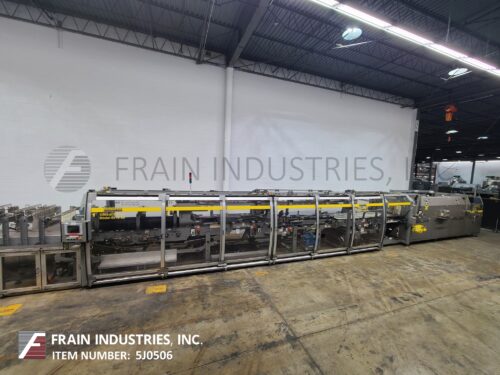

Arpac, Model BPMP-5300, Automatic, continuous motion, servo driven, shrink bundler and tunnel with in feed conveyor and laner, has bottom overlap and rated from 10 – 25 packages per minute – depending on materials, application and machine configuration. Product size range: 3" to 12" in Length; 6" to 18" in Width; 3" to 12" in Height. Equipped with 114" long x 14" wide plastic in feed conveyor with overhead servo laner to flight bar transfer with 34" long x 24" wide overlap wrap conveyor section and 24" long x 22" wide discharge conveyor to shrink tunnel. Dual side film racks with splicer, servo controlled film feed with dancer and tension rollers and exact print registration, with smooth wrapping motion and bottom overlap wrapped sleeve . Film up to 26" maximum in width; 20" in maximum OD with 3" OD core with film cut from supply roll Shrink tunnel has 32" wide x 20" high aperture, x 132" long heat shrink chamber and 204" long x 26" wide conveyor, (3) heating zones with independent heat controls, air recirculation fans and (2) end discharge cooling fans. Control panel has A/B PLC controller, with touch pad controls, display, flight bar, cycle, power on, stop and e-stop push button controls with product jog, run and registration control switches, safety guarding and status light bar. Mounted on heavy duty frame.
OAD: 484"L x 87"W x 108"H
Arpac, semi automatic, inline, shrink bundler and tunnel. Rated from 1 to 15 bundles per minute – depending on materials, application and operator dexterity. Product size range: 6" to 18" in Length x 6" to 35" in Width x 6" to 18" in Height. Arpac Model 737C bundler equipped with 37" wide hot knife seal jaws with 20" vertical travel and (2) handed cycle start push buttons and roller transfer conveyor into shrink tunnel, powered film feed and has film specifications of 37" in width up to 14" in diameter on 3" OD core and film type polyethylene or low density polyethylene with film gauge of 1 to 3 mil.
Arpac Model HVP, single zone shrink tunnel with total aperture of 40” in width x 20" in height and has a chamber length of 60" with top mounted blower. Control panel has temperature, variable air flow, variable conveyor speed and e-stops. Capable of running boxes, trays, cartons or any conveyable type product. Mounted on a common frame with leveling legs.
OAD: 141" L x 61" W x 83" H

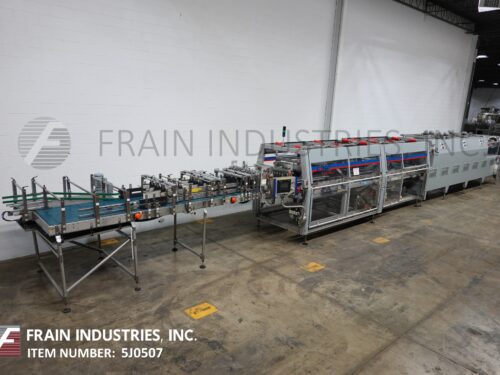

Arpac, Model BPTW-6000, Automatic, inline, continuous motion, registered film, shrink bundler and tunnel. Rated up to 60 bundles per minute – depending on materials and application. Product size range: 5" to 12" in Length; 6" to 20" in Width; 3" to 12 in Height. Film specs: to 26" in Width; to 20" in Diameter; on 3" core; can handle clear or printed film of 1.75 to 2.5 mil low density polyethylene and has maximum film cut-off length of 42". Equipped with dual side mounted film racks, splicing bar, infeed spacing conveyor, film registration, 28" seal bar and bottom overlap seal, (3) zone shrink tunnel with adjustable flow vents, variable speed blowers and cooling fans on discharge. Control panel has A/B controller with touch screen HMI and statis light bar. Mounted on heavy duty formed and structural steel frame with safety guarding.
OAD: 394"L x 104"W x 115"H

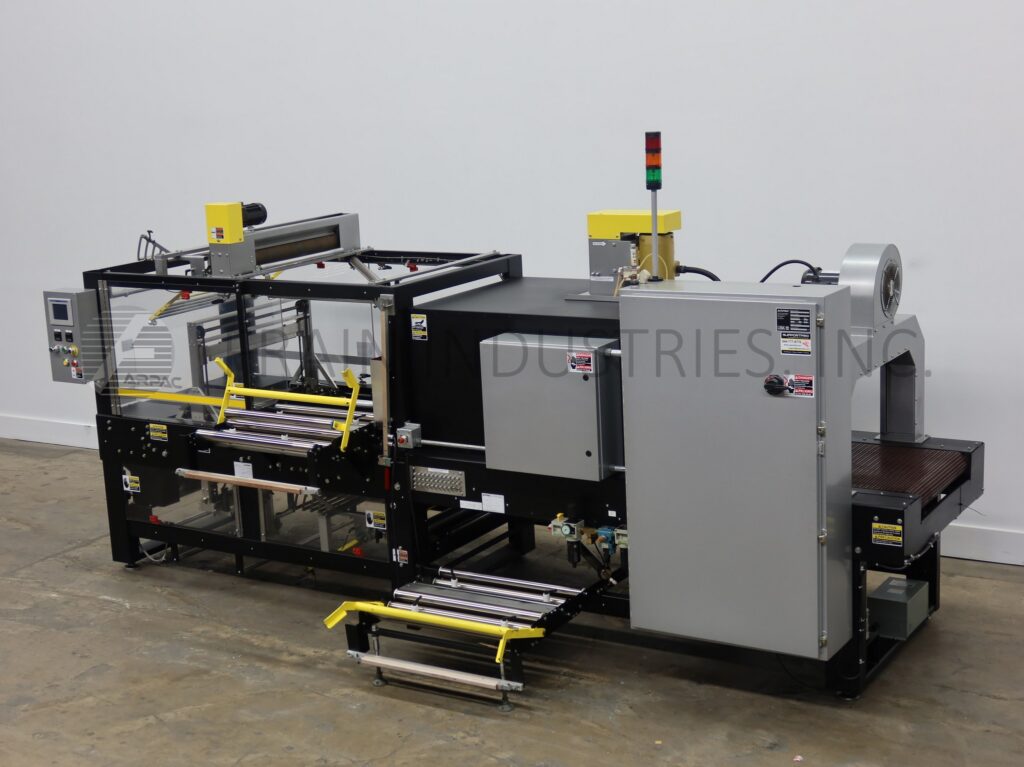

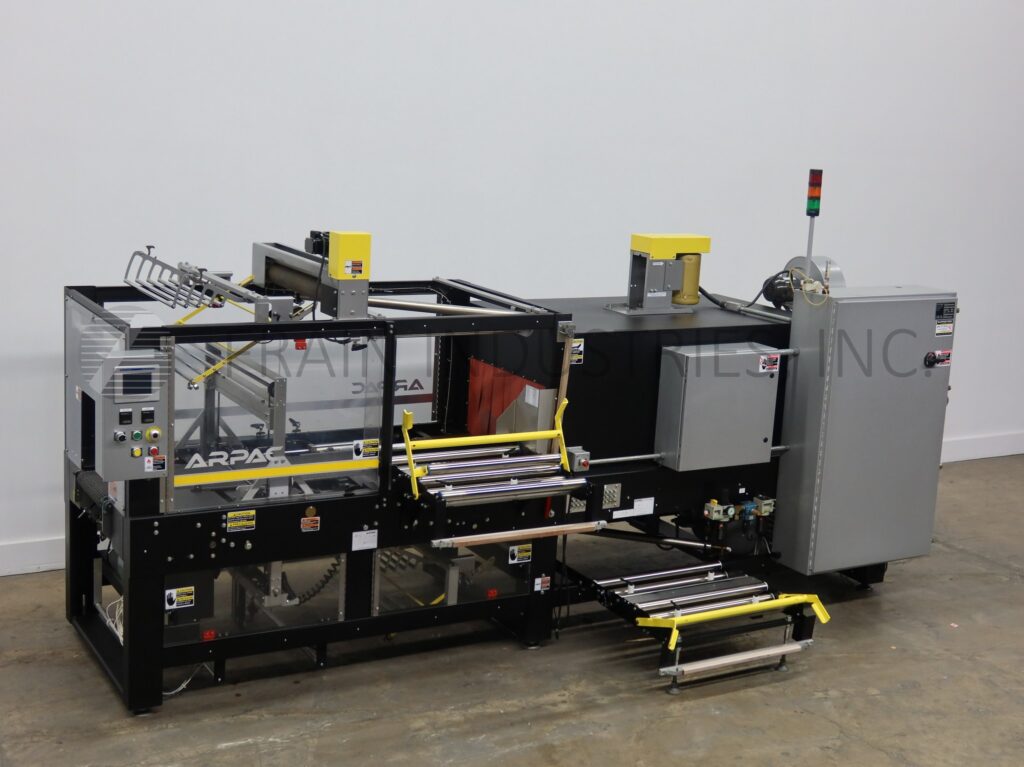

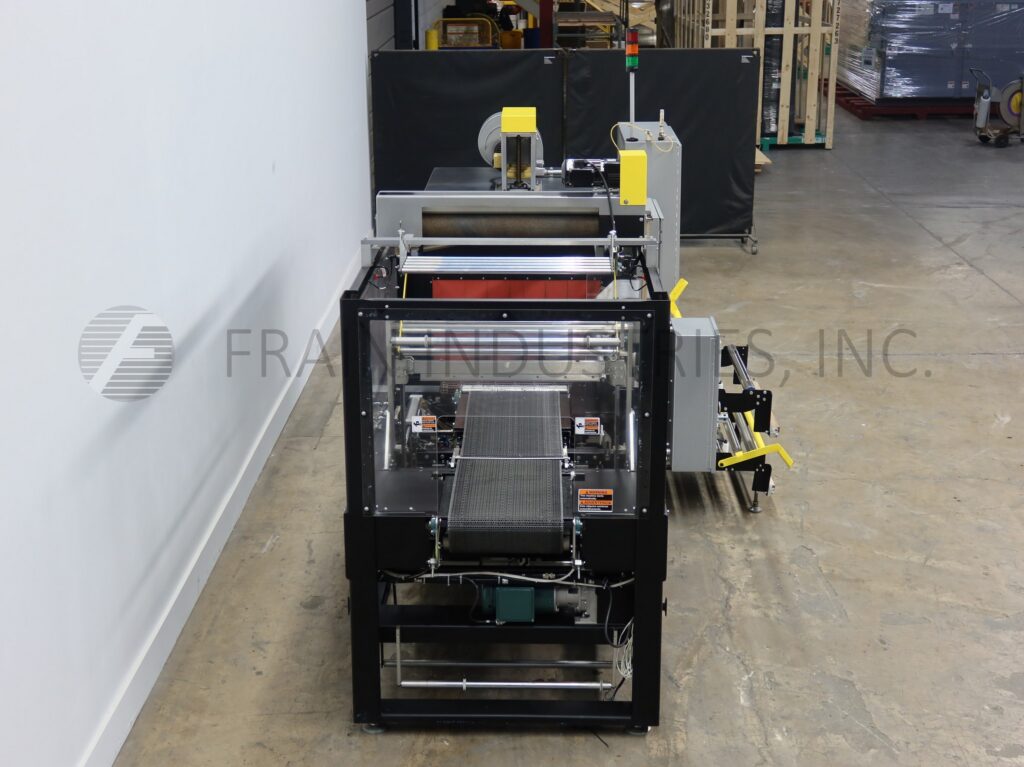

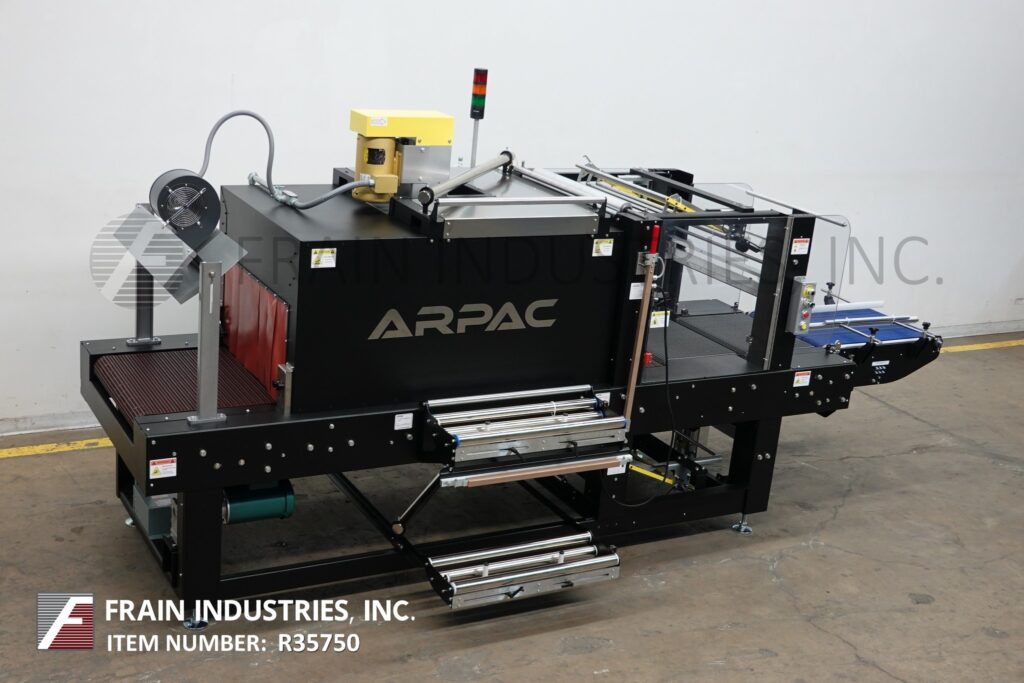

Arpac, Model 25TW-28, inline, intermittent motion, bundler and integrated shrink tunnel rated up to 25 bundles per minute – depending on materials and application. Equipped with 20" long x 24" wide in feed conveyor, 28" wide hot impulse seal jaw with 13" vertical travel, side mounted film racks and splice station, with film rolls up to 27" in width; and 14" OD on 3" core. 18" long x 24" wide transfer conveyor into single zone shrink tunnel with 29" wide flex link conveyor and 32” in width x 16" in height aperture and 67" long chamber, top mounted blower motor and cooling blower at discharge. Control panel has Allen-Bradley controller with PanelView operator interface and color touch screen, message display and self-diagnostics, low film alert, bypass mode – allows product to pass through the machine without being wrapped and without heating the tunnel. Mounted on heavy duty frame with status light bar and interlocked safety guarding.
OAD: ___" L x __" W x __" H
Arpac, Model 108-28 RA, right angle shrink bundler. Rated from 10 to 30 bundles per minute – depending on materials, application and machine configuration. Equipped with 14" wide x 50" long in feed conveyor, 90° product pusher, 29" wide hot knife seal jaws with 13" vertical travel and bundle hold down tamp. 60" long single zone shrink tunnel has 26” wide x 18" high total aperture, 86" long x 29" wide product conveyor and cooling fan on discharge. Control panel with AB controller, touch screen HMI and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.
OAD: 189"L x 74"W x 85"H

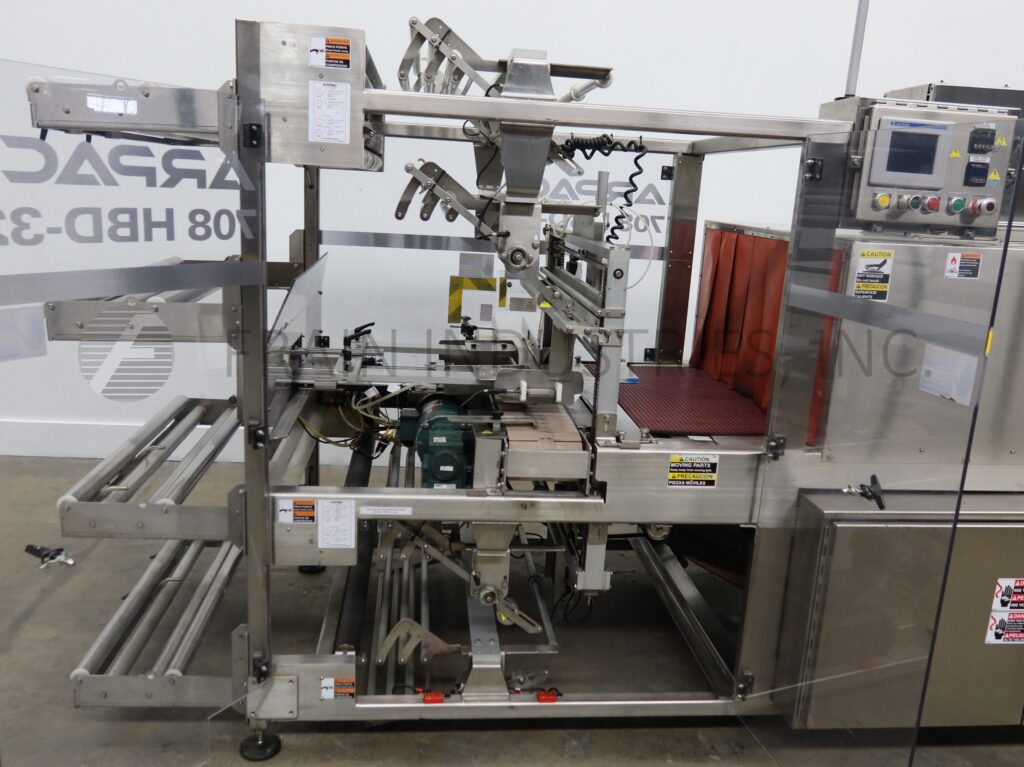

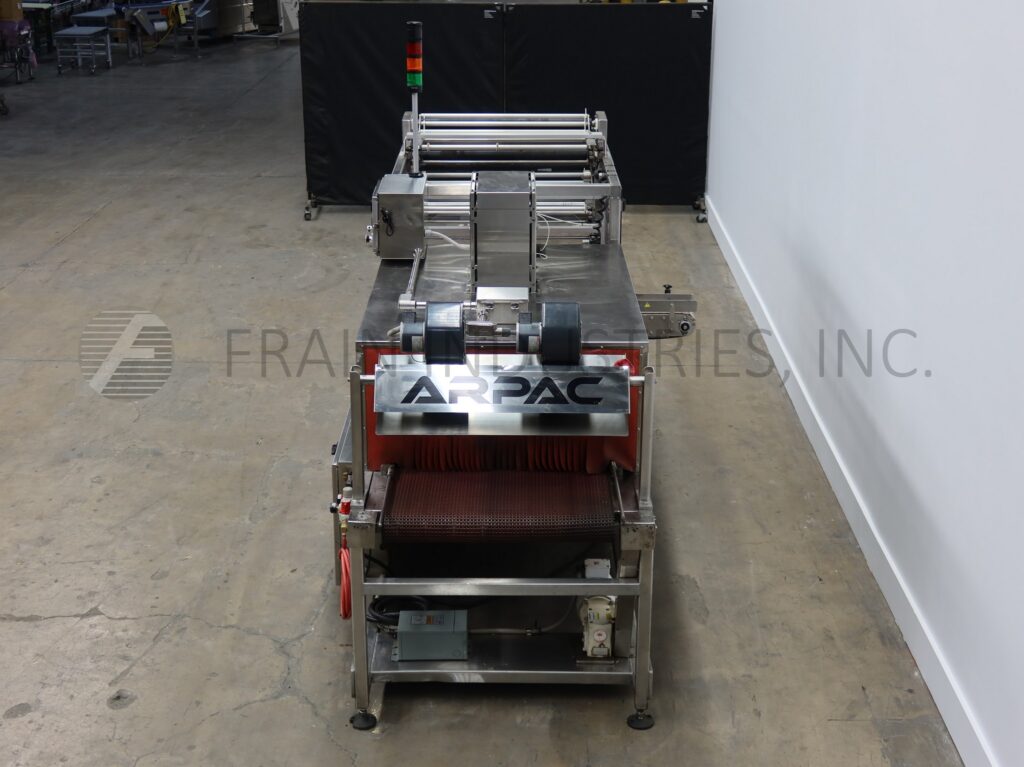

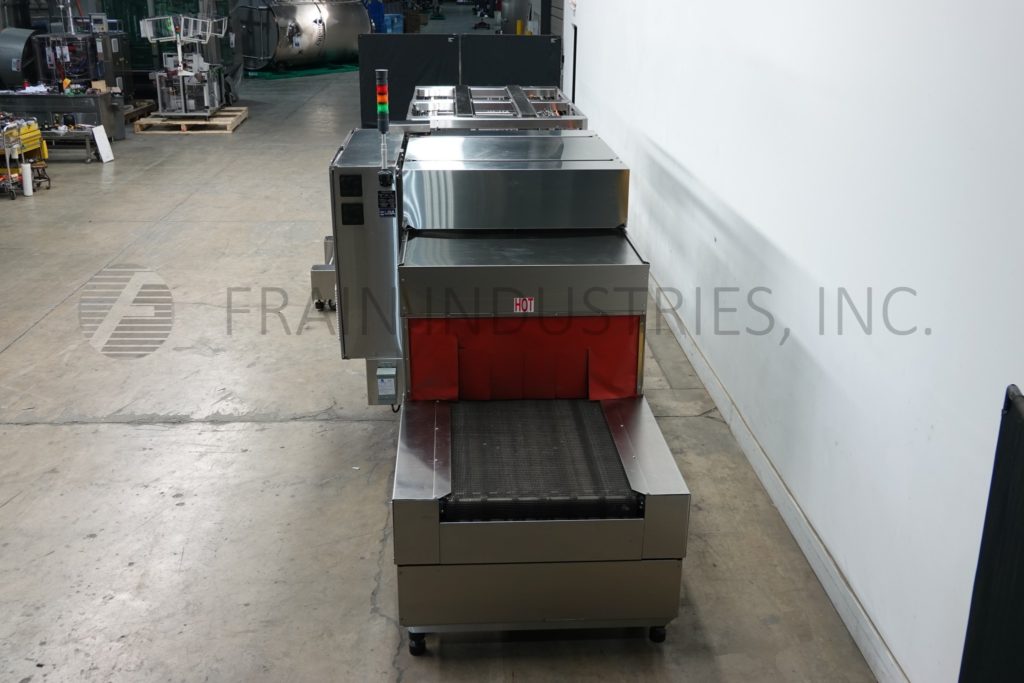

Arpac, Model 708HBD32, automatic, stainless steel, intermittent motion, shrink bundler and tunnel. Rated from 5 to 30 cycles per minute with number of product – depending on materials, application, pack pattern and machine configuration. Product size range: 1" to 11" in Length; 1" to 32" in Width; up to 8½" in Height. Equipped with 7½" wide x 57" long right angle in feed conveyor with dual pneumatic loading arms, top and bottom film rolls for an up to 36" wide web and 33" wide top and bottom heat seal jaws with product hold down. Integrated shrink tunnel with 20½" high x 33" wide x 60" long heat chamber, 102" long x 34" wide Intralox conveyor and end mounted cooling fan. Control panel has an AB PLC with touch screen HMI. Mounted on heavy duty frame with leveling legs.
OAD: 160"L x 64"W x 94"H

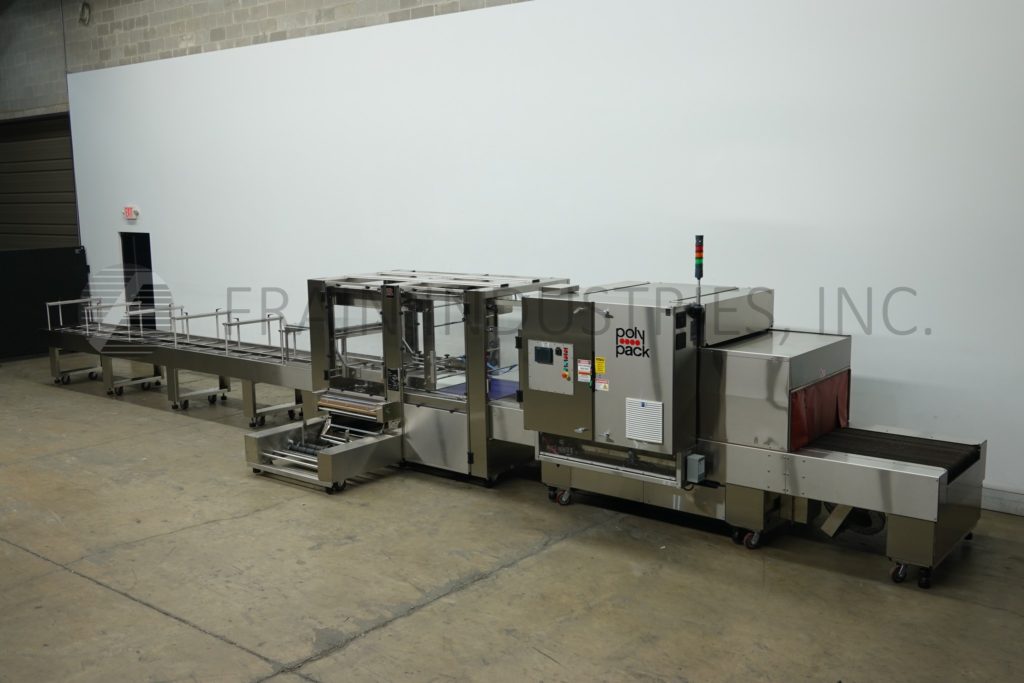

Poly Pack, Model Clearprint 32L Series, Shrink wrapper with print registration, produces bullseye wraps using either clear, random printed or print registered film, with speeds up to 60 wraps per minute in single lane and 120 in wraps dual lane. Maximum bundle size: 21" Length; 28" Width; 14" in Height. Equipped with 28" wide x 220" long hand load lugged product in feed conveyor set on 16" centers. Side mounted carriage film roll with 30" width and 20" OD on 3" OD core. Shrink tunnel has 16" high x 38" wide aperture x 100" long chamber with 30" wide x 160" long belt thru tunnel with (3) enclosed top mounted fans and (1) bottom discharge cooling fan. Control Panel has PLC controller with touch screen HMI has shrink wrap start and stop with tunnel start, reset, stop push buttons and infeed / outfeed zone controllers with e-stop, vari-speed controllers and statis light bar. Mounted on heavy duty frame and has interlock safety door guarding with safety switches.
OAD: 515" L x 97" W x 98" H

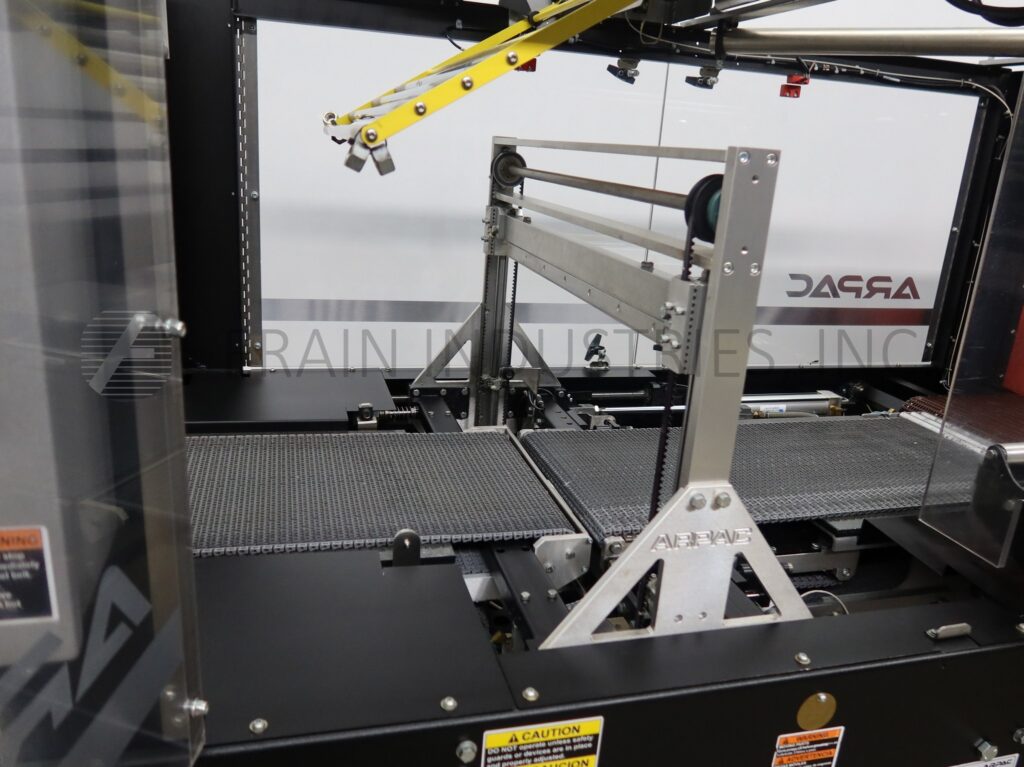

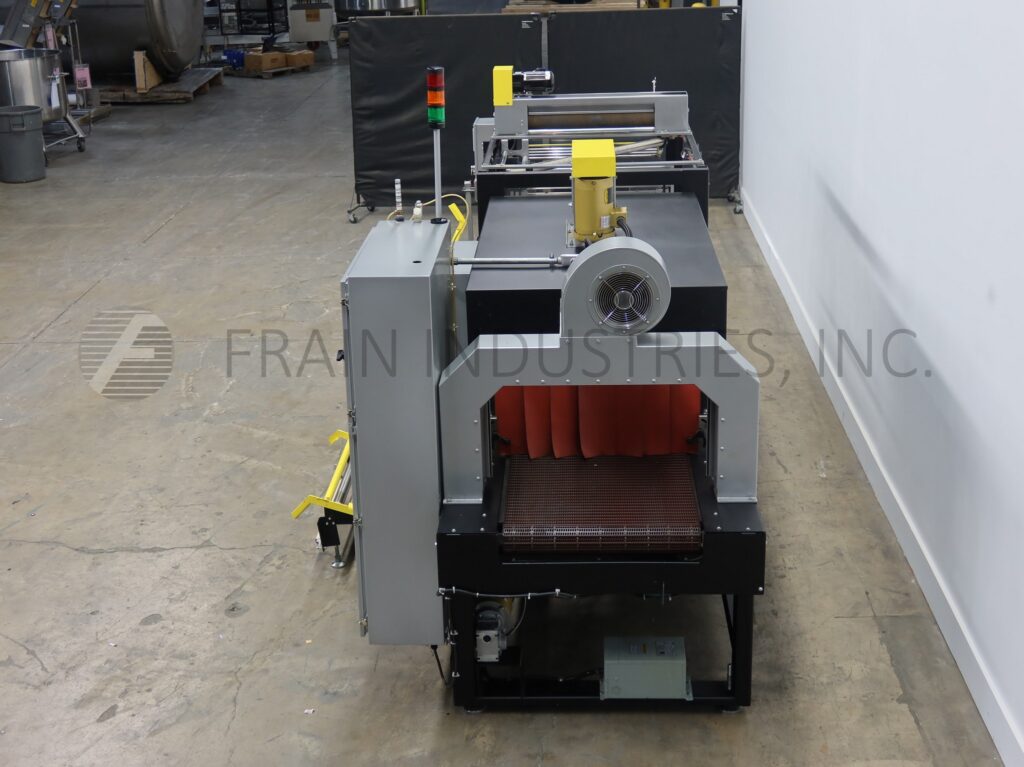

Arpac, Model 45TW-28, inline, intermittent motion, bundler and integrated shrink tunnel.Equipped with 70" long x 24" wide in feed conveyor, 29" wide seal jaw with 12" vertical travel, side mounted film racks and splice station, 66" long x 17" wide transfer conveyor through seal and into single zone shrink tunnel with 29" wide flex link conveyor and 28” in width x 16" in height aperture and 70" long chamber, top mounted blower motor and cooling blower at discharge. Allen-Bradley controller with PanelView operator interface and color touch screen, message display and self-diagnostics, low film alert, bypass mode – allows product to pass through the machine without being wrapped and without heating the tunnel. Mounted on heavy duty frame with status light bar and interlocked safety guarding. Speed dependent on materials, application and machie configuration. Film rolls up to 28" in width; and 14" OD on 6" core.
OAD: 262"L x 80"W x 88"H

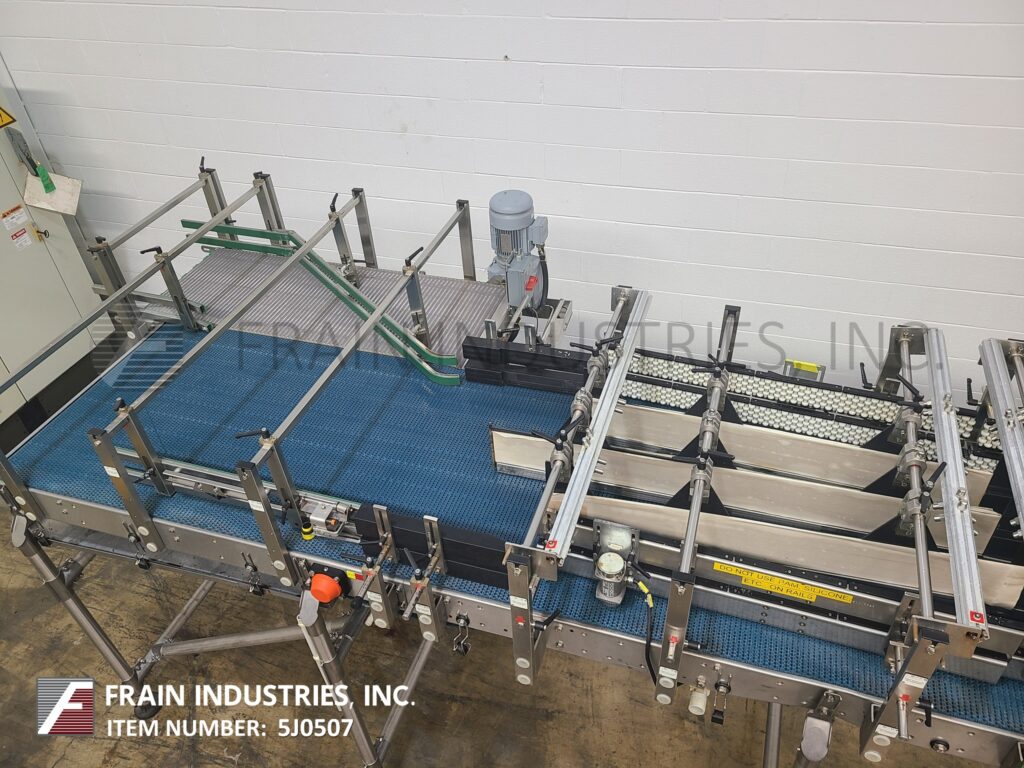

KHS Model SP 080V, High speed, (2) lane, right hand shrink bundler and tunnel rated up to 80 cycles or 160 packages per minute – depending on materials, application and pack pattern. Equipped with 240" long (8) lane product infeed conveyor with 40" wide seal bars that has 16" vertical height and right hand film loading with controls, 49¼" + / – 2" infeed and discharge conveyor height.
Khs Usa Inc (3) zone shrink tunnel with aperture: 20" in Height; 38½" in Width. 240" in Length. Temperature range: up to 500° F. with 38" wide x 240" long rubber belt conveyor and multi discharge cooling fans. Control panel has A/B PLC controller with panelview and HMI controls with immediate, positoned, fault, collating system disable enable and speed low, automatic switches, e-stops and statis light. Mounted on heavy duty frame with interlocking safety guarding.
OAD: 736" L x 84" W x 72" H With laner and Tunnel
Hartness Model 4510-60 Global Shrink, Continuous motion, inline, shrink wrapper and tunnel for PET bottles or canned product, rated up to 60 cycles per minute with the number of trays and products – depending on materials, application and machine configuration. Single roll shrink wrapper to run trays or pads with both clear or printed film with proper change parts. Maximum tray size: 20" long x 24" wide x 12" high. Equipped with 352" long x 54" wide accumulation section with (8) lane product infeed conveyor, (2) chain blank tray magazine (2) chain x 210" long tray feed conveyor, with up feed conveyor and Nordson Problue hot melt glue system, servo controlled film feed with cutting and wrapping wand, 36-1/2" wide x 104" long (3) section feed conveyor to shrink tunnel. Laminar shrink tunnel has 24" high x 40" wide aperture x 240" long chamber with 54" wide x 250" long belt and top mounted discharge cooling fans. Control Panel has A/B PLC with touch screen HMI and has shrink wrap start and stop and tunnel start, reset, stop push buttons with infeed / outfeed zone controllers and e-stop with A/B powerflex vari-speed controllers. Mounted on heavy duty frame with interlock Lexan safety door guarding and safety switches.
OAD: 912" L x 140" W x 113" H

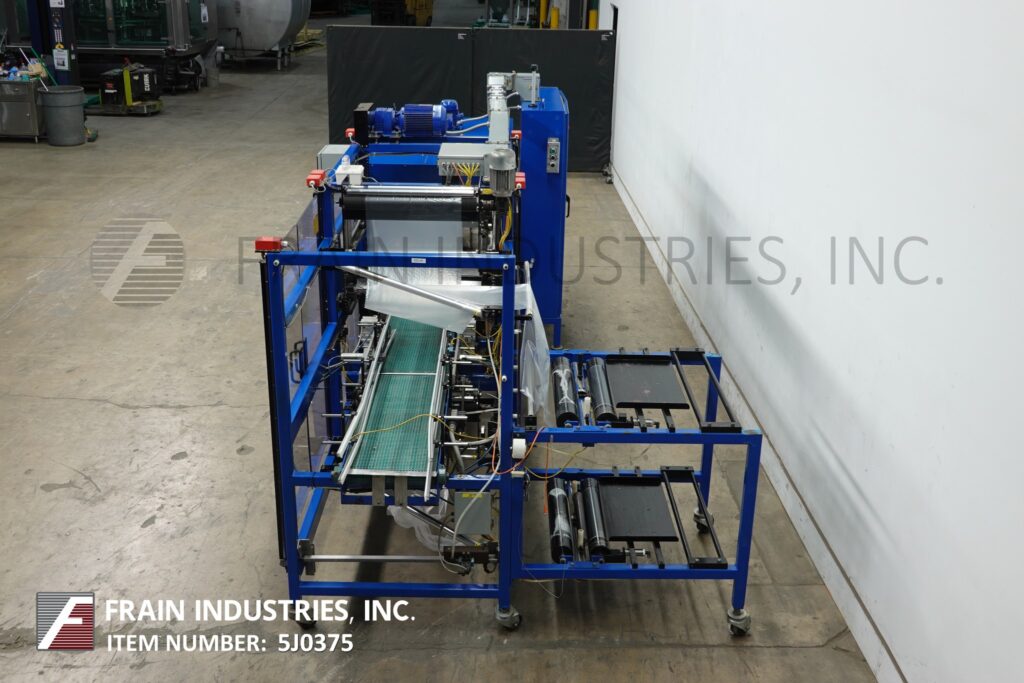

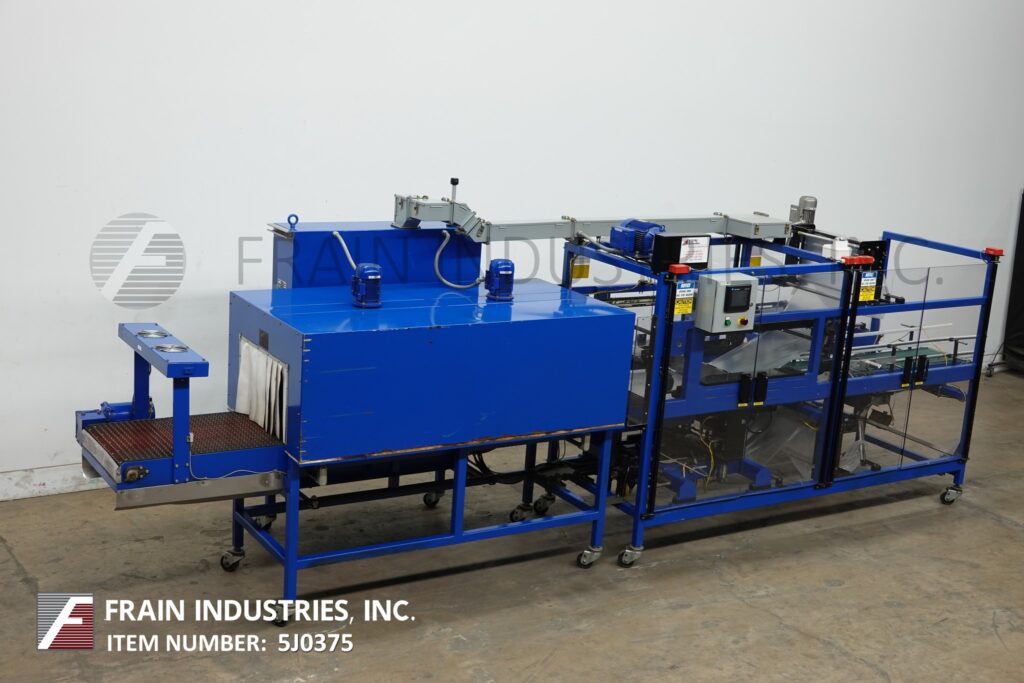

EDL Model FBS24, inline, continuous motion, bundler and integrated shrink tunnel. Rated up to 35 bundles per minute – depending on materials and application. Product size range: 5" to 24" in Length x 3" to 14" in width x 3" to 13" in Height. Equipped with 84" long x 14" wide in feed conveyor and has Pneumatic gate indexing, 25" wide hot impulse seal jaws set on 30" centers with flight bar, side mounted film racks and film rolls up to 24" in width; and 16" OD. Single zone shrink tunnel with 24" wide x 122" long flex link conveyor and 18” in width x 15" in height aperture and 78" long chamber with (2) top mounted blower motor. Control panel has Allen-Bradley controller with touch screen HMI. Mounted on heavy duty frame with status light bar and interlocked safety guarding.
OAD: 225"L x 82"W x 85"H

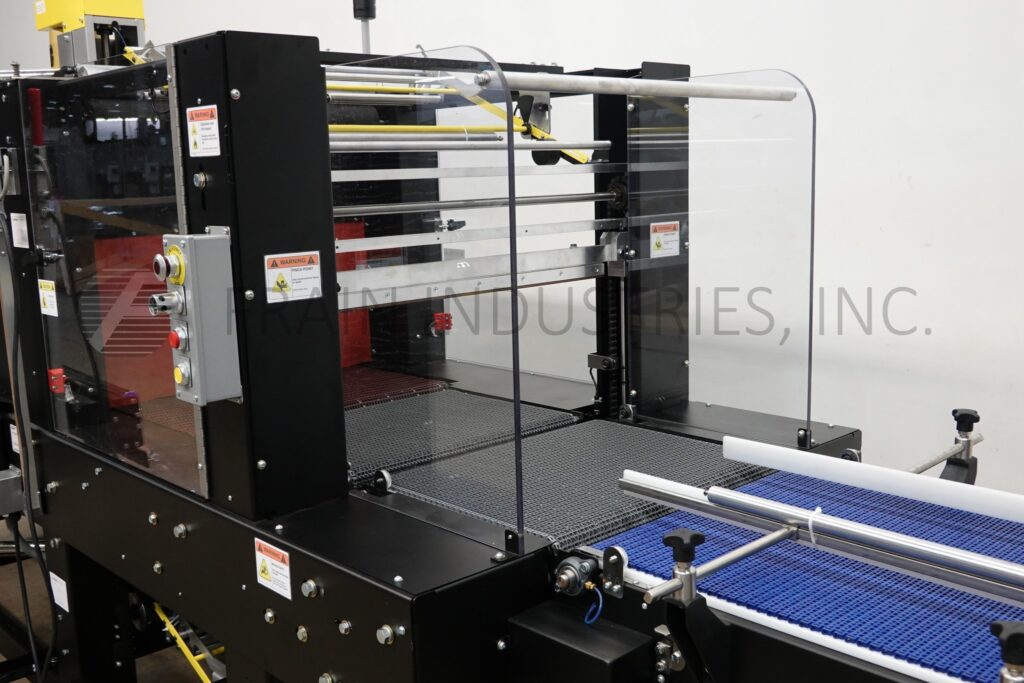

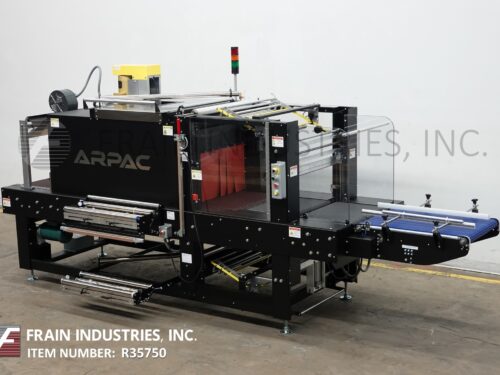

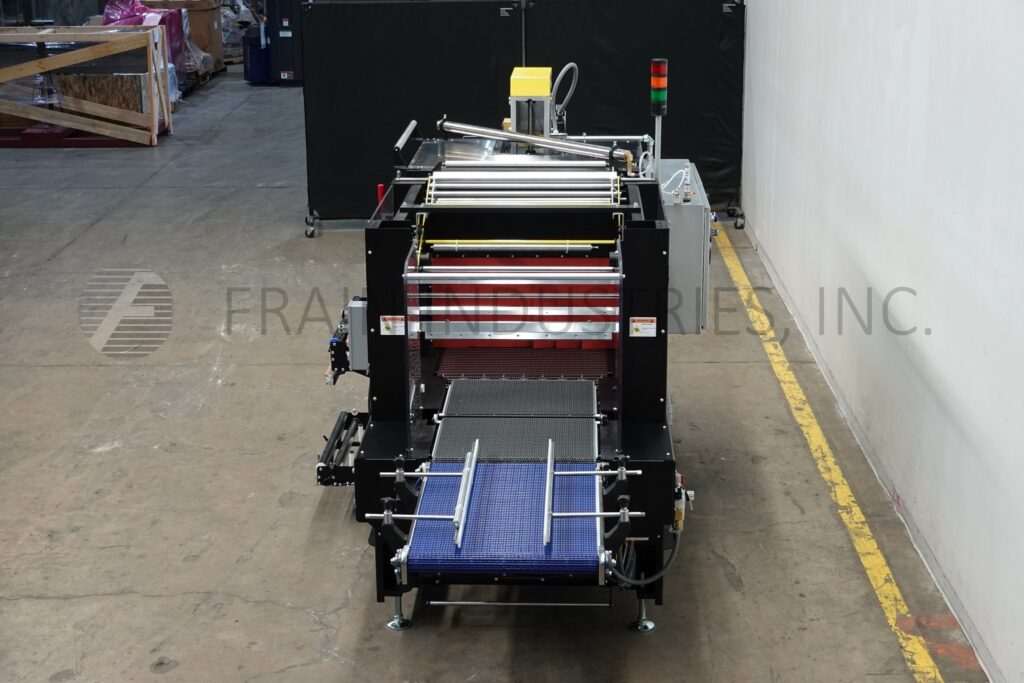

Arpac, Model 25TW-28, inline, intermittent motion, bundler and integrated shrink tunnel rated up to 25 bundles per minute – depending on materials and application. Product size range: 7" to 20" in Length x 6" to 18" in width x 4" to 12" in Height. Equipped with 20" long x 24" wide in feed conveyor, 28" wide hot impulse seal jaw with 13" vertical travel, side mounted film racks and splice station, with film rolls up to 27" in width; and 14" OD on 3" core. 18" long x 24" wide transfer conveyor into single zone shrink tunnel with 29" wide flex link conveyor and 32” in width x 16" in height aperture and 67" long chamber, top mounted blower motor and cooling blower at discharge. Control panel has Allen-Bradley controller with PanelView operator interface and color touch screen, message display and self-diagnostics, low film alert, bypass mode – allows product to pass through the machine without being wrapped and without heating the tunnel. Mounted on heavy duty frame with status light bar and interlocked safety guarding.
OAD: 180"L x 78"W x 80"H
