Flow thru shrink wrappers, or flow through shrink wrappers are designed to wrap products in heat shrinkable plastic film as the product flows through the flow through shrink wrapper in a straight line. Flow through shrink wrappers are designed to create three kinds of heat shrinkable plastic film packages around the product. The first type of plastic film package has a heat-sealed seam in front of the package, a heat-sealed seam in back of the package, and an overlap static seal underneath the package, and is called a lap seal package. The second type of plastic film package has a heat-sealed seam in front of the package, a heat-sealed seam in back of the package, and a heat-sealed seam on the side of the package. This type of heat shrinkable plastic film package has a side seam. Flow through shrink wrappers are designed to seal and cut the film in front and behind the package (and in the case of a side seam package, to the side of the package) using either a hot wire seal and cut-off or a hot knife seal and cut-off. The third type of package that a flow through shrink wrapper can accomplish is called an inverted seal or package. An inverted flow through shrink wrapper creates a package that has a heat-sealed seam in front and behind the package, and a heat-sealed seam longitudinally across the top of the package.
Lap seal flow through shrink wrappers, or overlap seal flow through shrink wrappers, use a single flat roll of film that passes over a form to wrap the film completely around a product as the product passes through the form. The lap seal flow through shrink wrapper overlaps the film below the product. Because this overlap of film is not actually sealed until the package passes through a heat shrink tunnel, the overlap seal is also referred to as a static seal. After the film is overlapped below the product, the lap seal flow through shrink wrapper passes the product through lateral seal jaws that seal the front of the current package, seal the back of the next package, and separate the packages by cutting the film between the two packages.
Side seam flow through shrink wrappers are designed to use center folded heat-shrinkable film to wrap the product. The side seam flow through shrink wrappers pass the center folded film over a forming plow that orients the film below and above the infeed conveyor. The product is transferred onto the film with the folded portion of film above the package. The heat-shrinkable film is then passed through a seaming device that seals the film to the side of the product. The side film sealer also trims excess film beyond the seal. The side seam flow through shrink wrapper then passes the wrapped product through lateral seal jaws that seal the back end of the current package, seal the front end of the next, and cut the film between the seals.
Inverted flow through shrink wrappers also use single flat rolls of film. An inverted flow through shrink wrapper is designed to have the product placed on the film rather than on a belt or lug chain to carry the product through the heat-sealing jaws. The heat shrinkable film is formed up around the product through the use of plows. The excess film above the product is passed through a mechanism that seals the film above the package and trims the excess film. The inverted flow through shrink wrapper then passes the product through lateral film sealing jaws that are designed to form the trailing seal for the current package, form the leading seal for the next package, and cut the film between the seals to separate the packages.

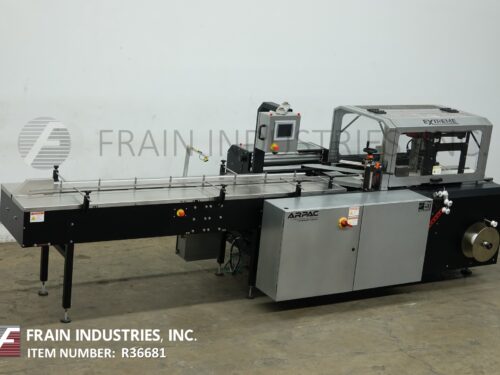

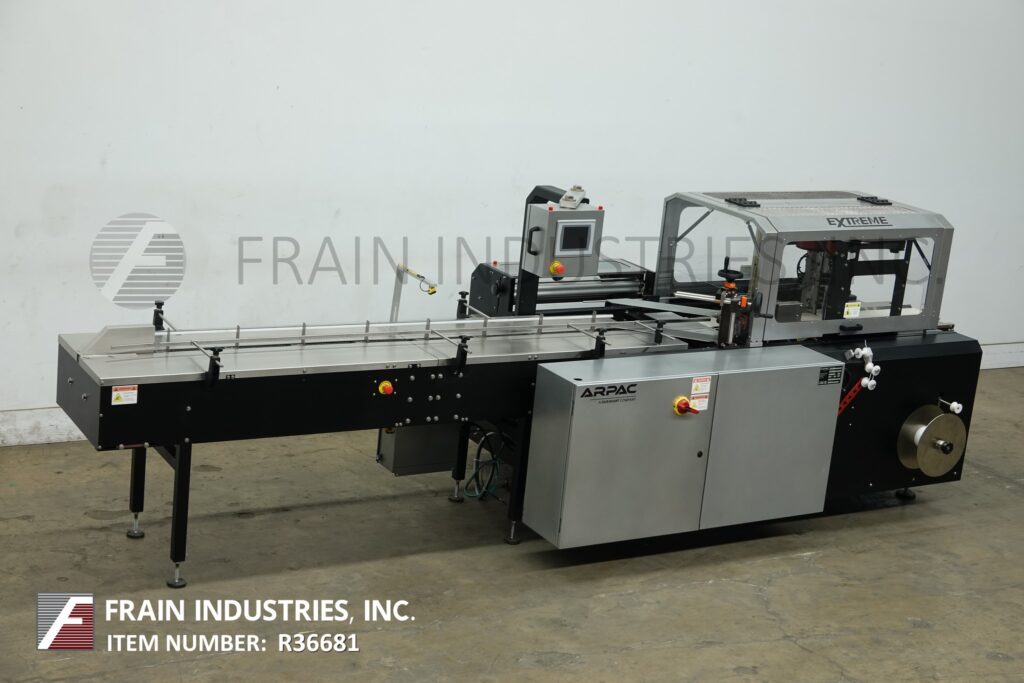

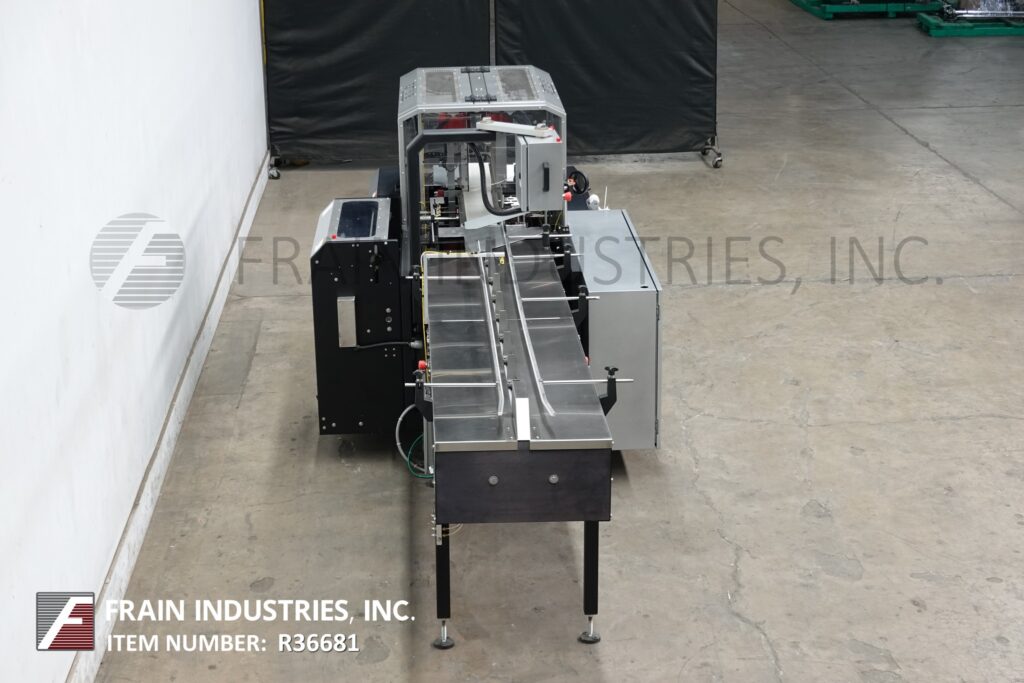

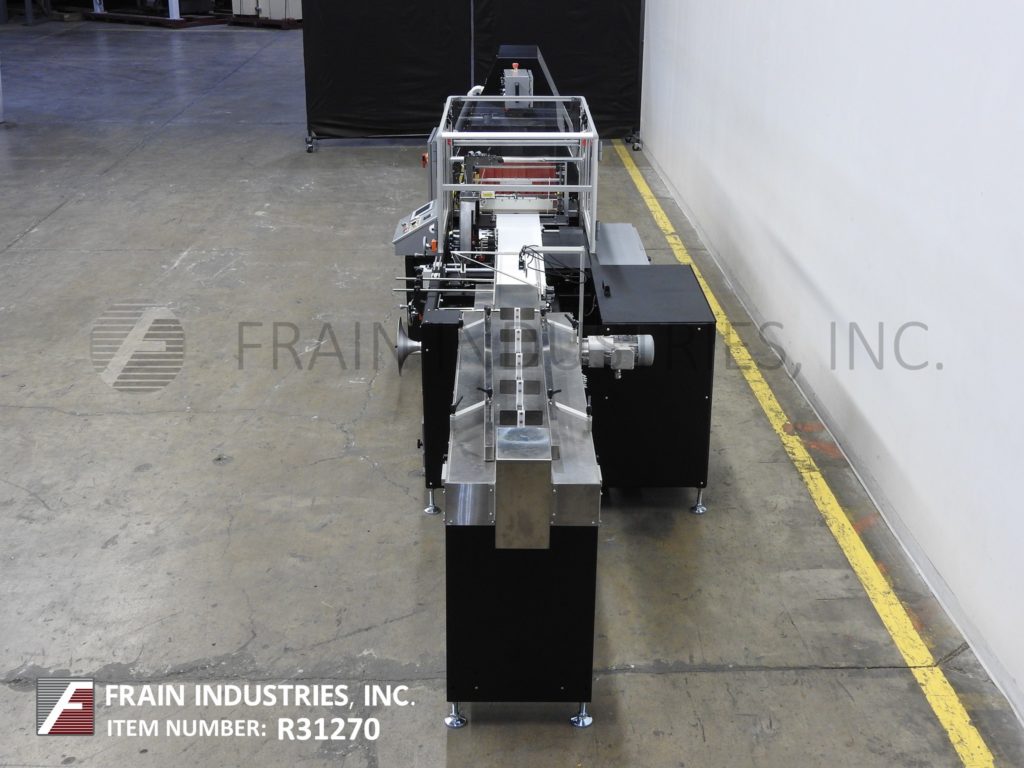

Arpac, Model XRV15, servo driven horizontal flow thru shrink wrapper. Rated from 0 to 90 linear feet per minute with number of product – depending on materials, application and machine configuration. Package size range: 3" to 11" in Length; 3" to 5" in Width; 1/8" to 12" in Height. Equipped with a 92" long lugged in feed conveyor set on 12" centers, 6" wide x 60" long discharge conveyor, 48" loading area, 25" pre folded side film unwind, 6" long side seal and 12" wide vertical hot knife end seal. Control panel has an A/B PLC controller and touch screen HMI.
OAD: 186"L x 73"W x 65"H

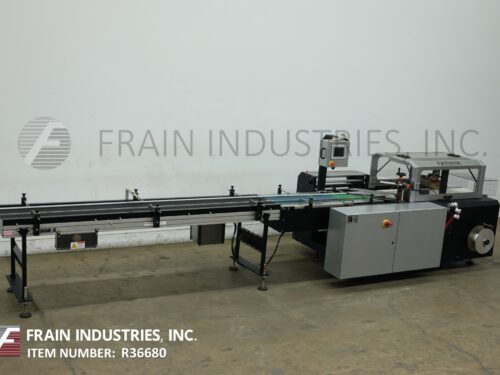

Arpac, Model AL18-B, horizontal flow thru shrink wrapper. Rated from 0 to 100 linear feet per minute with number of product – depending on materials, application and machine configuration. Package size range: 3" to 34" in Length; ½" to 18" in Width; 1/8" to 8" in Height. Equipped with a 18" wide x 118" long slip torque in feed conveyor, 14-3/4" wide x 35" long transfer conveyor, 13-3/4" wide x 33" long discharge conveyor, 25" pre folded side film unwind, 6" long side seal and 20" wide hot knife end seal. Control panel has an A/B PLC controller and touch screen HMI.
OAD: 265"L x 68"W x 70"H

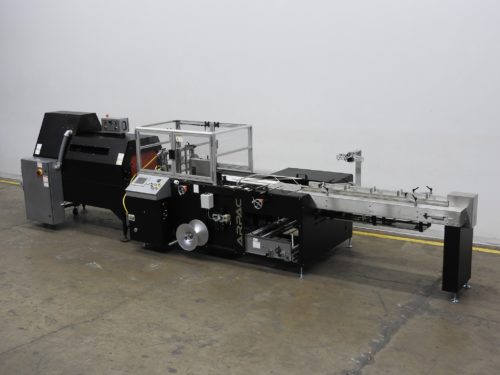

Arpac, Model TS37 and XT18, horizontal continuous motion, side seal shrink wrapper and tunnel. Rated from 0 to 80 linear feet and 0 to 80 packages per minute – depending on materials, application and product stability. Product size range: 3½" to 72" in Length; 2" to 16" in Width; ¼" to 7½" in Height. Equipped with 118" long slip torque product in feed conveyor and 72" long belt transfer conveyor, LDPE seal jaws and next generation side seal with product discharge conveyor. Control panel with A/B controller and touch screen HMI. Film specs: Film specifications: up to 39" wide single wound film on 3" OD core; to 14" in diameter, with pull out film carriage. Mounted on (4) leg base frame with interlock safety guarding.
Shrink tunnel: Aperture: 21" in Width; 12" in Height; tunnel 72" in Length. Equipped with 80" long x 18" wide conveyor, top mounted blower with variable speed and temperature controls. Mounted on height adjustable (4) leg base frame.
OAD: 368"L x 65"W x 80"H

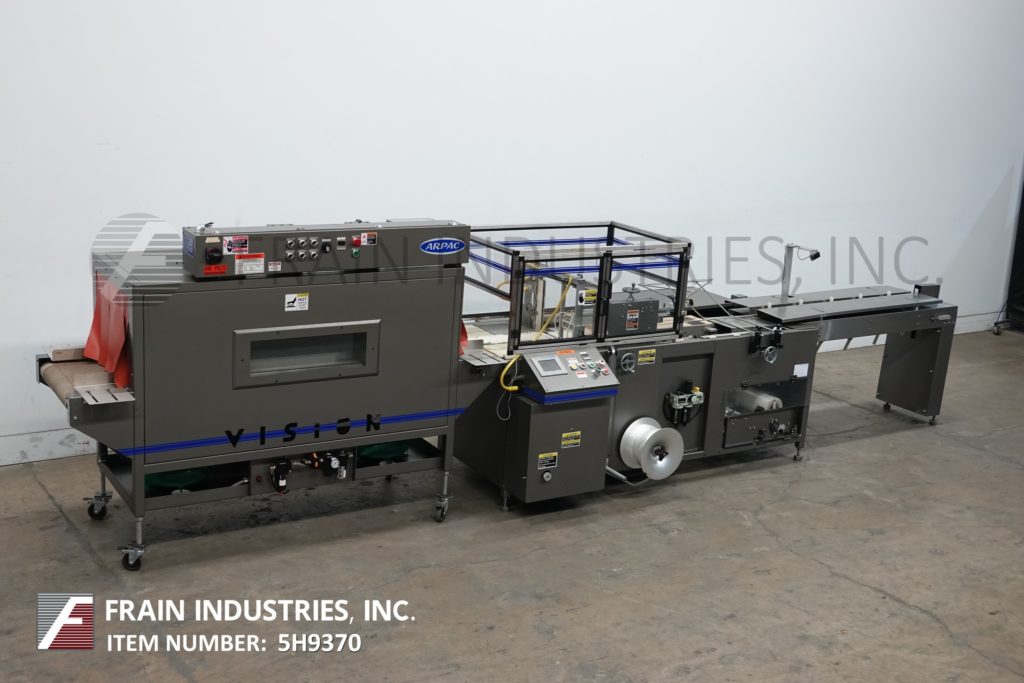

Arpac Model TS37 / VT122272, Automatic, flow thru, side seal shrink wrapper and heat tunnel with number of poduct per minute – depending on materials and application. Product size range: with seal bar in vertical position: 3½" to 60" in Length; 2" to 7½" in Width; 2 to 12" in Height; with seal bar in horizontal position: 3½" to 60" in Length; 2" to 16" in Width; ¼" to 7½ in Height. Equipped with 60" long lugged in feed conveyor, with 1" wide x 4" high lugs set on 12" centers, side slide out film rack drawer with single-wound film, 46" in width; 14" OD on 3" OD core. 12" long adjustable side seal and 13-1/2" vertical seal jaws with perf wheel, scrap removal reel and 36" long x 10" wide neopreme conveyor thru seal area and 26" long x 6" wide neopreme discharge conveyor. A/B PLC with panel view. status light bar and interlock safety guarding. Mounted on frame with leveling legs.
Convection shrink tunnel: total aperture: 19" in Height; 24" in Width; and 72" Long illuminated shrink chamber with 25" Wide x 7" High chamber viewing window. shrink heat chamber, 94" long x 22" Wide mesh conveyor belt, Variable speed controls, with (3) top / bottom mounted fans. Control panel has tunnel temperature and upper and lower air velocity and belt speed controls. Mounted on frame with locking casters.
OAD: 165" L x 70" W x 60" H Shrink Wrapper 94" L x 42" W x 68" H Shrink Tunnel

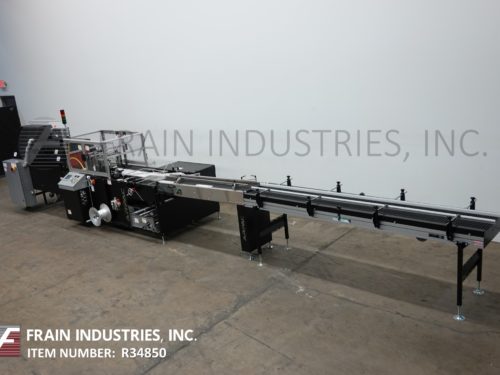

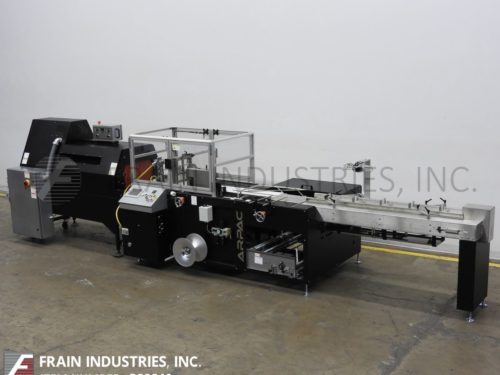

Arpac Model TS37 / XT18, Horizontal, continuous motion, side seal shrink wrapper and tunnel rated from 0 to 90 linear feet or 0 to 80 packages per minute – depending on materials, application and product stability. Product size range: 3-1/2" to 60" in Length; 2" to 16" in Width; 1/4" to 7-1/2" in Height. Equipped with 120" long lugged product in feed conveyor, LDPE seal jaws has next generation side seal with film registration and product discharge conveyor. Film specs: up to 39" wide single winde film on 3" OD core; to 14" OD with pull out film carriage. Control panel has A/B controller, with no product detection, perf and scrap removal wheels, seal bar trim, tempature controllers, drive speed dial with start, stop, jog and e-stop. Mounted on (4) leg frame with interlock safety guarding.
Shrink tunnel: Has an aperture of 24" in Width; 14" in Height and tunnel 72" in Length. Equipped with 120" long x 22" wide conveyor, with illuminated shrink chamber with viewing window. top mounted blower with variable speed and temperature controls Mounted on height adjustable (4) leg frame.
OAD: 251" L x 63" W x 61" H
Arpac Model TS37 / XT18, Horizontal, continuous motion, side seal shrink wrapper and tunnel rated from 0 to 90 linear feet or 0 to 80 packages per minute – depending on materials, application and product stability. Product size range: 3-1/2" to 60" in Length; 2" to 16" in Width; 1/4" to 7-1/2" in Height. Equipped with 120" long lugged product in feed conveyor, LDPE seal jaws with next generation side seal with film registration and product discharge conveyor. Film specs: up to 39" wide single wound film on 3" OD core; to 14" OD with pull out film carriage. Control panel has A/B controller, with no product detection, perf and scrap removal wheels, seal bar trim, tempature controllers, drive speed dial with start, stop, jog and e-stop. Mounted on (4) leg frame with interlock safety guarding.
Shrink tunnel: Aperture: 24" in Width; 14" in Height; tunnel 72" in Length. Equipped with 120" long x 22" wide conveyor, top mounted blower with variable speed and temperature controls. Mounted on height adjustable (4) leg frame.

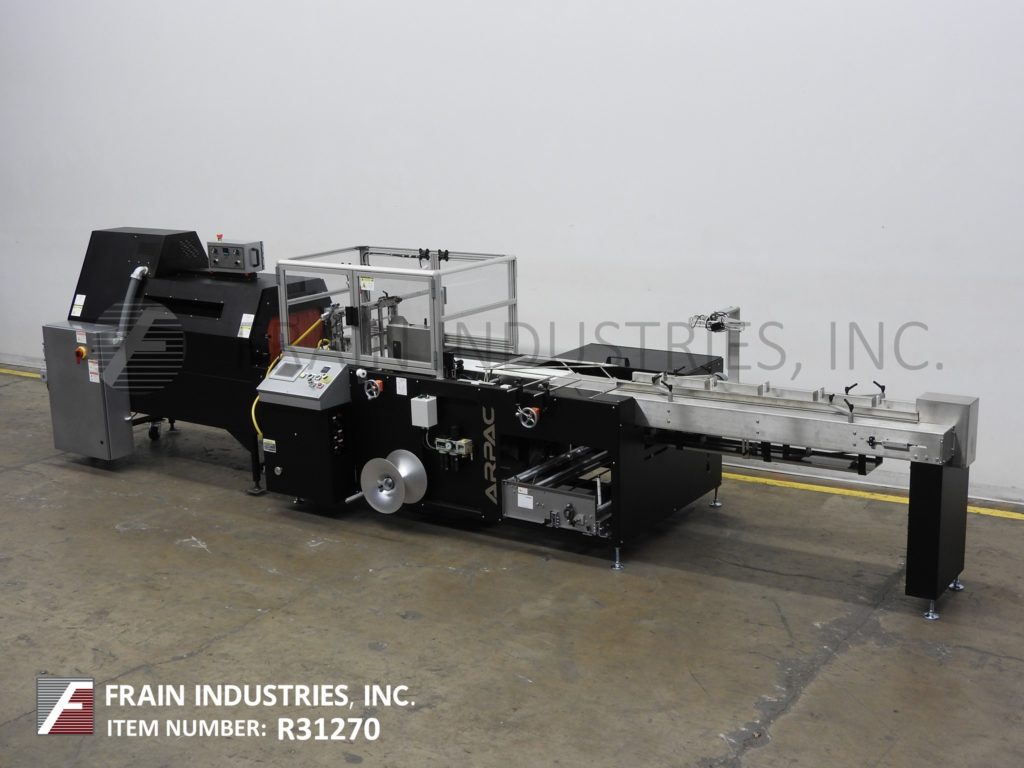

Arpac, Model TS37 and XT18, horizontal continuous motion, side seal shrink wrapper and tunnel. Rated from 0 to 90 linear feet or 0 to 80 packages per minute – depending on materials, application and product stability. Product size range: 3½" to 60" in Length; 2" to 16" in Width; ¼" to 7½" in Height. Equipped with 112" long lugged product in feed conveyor with lugs set on 15" centers, LDPE seal jaws with next generation side seal with film registration and product discharge conveyor. Film specs: up to 39" wide single wound film on 3" OD core; to 14" OD with pull out film carriage. Control panel has A/B controller, with no product detection, perf and scrap removal wheels, seal bar trim, tempature controllers, drive speed dial with start, stop, jog and e-stop. Mounted on (4) leg base frame with interlock safety guarding.
Shrink tunnel: Aperture: 21" in Width; 12" in Height; tunnel 72" in Length. Equipped with 87" long x 18" wide conveyor, top mounted blower with variable speed and temperature controls. Mounted on height adjustable (4) leg base frame.
OAD: 301"L x 65"W x 68"H

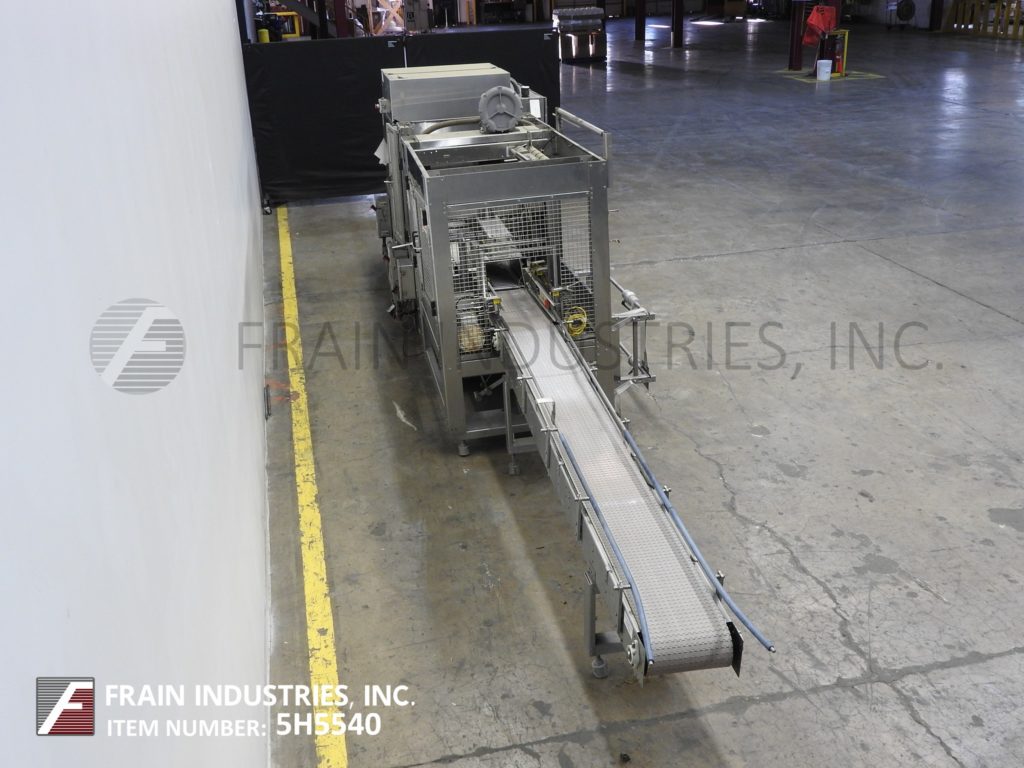

Poly Pack, Model FIL-24-32CHL, In-line, intermittent motion, stainless steel, full shrink wrap closure, shrink wrapping system. Rated from 1 to 25 cycles per minute with number of product and wraps – depending on materials, application and pack pattern. Uses forming head to wrap products rectangle or round and everything from small trays to 12 foot or longer rolls with proper chang parts. Equipped with 106" long x 10" wide product in feed belt conveyor, to vacuum stabilizing belt with product indexing and accumulation section thru fixed product forming plow, has 36" long side film and dancer rollers. Seal jaw and tunnel section has 26" wide teflon coated hot knife sealing jaws, 84" long x 24" wide thru the tunnel roller conveyor with 28" wide x 18" high aperature x 56" long heat shrink chamber with top mounted circulation fan. Control panel has A/B PLC controller with A/B Panview and touch pad controls with readout, seal jaw and tunnel heater controllers, start / stop / e-stop push buttons, cage style safety guarding. Both mounted on stainless steel base frame with leveling legs.
OAD: 189" L x 60" W x 72" H
Arpac, Model TS37 and XT18, horizontal continuous motion, side seal shrink wrapper and tunnel. Rated from 0 to 90 linear feet and 0 to 80 packages per minute – depending on materials, application and product stability. Product size range: 3½" to 60" in Length; 2" to 16" in Width; ¼" to 7½" in Height. Equipped with 64" long product in feed conveyor, LDPE seal jaws and next generation side seal with product discharge conveyor. Control panel with A/B controller and touch screen HMI. Film specs: Film specifications: up to 39" wide single wound film on 3" OD core; to 14" in diameter, with pull out film carriage. Mounted on (4) leg base frame with interlock safety guarding.Shrink tunnel: Aperture: 21" in Width; 12" in Height; tunnel 72" in Length. Equipped with 80" long x 18" wide conveyor, top mounted blower with variable speed and temperature controls. Mounted on height adjustable (4) leg base frame.
OAD: 255"L x 64"W x 70"H

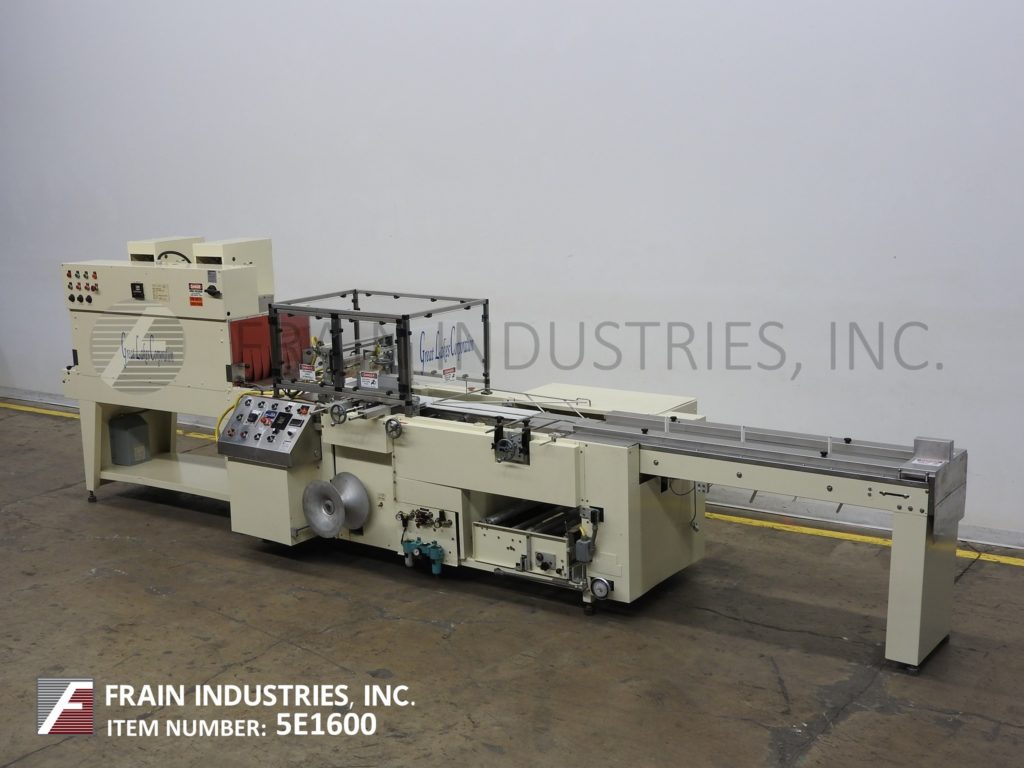

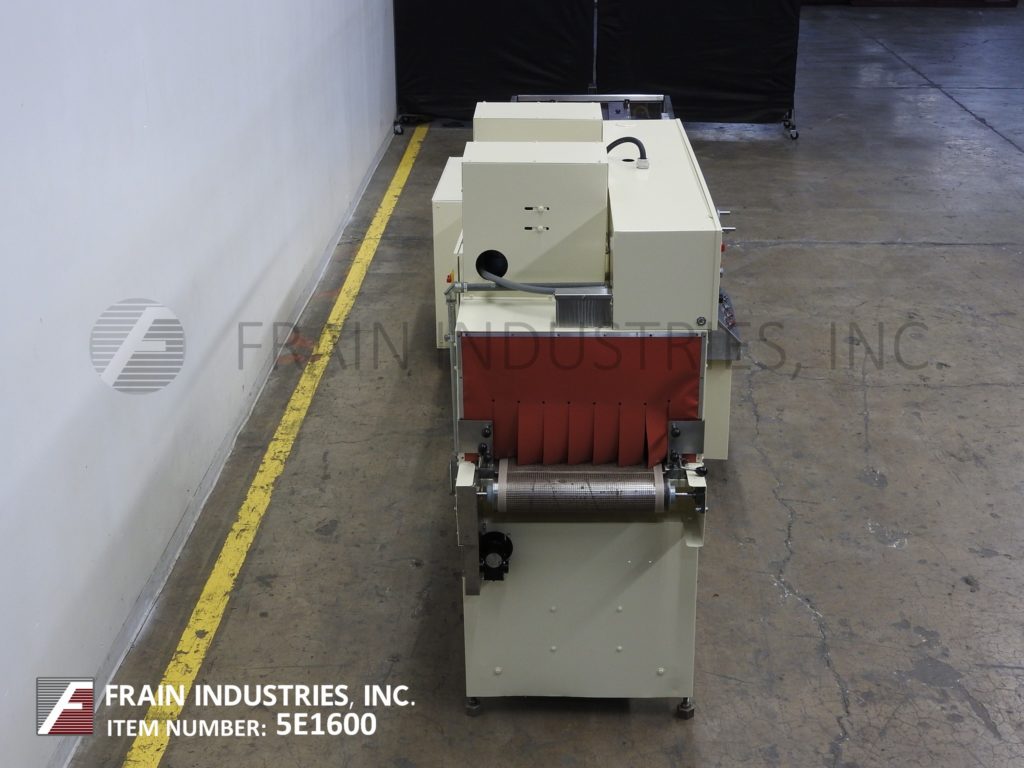

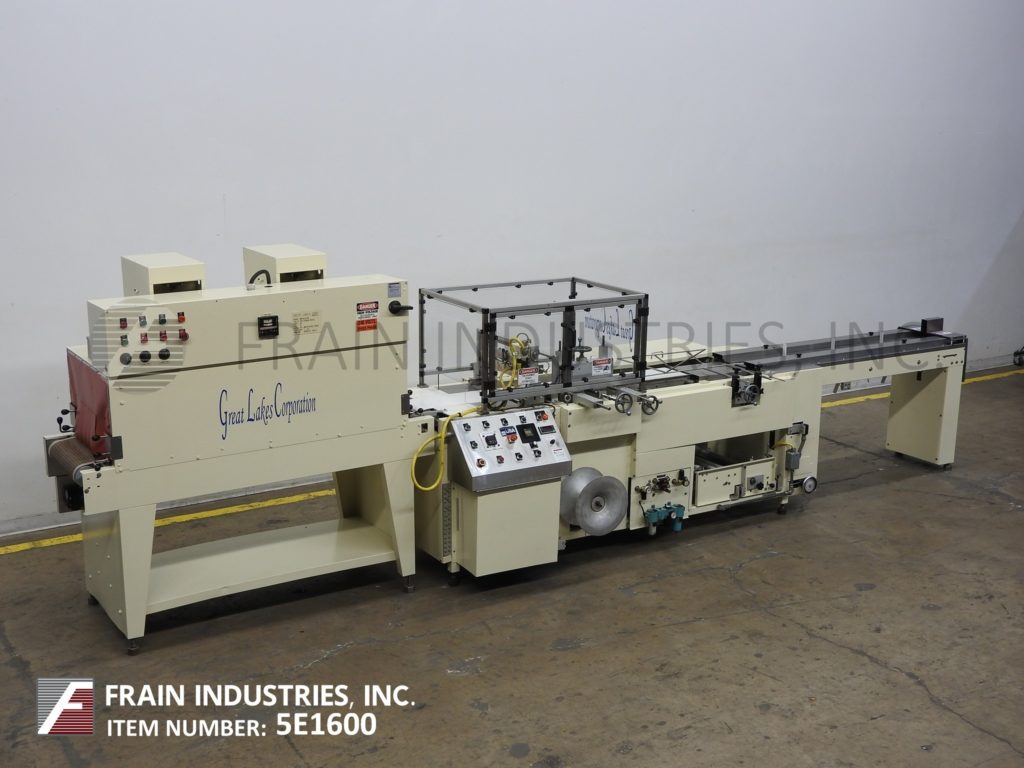

Automatic, continuous motion side seal horizontal wrapper. Product size range: 2" to 60" in Length; up to 16" in Width; up to 6" in Height. Equipped with 7′ lugged in feed, walking beam cross seal jaw, side seal, perforation wheels, scrap removal, lexan guarding and E-stops. Tunnel aperture is10" high by 22" wide, with 20" wide by 72" long mesh belt and 36" conveyor height. Film specifications: single wound film, to 37" in width; to 10" in diameter; 3" OD core. Speed dependant on materials, application and machine configuration.
OAD: 252" L x 58" W x 60" H Wrapper and Tunnel

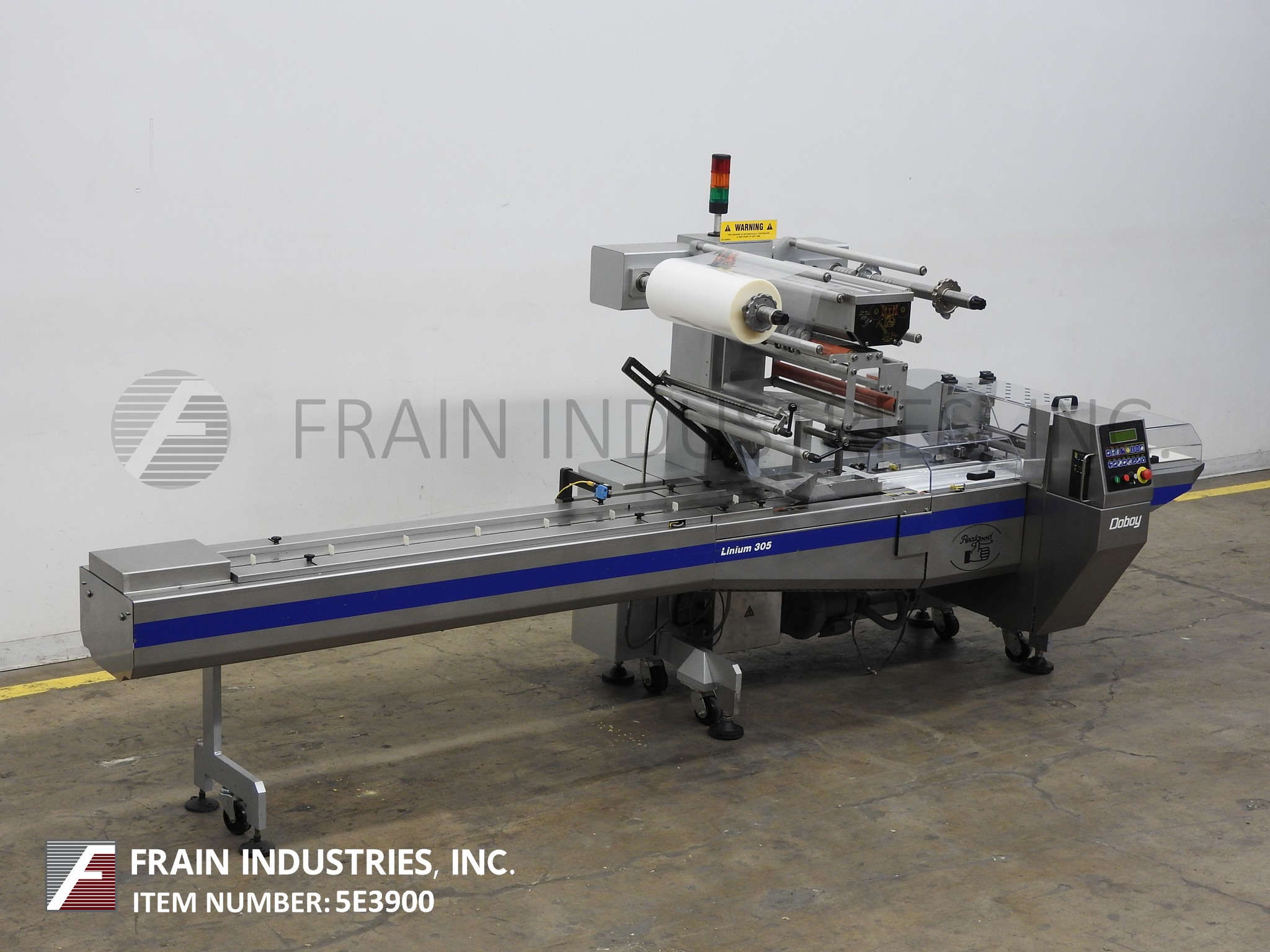

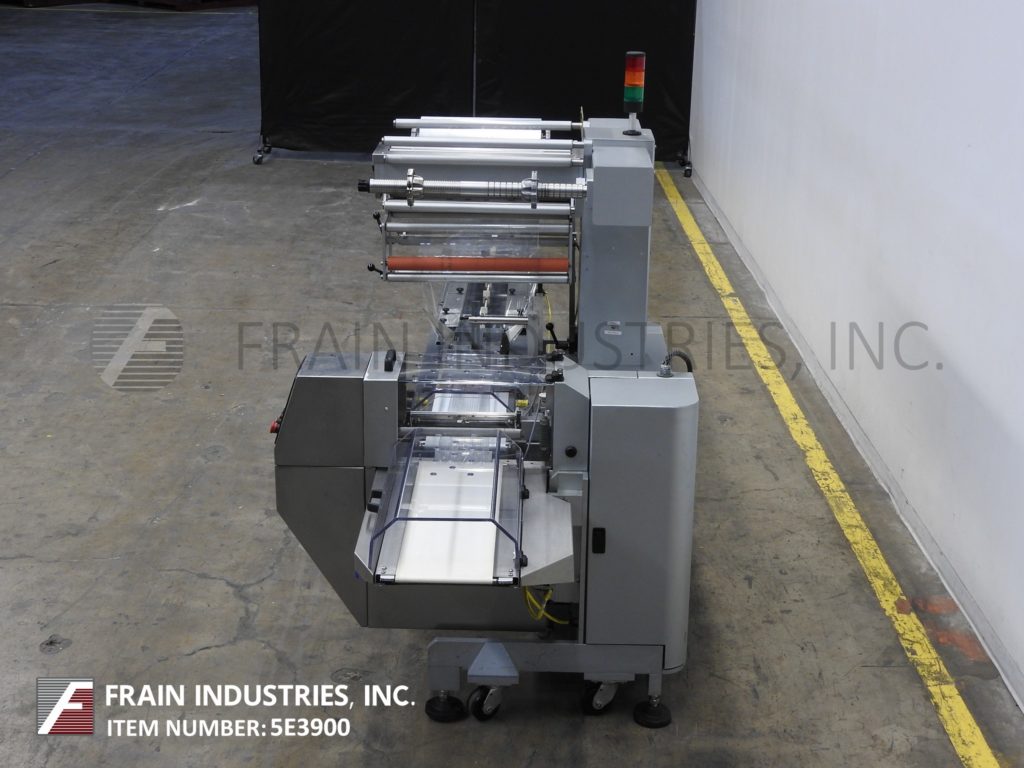

Flow-through, horizontal shrink wrapper rated from 40 to 110 packages per minute – depending on materials and application. Package range: 6.7" to 22.25" in Length; 3.5 to 12" in Width; up to 3.9" in Height. Equipped with a 80" lugged infeed, high product sensor, no product / no package, dual film mandrels, splice station, 4 wheel perforation, static eliminator bar, bottom static seal, vacuum transfer conveyor, (one up) 13" hot knife cross seal and panel view controls. Film: up to 24′ web width. Mounted on adjustable screw legs and casters.
OAD: 176"L x 54"W x 78"H
Coder available at additional cost.
