Home » Shrink » Auto L Bar
A Shrink Auto L Bar has an automatic L bar sealer that creates a plastic film pouch from center folded film around a product by sealing the pouch on three sides (fourth side is the fold in the film). The L shaped seal bar creates an L shaped seal, the long part of the L being the side seal opposite the center fold, and the short part of the L being the cross seal. The cross seal is at once the back cross seal for the current package and the front cross seal for the next package. When using a auto L Bar shrink machine, the product is automatically fed and discharged.

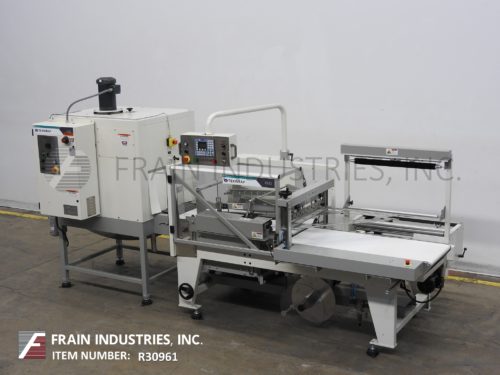

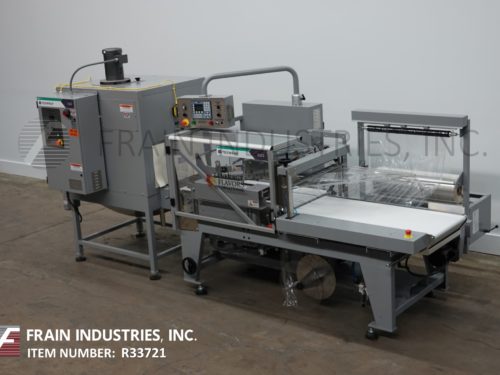

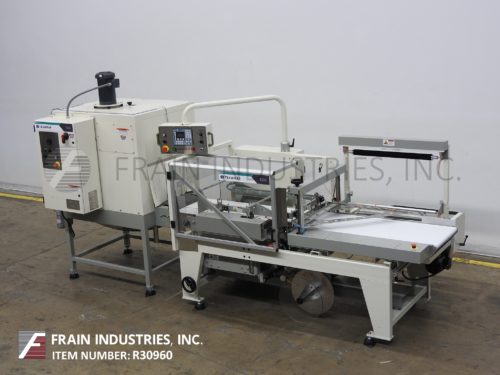

Texwrap Model ST-3322 /1322, automatic L-Bar sealer and shrink tunnel. Package size range: 2" to 32" in Length; 2-3/4" to 19.5" in Width; to 10.5" in Height. Equipped with 46" long x 19" wide in feed conveyor, 22" wide cross seal bar, 33" long side seal bar, closing conveyor with 3 neoprene belt (each 49" long x 6" wide), perf wheel, scrap re-wind and safety guarding. MicroLogix 1400 with swing arm touch pad and E-Stop. Film specifications: center fold film 6" to 28" in Width; to 15" in diameter
Texwrap Model T-1322 single zone shrink tunnel. Total aperture: 13-1/2" in Height; 22" in Width; 42" tunnel Length. Equipped with 15-1/2" wide x 66" long stainless steel mesh conveyor and top mounted blower. Controls for temperature (up to 400° F), conveyor speed and variable velocity air flow. Speed dependent on materials, application, machine configuration and operator dexterity.
OAD Sealer: 100" L x 60" W x 69" HOAD Tunnel: 66" L x 44" W x 80" H

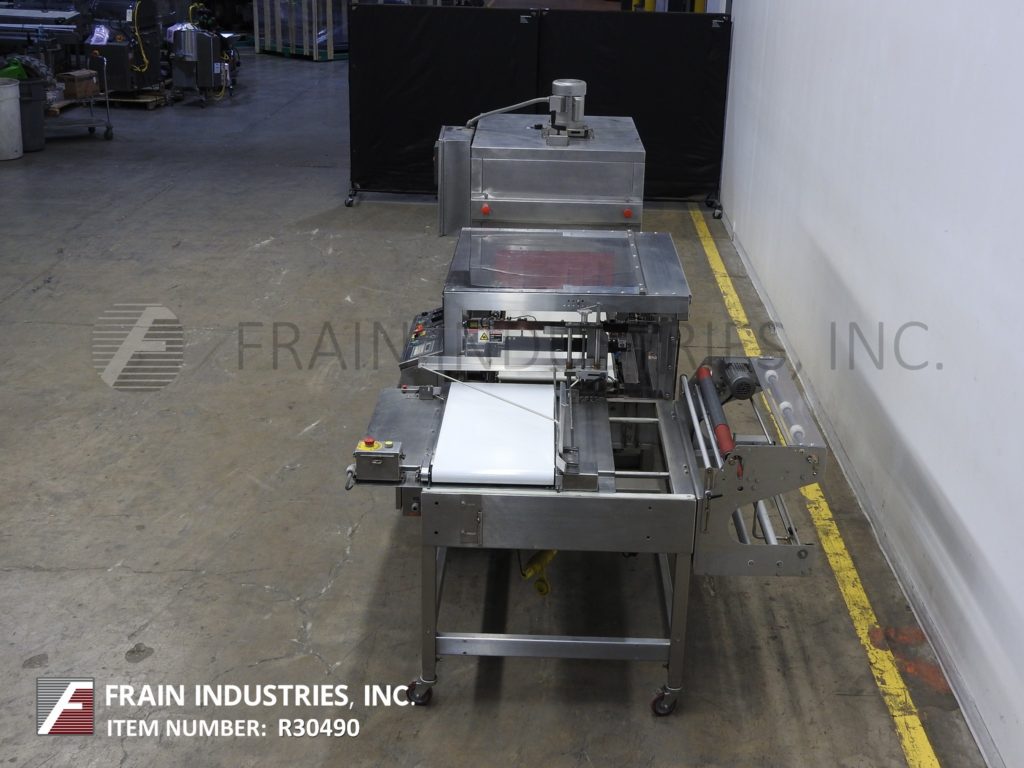

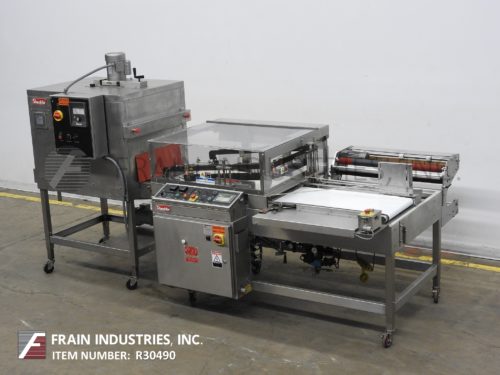

Shanklin, Model A27A, automatic, stainless steel, L-bar sealer and shrink tunnel rated from 10 to 25 packages per minute – depending on materials and application. Package size range: 2¾" to 33" in length; to 21" in width; to 8" in Height. Equipped with 36" long x 17½" wide in feed conveyor and 40" long x 19½" wide product thru seal area and discharge conveyor. side mounted film rollers with maximum center fold film of 26" in width and powered film rollers with perf pin wheels. Film former and 28" long x 19" wide L-bar with hot knife seal jaws. Control panel has A/B controller with touch pad controls and read out, A/B vari-speed controller, with start, stop, manual, reset, front and cross seal heat controls, conveyor speed dial, scrap removal controls with e-stops. Mounted on stainless steel frame with flip-up safety guarding and locking casters Shanklin, Model T-7XL, stainless steel, automatic single zone shrink tunnel with number of product per minute – depending on materials and application Aperture: 8" in Height; 22" in Width. Tunnel: 42" in Length. Equipped with 15" wide x 58" long steel mesh belt, top mounted blower motor and bottom conveyor heater. Control panel has temperature controller with range of 50° F to 500° F, on / off heat switch and conveyor speed control dial. Mounted on (4) leg base frame with casters.
Film Re-wind available at additional cost.
OAD: 84" L x 60" W x 53" H L-Bar Sealer 60" L x 43" W x 70" H Tunnel
