Sani-Matic Systems, COP spray booth. Vessel dimensions: 48" wide x 48" deep x 88" tall (34" wide x 48" deep x 68" tall usable space). Equipped with a hinged front door, (6) spinning spray nozzle bars supplied by a 10 HP Ampco centrifugal pump and (2) diaphram solution pumps. Control cabinet with AB controller, touch screen HMI and chart recorder.
OAD: 72"L x 52"W x 100"H

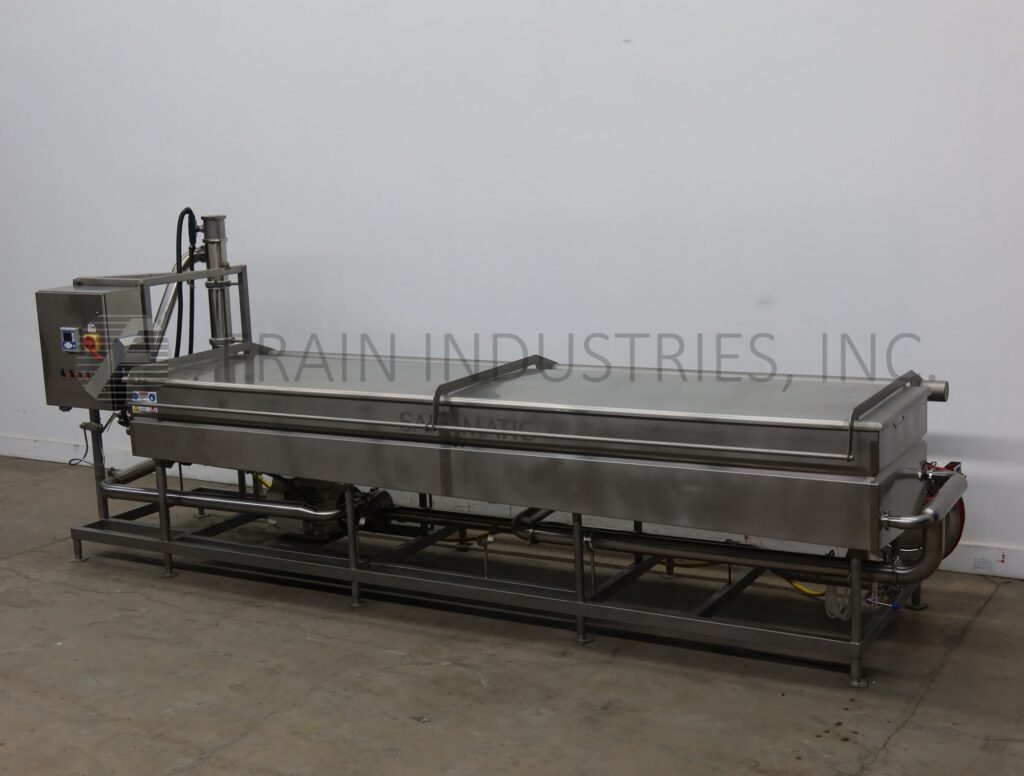

Sani-matic, 200 gallon, 304 stainless steel, COP tank. Equipped with 99" long x 24" wide x 22" deep trough with 43" rim height, recirculation system with (2) 7½ hp Fristam centrifugal pumps and (2) diaphram pumps for cleaning solution. Control panel with AB controller and touch screen HMI.
OAD: 165"L x 64"W x 80"H
Abec, 304 stainless steel Clean-in-place tank. Equipped with one tank measuring 21" L x 25" W x 16" H (35 gallons), level detector and 1½ hp centrifugal pump. Unit mounted on stainless steel platform with AB touch screen HMI
OAD: 77"L x 30"W x 74"H (tank cart) 50"L x 32"W x 93"H (HMI)
Ladish, Model 48-2412, (2) tank stainless steel CIP system. Equipped with (2) 38" OD x 48" High approx 230 gallon, single wall tanks. (1) for detergent, (1) for rinse and both have 18" ID top manways with flip up covers, bottoms have 3½" OD / 3"ID Tri-Clamp bottom discharges with 16" floor clearence, tube and shell heat exchanger, stainless steel piping with sanitary couplings flow and pressure control valves, (1) 7½ HP tri-clover centrifugal pump and (1) 1 HP Tri-Clover centrifugal pump. Control Panel has A/B PLC controller with A/B touch screen HMI. Mounted on stainless steel frame.
OAD: 134"L x 75"W x 84"H
Sani-Matic, Model (2) tank, stainless steel, CIP system. Equipped with (2) 30" OD x 48" High approx 125 gallon, stainless steel, single wall tanks, (1) for detergent, (1) for rinse and both have 17" ID top manways with flip up covers, flat tops with (1)" and (2) 2-1/2" sanitary top ports, slant bottoms with 3" OD side bottom discharges with 17" floor clearence 6-1/2" OD x 64" long stainless steel tube and shell heat exchanger with MAWP of 130 psi shell and 150 psi tube @ 375 Deg F and MDMT of shell and tube -20 Deg F @ 150 psi and has a flanged front port with (8) 3/8" bolt holes on 3-1/4" centers, stainless steel piping with sanitary couplings flow and pressure control valves, side mounted centrifugal pump with 2" OD top and 3-1/4" OD front product ports. Control Panel has A/B controller with A/B touch pad controls and display. Mounted on (8) leg stainless steel frame.
OAD: 120" L x 48" W x 82" H
Feldmeier, platform mounted, stainless steel, CIP system. Equipped with 36" OD x 45" Deep 200 gallon single wall 316 stainless steel holding tank with 2"ID overflow connection and 2½"OD / 2"ID Tri-clamp style water charge. Vessel discharges into Ampco, Model LCV520-252-21, centrifugal recirculation pump powered by 10 Hp motor drive. The pump brings fluid through a tube in shell heat exchange before discharging to a 3½" ID / 3" OD Tri-clamp CIP supply line. Control panel with an A/B PLC and PanelView touch screen HMI. Mounted on stainless steel platform style base.
Nat’l Brd: 4003MAWP: 150 PSI @ 350°F (Vessel)MDMT: -20°F @ 150 PSI (Vessel)MAWP: 150 PSI @ 350°F (Jacket)MDMT: -20°F @ 150 PSI (Jacket)
OAD: 96"L x 65"W x 108"H

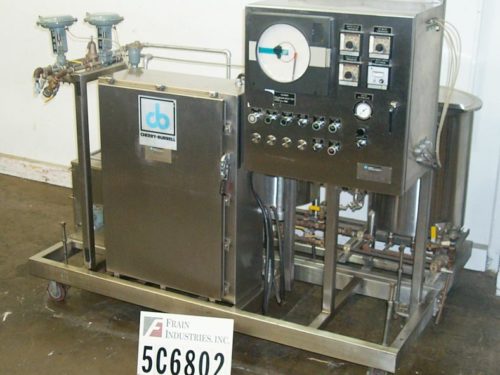

Cherry Burell, all stainless steel, 2 tank, CIP system with plate and frame heat exchanger and cyntrifical pump. Equipped with (2) 17-1/2/" ID x 21-1/2" Deep, (aprox 25 gallon) stainless steel tanks with lift off covers and mixer mounting brackets, can be used independently, or in conjunction with each other. Cherry Burrell Model L2RGS, stainless steel plate and frame heat exchanger with 16" long x 6" wide plates and sanitary in / outlets, 1/3 Hp centrifical pump, used to pump cleaning solution, then rinse water for cleaning process, (3) Partlow Model 100n RTD temp gauges to 300 deg f, with Partlow chart recorder. GE control package with on / off, pump, water, steam and cooling push button controls. Has all 2" OD stainless steel sanitary connections. Mounted on 94" long x 60" wide stainless steel common base frame with casters.
OAD: 94" L x 60" W x 65" H Without Casters 73" H With Casters
C. A. Neubecker, Model Versorgungseinheit, 3 tank, 304 stainless steel, CIP system. Equipped with (3) 39" long x 27" wide x 20" deep stainless steel 90 gallon tanks, (1) for caustic, (1) for acid and (1) for sanitizer. All have 22" long x 18" wide top lift off covers, flat tops and slant bottoms, side bottom discharges, top return ports, (3) 3 Hp centrifugal pumps, 1½" OD / 1¼" ID stainless steel piping with sanitary couplings, and metering pumps. Mounted on heavy duty stainless steel base frame.
OAD: 98" L x 55" W x 67" H
Sani-Matic single tank, stainless steel, sanitary CIP system. Equipped with (1) 32" OD x 47" Straight wall, 200 gallon stainless steel single wall product holding tank, has flat top with 18" OD manway and flip-up, lock down cover with (6) 3-1/2" OD, (1) 2-1/2" OD top sanitary ports, slant bottom with 3" OD sanitary side bottom discharge. Enerquip 4" ID x 36" Long all stainless steel, tube in shell heat exchanger rated up to 12 gallons per minute has top 6" OD / 3-1/2" ID flanged top product port with (4) 3/4" bolt holes on 4" centers and (1) 1-1/2" ID threaded media port, flanged front cover has (8) 1/2" bolt holes on 4" centers with (2) 2" ID sanitary tube in / outlets, Fristam stainless steel centrifugal pump with stainless steel 10 Hp motor drive. System has 2" OD stainless steel sanitary piping and fittings, flow meter with read-out, inline filter, air and check valves, temperture sensors and gauges. Remote control panel has A/B controller with flow rate and level controls, conductivity meter, solenoids and breakers. Mounted on 108" long x 48" wide (6) leg stainless steel platform.
Tube and Shell Heat ExchangerMAWP: 150 PSI @ 375°FMDMT: -20°F @ 150 PSI
OAD: 108" L x 48" W x 80" H

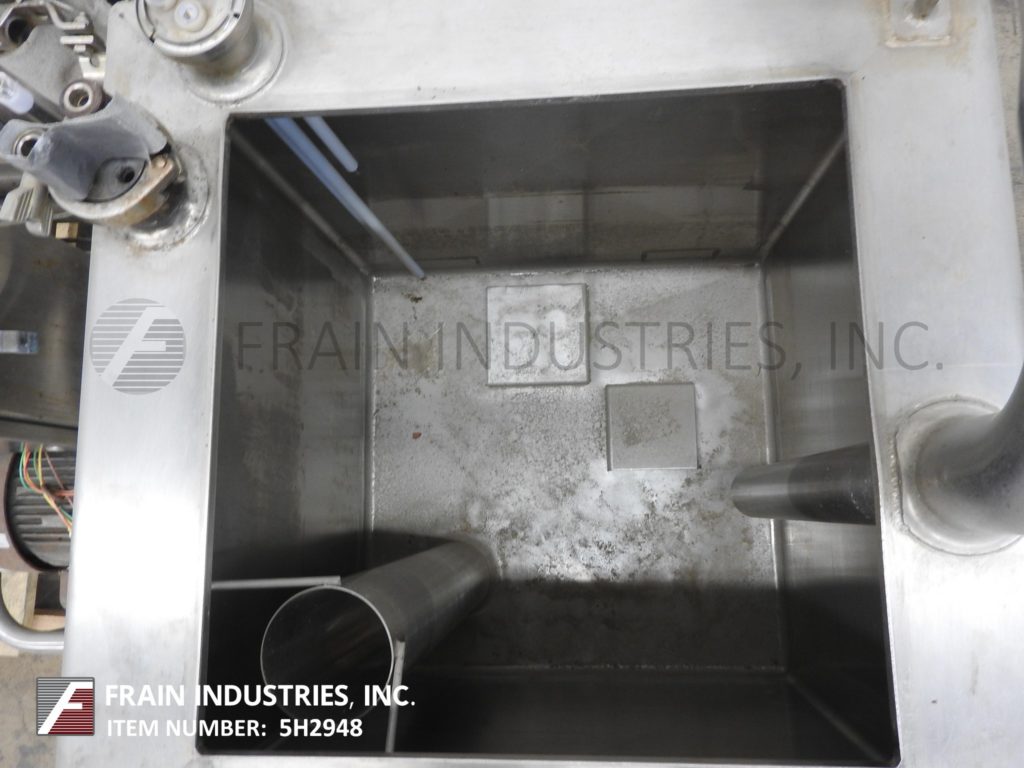

Klenzade, 304 stainless steel Clean-in-place tank. Equipped with one tank measuring 24" L x 24" W x 28" H (70 gallons) with one 16" x 16" manway, level detector. Ampco, Model 2½x2 DC2, centrifugal pump with a maximum pumping capacity of 230 GPM. Includes chart recorder and tube in shell heat exchange. Unit mounted on stainless steel platform.
Nat’l Brd: 739
ShellMAWP: 150 PSI @ 375°FMDMT: -20°F @ 150 PSI
TubeMAWP: 150 PSI @ 375°FMDMT: -20°F @ 150 PSI
OAD: 72"L x 55"W x 85"H

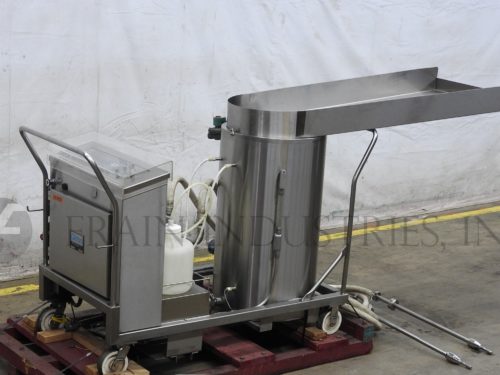

Portable CIP System. Complete with 50 gallon insulated surge tank, a 3 gallon solution/acid dispenser, a 3 gallon detergent disepnser, a 7.5 KW electric heating element and a 7.5 hp sanitary S/S pump. One inch connections. Mounted on S/S cart with polypropylene wheels and locking casters. 304 Stainless steel with a #4 polish inside and out.
OAD = 70" L x 31" W x 59" H
PARTS MACHINE Mueller Stainless steel, 2 tank, CIP system with plate and frame heat exchanger. Equipped with (2) 24" Long x 12’" Wide x 29" Deep (aprox 35 gal) stainless steel tanks with temperature controlled heating rods and water inlet ports one tank with air operated lightnin mixer. Mueller Model A14SSC-8 stainless steel plate and frame heat exchanger with 24" Long x 5" Wide plates 2" OD sanitary in / outlets, centrifical pump, for cleaning solution and rinse water process, temperture gauge to 250 Deg F, with Dickson chart recorder, control package with on / off and pump push button controls, A/C drive controller and Mounted on stainless steel base frame with casters.
OAD: 51" L x 38" W x 66" H
