Shrink bundlers are designed to wrap a single piece or bundle of product in heat shrinkable plastic film. Shrink bundlers are designed to form the plastic wrap around the product or bundle using two rolls or plastic film (with only one notable exception). Shrink bundlers create bundles or product that have open ends know as bulls-eyes on each side of the package. By using film that is much wider than the bundle on a shrink bundler, the size of the bulls-eye can be reduced. By using a film that is narrower than the bundle on a shrink bundler, the bundle of product is wrapped by a band of plastic.

Shrink bundlers take in product and pass the product bundle through a barrier of film that is created by heat sealing the film ends of two rolls of plastic film. As the bundle passes through the film barrier, the top roll of the film wraps around the top of the bundle and the bottom roll of the film wraps around the bottom of the bundle. After the container has passes the heat sealing station, the seal jaws on the shrink bundler come together again to seal the films together after the bundle and to separate the wrapped bundle from the remainder of the film. This action leaves a film barrier created by heat sealing the ends of the film together, which allows the next shrink bundle to pass through the film barrier. The shrink bundle then passes through a heat shrink tunnel to shrink the film around the bundle of product.

Contact Us

Bundler Equipment In Stock

Pester Shrink Bundler PEWO 400

  • Manufacturer: Pester
  • Model Number: PEWO 400
  • Frain Number: 5C5781

Pester Pewo 400, Shrink bundler capable of speeds from 10 to 32 strokes per minute – depending on materials and application. Package size: up to 13" in Length; up to 16" in Width; up to 8" in Height. Equipped with variable speed conveyor, adjustable height overhead belt conveyor and PLC controls.
Heat and cooling tunnel combo: Heat tunnel: 16" in width; 13" in height total aperature; 48" in length, Cooling tunnel:16" in Width; 13" in Height total aperature; 24′ in Lenght with heat and velocity controls.

OAD: 70" L x 60" W x 68" H Bundler
108" L x 28" W x 59" H Tunnel

Get a Free Quote Call: 630-629-9900

Skinetta Shrink Bundler ASK300

  • Manufacturer: Skinetta
  • Model Number: ASK300
  • Frain Number: 5C1191

Skinetta ASK300, Automatically stacks and stretch wraps groups of product (blisters, cartons, ect.) at a rate of 10 to 32 cycles per minute – depending on materials and application. Product size range: 50mm to 200mm; 75mm to 200mm; stack to 11"H . Equipped with Seiko gauges and optional leaflet inserter.
Capable of using PE, PP, and PVC films.

OAD=132"L x 48"W x 76"H

Get a Free Quote Call: 630-629-9900

Arpac Shrink Bundler 65TW-28

  • Manufacturer: Arpac
  • Model Number: 65TW-28
  • Frain Number: 5G2871

Arpac Model 65TW-28, inline, shrink tray bundler and tunnel rated from 10 to 65 bundles per minute – depending on material and application. Size range: 6" to 16" in Length; 6" to 18" in Width; 2" to 10" in Height. Equipped with 68" long x 19" wide Flexlink in feed conveyor with rotary flight bar indexing feed system with 27" wide flight bar on 24" centers,
27" long top and bottom film rolls with side film splice stations, 29" wide seal jaw with 10" vertical travel and 28" long 17" wide flexlink transfer conveyor from bundler to tunnel. Control panel with A/B vari speed controller has swing arm touch pad controls with start, stop, jog and e-stop push buttons, seal bar and (2) zone shrink tunnel temperature controls, interlock safety guarding and statis light bar.
Tunnel, Dual zone with 32" wide x 16-1/2" high total aperture; 105" long shrink chamber, 148" long x 29" wide flex link product conveyor, with top rear cooling fan. Both mounted on common heavy duty base frame.

OAD: 280" L x 80" W x 99" H

Get a Free Quote Call: 630-629-9900

Douglas Machine Inc Shrink Bundler SR/624

Automatic, inline, shrink bundler. Bundle: Equipped bottom film carriage with indexing system, registration, 36" long x 24" wide rotary arm wrap station, interlocking Lexan safety guarding and A/B PLC with visual display. Film specifications: up to 24" in Width; up to 16" in Diameter; 3" core.
Tunnel: Equipped with a 30" wide x 12" high aperture, 72" long dual zone heating chamber, 108" long x 28" wide conveyor, and variable temperature controls. Rated from 10 to 35 bundles per minute – dependant on materials and application.

OAD: 120" L x 64" W x 72" H

Get a Free Quote Call: 630-629-9900

Arpac Shrink Bundler 112-20

  • Manufacturer: Arpac
  • Model Number: 112-20
  • Frain Number: 5F3850

Automatic, inline, shrink bundler rated 5 to 25 bundles per minute – depending on materials and application. Equipped with a 12" wide x 20" long Delrin infeed conveyor, 7" long roller transfer, 20" wide seal jaw with 6-1/2" of vertical travel, 9" long x 9" wide top hold down above a 12" wide x 9" long Delrin transfer conveyor. Tunnel dimensions: 22-1/2" Wide x 15" High aperture; 60" in Length. Equipped with a 20-3/4" wide x 117" long conveyor, top center blower, air flow controls, and an adjustable angle cooling fan at the discharge. Additionally features interlocking Lexan safety guarding, top and bottom film carriages, and variable temperature/speed controls.

OAD: 154"L x 51"W x 76"H

Get a Free Quote Call: 630-629-9900

Douglas Machine Inc Shrink Bundler METERED SR10/1224

Automatic registered inline shrink bundling system rated from 20 to 70 bundles per minute – depending on materials, application and machine configuration. Bundle size range: 5-1/16" to 10-5/8" in Length; 5-1/16" to 14-1/4" in Width; 9-1/8" to 12-1/8" in Height. Equipped with 160" long x 30" wide infeed conveyor with adjustable dividers, 56" long transfer conveyor with static dividers, 72" long two chain indexing system set on 24" centers, bottom film carriage with optional film splitting device, film registration, 10-1/2" of vertical travel, A/B PLC and a 64" long discharge conveyor to shrink tunnel.
Tunnel dimensions: 31" wide x 16" High aperture; 144" in Length. Equipped with a 28" wide x 174" long flexlink conveyor, three zone chamber with three top mounted blowers, individual zone temperature controls, 192" long x 28" wide cooling conveyor with one cooling fan.

OAD: 718" L x 66" W x 88" H

Get a Free Quote Call: 630-629-9900

Sergeant Shrink Bundler 8034

  • Manufacturer: Sergeant
  • Model Number: 8034
  • Frain Number: 5F3200

Semi-automatic, inline shrink bundler. Equipped with a stainless steel loading station, 34" wide seal jaw with 15.5" of vertical travel and a 36" wide by 53" long discharge conveyor. Film specifications: up to 36" in width; up to 12" in diameter; 3" core. Rate / Speed dependant on materials, application, machine configuration and operator dexterity.

OAD: 53" L x 56" W x 77" H

Sergeant Model 2414, automatic shrink tunnel, with conveyor speeds from 0 to 111.5 feet per minute with number of product – depending on materials, application and machine configuration. Equipped with 24" in Width x 14" in Height apeture; 42" in Length heat chamber, with 60" long x 22" wide live roller conveyor, with 22" long 3/4" OD rollers, on 1-1/4" centers and 1/2" gaps with 30" infeed / discharge height. Controller with machine power on / off, air velocity high / low switches, heat controller and variable speed conveyor control dials and is mounted on base frame with casters.

OAD: 60" L x 36" W x 60" H "

Get a Free Quote Call: 630-629-9900

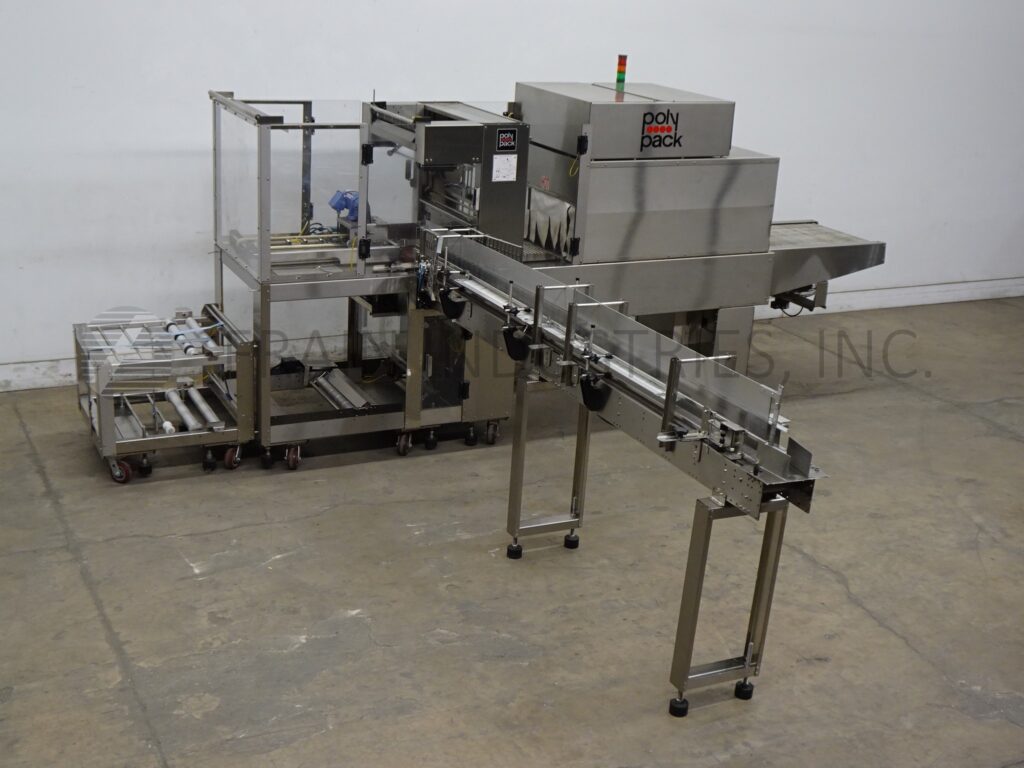

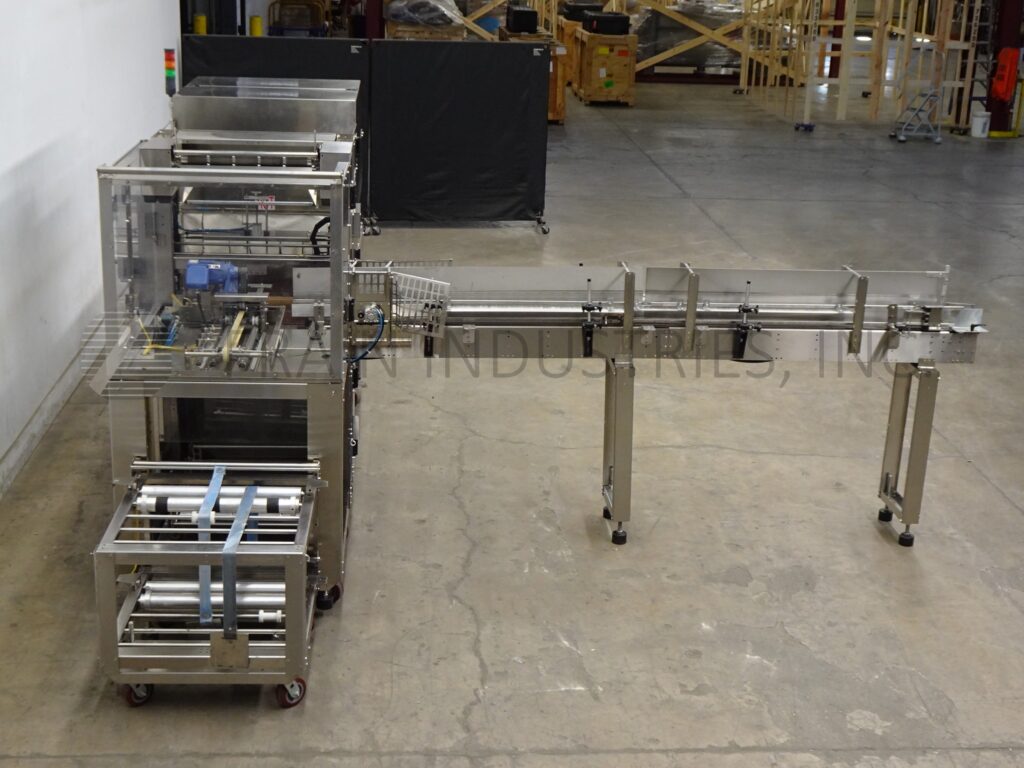

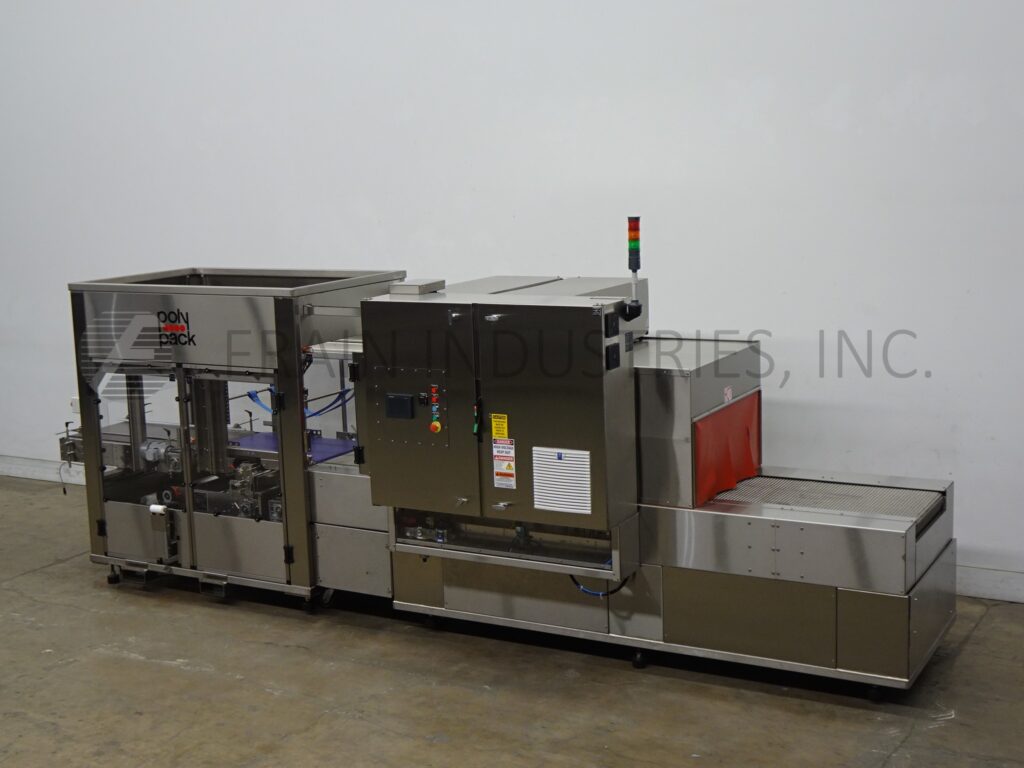

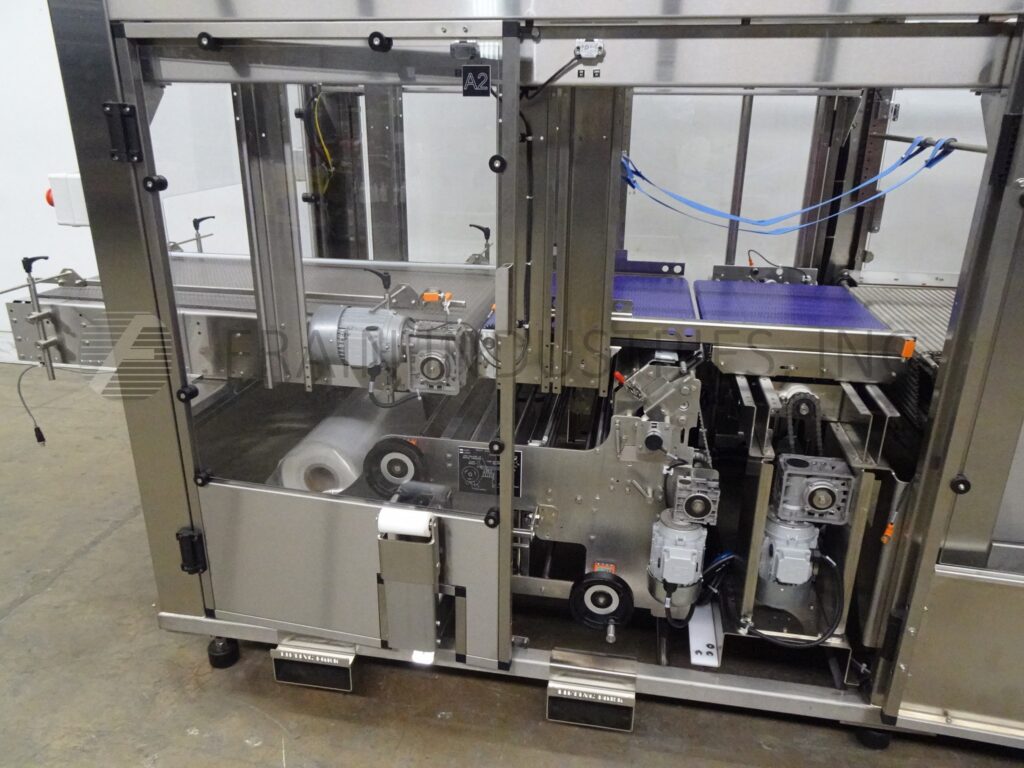

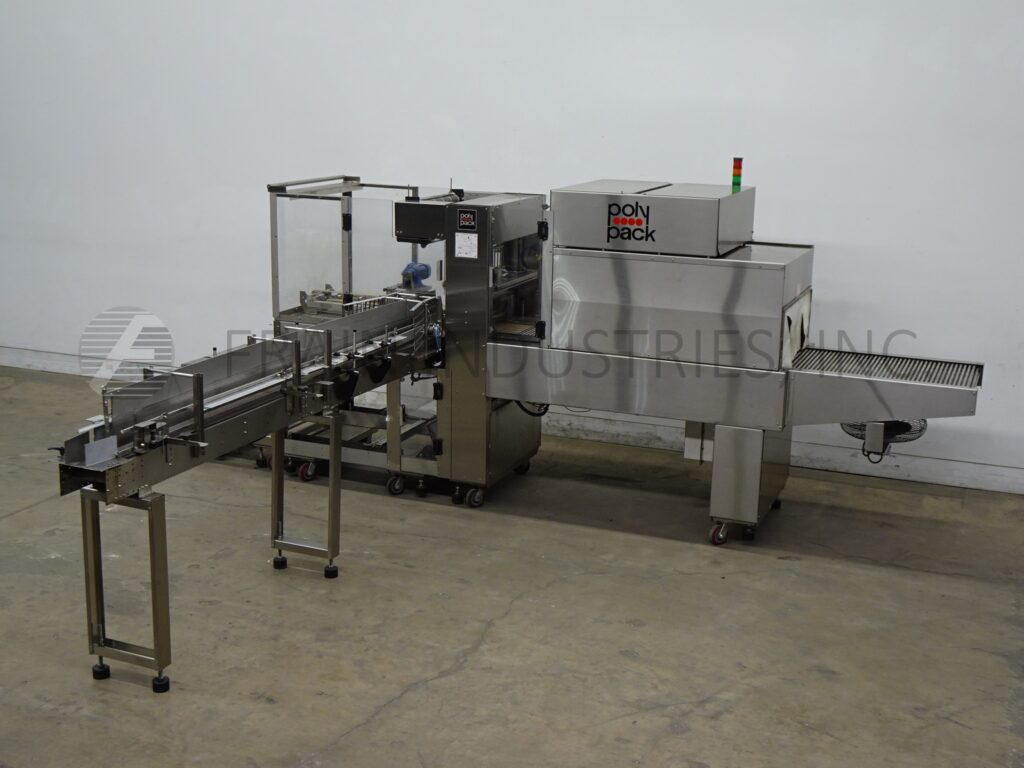

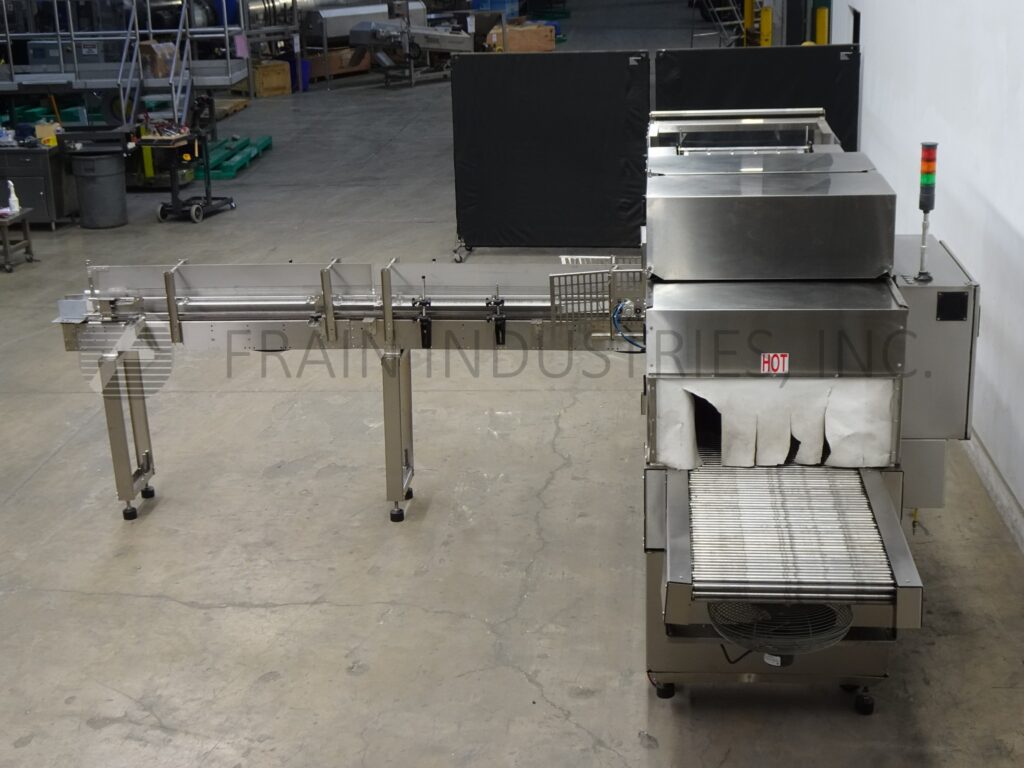

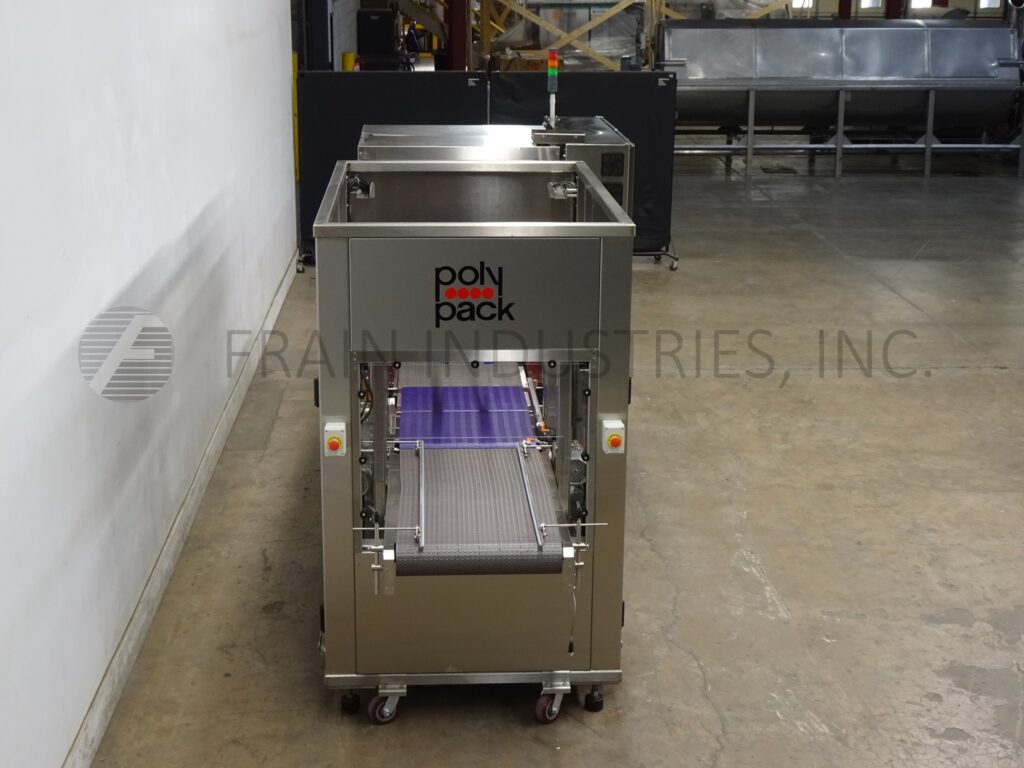

Poly Pak Shrink Bundler PH16

  • Manufacturer: Poly Pak
  • Model Number: PH16
  • Frain Number: 5F0750

Poly Pak Model PH16, automatic, intermittent motion, shrink bundler rated from 5 to 30 bundles per minute – depending on materials and application. Stainless steel construction. Equipped with 18" Wide hot knife seal jaw and 14" of vertical travel, shrink tunnel with 20" Wide x 18" High aperture and a 58" long heat chamber, 116" long x 18" wide live roller conveyor with 32" infeed / discharge height. Control panel has A/B PLC with panel view, seal bar and tunnel heat controllers, safety guarding with e-stop. Film specs: up to 16" in width; up to 14" in diameter on a 3" core.Mounted on base frame with casters and leveling legs.

OAD: 143" L x 46" W x 80” H

Get a Free Quote Call: 630-629-9900

Arpac Shrink Bundler 10828

  • Manufacturer: Arpac
  • Model Number: 10828
  • Frain Number: 5F2031

Automatic, right angle, shrink bundler rated 10 to 20 bundles per minute – depending on materials, application and machine configuration. Equipped with a 10" wide x 60" long stainless steel powered roller infeed conveyor, product pusher, 29" wide seal jaw with 12" of vertical travel, top hold down, and two 5" wide x 16" long transfer conveyors to a shrink tunnel.
Tunnel dimensions: 33" wide x 15" high aperture; 100" in Length. Equipped with a 26" wide x 144" long mesh conveyor belt, top center blower, rear cooling blower, and two side compression rollers. Additionally features an A/B PLC and variable temperature and speed controls.

OAD: 254" L x 56" W x 80" H

Get a Free Quote Call: 630-629-9900

Arpac Shrink Bundler 10828

  • Manufacturer: Arpac
  • Model Number: 10828
  • Frain Number: 5F2032

Automatic, right angle, shrink bundler rated 10 to 20 bundles per minute – depending on materials, application and machine configuration. Equipped with a 10" wide x 60" long stainless steel powered roller infeed conveyor, product pusher, 29" wide seal jaw with 11" of vertical travel, top hold down, and two 5" wide x 16" long transfer conveyors to a shrink tunnel.
Tunnel dimensions: 33" wide x 15" high aperture; 100" in Length. Equipped with a 26" wide x 144" long mesh conveyor belt, top center blower, rear cooling blower, and two side compression rollers. Additionally features an A/B PLC and variable temperature and speed controls.

OAD: 254" L x 56" W x 80" H

Get a Free Quote Call: 630-629-9900

Edl Shrink Bundler 400

  • Manufacturer: Edl
  • Model Number: 400
  • Frain Number: 5B3681

Edl model 400, automatic, right angle, shrink bundler rated from 5 to 20 bundles per minute – depending on materials, application and machine configuration. Package size: up to 6" in Length; up to 13" in width; up to 5" in Heights. Equipped with 7-1/2" wide infeed conveyor, product collation area, ram product advance, cover plate traversing seal bar, 16" wide cross seal, top hold down, safety guarding and PLC.
Shrink tunnel aperture: 16" W x 11" H; 30" L chamber. 60" L x 15" W product conveyor.

OAD: 142" L x 60" W x 69" H Machine
19" L x 33" W x56" H Control Panel

Get a Free Quote Call: 630-629-9900

Arpac Shrink Bundler 105-24

  • Manufacturer: Arpac
  • Model Number: 105-24
  • Frain Number: 5H4471

Arpac, Model 105-24 Inline, intermittent motion, shrink bundler and tunnel. Rated from 5 to 20 bundles per minute – depending on materials and application. Equipped with 22" wide x 70" long in feed conveyor, 24" wide film rolls, 25" wide seal jaws with 13" vertical travel, 22" wide x 22" long Intralox transfer conveyor to shrink tunnel. Single zone shrink tunnel has 24” wide x 15" high total aperture x 60" long with 90" long x 24" wide Intralox product conveyor. Control panel has touch pad controls and readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.

OAD: 190"L x 63"W x 84"H

Get a Free Quote Call: 630-629-9900
