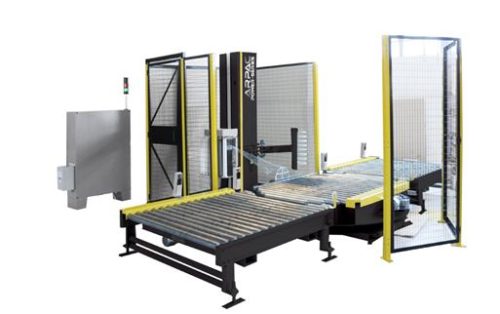

Arpac Stretch Wrapper Automatic PAC-4R5

  Back to All Equipment
  • Manufacturer: Arpac
  • Model: PAC-4R5
  • Frain Number: R33980
  • Category: Stretch Wrapper
  • Subcategory: Automatic
  • Condition: Used, in excellent condition
  • Availability: In Stock

Arpac, Model Pac-4R5, automatic, column style, pallet stretch wrapper with number of pallets per hour – depending on materials, application, machine configuration and environment. Pallet size range: 30" to 48" in Length; 30" to 48" in Width. Load diagonal range: 43" to 68". Load / Wrap height range: 24" to 77". Weight capacity: up to 4,000 lbs. Equipped with 5′ powered in feed roller conveyor, 79" OD turntable and 5’ powered out feed roller conveyor with pallet end stop and fork truck capable Control panel has Allen-Bradley MicroLogix 1400 ethernet enabled PLC, Panel View Plus 7 operator interface, fence style safety cage around wrap zone, interlocked access door. Turntable speed: up to 15 rpm. Conveyor speed 35 fpm fixed. Conveyor elevation to top of rollers: 18". Film to 200% pre-stretch. Accepts 20" wide stretch film.

OAD: 200" L x *171" W x 101" H
* (dimension includes wrap station guarding)
