Axon Labeler Sleever EZ130Back to All Equipment

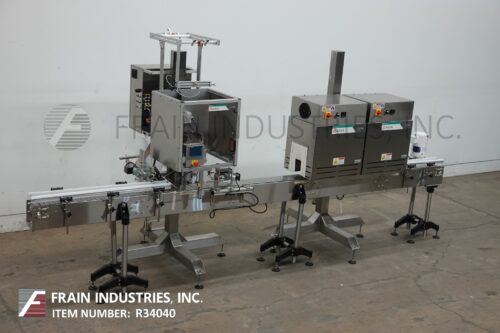

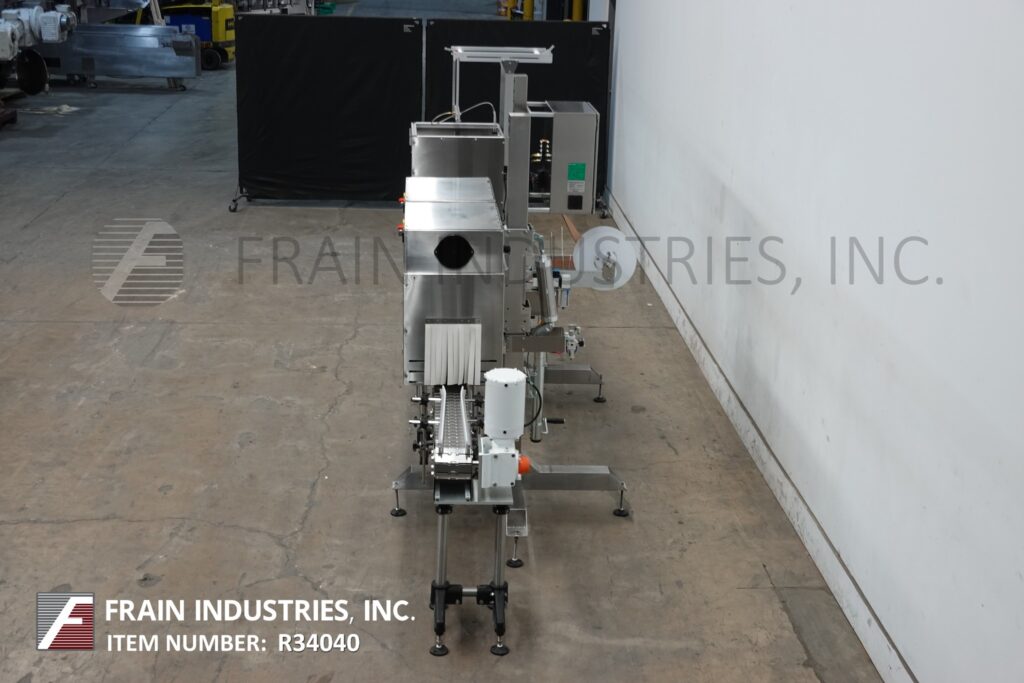

Axon, Model EZ-130 automatic, tamper evident shrink neck bander or sleeve label applicator with Model EZ-48 shrink tunnel rated from 30 to 150 containers per minute – depending on materials, application and machine configuration. Neck bander equipped with photo eyes for machine activation, film registration, stepper drive film feed system, tamp band pusher, guillotine style cutter with durable and dependable (2) blade cutting system. Layflat: 20mm to 130mm. Container diameter: 11mm to 80mm. Film thickness 40 to 70 microns. Film specs: up to 15" OD roll on 4-7/8" OD core Control panel with touch screen HMI controller with safety door gaurding and e-stop. Mounted on heavy duty frame.
Shrink tunnel has 12" high x 7½" wide aperature x 48" long chamber, digital heat controls and pneumatic tunnel lift. System mounted above 6" wide x 176" long stainless steel tabel top belt conveyor with spacing wheel and variable speed control. Mounted on (4) leg frame.
OAD: 178"L x 55"W x 83"H
