Labeler Sleevers are machines which apply a stretch or shrink label to the body of a container or package. The stretch sleeve labeler pulls a sleeve label from a roll of tube stock. (The individual sleeve labels are either perforated between labels or are cut by the machine.) The stretch sleeve is stretched and pulled down around the container or package. The shrink sleeve labeler (a.k.a. fully body sleeve labeler) pulls a shrink sleeve around the container or package. The container or package then passes through a shrink tunnel to shrink the sleeve to the body of the container or package.

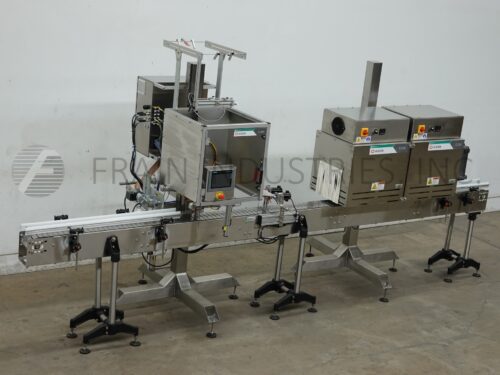

Axon Model EZ-300 and EZ-48, Automatic, tamper evident shrink neck bander or sleeve label applicator with shrink tunnel with number of sleeves or neck bands per minute – depending on materials and application. Layflat: 80 mm to 300 mm. Maximum container Diameter: 7.36". Film thickness: 40 to 70 microns. Equipped with vertical and horizontal perforation, knife film cut off, registration, and PLC Controller with touch pad controls with HMI display. Mounted a height adjustable stainless steel frame. Film specifications: up to 15" diameter roll on 3" core. Axon Model EZ-48, Stainless steel over conveyor, convection air, neck band shrink tunnel. Total Aperture: 10" in Height; 10" in Width. Tunnel: 48" in Length. Temperature range: up to 130° F. Equipped with recirculating blower, digital temperature controller and system mounted on height adjustable frame with locking casters. System mounted above 6" wide x 176" long stainless steel tabel top belt conveyor with spacing wheel and variable speed control.
OAD: 180"L x 55"W x 86"H

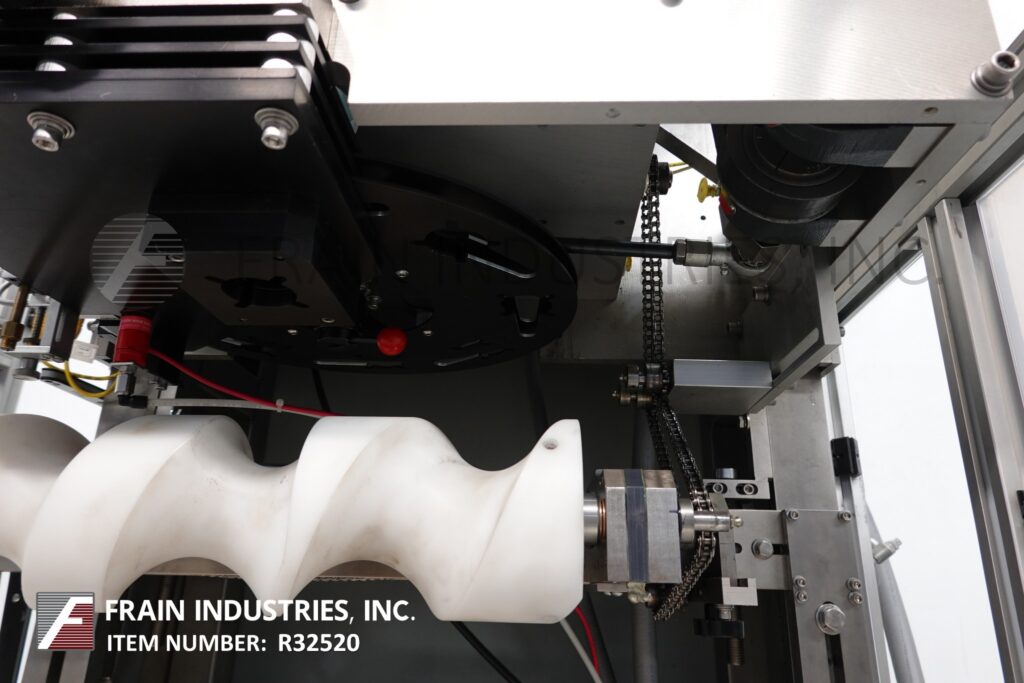

PDC inline, stainless steel, left to right, continuous motion, neck bander / sleever with shrink tunnel. PDC Model 75E neck bander / sleever. Band size range: 3.5" OD x 6" high. Sleeve size range: 3.5" OD x 9" high. Equipped with 144" long x 3-1/4" wide conveyor 36" in feed and discharge height, 24" indexing screw, dual powered stepper motor film feed, film tensioner, material jam, low material, film out sensors, splice table with splice detector sensor film registration and vertical perforator. A/B PLC, touchscreen, Powerflex VFD controllers and interlocking safety guarding.Change parts required to accommodate size range.
PDC, Model KRC184654, stainless steel hot air shrink tunnel. Equipped with 4-1/4" wide x 5" high x 46" long heat shrink chamber. A/B controller with single top mounted blower motor, temperature controller and E-stop. Mounted on KAL-200 auto-lift height adjustable stand.
Speed dependent on material, application and machine configuration.
OAD: 32" L x 24" W x 75" H Applicator 47" L x 37" W x 80" H Guarding
OAD: 44" L x 30" W x 62" H Shrink Tunnel 74" L x 38" W x 74" H Guarding

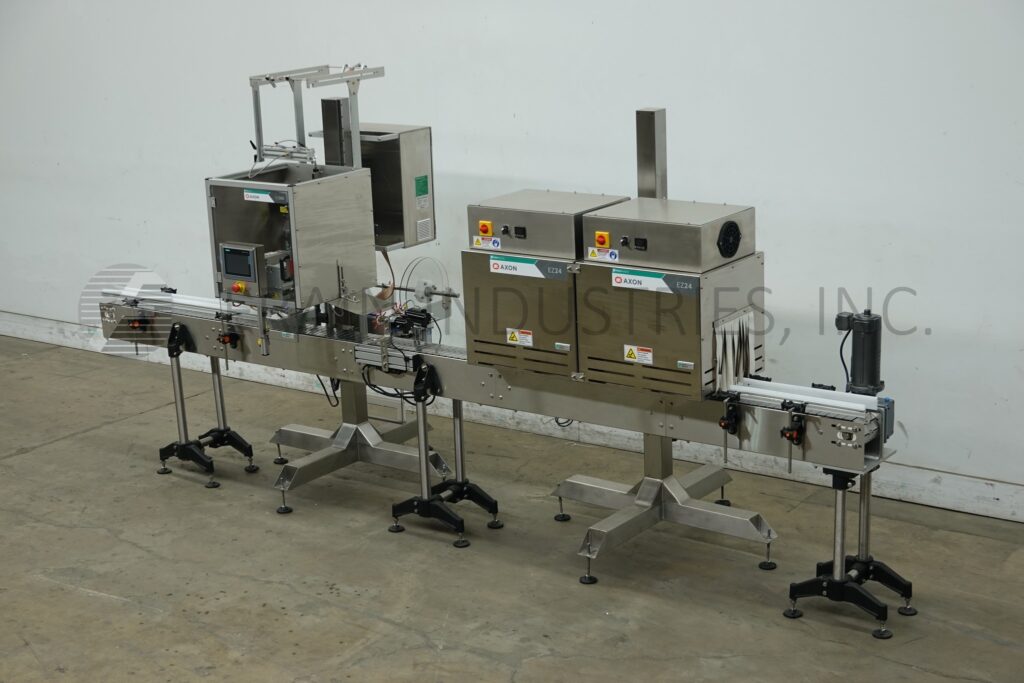

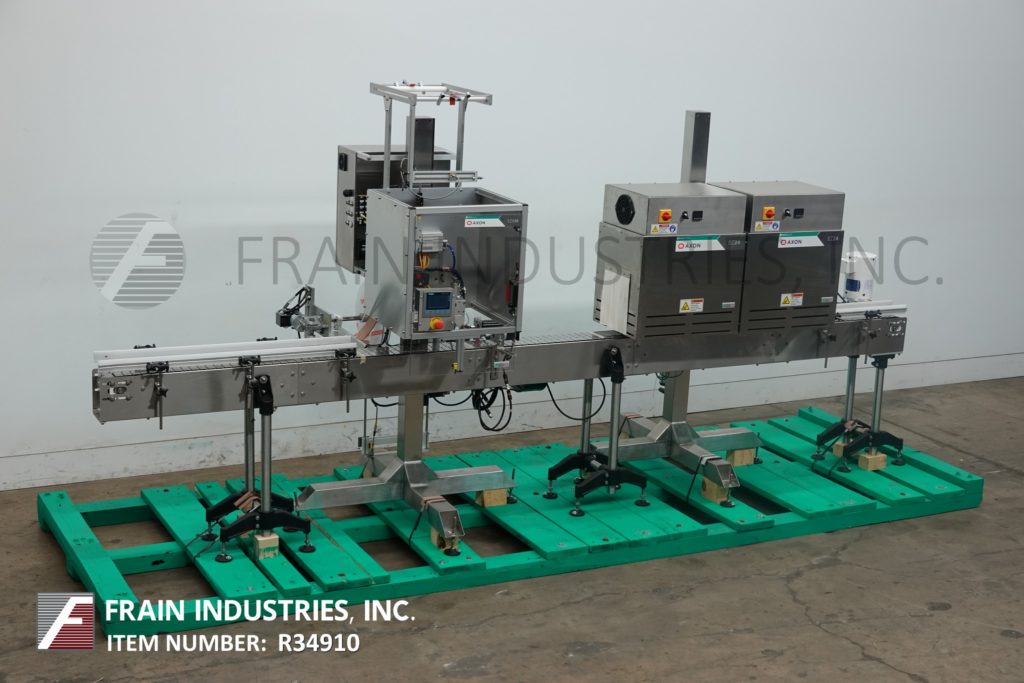

Axon, Model EZ-130 automatic, tamper evident shrink neck bander or sleeve label applicator with Model EZ-48 shrink tunnel. Neck bander equipped with photo eyes for machine activation, film registration, stepper drive film feed system, tamp band pusher, guillotine style cutter with durable and dependable (2) blade cutting system. Layflat: 18mm to 130mm. Container diameter: 10mm to 79mm. Film thickness 40 to 70 microns. Film specs: up to 15" OD roll on 4-7/8" OD core Control panel with touch screen HMI controller with safety door guarding and e-stop. Speed dependent on materials, application and machine configuration.
Shrink tunnel has 12" high x 7½" wide aperture x 48" long chamber, digital heat controls and pneumatic tunnel lift. System mounted above 6" wide x 176" long stainless steel table top belt conveyor with spacing wheel and variable speed control.
OAD: 178"L x 55"W x 83"H
Intersleeve SA2100 automatic, shrink sleeve labeler capable of 80 to 200 containers per minute. Product size range: (1 1/2" – 4 3/4") dia x (2" – 13 1/4")H. Servo driven film feed, film registration, sensor for bottle presence, sleeve head with 16" vertical adjustment, AB PLC, hand crank for sleeve head height adjustment, status indicator lights, fault location board, and barrier guarding with electrical interlock.
OAD: 43"L x 57"W x 90"H

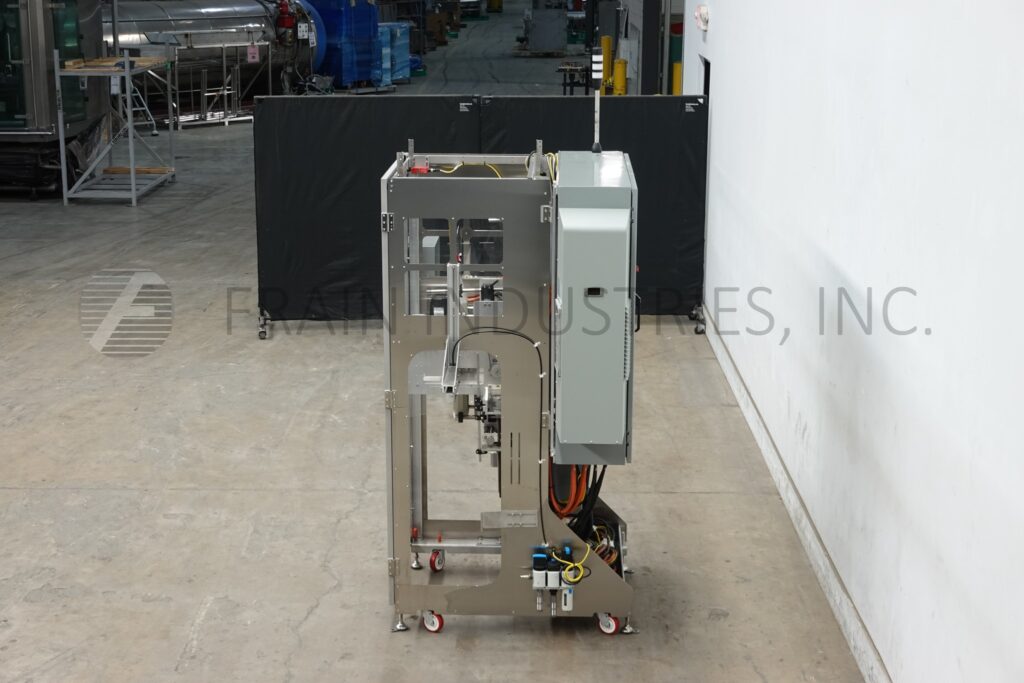

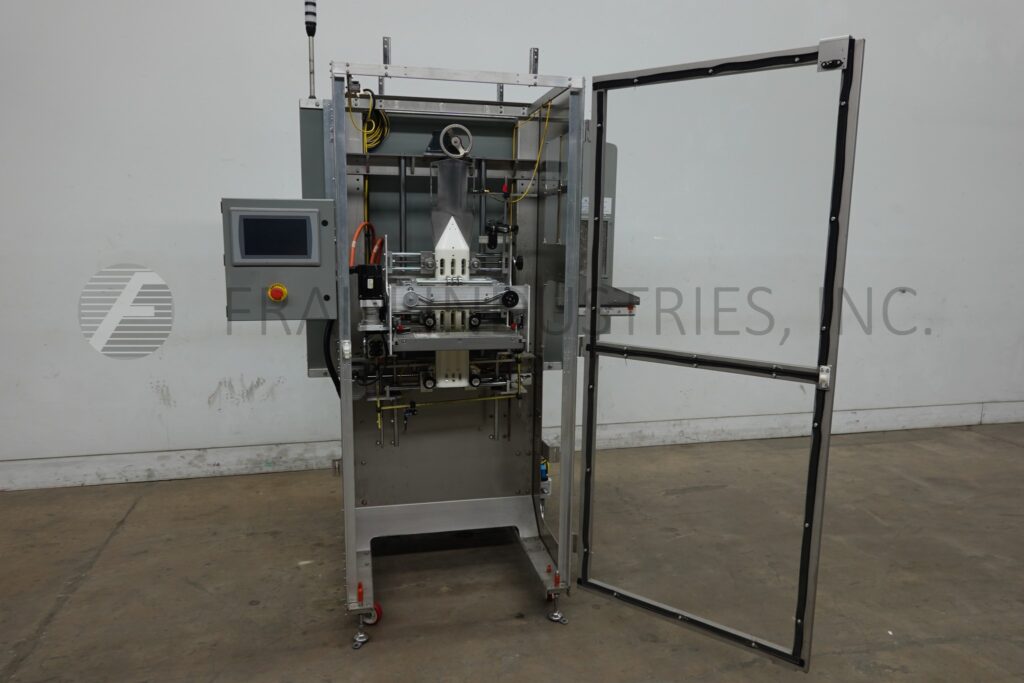

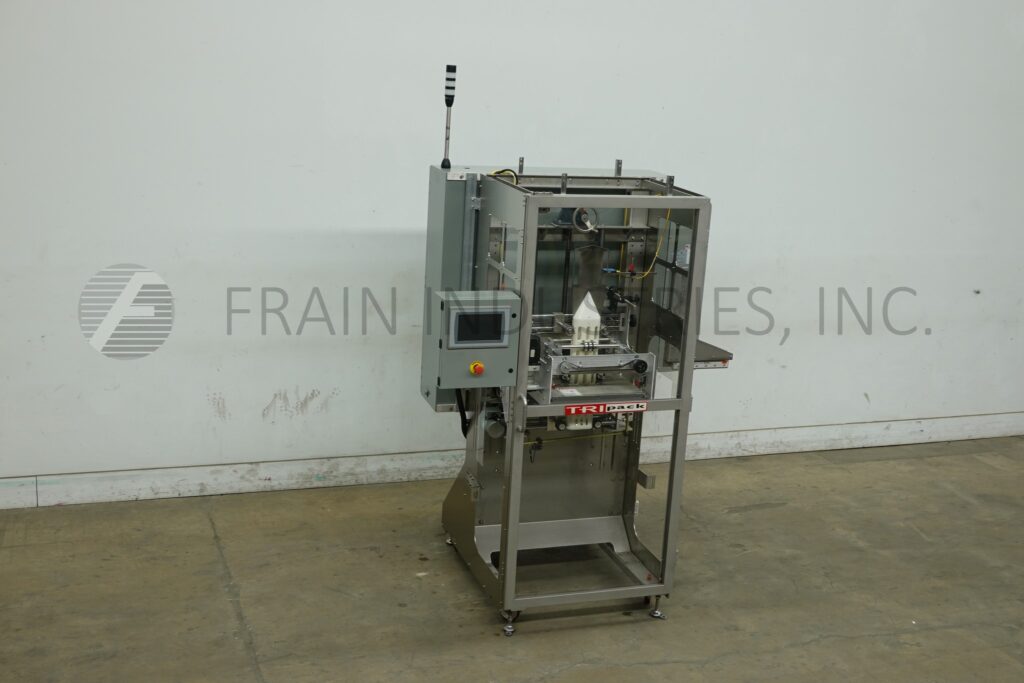

TRIpack, Model HSA-405-WB, Automatic shrink sleever. Rated up to 500 products per minute – depending on materials and application Layflat sleeve size range: 40mm (1.6") to 400mm (16"). Cut length range: 30mm (1.2") to 330mm (13.2"). Product OD range of: 25mm (1") to 250mm (10") and capable of running most shrinkable films as PET, PETG, OPS, PLA, and PVC with proper change parts. Equipped with powered film assist assembly, zero tension web design, with loading and unwind station and has 19" maximum film OD with film gauge tolerance of 35 to70 microns (1.38 to 2.75 mil) and lay flat tolerance of (-0mm / +1mm). Mandrel / bullet design film delivery system with a multi-blade knife assembly and material out sensor, film tensioner, low film indicator, air knife and mechanical tamping. Control panel has A/B PLC controller with touch screen HMI operator interface, interlocking safety guarding and e-stops. Mounted on (4) leg frame with safey guarding, casters and leveling legs.
OAD: 66"L x 48"W x 103"H
Styrotech, Model ST1550, Automatic, stretch sleever rated from 10 to 30 containers per minute – depending on materials and application. Capable of handling a wide range of container types, shapes and sizes. Container size range: 2¼" to 9½" OD x up to 6½" Wide x 13½" High and film layflat size range 3" to 15" all with proper change parts. Film type and specs: Polyethlene, 2.0 to 3.0 ml with 10% stretch and no container / no label sensor. Control panel has A/B controller with 7" touch screen HMI and e-stop. Mounted on heavy duty frame with interlocking safety guarding and 4½" wide x 120" long delrin conveyor.
OAD: 62" L x 48" W x 72" H

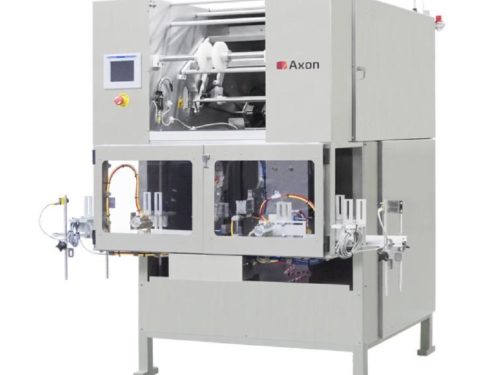

Axon, Model EZ-300, Automatic, tamper evident shrink neck bander or sleeve label applicator with number of sleeves or neck bands per minute – depending on materials and application. Layflat: 80mm to 300mm, Film thickness: 50 to 70 microns. Maximum container Diameter: 7.36". Equipped with vertical and horizontal perforation, film cut off knife and film registration. Film specifications: up to 15" diameter roll on 3" core. Control panel has PLC Controller with touch pad controls and HMI display. Mounted on a height adjustable stainless steel frame.
Axon, Model Thermoflow, Stainless steel, shrink tunnel capable of handling round, square, oval and other irregularly shaped container. Container size range 1" to 6" diameter x 2" to 12" tall. Equipped with 30 Kw steam generator, 6½: wide x 13" high aperture x 36" long tunnel, with (3) sets of steam nozzles and 3¼" wide 217" long conveyor. Mounted on stainless steel frame.
OAD: 217" L x 86" W x 92" H
Axon Model EZ-300 and EZ-48, Automatic, tamper evident shrink neck bander or sleeve label applicator and shrink tunnel with number of sleeves or neck bands per minute – depending on materials and application. Layflat: 80mm to 300mm. Maximum container Diameter: 7.36". Film thickness: 40 to 70 microns. Equipped with vertical and horizontal perforation, knife film cut off, registration and PLC Controller with touch pad controls with HMI display. Mounted a height adjustable stainless steel frame. Film specifications: up to 15" diameter roll on 3" core. Axon Model EZ-48, Stainless steel over conveyor, convection air, neck band shrink tunnel. Total Aperture: 10" in Height; 10" in Width. Tunnel: 48" in Length. Temperature range: up to 130° F. Equipped with recirculating blower, digital temperature controller and system mounted on height adjustable frame with locking casters. System mounted above 6" wide x 174" long stainless steel tabel top belt conveyor with spacing wheel and variable speed control.
AFM Model LX-100 VD high speed, shrink sleever / neck bander with heat shrink tunnel rated from 40 to 100 containers per minute – depending on materials and application. Sleever has layflat sleeve size range of: 40mm (1.6") to 170mm (6.8") wide; Film Thickness .034mm to 0.07mm with cut length of 40mm (1.6") to 200mm (8") and is capable of running most types of film and can handle both oval and round containers made of plastic, glass and metal. Equipped with single head bullet style mandrel, single blade centrifical cutting mechanism, perf wheel, film registration, label brush down device single roll unwind and tention controller, powered film unwind with single film reel and low film indicator light. Control panel has Panasonic / Delta controls, with SQ-53i TTO coder and mounting bracket operator interface, statis lite bar and interlocking safety guarding.
TRIpack Model HT-1, Dual over conveyor hot air shrink tunnels with 125mm (5") wide x 262.5mm (10.5") high aperature x 900mm (36") long shrink chamber. Independent and adjustable baffles for air flow direction. Control panel has heater on / off, temperature controller with digital read out and powered up / down controls with e-stop and is hand crank height adjustable to 44" high.All mounted over 208" long x 4-1/2 wide stainless steel delran product belt conveyor with motor drive and e-stop. All have stands with casters and leveling legs.
OAD: 208" L x 40" W x 98" H
TRIpack Model HSA-240 / AMF WSN, stainless steel, shrink neck bander and sleever with conveyor and steam shrink tunnel system. Rated from 20 to 200 containers per minute – depending on materials and application.
TRIpack Model HSA-240 shrink sleever with Layflat sleeve size range of: 40mm (1.6") to 245mm (9.8"). Cut length range of: 30mm (1.2") to 250mm (10"). Product OD range of: 25mm (1") to 100mm (4") and capable of running most shrinkable films with proper change parts. Equipped with powered film assist assembly, zero tension web design, loading / unwind station with 19" maximum film OD and 288" long x 4¾" wide stainless steel delron container conveyor. Mandrel / bullet design film delivery system and multi-blade knife assembly, with material out sensor, film tensioner and low film indicator. Control panel has A/B PLC with HMI operator interface, interlocking safety guarding and e-stops.

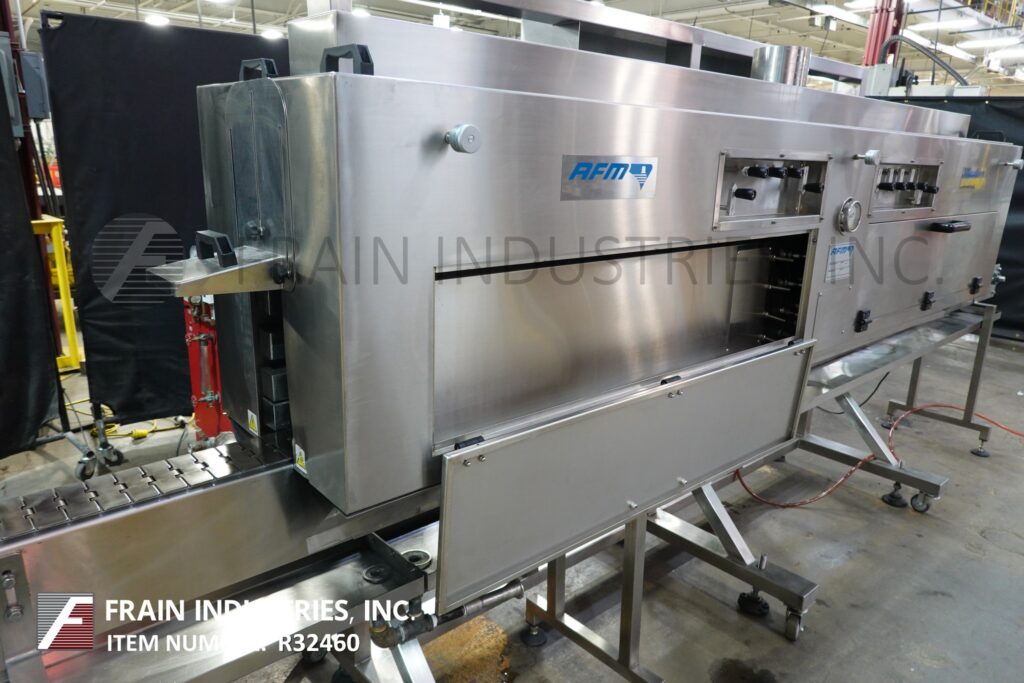

AMF WSN 300 3M, (2) zone, (4) tier steam heat shrink tunnel with 5" wide x 12" high aperature x 118" long steam shrink chamber with remote electric steam boiler. Maximum operating temperature of 212° F and adjustable manifold for direct steam heat where needed with steam exhaust controlled by turn of a knob and steam pressure of 3 to 4 Kg/cm2 and 43 to 57 psi with cool water consumption of 200 litres or 80 gallons per hour and has stand alone steam generator. Both mounted on stainless steel frames with casters and leveling legs.
OAD: 288" L x 46" W x 98" H
American Film & Machinery, Model LX-350SS and WSN-300, Automatic, stainless steel, tamper evident shrink neck bander or sleeve label applicator with stainless steel steam shrink tunnel. Rated from 50 to 350 container per minute – depending on materials, application and machine configuration. Layflat: 50mm to 240mm. Sleeve height: 40mm to 300mm. Film thickness: 0.035mm to 0.07mm. Equipped with 32" worm screw bottle indexing, dual roll splice station, forming tube, registration and knife film cut off. Control panel with AB PLC and touch screen HMI. Model WSN-300 stainless steel, 4 zone and 4 tier steam shrink tunnel. Equipped with 4" wide x 11½" high total aperature x 118" long chamber with multiple steam zones and adjustable manifold with direct steam heat.
OAD: 64" L x 55" W x 130" H Sleever 105" L x 30" W x 80" H Splice Station 118" L x 36" W x 72" H Shrink Tunnel 480" L x 20" W x 32" H Conveyor
American Film & Machinery, Model LX-350SS and WSN-300, Automatic, stainless steel, tamper evident shrink neck bander or sleeve label applicator with stainless steel steam shrink tunnel. Rated from 50 to 350 container per minute – depending on materials, application and machine configuration. Layflat: 50mm to 240mm. Sleeve height: 40mm to 300mm. Film thickness: 0.035mm to 0.07mm. Equipped with 32" worm screw bottle indexing, dual roll splice station, forming tube, registration and knife film cut off. Control panel with AB PLC and touch screen HMI.Model WSN-300 stainless steel, 4 zone and 4 tier steam shrink tunnel. Equipped with 4" wide x 11½" high total aperature x 118" long chamber with multiple steam zones and adjustable manifold with direct steam heat.
