Pressure sensitive spot labelers, or P S Spot labelers, are designed to apply a pressure sensitive label to a spot on a container or package. Pressure sensitive labels have adhesive pre-applied the back of the label. The label is kept on a roll of film, sticky side to the film, which maintains the stickiness of the pre-applied adhesive. Once the label is ready for application, the label is removed from the roll and applied to the container.
Pressure sensitive labelers can apply a pressure sensitive label using a number of different methods including wipe-on, blow, or tamp. The wipe-on method for pressure sensitive label application requires a package or container to pass near the label head. Once the label head senses the package, the label head feeds the label at the speed of the container. The label is firmly adhered the container by passing below a brush of other mechanism which wipes the label onto the container. Blow pressure sensitive spot labelers, or air blow labelers, feed the entire label below a label applicator. The label is held under the label applicator by a small vacuum pressure. Once the container is sensed, the applicator blows air onto the label and uses the force of the blowing air to apply the label to the container. Tamp labelers are also know as tamp / blow label applicators because the tamp label applicators also use the force of air to push labels onto containers. Tamp labeler feed a full label below a label applicator, much like a blow labeler. The label is held on the label applicator using low-pressure vacuum. Once the container is sensed, the label applicator moves towards the container, usually via air cylinder activation. The label applicator comes very close the container but does not touch it. Once the label applicator is near the container, air is forced through the label applicator to force the label onto the container. The label applicator is then retracted and prepared for the next label. Tamp / blow pressure sensitive labelers are best used for applications where the label needs to be applied into a depression within the container.

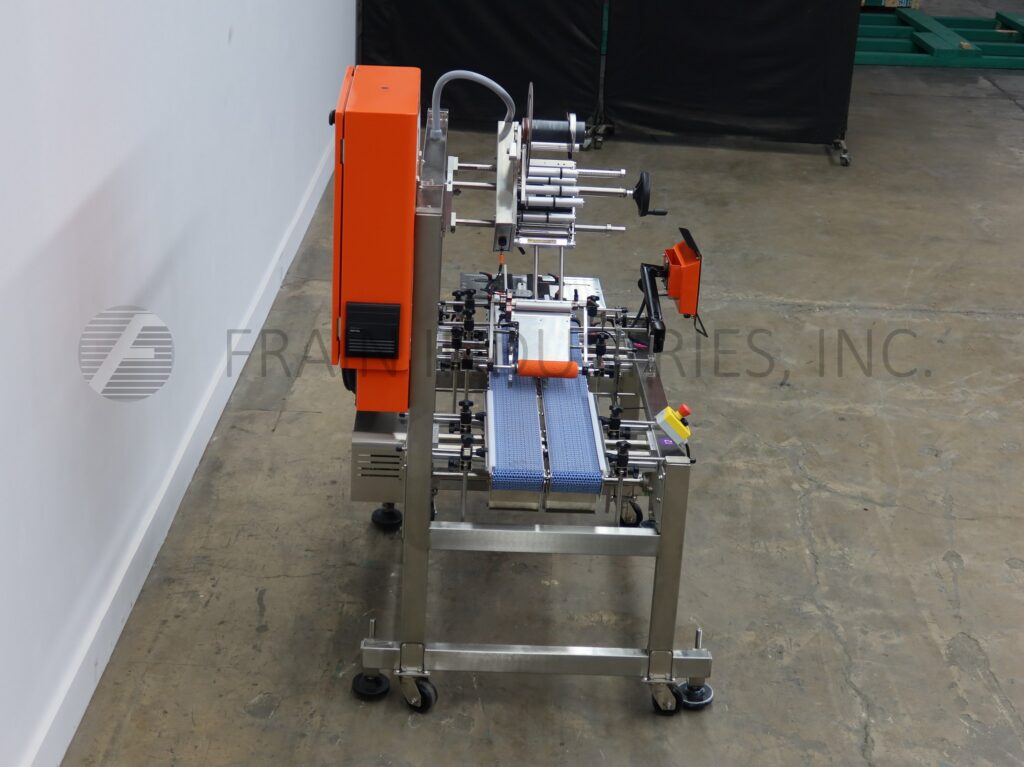

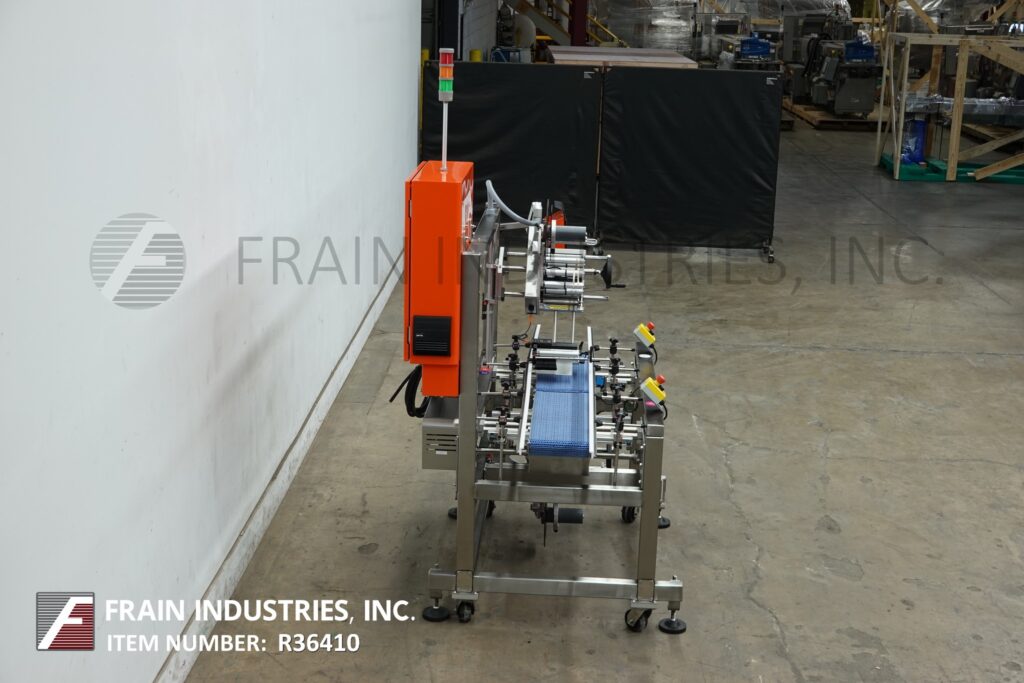

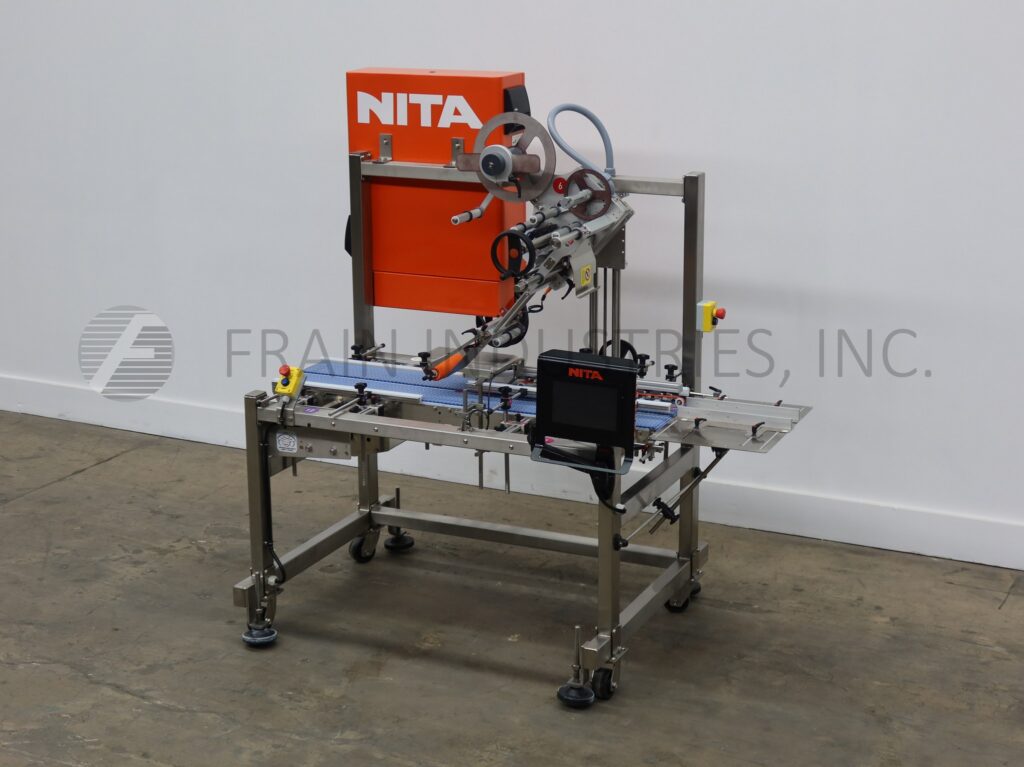

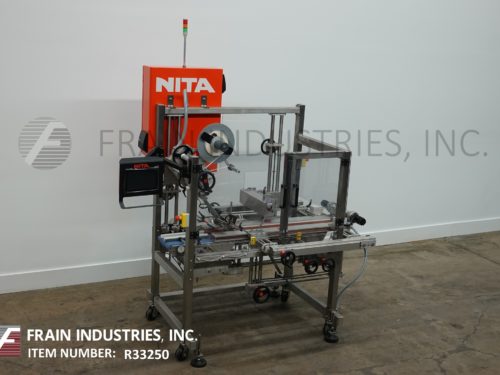

Nita, Model Joust SSK 360, pressure sensitive, 360 degree label applicator. Container size range: up to 15.5" in Width; up to 14" in Height. Label size range: up to 6"in Width. Equipped with servo dual side belt product conveying system, with adjustable guide rails, servo pressure sensitive label applicator (rated to 1570" per minute), brush wipe system, synchronized servo rear application swing arm and touch screen controller. Label accuracy to 1/32". Label specifications: 12" diameter on 3" core. Mounted on casters and leveling legs. Speed, container height, container length and label length dependant on materials, application and machine configuration.
OAD: 70" L x 61" W x 105" H
Dual Label Aire, Model 3114, pressure sensitive, tamp on spot, around the corner, tamper evident labeling system. Rated from 600 to 1500 linear inches per minute with number of product – depending on materials and application. Equipped with (2) swivel mounted bracket label heads, 12" OD label roll and 7" OD powered label rewind, (2) 1" wide x 14" long overhead product hold down belts and (2) side rollers to fold label around corner. Stepper driven has touch pad controller with digital display and statis light bar. Mounted on 8" wide x 165" long belt conveyor with casters.
OAD: 168"L x 73"W x 74"H
Aesus Model Delta, automatic, single or dual side servo driven, stainless steel, empty pre-made pouch labeling system with number of labels per minute – depending on materials, application and label applicator. Equipped with dual pouch elevators both have 24" long x 3-1/4" wide vertical pouch transfer belts with 2-1/4" x 2" long pouch carriers on 6" centers, to 52" long dual eagle belt pouch in feed belt. Herma Model H400-16L top labeler applicator (and can run with bottom labeler also). has standard labeling speeds up to 130 feet per minute with number of pouches per application. Label widths to 6.3" with accuraces of + / – 0.01". Has 12" OD label reel and 7" OD rewind reel with 7" peel plate and 8" top / 9" bottom compression rollers has touch pad controller with read out and 30 pre-set functions, hand crank adjustable and 10 x 12 pouch catch bin. Control panel has A/B PLC and A/B touch pad controls with read out and elevator up / down main counter and send signal to the label applicator. Mounted on stainless steel base frame.
OAD: 120" L x 36" W x 72" H

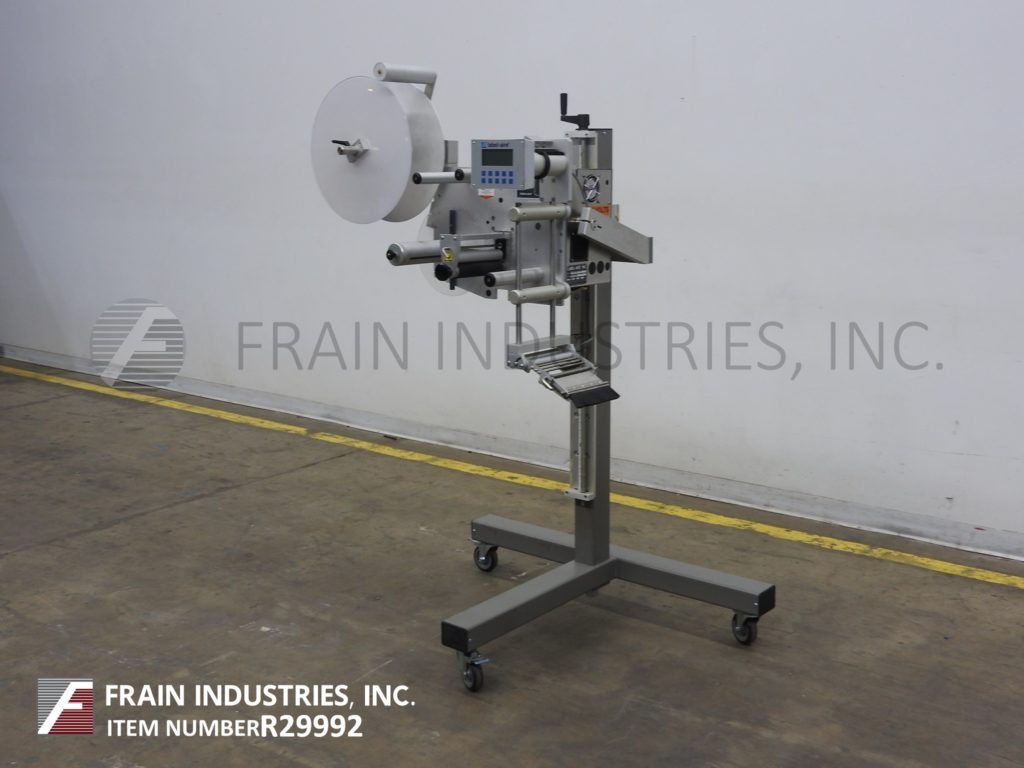

Label Aire Model 3115 NV 1500 7"x16" RH pressure sensitive, wipe on spot labeler rated from 600 to 1,500 linear inches per minute, with number of product – depending on materials and application. Equipped with swivel mounted bracket with accuracies of +/- 1/32", and has 1" to 10" adjustable stroke with maximum 20" OD label roll and 20" OD label rewind with 3" ID cores and has stepper drive, with touch pad controller with R3 digital display. Mounted on hand crank height adjustable T-stand with casters. Can be converted to do left or right hand use as well as doing top, side or bottom labeling.
OAD: 48"L x 35"W x 70"H
Label Aire Model 3114 NV 1500 7"x16" RH 1-10"ST pressure sensitive, blow tamp spot labeler rated from 600 to 1,500 linear inches per minute, with number of product – depending on materials and application. Equipped with swivel mounted bracket and blow tamp label head with label size range: 3/4" to 5" in Length; 3/4" to 4" in Width, with accuracies of +/- 1/32", and has 1" to 10" adjustable stroke with maximum 20" OD label roll and 20" OD label rewind with 3" ID cores and has stepper drive, with touch pad controller with R3 digital display. Mounted on hand crank height adjustable T-stand with casters. Can be converted to do left or right hand use as well as doing top, side or bottom labeling.

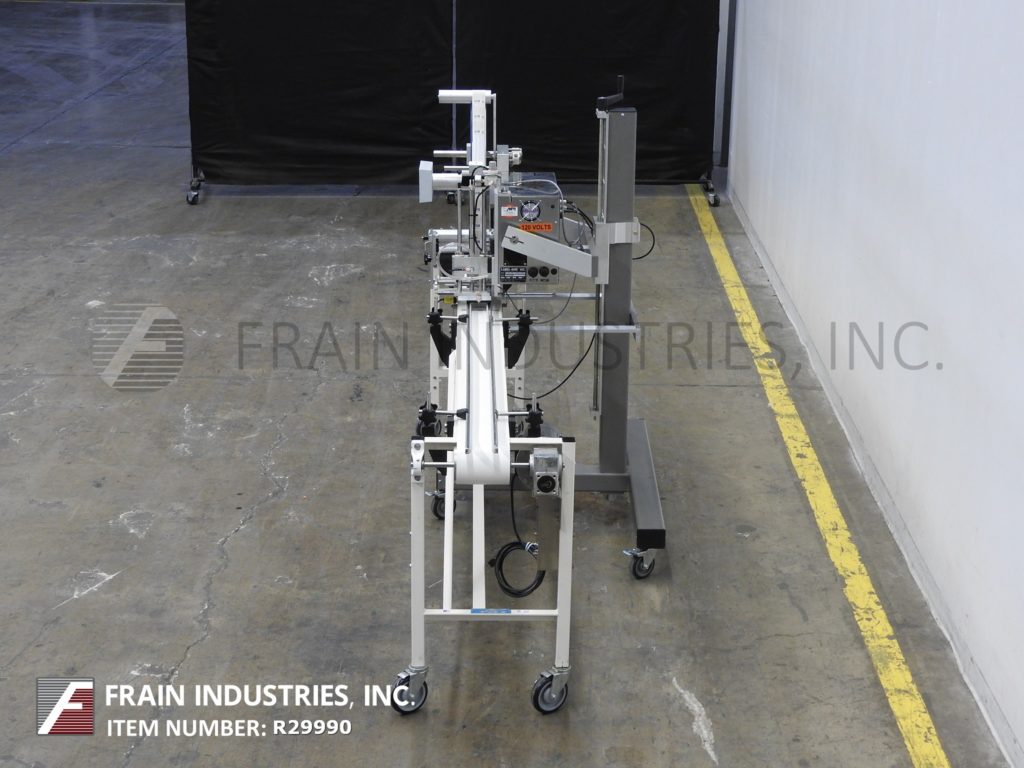

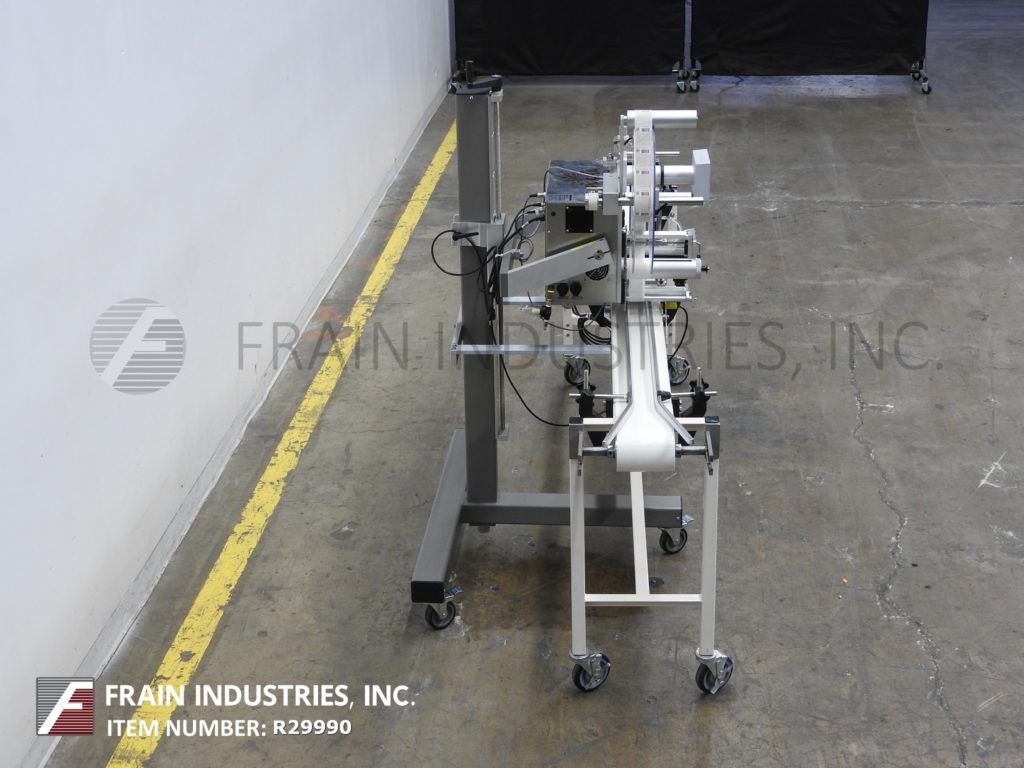

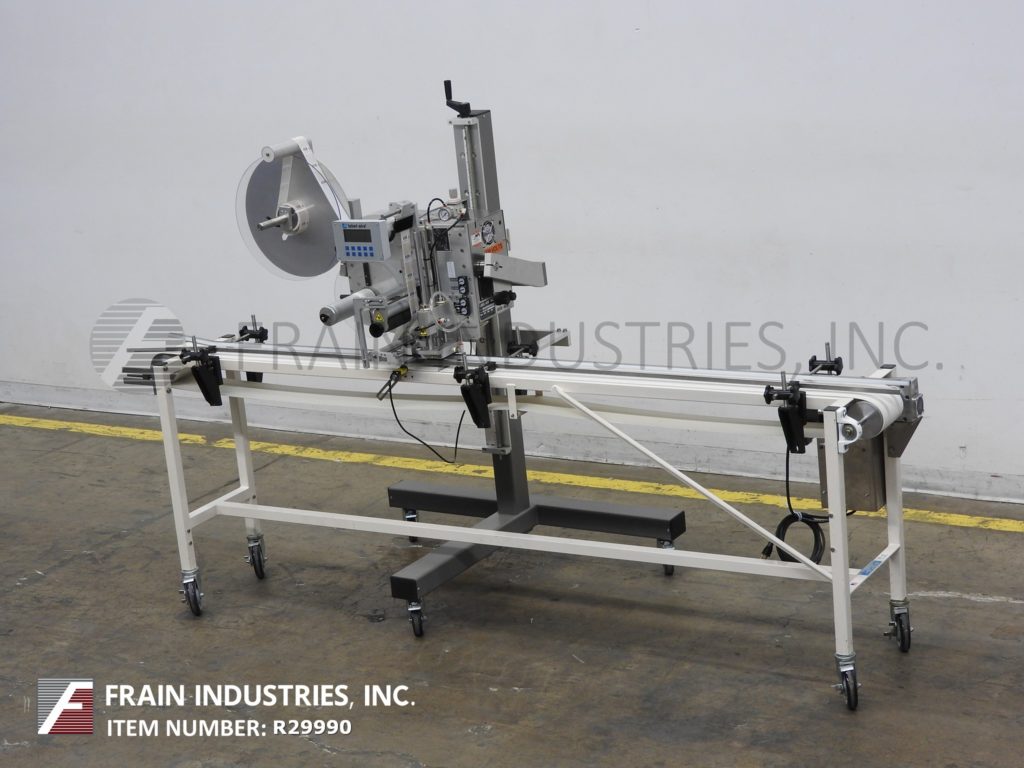

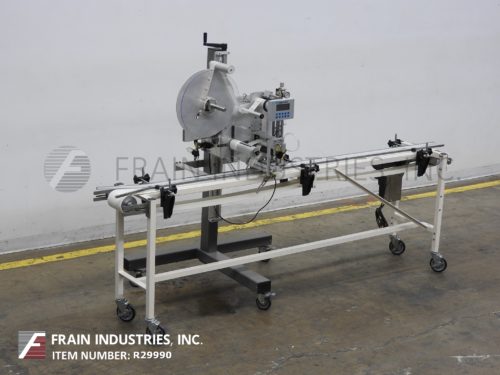

Label Aire 2114ST automatic pressure sensitive tamp labeling system. System consists of 2114ST labeling head mounted over 96" long x 4" wide conveyor. Labeling head is a stepper driven pressure sensitive tamp labeler with speeds of 500 to 1250 ft/min. Label dimensions: up to 4" in Width; up to 5-1/2" in Length. Placement accuracy to +/- 1/32". Equipped with 12" diameter foam applicator wheel and variable speed adjustment for applicator wheel and conveyor speed. Labeler mounted on 3-axis stand for complete adjustability. Maximum roll diameter of 12" on a 3" ID core.
OAD: 120"(L) x 50"(W) x 72"(H)
OAD: __" L x __" W x __" H

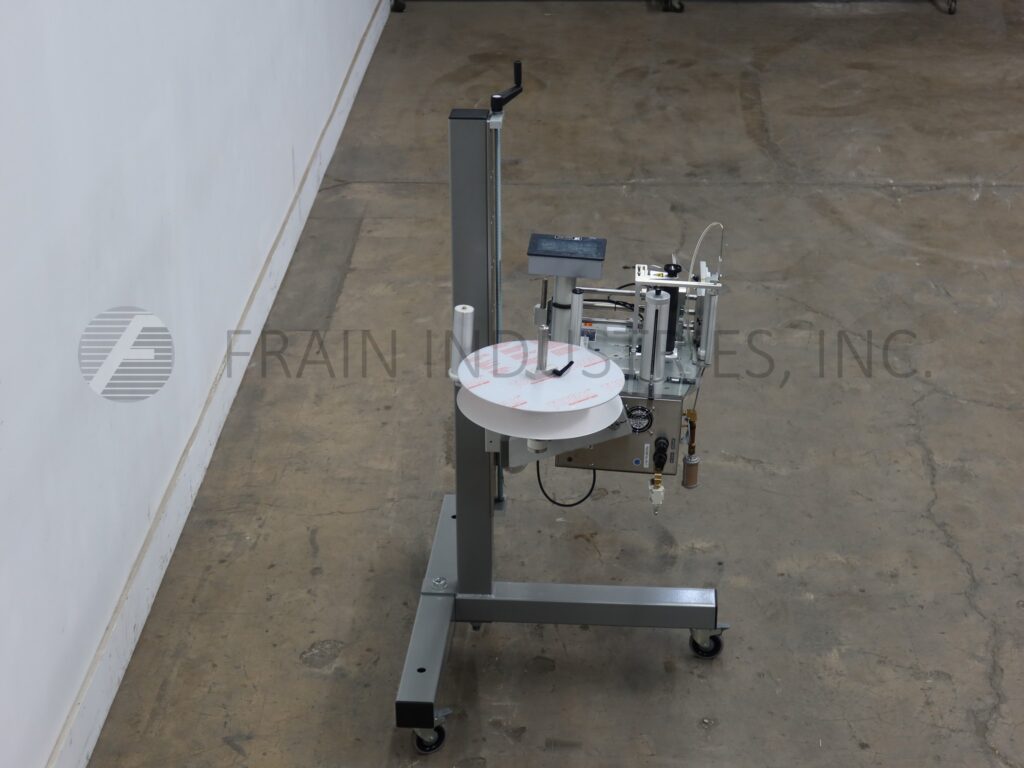

Tamp/blow label applicator capable of dispensing 1,600” of web per/min with a maximum label width of 4” and label length dependent on application. Label accuracy up to +/- 1/32”. Features include 20" extended diameter unwind clearance, stepper driven motor, power unwind/power rewind and menu driven microprocessor to allow repeatable settings. Tamp/blow applicator stroke is approximately 3". Additional feature includes a T-base stand with 36" vertical adjustment and leveling legs.OAD:42”(L) x 50”(W) x 70"(H)
