Frain Industries can help you with your glue wrap labeler project no matter how big or small your labeling needs. Labeler Glue Wrap is a glue labeler which applies a wrap-around label to circular containers and packages. Glue labels require glue to be applied to the back of the label by the machine prior to the label being applied to the container so that the label will adhere to the container.
Krones Canmatic fully automatic, 12-head rotary, hot melt glue, wrap around labeler for pre-cut paper labels. Capable of speeds 50 to 240 containers per minute. Equipped with hot melt glue station, no container/no label, vertically and horizontally adjustable label magazine – 9500 label capacity. Additional features include a 130" product conveyor, worm screw and star wheel container transfer, barrier guarding and an AB plc.
OAD: 93"L x 78"W x 72"H
New Jersey Mustang fully automatic cold glue wrap labeler capable of 80 – 200 containers per minute for containers: 1 1/2" – 4" diameter, labels: 2 1/2" – 12" L by 1" – 5 1/2"H. Features a worm screw infeed, two wrap stations with 5" high wrap belts, a 132"L by 4 1/2"W delron table top conveyor, and a 15" L pre-cut label magazine with label pusher. Equipped with low label indicator, no container / no label, E-stops, and controls for drive motor (start/stop), vacuum motor, glue roll motor, and speed control. Mounted on a stainless steel frame with height adjustable legs. Model 315LS1203
OAD: 132"L x 34"W x 40"H
Mateer Burt, Model 704 Mark 6, automatic, roll thru, glue labeler. Rated from 10 to 600 containers per minute – depending on materials, application and machine configuration. Designed to apply full wrap glue labels to round shaped containers of metal, plastic and also glass (with proper change parts). Container size range: 1¾" to 7¼" In Diameter; 1(9/16)" to 10" in Height. Label size range: 4-5/8" to 24" in Length; 1½" to 9¼" in Width. Equipped with 32" long elevator infeed conveyor, dual container handling gripper v-belts, hydraulic label feed magazine, no container / no glue with hot glue pot and direct contact wheel applicators with Valco cold glue lap seal system. Control panel has start / stop push buttom controls with heat on / off switch and heat controller. Mounted on (4) leg frame with safety guarding, locking casters, leveling legs and statis light bar.
OAD: 166"L x 40"W x 56"H
Trine, Model 4500GS / 105, stainless steel, roll fed, wrap around, hot melt glue labeler and shrink tunnel rated from 50 to 200 containers per minute – depending on materials, application and machine configuration. Container size range: 1.625" to 5" in diameter, capable of handling containers made of glass, PET, HDPE, metal, paper board composites may be accommodated for full-wrap and patch decoration. Label size range: 6" to 14.5" in Length x 1" to 8.25" in Width up to 8.5 in height. Equipped with 4½" wide x 148" long total stainless steel delrin belt conveyors through labeler, worm screw to star wheel in feed and discharge container indexing with dual label reels with registration, Nordson hot glue system with __" OD vacuum drum label applicator, 4½" wide x 170" long belt conveyor through shrink tunnel and has 5-1/2" wide x 7-1/2" high aperture with 86" long shrink chamber. Control panel has Allen Bradly PLC controller with swing arm controls and panel view with top / bottom zone heater on / off controllers, conveyor and ratio speed control dials with conveyor on / off / reset buttons. Mounted on heavy duty base frames with safety guarding and statis light bar. Applications include beverage, food, pharmaceutical, cosmetic, dairy, aerosol and nutritional product industries.
P E, Model SPLENDID L4A, Automatic, inline, cold glue, labeling system to apply pre-printed cut and stack style labels to cylindrical containers for full or partial wrap applications with number of labels and containers per minute – depending on materials and application. Container size range: 1½" to 5" in Diameter x 4¼" to14¾" in Height. Label size range: 1¾" to 16½" in Length x 1" to 7" in Height. Equipped with 153" long x 4" wide container conveyor, with worm screw in feed, pre-cut sheet stock label magazine, horizontal stripe cold glue wheel applicator and 40" long x 7" high wrap station with (6) 1½ OD x 7" High compression rollers. Control panel has P.E.electronic controller with HMI and power on start / stop, safety guard, screw safety, reset, e-stop push button and glue pump controls. Mounted on base frame with stainless steel cladding and interlock safety guarding with (4) leg height adjustable legs. Change parts required to accommodate different size ranges.
OAD: 96" L x 72" W x 69" H

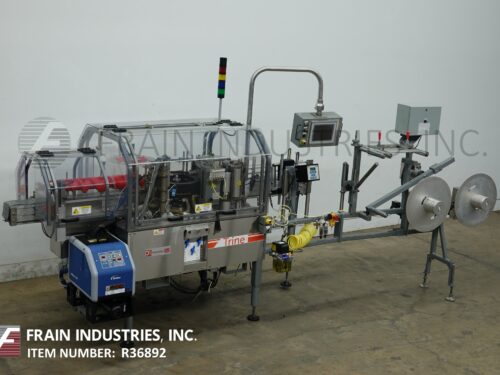

Trine, Model 4650R, Stainless steel, roll fed, hot melt glue labeler designed to apply full or partial wrap labels to containers. Rated from 60 to 400 containers per minute – depending on materials, application and machine configuration. Container size range: 1.7" to 5" in diameter, Label size range: 6.5" to 16.5" in Length with 1" to 7" web width. Capable of running glass, plastic and metal, full or empty containers with proper change parts. Equipped with 23" OD film roll stand, worm screw to star wheel in feed, 6" wide thru machine plastic delron container belt conveyor, (6) station vacuum drum, peeler plate, label cutting and transfer systems and scrap rewind, hot melt glue unit and compression belt section. Control panel has swing arm controller with push button start / stop / jog, variable speed dial and on / off switch for glue / label feed and statis light bar. Mounted on heavy duty frame with flip-up safety door guarding.
OAD: 115"L x 64"W x 95"H (Labeler) 115"L x 34"W x 83"H (Roll Stand)
Krones, Model Rotina I, Automatic, inline, cold glue spot or wrap labeler rated from 25 to 100 containers per minute – depending on materials, application and machines configuration. Container size range: 2” to 6-1/2"’ in Diameter; Minimum of 3-1/2" and upon request maximum in Height. Label size range: 2-1/2” to 14” in Length; 1/4 to 6" in Height. Equipped with 108" long x 4¼" wide stainless steel conveyor, worm screw in feed, pre-cut sheet stock label magazine, 6½" high glue wheel system with cold glue pump and 26" long x 4" high wrap station. Control panel has push button controls with e-stop. Mounted on base frame with height adjustable legs. Change parts required to accommodate different size ranges.
OAD: 108" L x 38" W x 45" H
Mateer Burt, Model 704, automatic, roll through glue labeler. Rated from 10 to 600 containers per minute – depending on materials, application and machine configuration. Container size range: 1¾" to 7¼" In Diameter; 1-9/16" to 10½" in Height. Label size range: 4-5/8" to 24" in Length; 1¼" to 9¼" in Width. Equipped with dual container handling gripper v-belts, hot glue pots with direct contact wheel applicators, single hydraulic label feed magazine, with start / stop push button controls. Mounted on base frame. Designed to apply full wrap glue labels to cylindrically shaped containers of metal, plastic and glass with proper change parts.
OAD: 115" L x 32" W x 68" H
Langguth Model E-62, 12 Hd rotary, stainless steel, cut and stack, wrap around, hot melt glue labeler designed to apply full or partial wrap as well as spot labels to containers rated from 50 to 300 containers per minute – depending on materials and application Container size range: 2.28" to 4.4 in diameter, Label size range: 7.6" to 17.2" in Length, 1" to 9.4" in Height and is capable of running round, rectangle and oval shape container of glass, plastic and metal, both full or empty with proper change parts. Equipped with 22" long pre-cut paper stack label magazine, rotary (12) pocket container handling disc to worm screw to star wheel in feed and discharge with 88" long x 3" wide thru the machine plastic delron container belt conveyor, with 18" OD rotary turret and (12) 5" OD pedestal style container stations set on 4" centers, label peeler plate, with Nordson hot melt glue unit and wipe brush compression section. Control panel has PLC controller, with on / off label feed and off / auto apply glue, flow gate open / close with machine speed / temperature controllers, start, stop, e-stop push buttons with machine running light. Mounted on stainless steel frame with interlock safety guarding.
OAD: 116" L x 60" W x 68" H
Langguth Model E40, automatic, inline, stainless steel, high speed, full wrap, hot melt glue labeler. Rated from 100 to 600 cylindrical containers per minute – depending on materials and application Container size range: 2¾" to 6" diameter, 2¼" to 9¼" high. Label size range: 8½" to 21¼" long, 1½" to 9¼" high. Rectangular paper or plastic labels. Equipped with 3¼" wide x 164" long delron stainless steel product conveyor with roll through belt, side label magazine and Nordson hot melt glue system. Control panel with on/off controls for helt melt, conveyor and star wheel. Mounted on heavy duty stainless steel frame.
OAD: 164"L x 48"W x 67"H
Mateer Burt, Model AU404 automatic, roll thru, hot glue wrap labeler. Container size range: 1¾" to 4½" in Diameter; 1(9/16)" to 7½" in Height. Label size range: 4-5/8" to 15" in Length; 1¼" to 7" in Width. Equipped with dual belt container handling, mechanical label magazine, hot glue pot with glue applicators, hot glue band lap seal and hand crank container adjustments. Speed dependant on materials, application and machine configuration.
OAD: 115"L x 36"W x 44"H
