Pressure sensitive spot labelers, or P S Spot labelers, are designed to apply a pressure sensitive label to a spot on a container or package. Pressure sensitive labels have adhesive pre-applied the back of the label. The label is kept on a roll of film, sticky side to the film, which maintains the stickiness of the pre-applied adhesive. Once the label is ready for application, the label is removed from the roll and applied to the container.
Pressure sensitive labelers can apply a pressure sensitive label using a number of different methods including wipe-on, blow, or tamp. The wipe-on method for pressure sensitive label application requires a package or container to pass near the label head. Once the label head senses the package, the label head feeds the label at the speed of the container. The label is firmly adhered the container by passing below a brush of other mechanism which wipes the label onto the container. Blow pressure sensitive spot labelers, or air blow labelers, feed the entire label below a label applicator. The label is held under the label applicator by a small vacuum pressure. Once the container is sensed, the applicator blows air onto the label and uses the force of the blowing air to apply the label to the container. Tamp labelers are also know as tamp / blow label applicators because the tamp label applicators also use the force of air to push labels onto containers. Tamp labeler feed a full label below a label applicator, much like a blow labeler. The label is held on the label applicator using low-pressure vacuum. Once the container is sensed, the label applicator moves towards the container, usually via air cylinder activation. The label applicator comes very close the container but does not touch it. Once the label applicator is near the container, air is forced through the label applicator to force the label onto the container. The label applicator is then retracted and prepared for the next label. Tamp / blow pressure sensitive labelers are best used for applications where the label needs to be applied into a depression within the container.
Label Aire Model 3114 NV 1500 7"x16" RH 1-10"ST pressure sensitive, blow tamp spot labeler rated from 600 to 1,500 linear inches per minute, with number of product – depending on materials and application. Equipped with swivel mounted bracket and blow tamp label head with label size range: 3/4" to 5" in Length; 3/4" to 4" in Width, with accuracies of +/- 1/32", and has 1" to 10" adjustable stroke with maximum 20" OD label roll and 20" OD label rewind with 3" ID cores and has stepper drive, with touch pad controller with R3 digital display. Mounted on hand crank height adjustable T-stand with casters. Can be converted to do left or right hand use as well as doing top, side or bottom labeling.
OAD: __" L x __" W x __" H
Aesus Model Delta, automatic, single or dual side servo driven, stainless steel, empty pre-made pouch labeling system with number of labels per minute – depending on materials, application and label applicator. Equipped with dual pouch elevators both have 24" long x 3-1/4" wide vertical pouch transfer belts with 2-1/4" x 2" long pouch carriers on 6" centers, to 52" long dual eagle belt pouch in feed belt. Herma Model H400-16L top labeler applicator (and can run with bottom labeler also). has standard labeling speeds up to 130 feet per minute with number of pouches per application. Label widths to 6.3" with accuraces of + / – 0.01". Has 12" OD label reel and 7" OD rewind reel with 7" peel plate and 8" top / 9" bottom compression rollers has touch pad controller with read out and 30 pre-set functions, hand crank adjustable and 10 x 12 pouch catch bin. Control panel has A/B PLC and A/B touch pad controls with read out and elevator up / down main counter and send signal to the label applicator. Mounted on stainless steel base frame.
OAD: 120" L x 36" W x 72" H
Label Aire, Model 3111/14-15 LH/SW Grid, pressure sensitive, around the corner spot labeler. Rated from 100 to 2000 linear inches per minute with number of product – depending on materials, application and machine configuration. Equipped with swivel mounted bracket, tamp on label head and label size range: ¾" to 12" in Length ; ¾" to 4" in Width, with proper change parts and accuracies of: ± 1/32", 12" OD label roll with a 3" core and 8" OD powered label rewind. Pneumatic 90° vacuum grid plate to tamp on front of label, and swing arm wrap around corner wipe arm to smooth out front of label. Stepper driven has touch pad controller with digital display. Mounted on 18" wide x 120" long belt conveyor with leveling legs.
OAD: 120" L x 60" W x 56" H

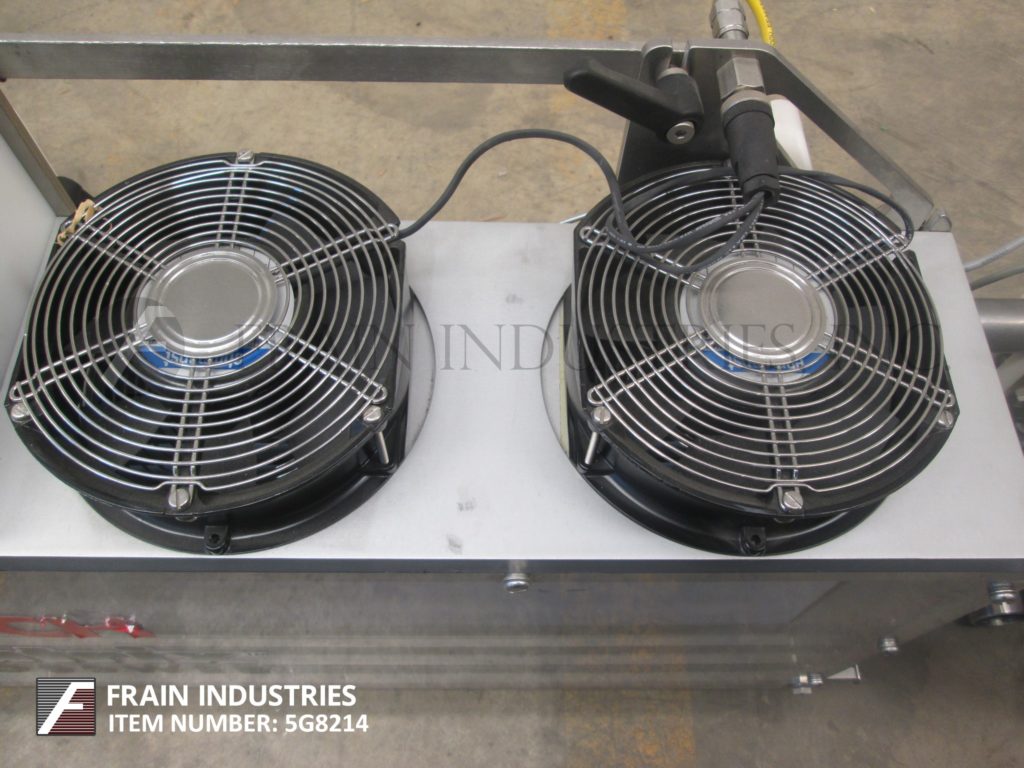

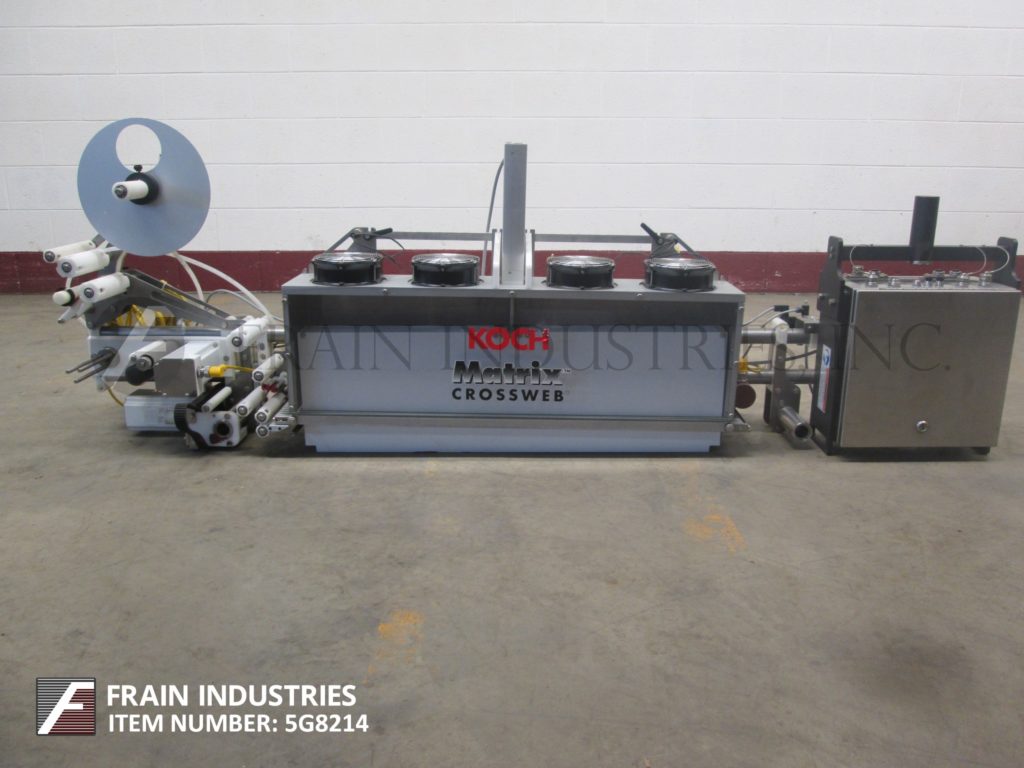

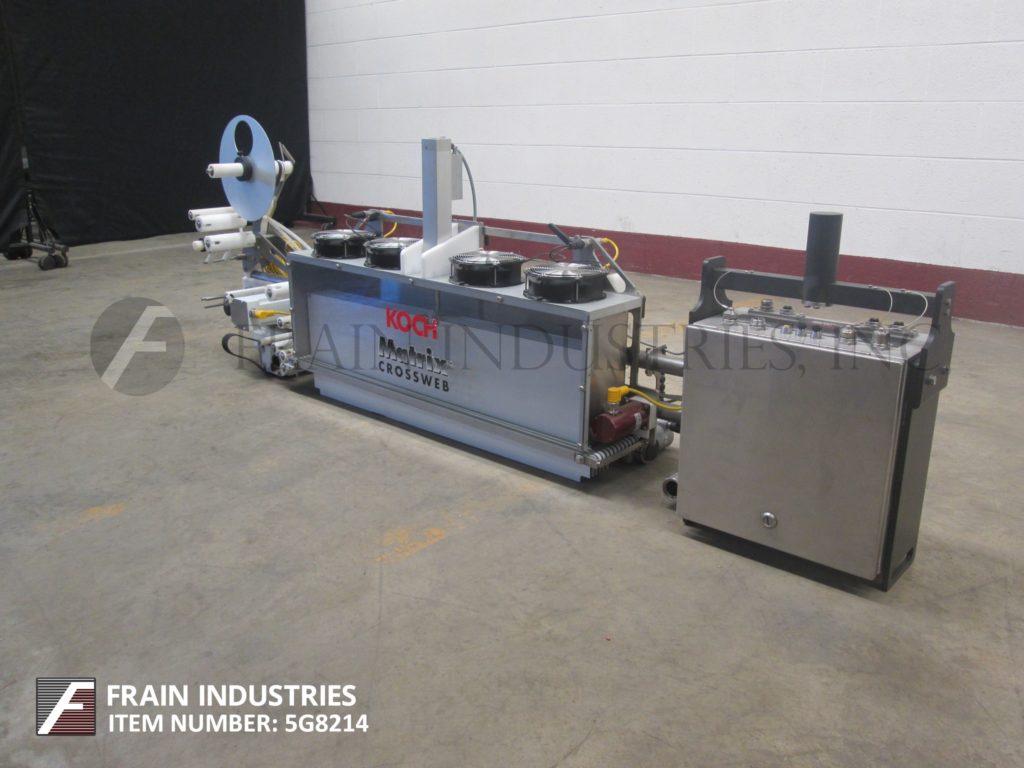

Koch, Model PR99-11520-002, crossweb film labeler. Automatically applies pressure-sensitive labels perpendicular to the machine production flow across multiple lanes. Capable of running a maximum label of 20mm (0.78") to 150mm (5.9") wide x 20mm (0.78") to 400mm (15.74") long at speeds from 30 to 190 feet per minute with accuracies of ± 0.5mm – depending on materials, application and machine configuration. Label roll specifications: 14" OD roll on 1½" core. Equipped with a super torque stepper drive, 6" wide wiper plate, 42" long (11) belt chassis, 36" long x 2½" wide tamping plate and allows for 24" of longitudinal travel. Includes a touch screen controller and is designed to be mounted on the discharge section of most packaging machines.
OAD: 76"L x 33"W x 43"H
OAD: 75"L x 25"W x 28"H
Quadrel, Model Q31, automatic, pressure sensitive, spot labeler rated from 10 to 100 labels per minute – depending on materials, application and label size. Label size range: ½" to 6" Length; ½" to 6-7/8" in Width with accuries to +/- 1/32". Equipped with 96" long x 4½" wide product conveyor, (2) label heads are hand crank height adjustable, powered label rewind, 32" long top product stablizer conveyor and 26" long dual side product gripper discharge conveyors drop to bottom side label application. Label: 10" OD label roll on 3" OD core. Control panel has start, stop and e-stops push button controls. Mounted on heavy duty frame with locking casters.
OAD: 114"L x 76"W x 68"H
