Belcor Sealer Case Taper 250-505

  Back to All Equipment
  • Manufacturer: Belcor
  • Model: 250-505
  • Frain Number: R27111
  • Category: Sealer Case
  • Subcategory: Taper
  • Condition: Used, in excellent condition
  • Availability: In Stock

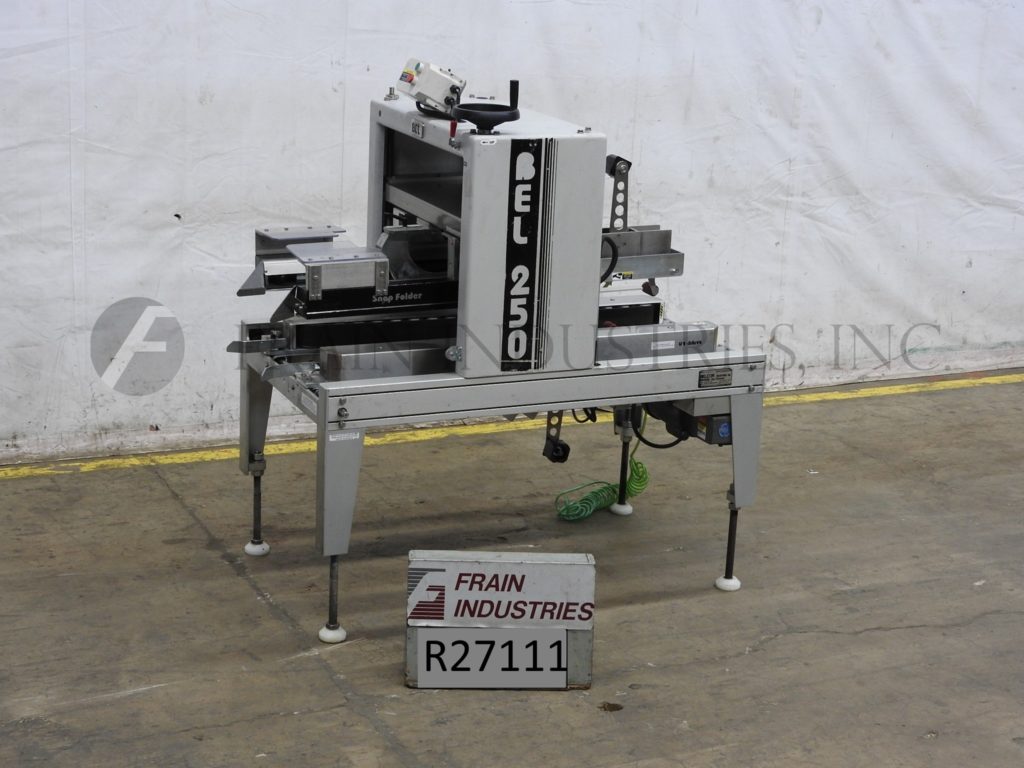

Belcor Model 250, automatic, uniform top and bottom case taper. Rated from 5 to 25 case per minute – depending on materials and application. Case size range: 8" to 22" in Length; 6" to 15" in Width; 4-1/2" to 15-1/2" in Height. Equipped with pneumatic front top flap closer and side snap flap folder closers for remaining flaps, (2) 48" long x 3" high side case transfer belts, Dekka 2" wide top and bottom tape heads, hand crank height and width adjustable. Control panel with start, stop push button controls. Mounted on (4) leg height adjustable base frame.

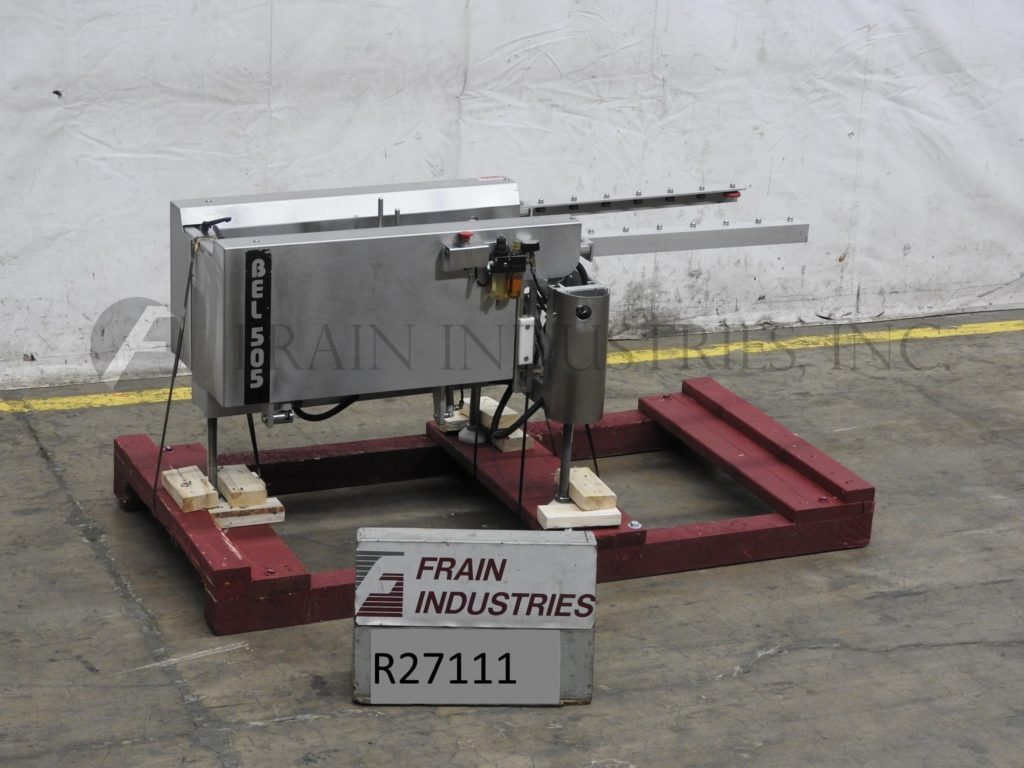

Belcor, Model 505, semi auto case erector, packing station. Number of cases per minute – depending on materials, application and operator dexterity. Case size range: 6" to 16 in width; 8½" to 26" in length; 3½" to unlimited in height. Equipped with automatic major and minor flap closure. Case in-feed / out-feed adjustable from 20" to 27". Mounted on (4) leg base frame with castors.

OAD: 60" L x 32" W x 64" H (250)
OAD: 64" L x 28" W x 31" H (505)
