Wexxar, Model 290T, Automatic, uniform, top tape case sealer. Rated from 5 to 50 case per minute -depending on materials and application. Case size range: 8" to 32" in Lenght x 5¼" to 17½" in Width x 5" to 19" in Height. Equipped with (2) 80" Long x 3" high side case transfer belts, 2" Deka top tape head with adjustable height and width hand cranks. Control panel with touch screen HMI. Mounted on base frame with adjustable height legs.
OAD: 112"L x 50"W x 82"H

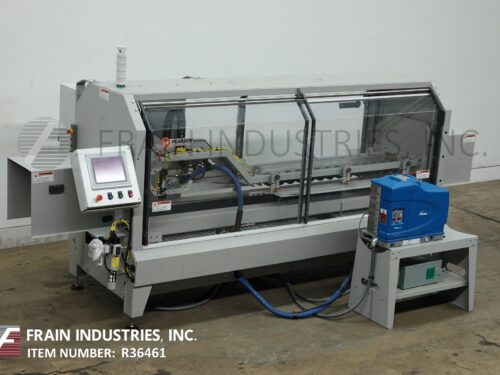

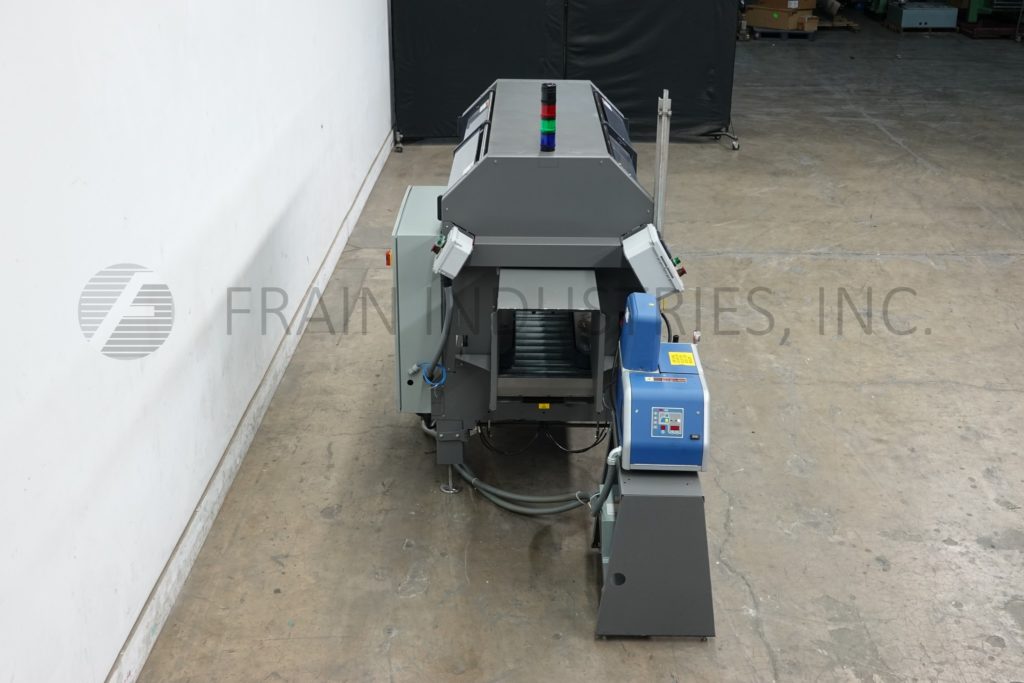

Pearson, Model CS25, Automatic, top case closer and hot melt glue sealer. Rated from 25 to 42 cases per minute – depending on materials, application and machine configuration. Case size range: 8" to 24" in Length; 5" to 16" in Width, 4¾" to 18½" in Depth. Equipped with top flap closers and plows, Nordson hot melt glue system. Control panel has A/B controller with A/B touch pad with start, stop, e-stop push buttons and statis light bar. Mounted on heavy duty base frame with interlock safety guarding.
OAD: 110" L x 62" W x 80" H

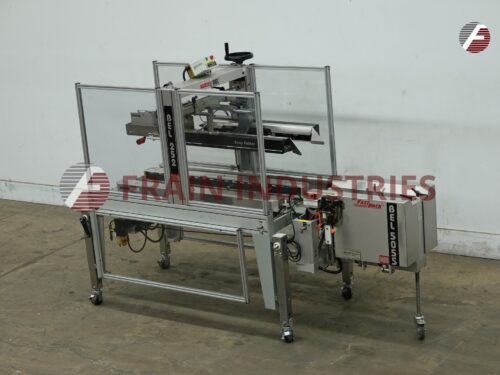

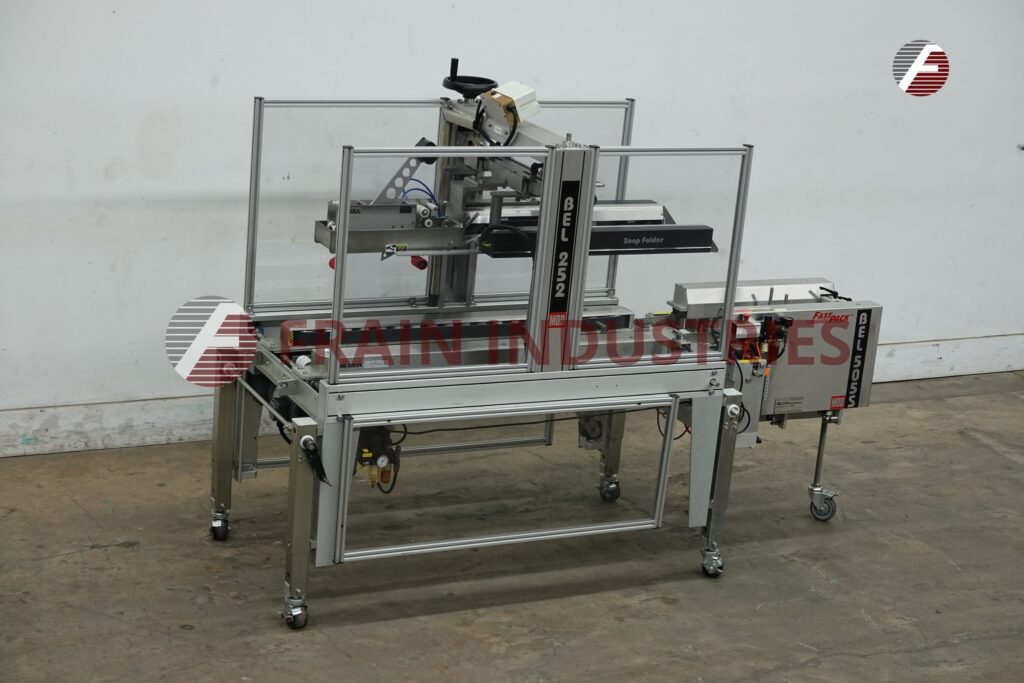

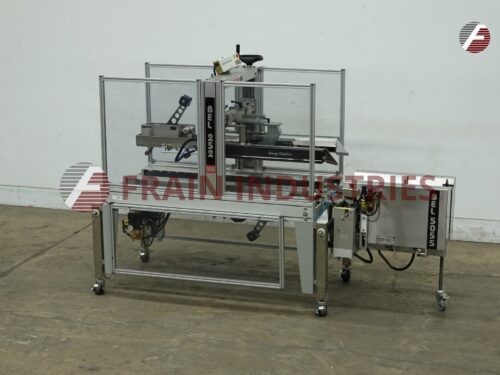

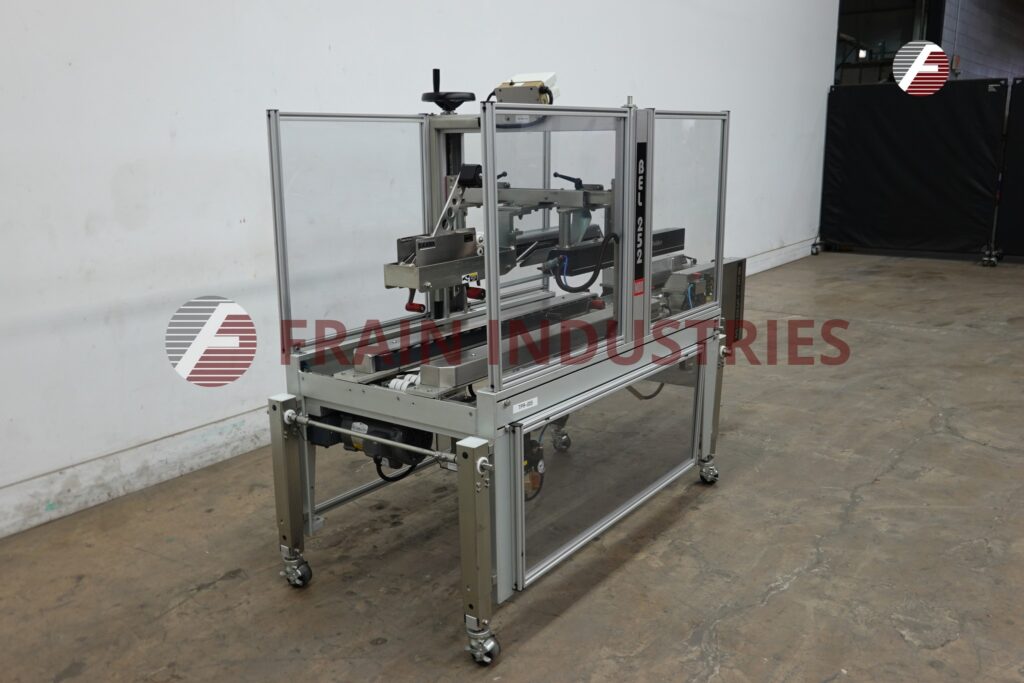

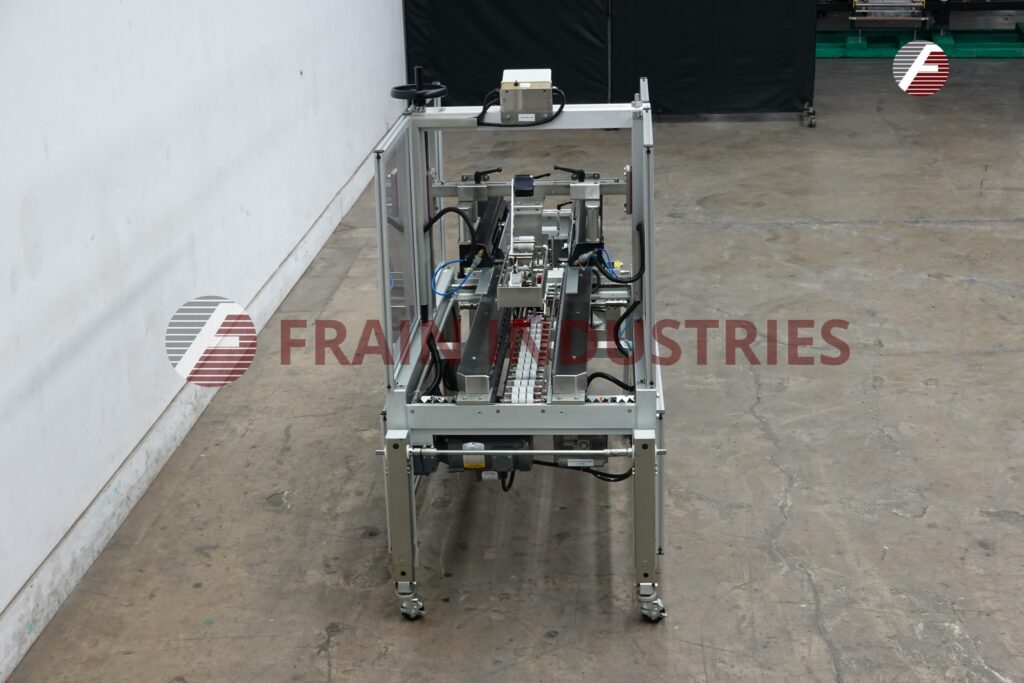

Belcor, Model 505S / 252, Semi-automatic case erector packer and uniform, top and bottom case taper. Rated from 5 to 25 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 16" in Length; 5" to 15" in Width; 3½" to 16" in Height. Equipped with Belcor side snap flap folders, 48" long x 7" wide side case transfer belts, top and bottom tape heads, hand crank height and width adjustable. With start, stop, e-stop push buttons. Mounted on (4) leg frame with safety guarding and casters.
OAD: 94" L x 35" W x 68" H

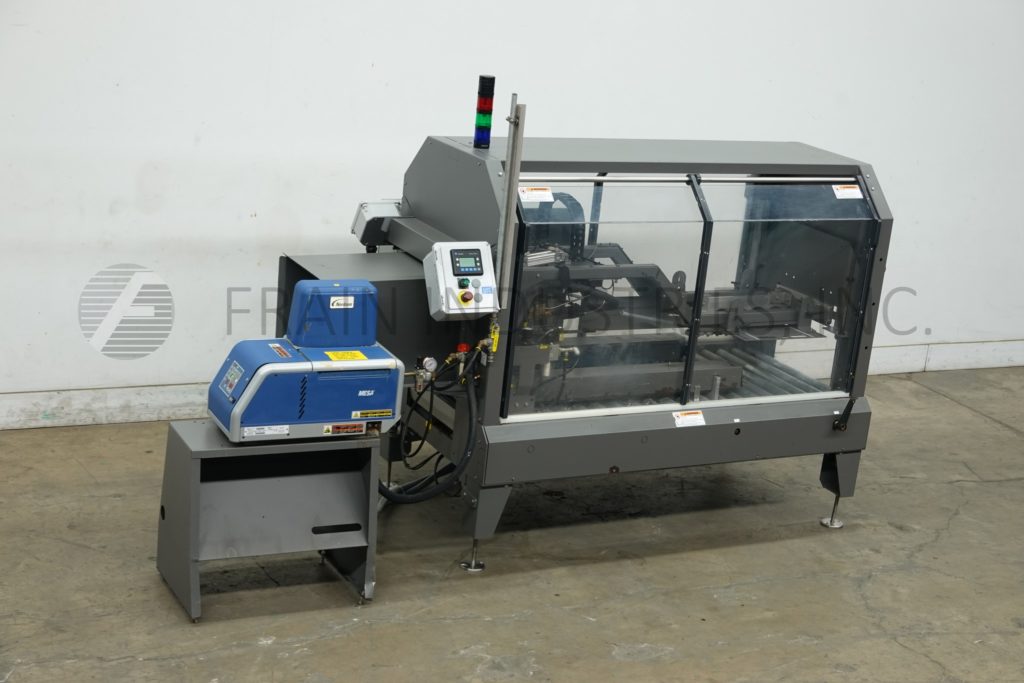

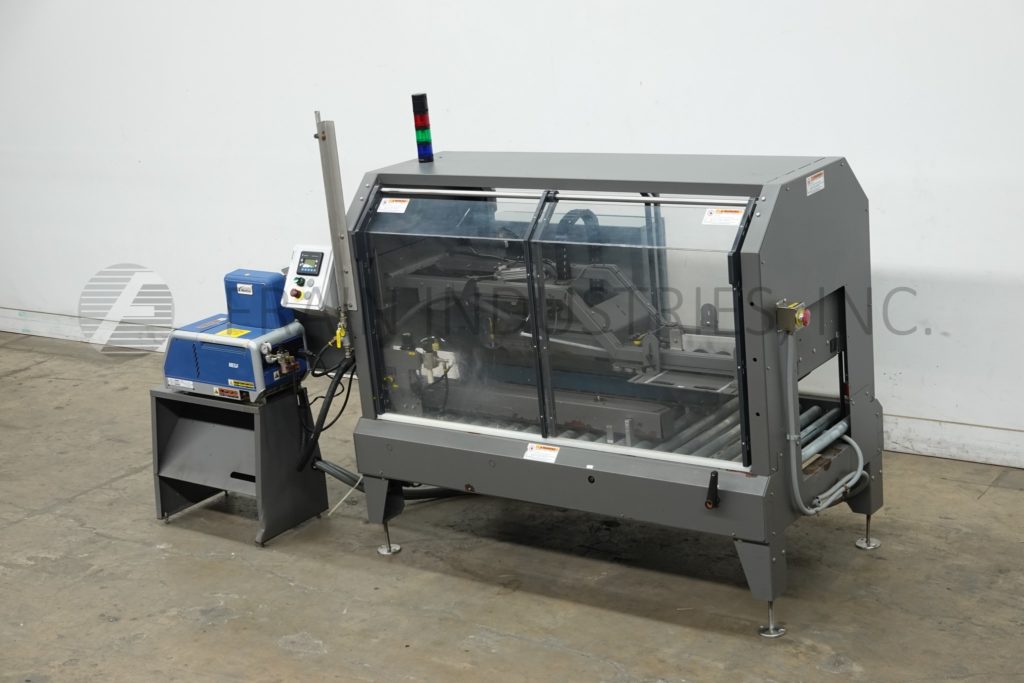

Wexxar, Model 290H, Automatic, uniform, top hot melt case sealer. Rated from 5 to 50 case per minute -depending on materials and application. Case size range: 8" to 24" in Lenght x 5¼" to 17½" in Width x 5" to 19" in Height. Equipped with (2) 80" Long x 3" high side case transfer belts, Nordson hot melt glue system and control panel with touch screen HMI. Mounted on base frame with adjustable height legs.
Wexxar, Model 290H, Automatic, uniform, top hot melt case sealer. Rated from 5 to 50 case per minute -depending on materials and application. Case size range: 8" to 24" in Lenght x 5¼" to 17½" in Width x 5" to 19" in Height. Equipped with (2) 80" Long x 3" high side case transfer belts, Nordson hot melt system, 9½" wode x 32" long discharge conveyor and control panel with touch screen HMI. Mounted on base frame with adjustable height legs.
OAD: 166"L x 50"W x 82"H

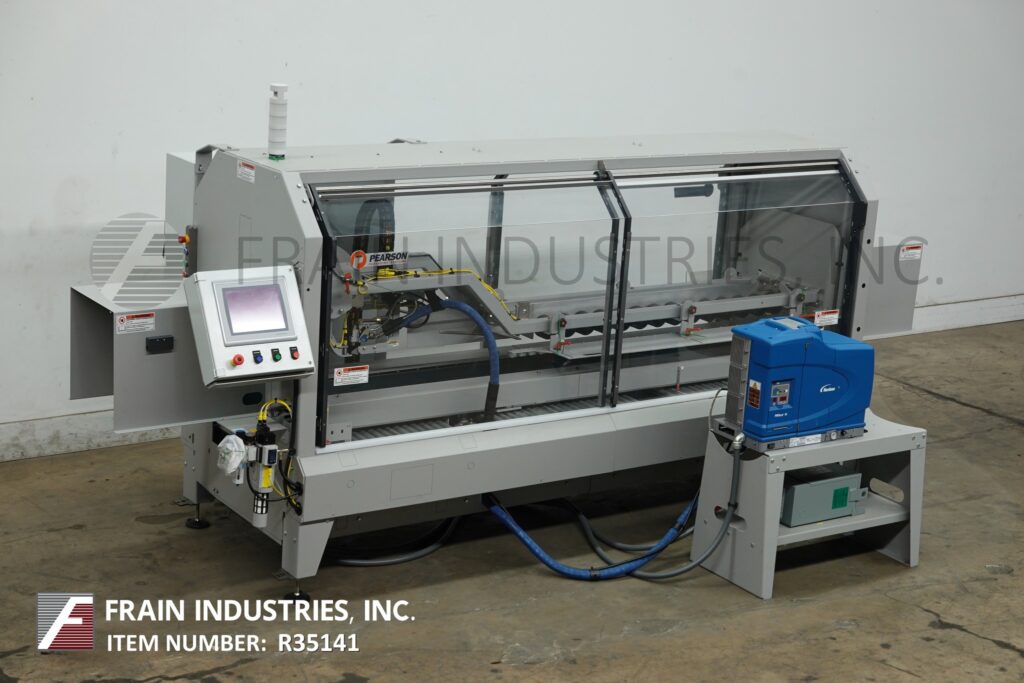

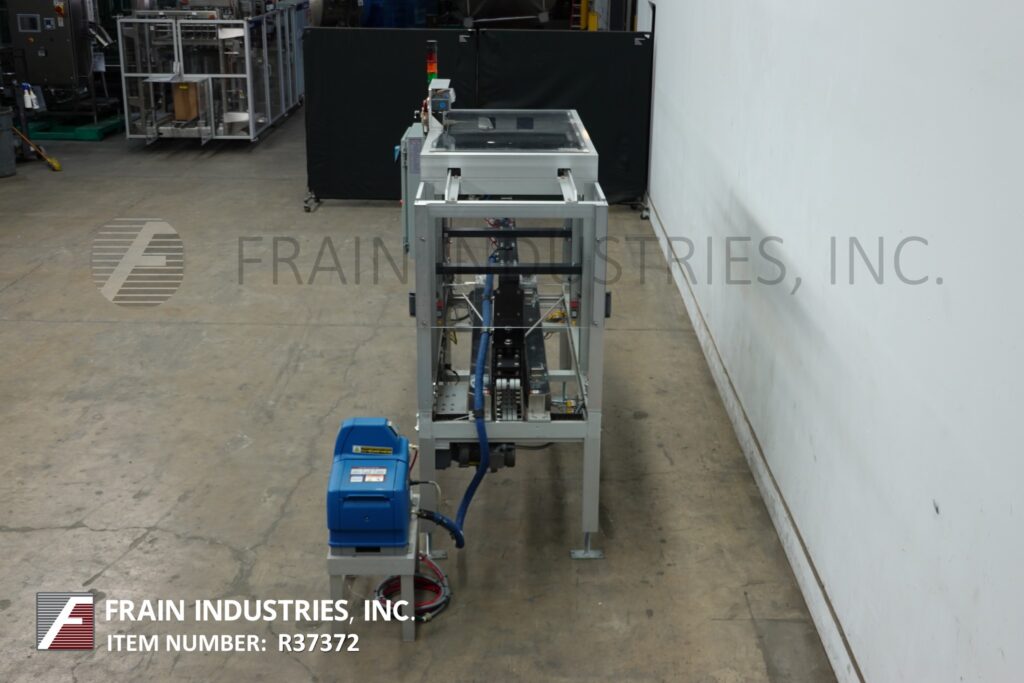

Pearson Model CS40-G, Automatic, inline, left to right top case flap closer and hot melt glue sealer. with number of cases per minute – depending materials, application and machine configuration. Case size range: 8" to 24" in Length; 5" to 16" in Width; 4.5" to 18.5" in Height and capable of handling CSSC, FOL and RSC cases. Equipped with top flap closer and side flap closing rails, 112" long side belt case assist, Nordson Pro Blue hot melt glue top case sealer with top roller glue compression discharge section. Control panel has Allen Bradley PLC controller with Allen Bradley panelview controls and e-stop. Mounted on heavy duty frame with interlock safety guarding and statis light bar.
OAD: 170" L x 66" W x77" H

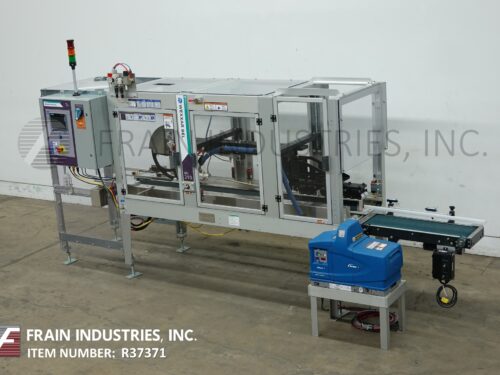

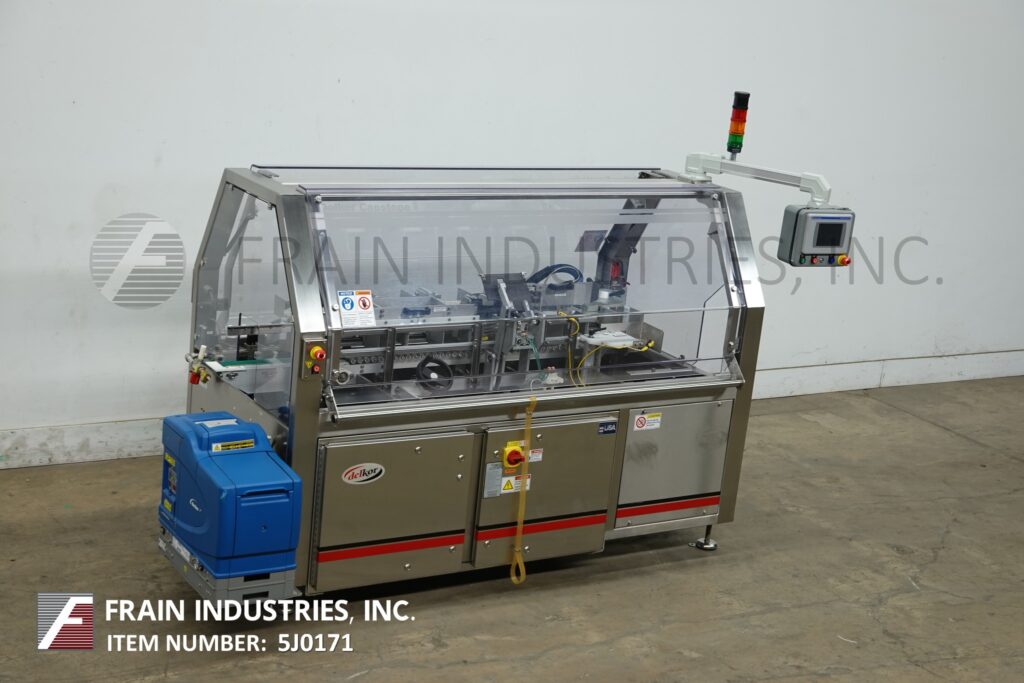

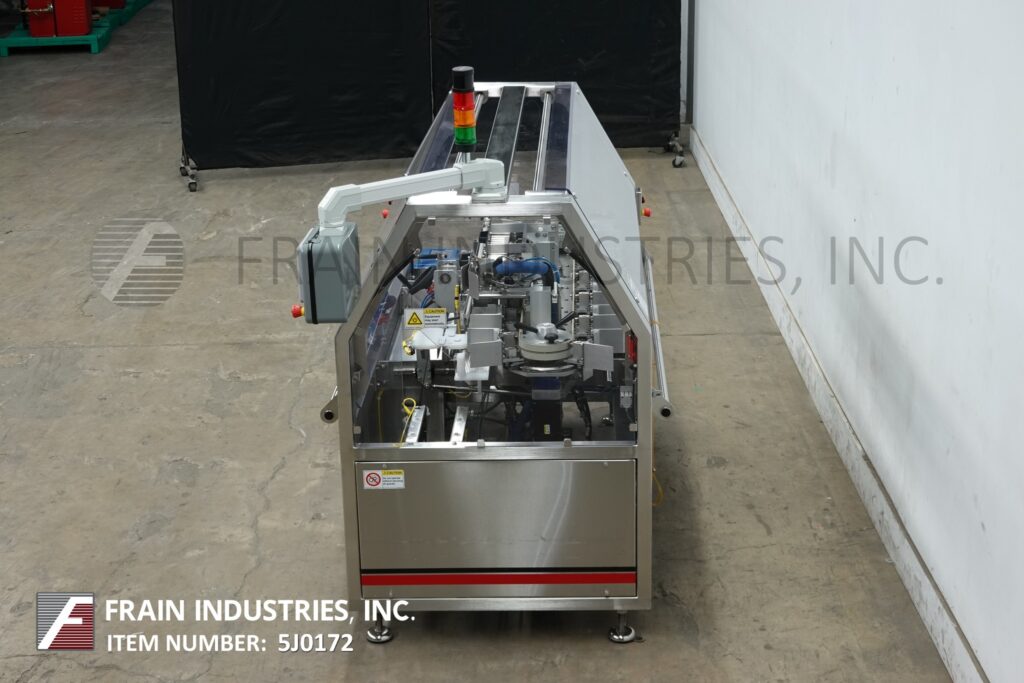

Delkor Capstone Series, TSC, Stainless steel, top carton closer and hot melt glue sealer rated up to 150 cartons per minute – depending on materials and application. Carton size range: 3" to 10½" in Length x 1" to 5" in Width x 4" to 7½" in Height. Capable of handling both corrugated and paper board in a variety of carton styles such as tri-seal, front-flap seal, hooded or hinged cartons, all with proper change parts. Equipped with adjustable carton carriers set on 11¾" centers, Nordson ProBlue hot melt glue system and Siko gages. Control panel has A/B PLC controls with swing arm A/B Panelview Plus 700 HMI and A/B Kinetix 6000 servo motors and A/B Powerflex, with start, stop, reset and e-stop push buttons. Mounted on a stainless steel frame with safety guarding, statis light bar and leveling legs.
OAD: 96" L x 48" W x 64" H
