Top/Bottom Machines

Used Top/Bottom Equipment

Top and bottom case sealers are designed to close the flaps of a case and seal the flaps from that case using glue. Top and bottom case sealers are designed to take in cases with bottom minor flaps closed, apply glue to the flaps, and close the bottom flaps. Top and bottom case sealers are also designed to close the top minor flaps, apply glue to the top flaps, and close the top flaps. Cases being process by top and bottom case sealers are normally filled with product.

Top and bottom case sealers can be designed to automatically adjust to different size cases as the cases enter the top and bottom case sealer. Top and bottom case sealer that adjust automatically to different size cases are known as random top and bottom case sealers. Top and bottom case sealers that require operators to adjust the machine to accommodate different size cases are know as uniform top and bottom case sealers.

Contact Us

Top/Bottom Equipment In Stock

Padlocker Sealer Case Top/Bottom GG300

  • Manufacturer: Padlocker
  • Model Number: GG300
  • Frain Number: 5B0452

Automatic random top & bottom case sealer capable of speeds up to 14 cpm – depending on materials and application. Case size range: 8" – 28" in Length; 6" – 20" in Width; 4" – 21" in Height. Automatically adjusts for case size, plows minor flaps, applies hot melt adhesive, plows major flaps, compression closes and discharges sealed case. Slaughterback glue system.

OAD: 84" L x 60" W x 8102" H

Get a Free Quote Call: 630-629-9900

Compacker Sealer Case Top/Bottom

  • Manufacturer: Compacker
  • Model Number:
  • Frain Number: 5E1779

Fully automatic, top and bottom, hot melt case sealer capable of speeds up to 30 cpm – depending on materials and application. Case size range: 8" to 32" in Length; 6" to 16" in Width; 6" to 27" in Height. Hand crank adjustable with height and width, rear minor flap folder, two gun hot melt glue system.

OAD: 145" L x 50" W x 90" H

Get a Free Quote Call: 630-629-9900

Belcor Sealer Case Top/Bottom 270

  • Manufacturer: Belcor
  • Model Number: 270
  • Frain Number: 5F6795

Belcor Model 270, automatic, uniform, top / bottom, hot melt glue case sealer, rated from 5 to 25 case per minute – depending on materials, application and machine configuration. Case size range: 8" to 20" in Length; 6" to 15" in Width; 4-1/2" to 15" in Height. Equipped with case indexing gate, (2) 32" long x 2" high side case transfer belts, stationary front top flap closer and Belcor side snap folders for remaining flaps, (2) gun hot melt glue system, hand crank height adjustable, roller discharge conveyor with top mounted single arm compression ram. Control panel has ram and hot melt controllers. Mounted on base frame with adjustable height screw legs.

OAD: 64" L x 40" W x 66" H

Get a Free Quote Call: 630-629-9900

Belcor Sealer Case Top/Bottom 270HMG

  • Manufacturer: Belcor
  • Model Number: 270HMG
  • Frain Number: 5F5590

Belcor Model 270, automatic, uniform, top/ bottom, hot melt case sealer rated from 5 to 25 case per minute -depending on materials and application. Case size range: 8" to 20" in Lenght x 6" to 15" in Width x 4-1/2" to 15-3/4" in Height. Equipped with roller infeed, no case / no seal, (2) 32" L x 2" H, side case transfer belts, Belcor snap folder for safe flap folding, hot melt glue system, with adjustable height and width hand cranks. Control panel with start / stop push bottons and temperture comtroller, mounted on base frame with adjustable height screw legs.

OAD: 60" L x 36" W x 54" H

Get a Free Quote Call: 630-629-9900

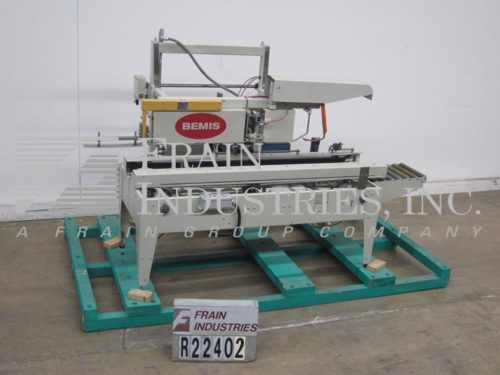

Bemis Sealer Case Top/Bottom 1023 Bemis automatic side belt top and bottom case sealer capable of speeds up to 30cpm

  • Manufacturer: Bemis
  • Model Number: 1023
  • Frain Number: R22402

Automatic top & bottom hot melt case sealer capable of speeds 5 to 30 cases per minute, depending on applicaiton.Case size range: Length 6" to 24"; Width 6 1/2" to 18"; Height 4 1/2" to 20". Equipped with roller in feed, Nordson hot melt, side belt transfers and E-stop. Hand crank for height & width adjustments.
OAD: 96" (L) x 58" (W) x 68" (H)

Get a Free Quote Call: 630-629-9900

Schneider Sealer Case Top/Bottom TOP/BOTTOM

  • Manufacturer: Schneider
  • Model Number: TOP/BOTTOM
  • Frain Number: 5F6292

Schneider, semi-automatic, uniform, hot glue, top and bottom case sealer rated from 4 to 12 cases per minute – depending on materials, application and machine configuration. Case size range: 16" to 30" in Length; 12" to 20" in Width; 13" to 19" in Depth. Equipped with a 72" long shuttle infeed conveyor, adjustable width guide rails, flap tuckers and closing plows, Hot melt glue system with top and bottom glue guns, hand crank height adjustments, 48" long top and bottom compression discharge conveyor, push button controls, and Lexan safety guarding. Mounted on casters.

OAD: 120" L x 58" W x 88" H

Get a Free Quote Call: 630-629-9900
