Biner Ellison Filler Liquid Grav/Press F52

  Back to All Equipment

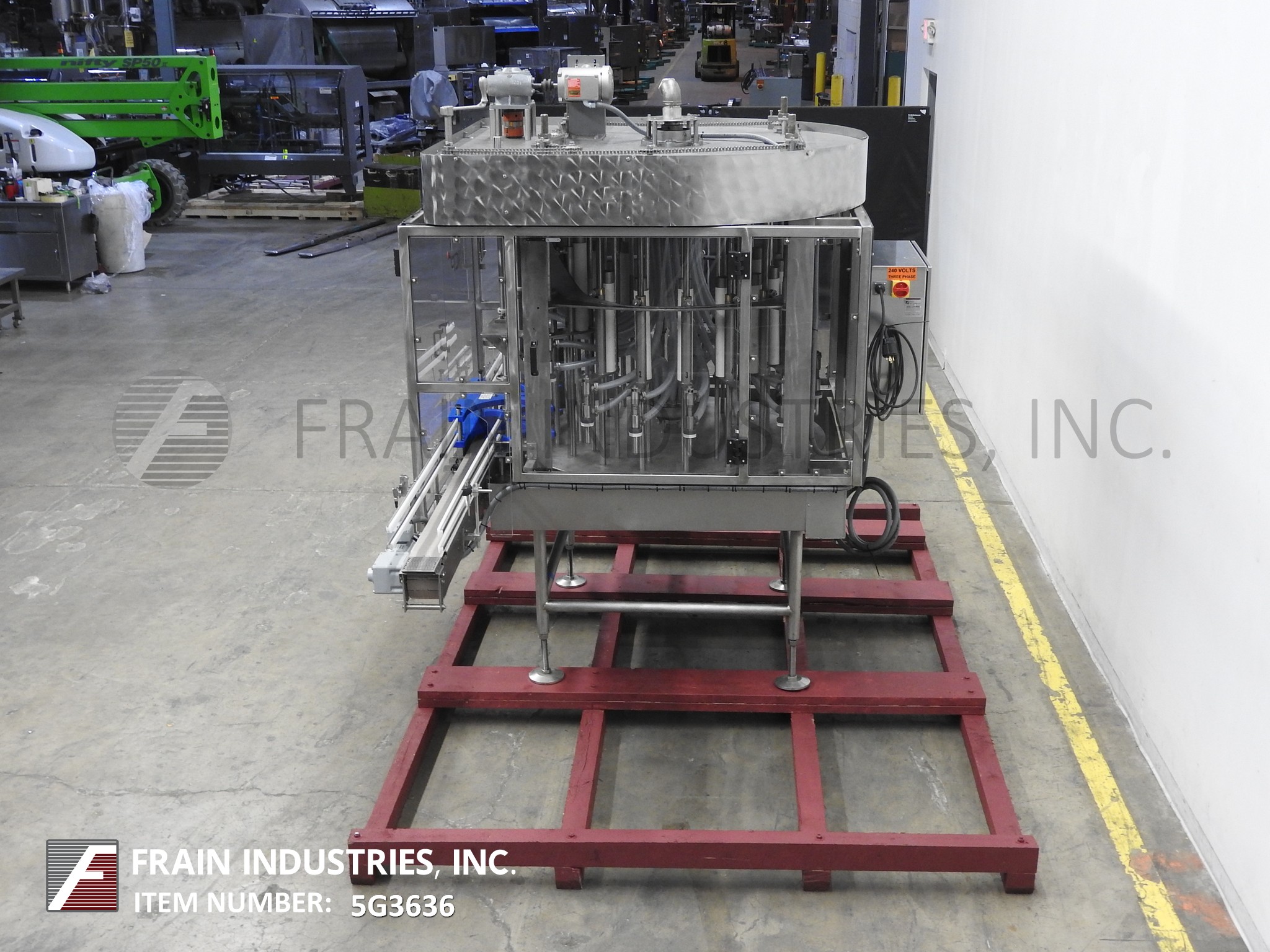

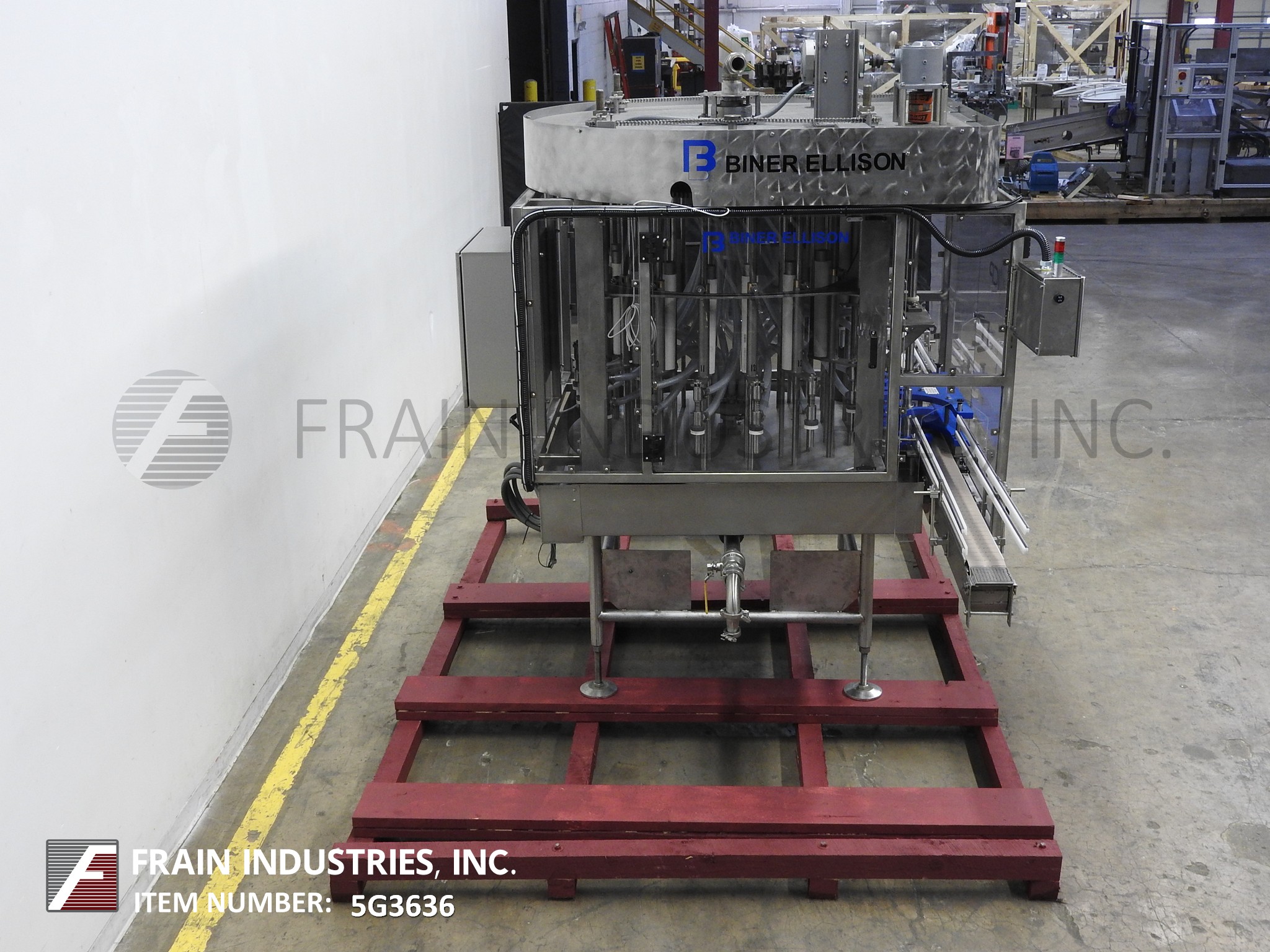

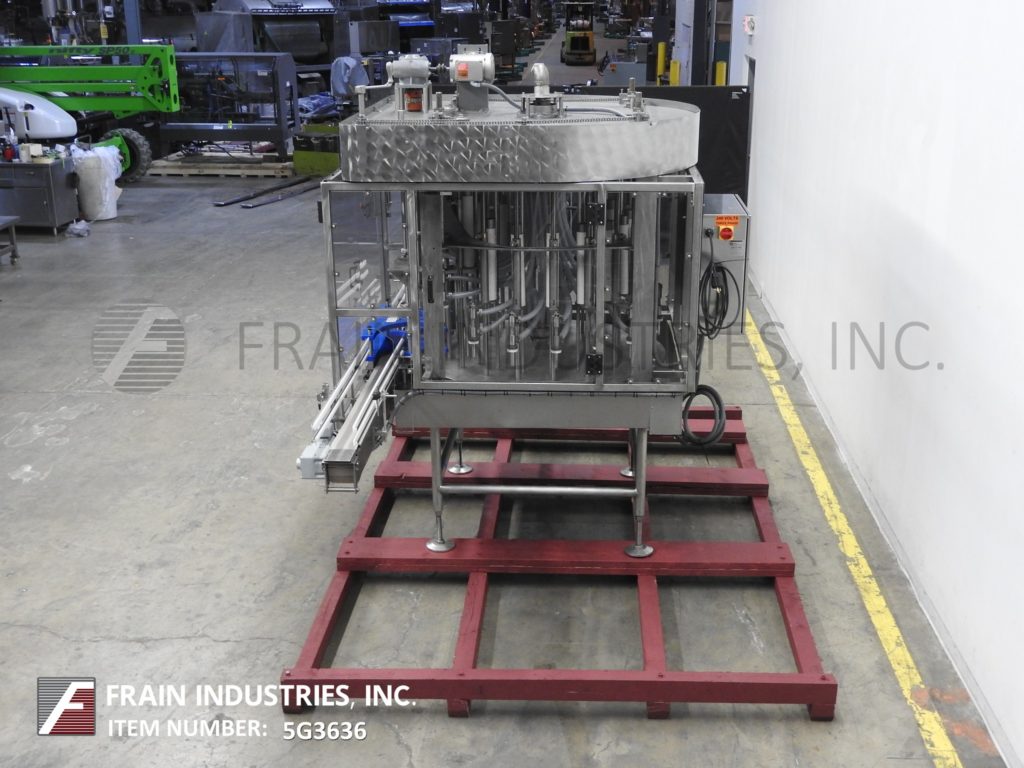

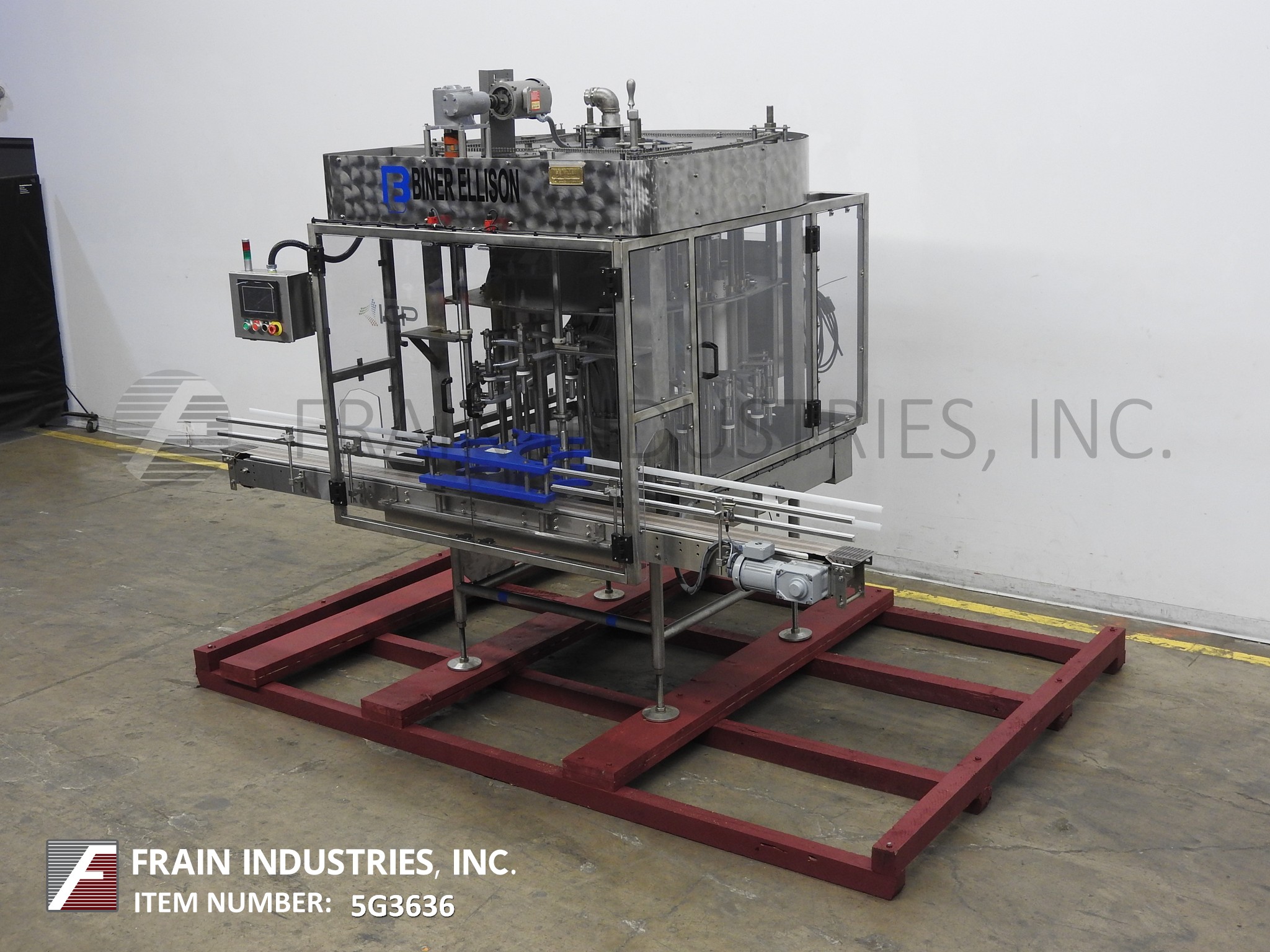

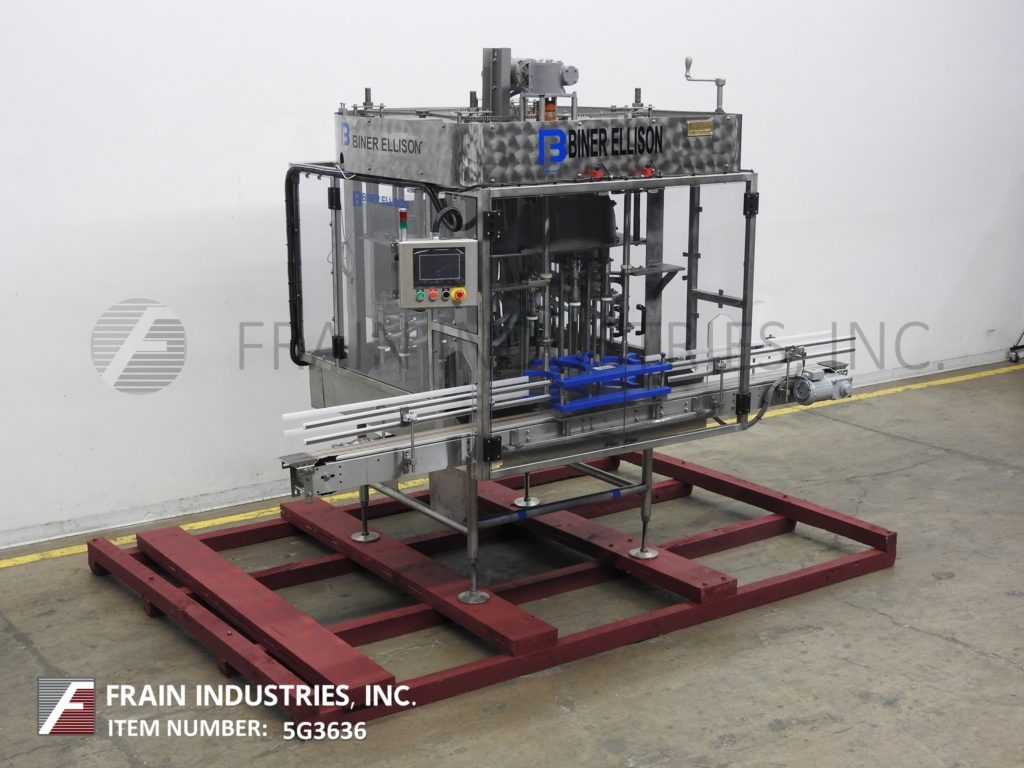

Biner Ellison Model F52, automatic, 18 station, top driven, rotary, pressure gravity filler rated from 18 to 180 containers per minute – depending on materials and application. Maximum container size: 6-1/2" OD round and 5-1/4" x 5-1/4" square, with fill range from 0 to 128oz per station, capable of handling glass, plastic and metal containers as well as free flowing to semi viscous product with proper change parts. Equipped with 60" long x 4-1/4" wide container conveyor with star wheel in feed / discharge, 52" OD turret with 18 bottom up filling stations, set on 9" centers with 1" OD nozzles. Control panel has filler, drive, conveyor on / off switches with speed control dials and mounted on (4) leg base frame with drip basin.

OAD: 80"L x 64" W x 78" H
