Gravity liquid fillers or pressure liquid fillers are designed to fill containers using pressure of the liquid. Pressure on the liquid is created by either gravity or through the displacement of a pump. Gravity liquid filler or pressure liquid filler machines and equipment are designed to fill liquid into a container through nozzles. The nozzles on a pressure / gravity filler is designed to insert into the neck of the container while a collar makes contact with the neck of the container. The force of the neck pushing up on the collar causes the nozzle to open and to fill the container with product. The product is held under pressure either in a product holding tank above the filling nozzles or by pumping the product into the individual nozzles above the filling point. The nozzles on a gravity / pressure filler are designed to fill the container to a certain level above the fill nozzle, to a point where the pressure necessary to fill above that point just exceeds the pressure of the liquid entering the nozzle. Any excess product at this point is re-circulated through the nozzle and into a product hold tank for subsequent filling. Once the container has been filled, the gravity / pressure filler raises the nozzles out of the neck of the container. When the collar stops making contact with the neck of the container, the nozzle will close and prevent any further product from dispensing.
Gravity / pressure liquid fillers can be used to fill different size containers because of their simply design. The same pistons on a gravity / pressure liquid filler can be used to fill different size containers or to fill different volumes within the container so long as the filling nozzle fits within the neck of the container. Gravity / pressure liquid fillers can be adjusted to fill to different levels by changing the spacers on the collar on the filling nozzles. The wider the spacers on the filling nozzles, the higher the nozzle will be inside the neck of the container, and the higher the product level of the final fill. The narrower the spacers on the filling nozzles, the lower the nozzle will be inside the neck of the container, and the lower the product level will be inside the container.
Gravity / pressure liquid fillers can be designed to be inline or rotary.

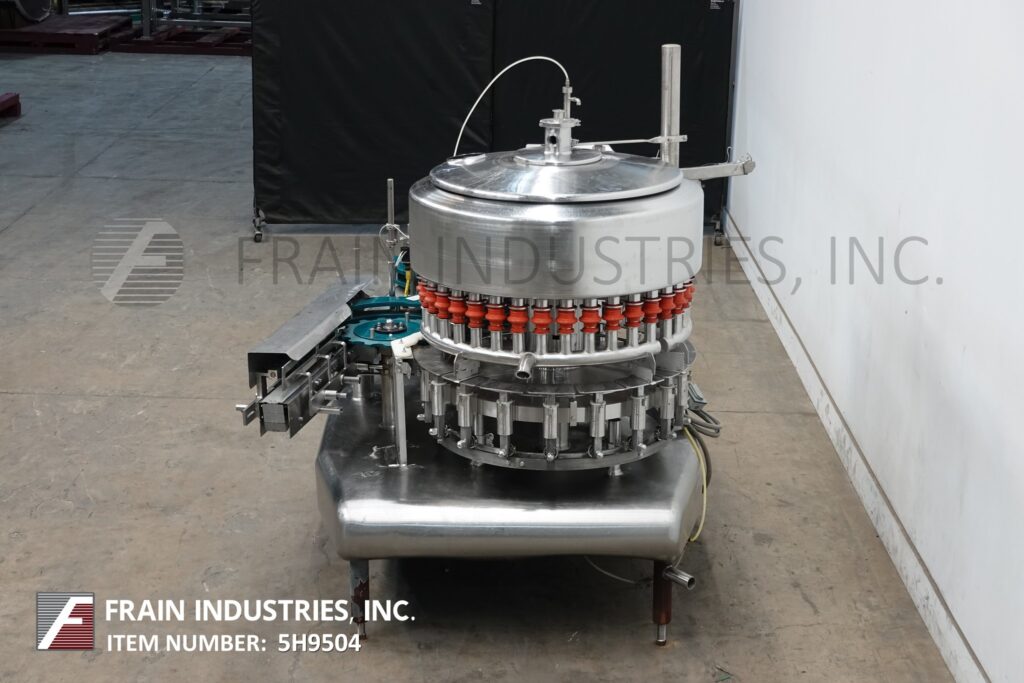

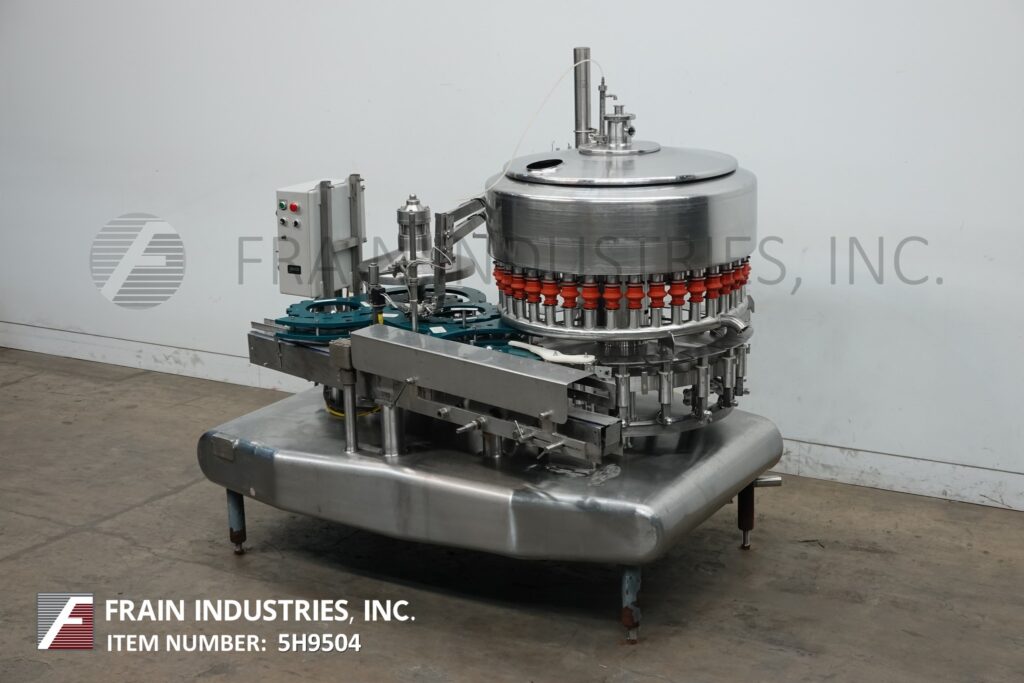

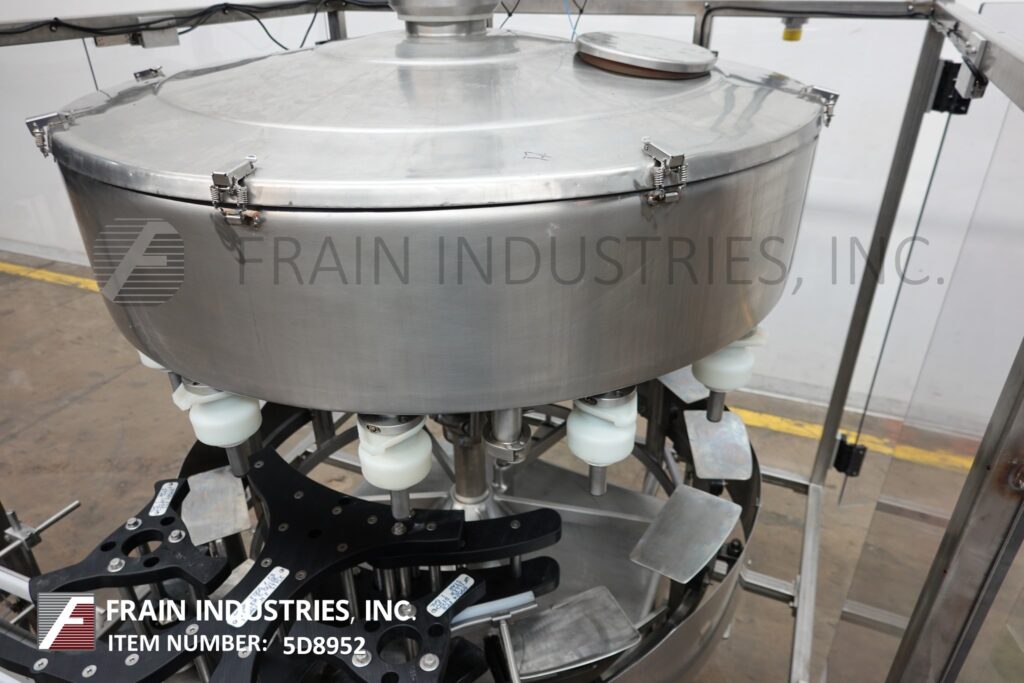

Federal, Model 24 head, Automatic rotary, stainless steel, pressure gravity filler with number containers per minute – depending on materials and application Equipped with 105" long x 4-3/4" wide conveyor frame with worm screw, star wheel in feed and discharge, (24) 1" OD fill to level nozzles, set on 9" centers with 6" long x 5-1/2" wide container platforms and 68" OD product holding tank with rotary filling valve, CIP ball, and CIP ring. Control panel with filler, vacuum, conveyor start / stop push button controls and mounted on stainless steel base frame with drip pan.
OAD: 110" L x 80" W x 95" H

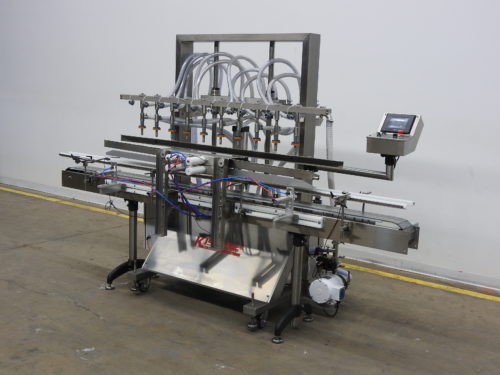

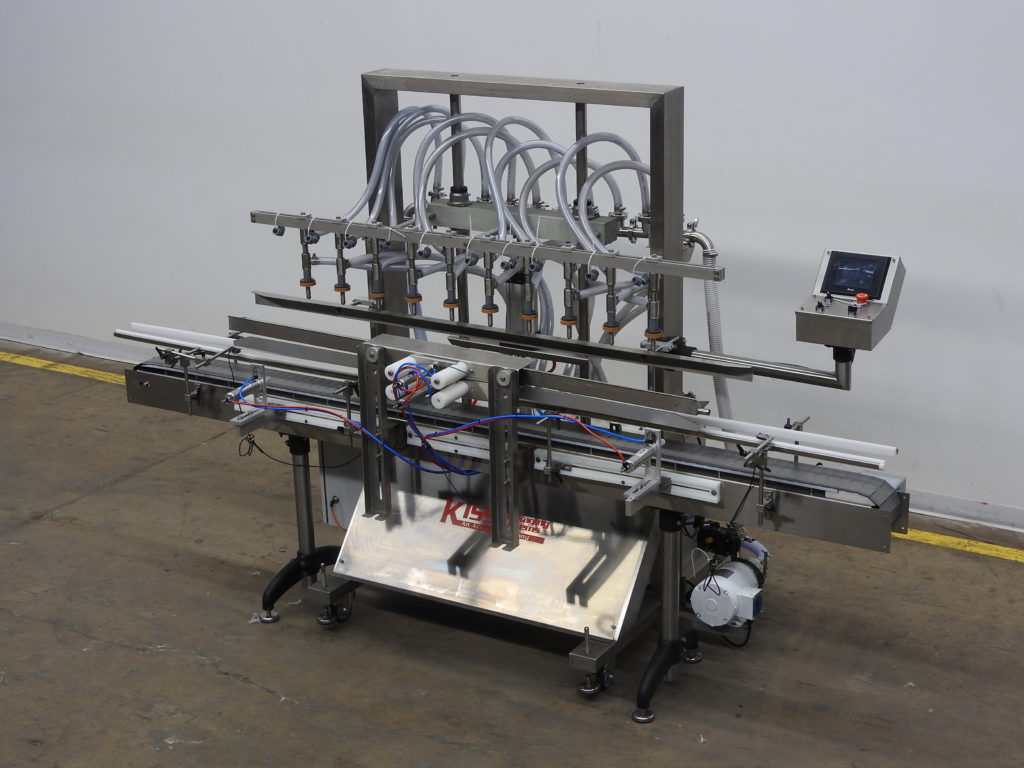

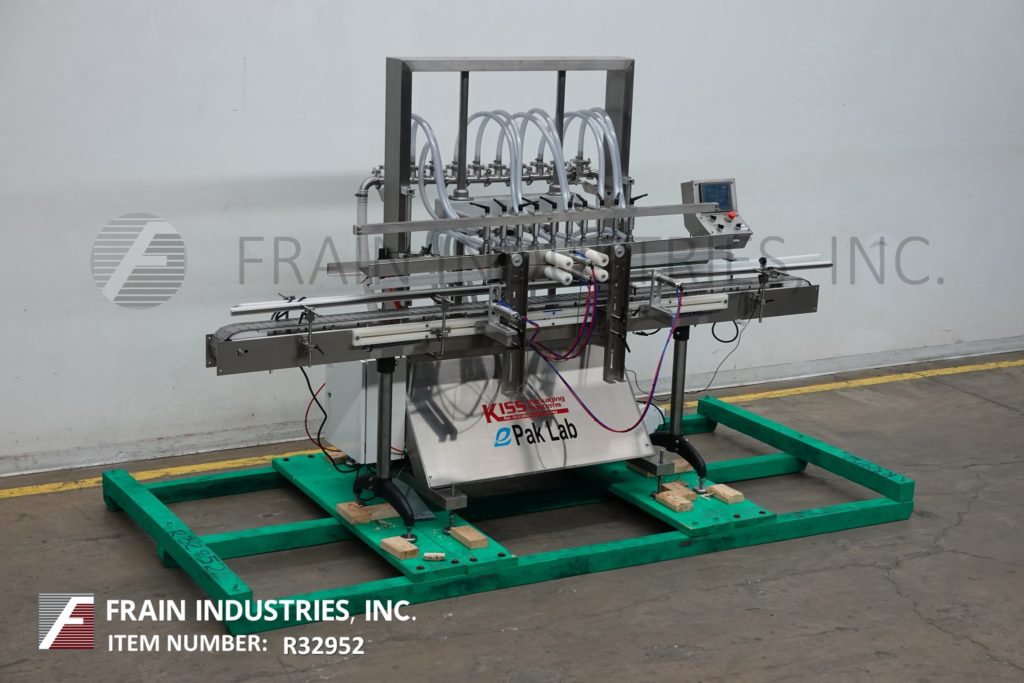

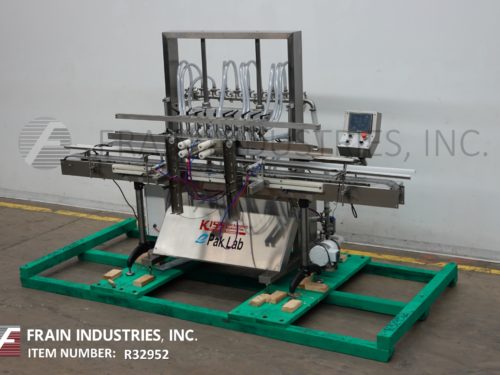

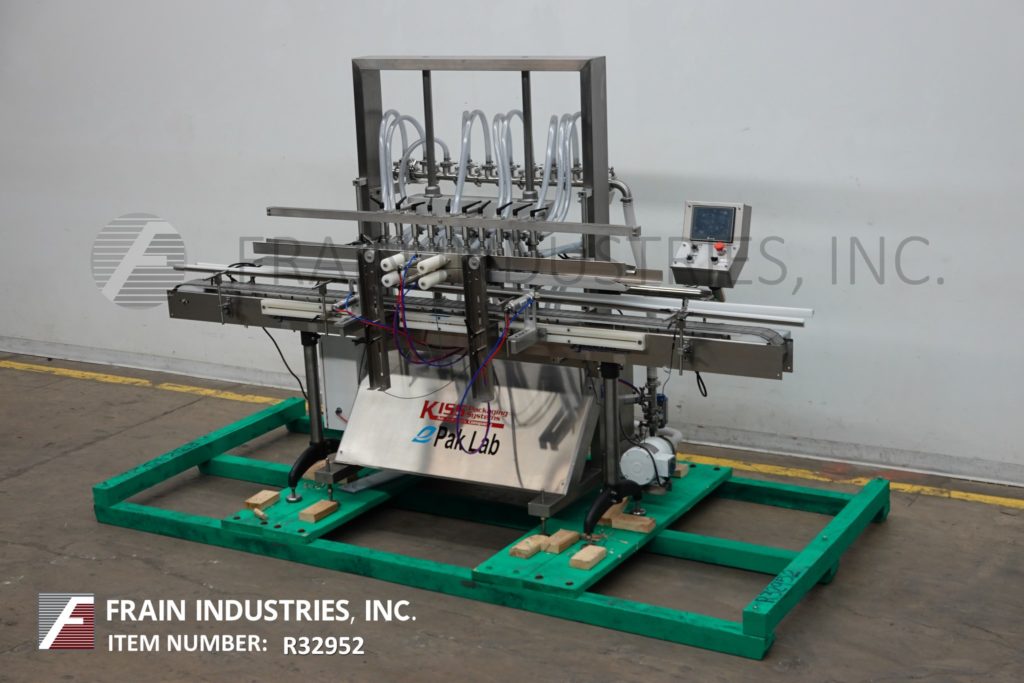

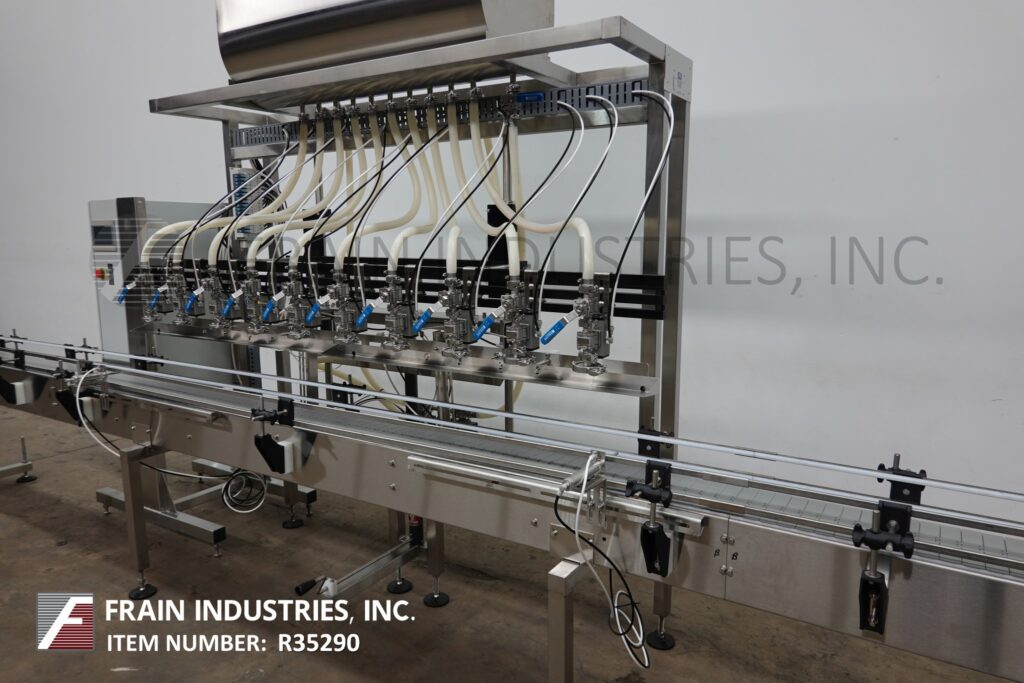

E Pak, Automatic, inline, 10-head, stainless steel, time-based gravity filler. Fill capacity from 1oz to 5 gallons with number of containers per minute – depending on materials, application and machine configuration. Equipped with 4½" wide x 235" long plastic delrin container conveyor, pneumatic container indexing, 87" long filling head slide bar has (10) 2½" OD stainless steel diving nozzles with adjustable centers, (2) 45" long drip trays and 45½" long x 17½" wide x 18" deep product tank. Control panel has touch screen operator interface with power / pump on / off and machine up / down switches. Mounted on stainless steel frame with casters and height adjustable locking legs.
OAD: 240"L x 38"W x 96"H

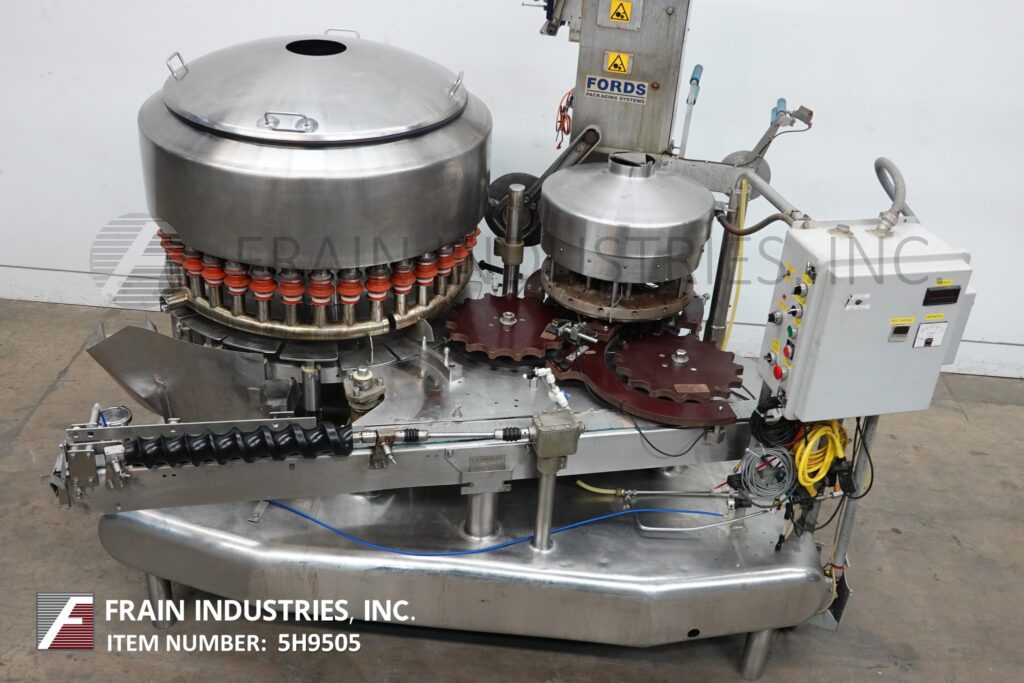

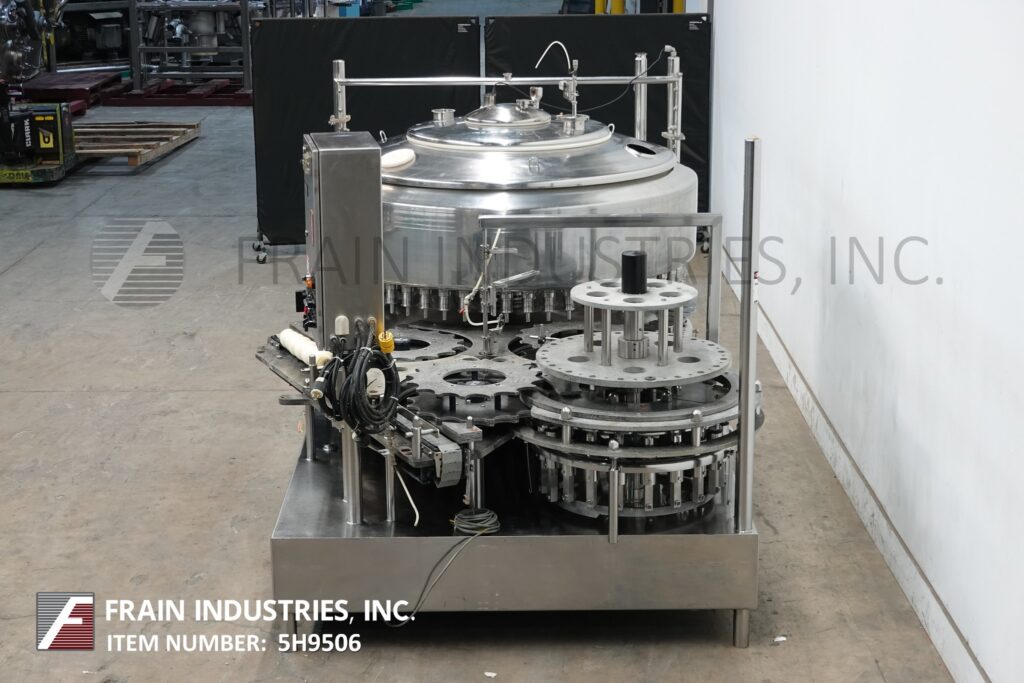

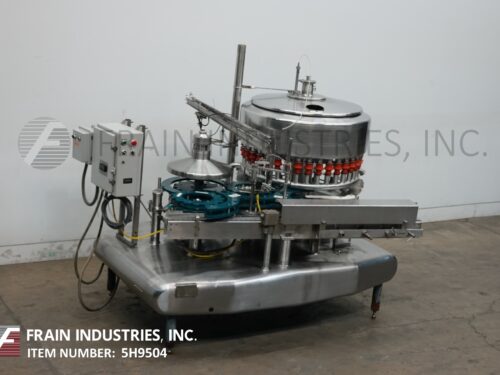

Federal, Model 3612, Automatic, stainless steel, 36 head rotary, pressure gravity filler and 12 head rotary capper, rated from 36 to 200 containers per minute – depending on materials and application. Equipped with 80" long x 3-1/2" wide container conveyor with star wheel in feed and discharge, 42" turrett with (36) J3 double diapragm 1" OD fill to level nozzles, set on 4" centers and 42" OD x 12" Deep product holding tank with CIP ring and 12 head rotary capper (needs cap heads) set on 4" centers. Control panel has A/B PLC with pump on / off, bowl up / down, heat on / off and start, stop, and e-stop push buttons. Mounted on heavy duty stainless steel frame. Capable of running bottled water, juice, tea and both cold or hot fills.
OAD: 112" L x 72" W x 79" H

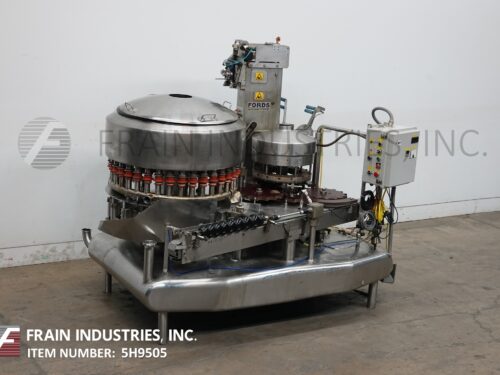

Federal, Model 3615, Automatic, stainless steel, 36 head rotary, pressure gravity filler and 15 foil press head rotary capper, rated from 36 to 200 containers per minute – depending on materials and application Equipped with star wheel container in feed and discharge, 48" turrett with (36) J3 double diapragm 1" OD fill to level nozzles, set on 4" centers and 48" OD x 12" Deep product holding tank with CIP ring and 15 head rotary foil press capper (needs cap heads) with 24" turrett set on 4" centers. Control panel has A/B PLC with pump on / off, bowl up / down, heat on / off, Amp meter and start, stop, and e-stop push buttons. Mounted on heavy duty stainless steel frame. Capable of running bottled water, juice, tea and both cold or hot fills.
OAD: 102" L x 48" W x 88" H

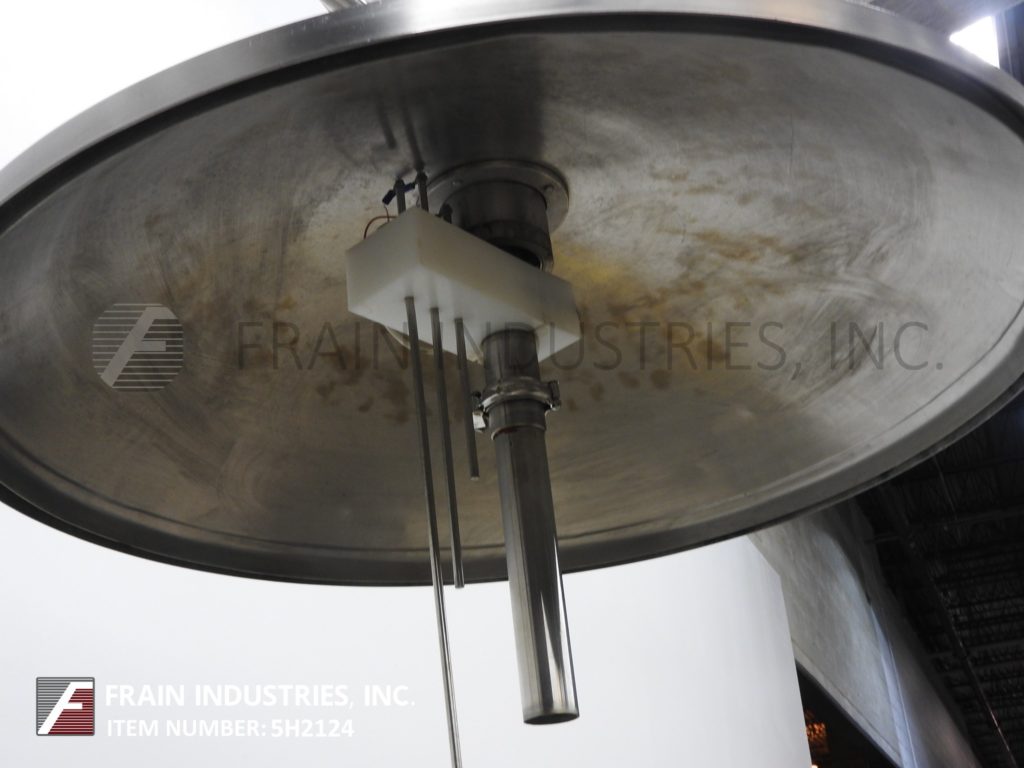

Federal, Model 3615, Automatic, 316 stainless steel, 56 head rotary, pressure gravity filler rated from 56 to 200 containers per minute – depending on materials and application. Equipped with 72" long x 3-1/2" container conveyor has worm screw to star wheel container in feed and discharge, 64" turrett with (56) J3 double diapragm 3/4" OD fill to level nozzles, set on 4" centers with 3" x 5" container platforms and 60" OD x 16" Deep product holding tank with CIP ring. Capper capable (no cap heads) Control panel has A/B PLC with filler start, jog, speed, bowl, capper, no cap and bottle back-up with, start and e-stop push buttons. Mounted on heavy duty stainless steel frame. Capable of running bottled water, juice, tea and both cold or hot fills.
OAD: 128" L x 80" W x 78" H

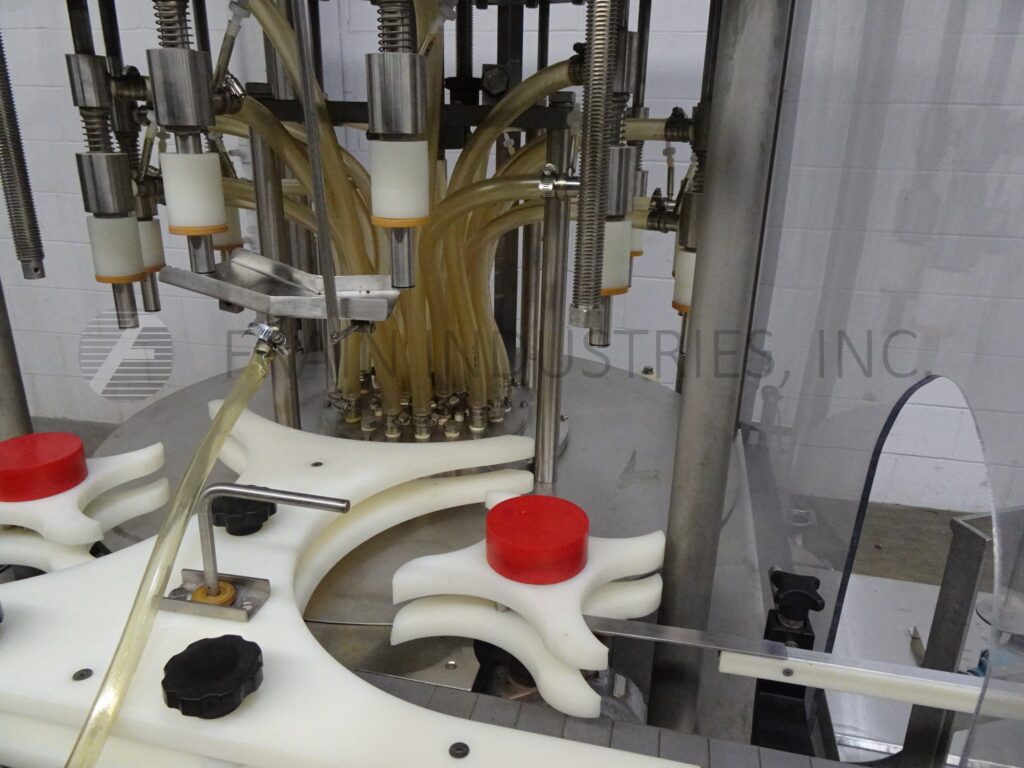

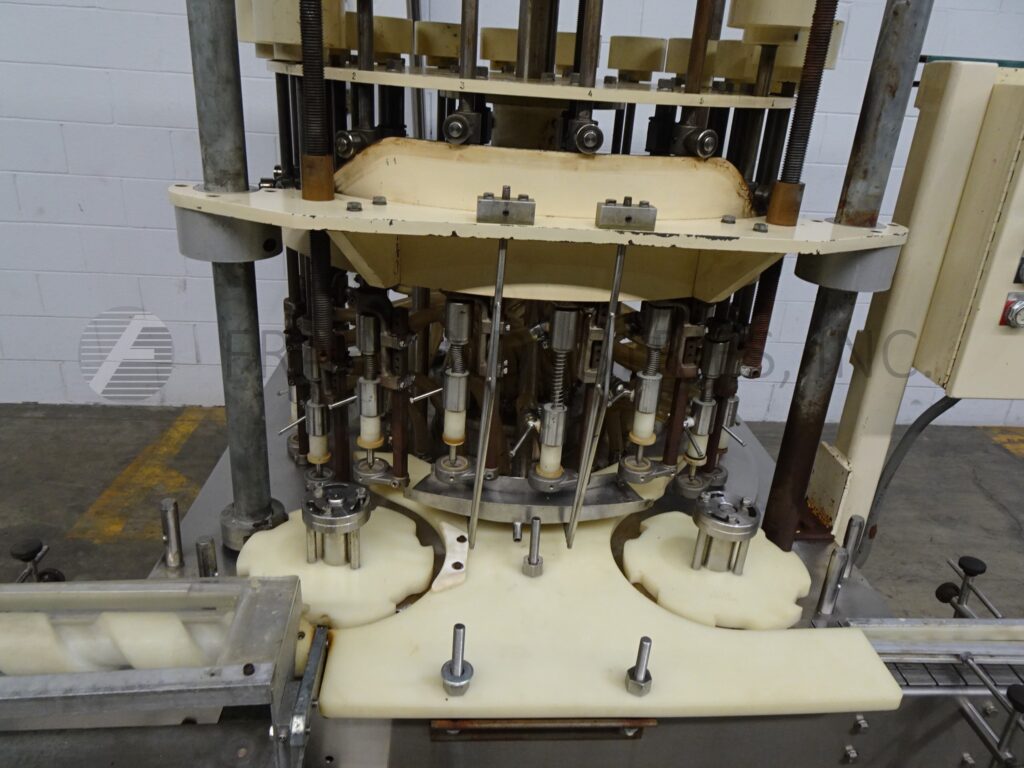

MRM Elgin, Automatic, 18 head, rotary, pressure gravity filler with number of containers per minute – depending on materials, application and machine configuration. Container size: Diameter and Height per application with proper change parts. Equipped with 76" long container in feed belt conveyor and 28" long indexing worm screw to star wheel in feed and discharge. 24" OD fill table with (18) 1/2" OD stainless steel filling nozzles set on 4-1/4" centers, bottom up fill, no container / no fill and 30" long x 12" wide x 18" deep product tank. Control panel has dual Teco controllers and hand held remote with pump switch and start, stop, e-stop push button controls. Mounted on stainless steel frame with (4) leveling legs.Capable of filling various viscous product, thin to medium foaming and nonfoaming liquids and detergents
OAD: 76" L x 60" W x 86" H

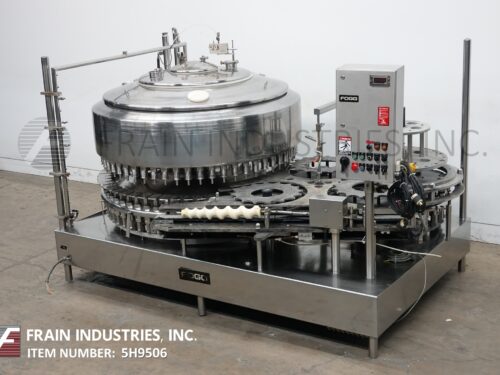

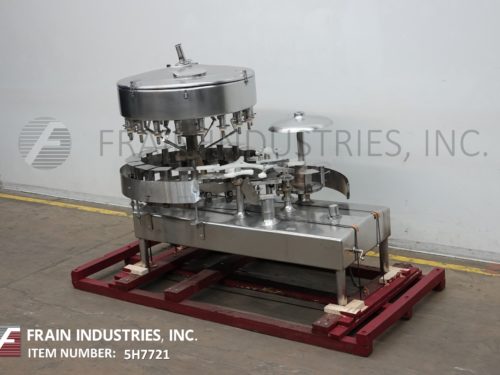

Fogg, Automatic, stainless steel, 18 head, rotary, gravity filler rated from 36 to 180 containers per minute – depending on materials and application. Equipped with worm screw to star wheel in feed and discharge, with (18) 1-1/4" OD fill nozzles, set on 7" centers and 5" long x 6" wide rising container pedestals for bottom up fill with top product holding tank. Mounted on (4) leg stainless steel frame.
OAD: 108" L x 48" W x 58" H

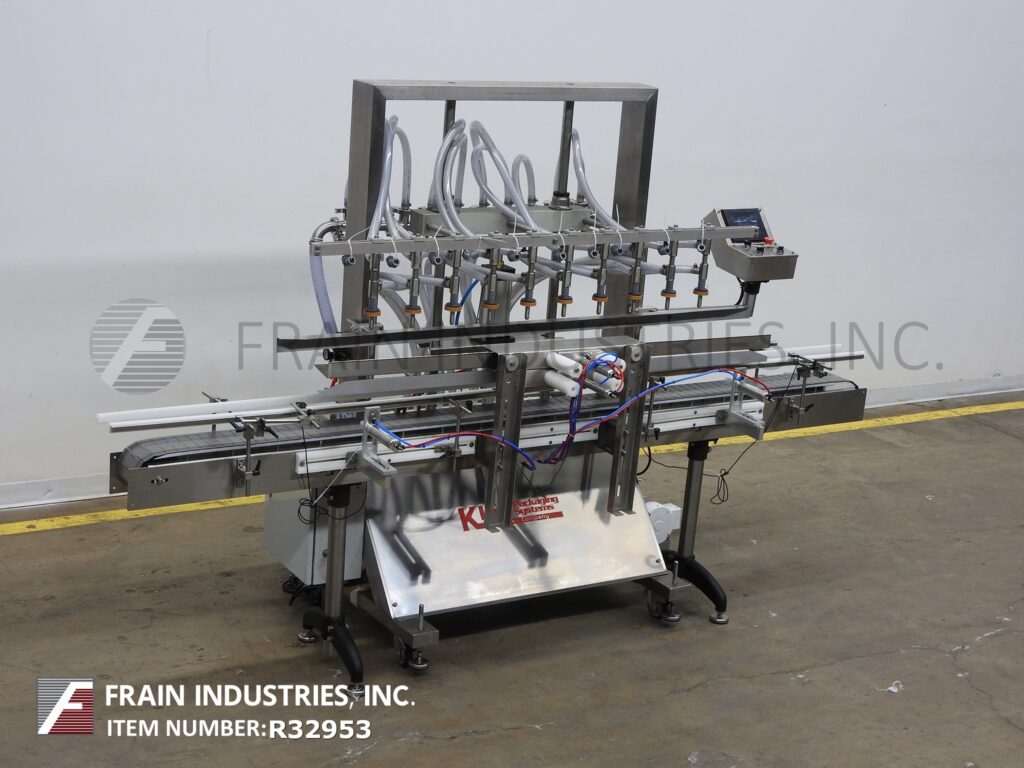

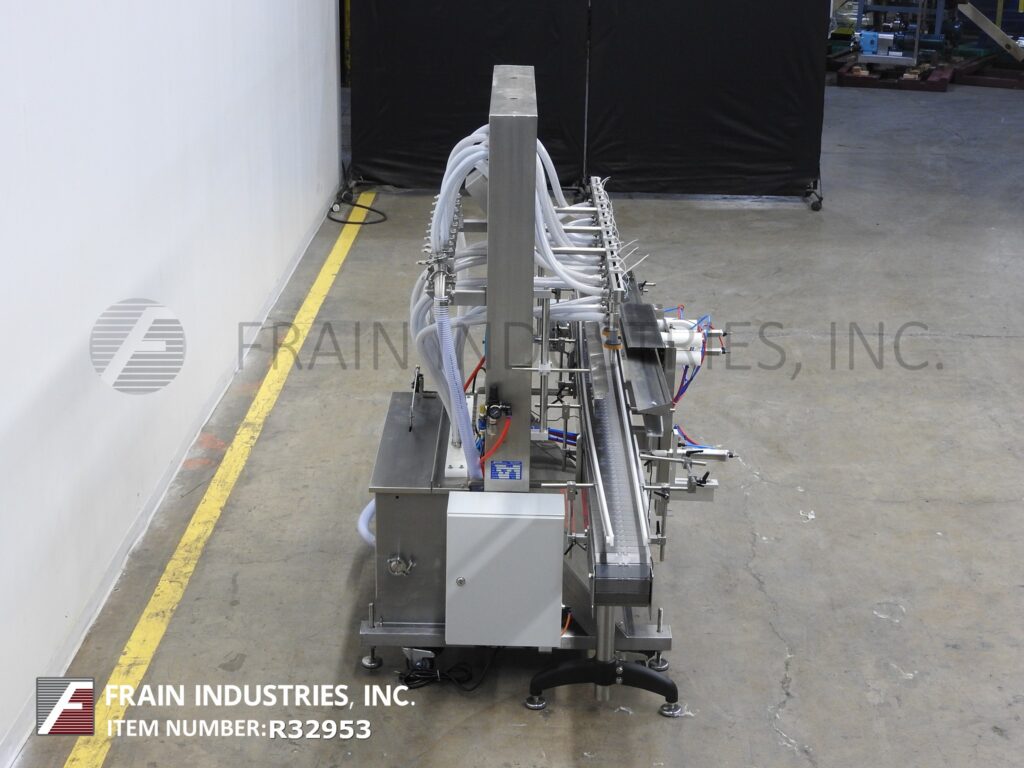

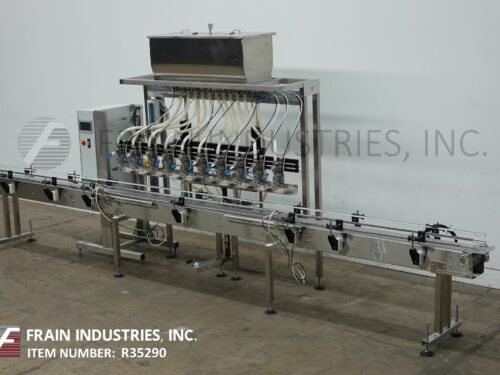

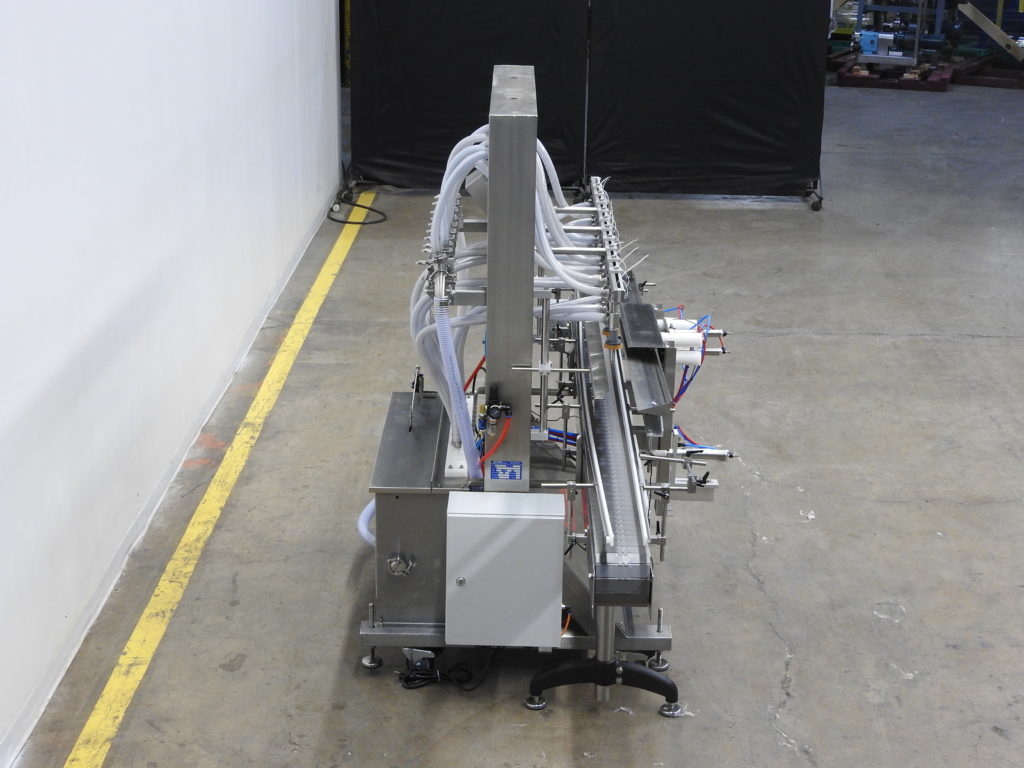

Accutek, Model APOF10, automatic, inline, 10-head, stainless steel, pressure gravity, overflow filler. with number of containers per minute – depending on materials and application. Equipped with (1) 10′ long plastic delron x 4-1/2" wide container conveyor, with pneumatic indexing and adjustable guide rails. 72" long filler slide bar with (10) 3/4" OD stainless steel diving nozzles with adjustable centers, 72" long drip tray, 41" long x 14" wide product overflow tank and 1/2 Hp sanitary centrifuge pump. Control panel has touch screen operator interface controls with power and pump on / off and machine up / down switches. Mounted on stainless steel frame with casters and height adjustable locking legs.
OAD: 120" L x 56" W x 78" H
Accutek, Model APOF10, automatic, inline, 10-head, stainless steel, pressure gravity, overflow filler with number of containers per minute – depending on materials and application. Equipped with (1) 10′ long x 4-1/2" wide plastic delron container conveyor, with pneumatic indexing and adjustable guide rails. 72" long filler slide bar with (10) 3/4" OD stainless steel diving nozzles with adjustable centers, 72" long drip tray, 41" long x 14" wide product overflow tank and 1/2 Hp sanitary centrifuge pump. Control panel has touch screen operator interface controls with power and pump on / off and machine up / down switches. Mounted on stainless steel frame with casters and height adjustable locking legs.

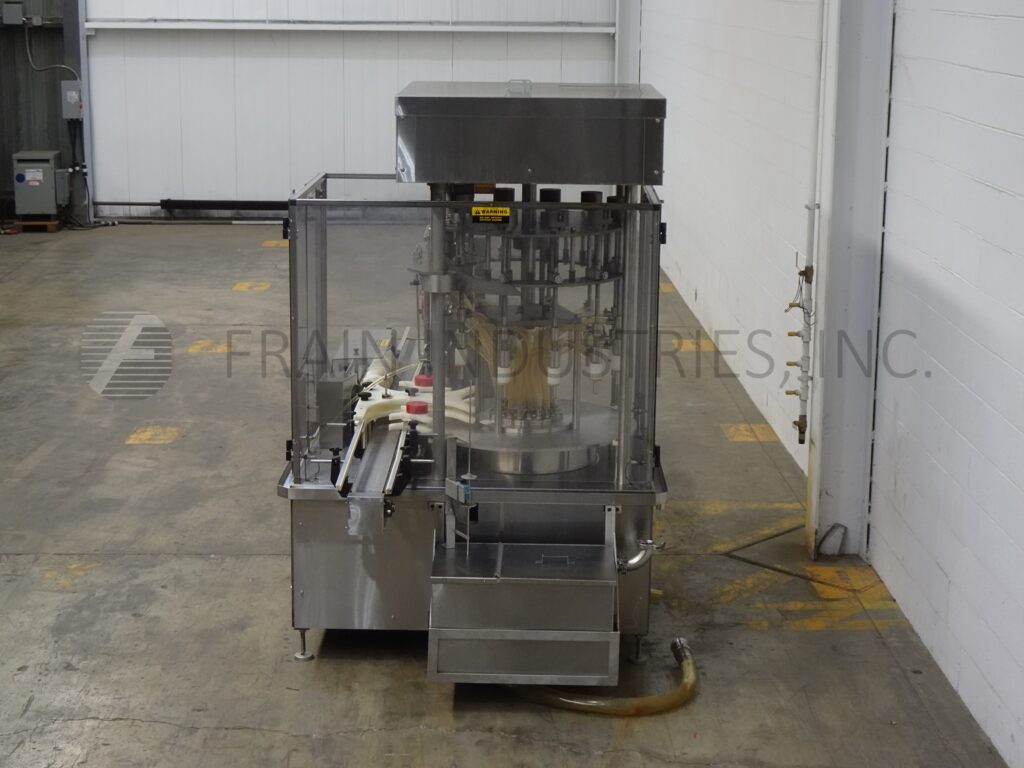

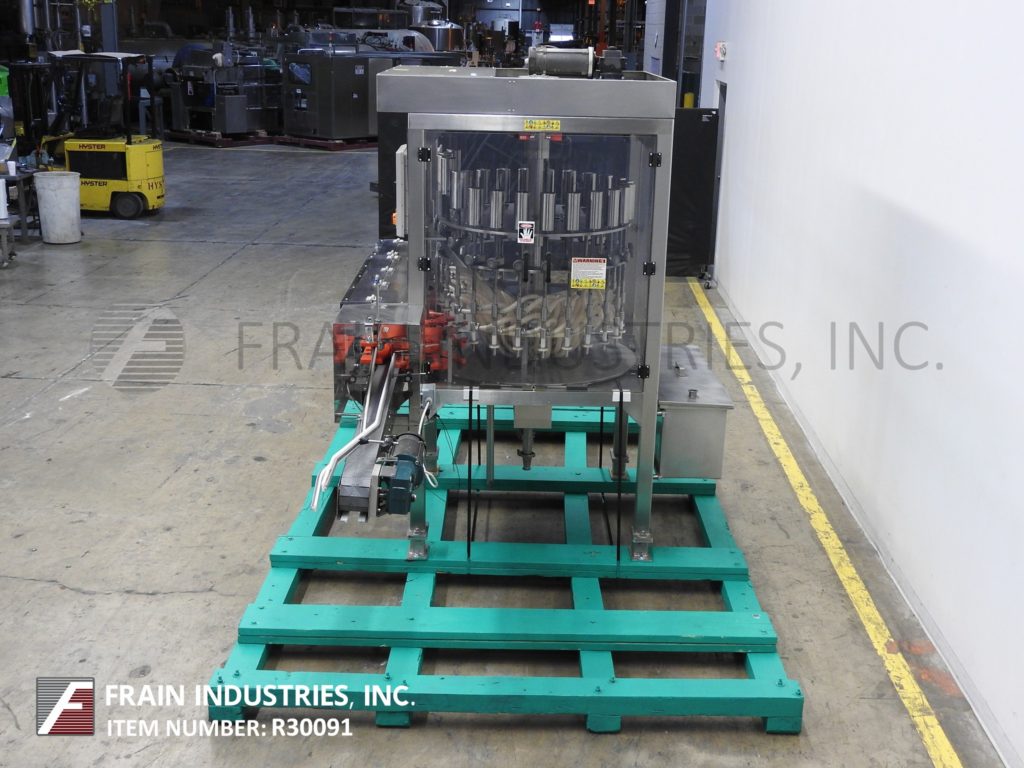

Kaps All, Model FA-R-24, Automatic, 24 head, stainless steel, rotary pressure filler rated from 60 to 240 containers per minute – depending on materials, application and machine configuration. Container size: up to 4½" in Diameter: up to 12" in Height (with proper change parts). Equipped with worm screw to star wheel in feed and discharge, 46" OD table with (24) (5/8)" OD stainless steel nozzles set on 5" centers, no container / no fill and 43" long x 12" wide x 16" deep product reservoir. Control panel has AB PLC with an AB PanelView 600 touch screen HMI and push button start / stop. Mounted on a (4) leg frame with safety door guarding.
OAD: 96" L x 68" W x 98" H

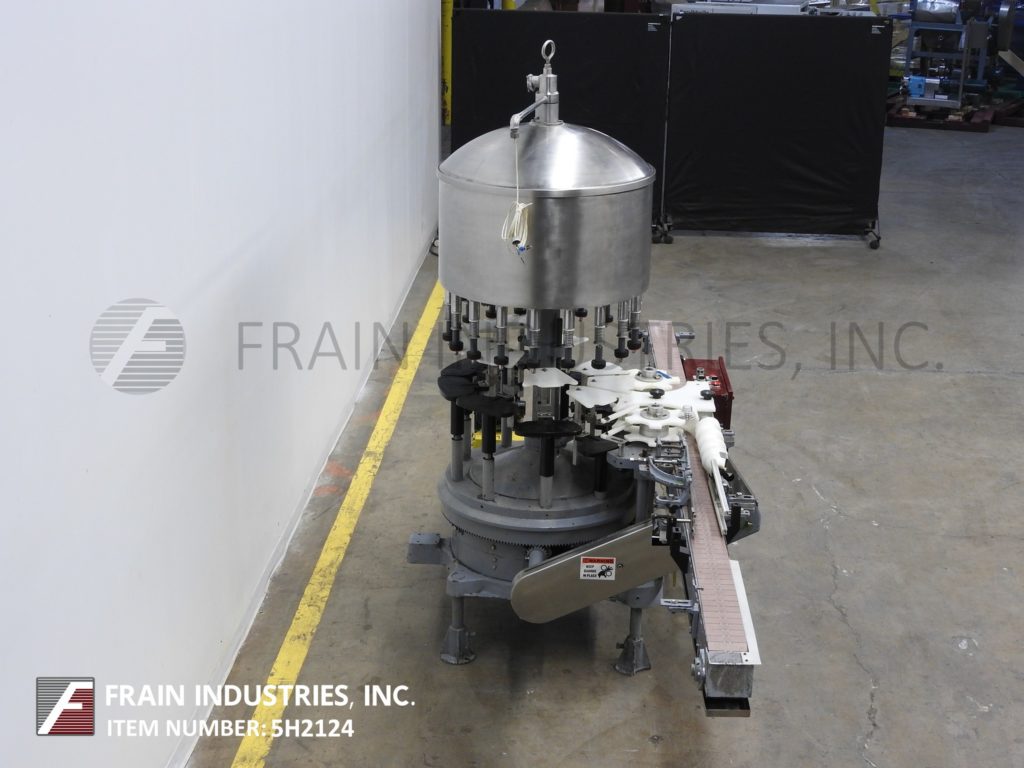

Horix Model HBP 9-18-59, Automatic, 18 head, rotary, pressure gravity filler with number of containers per minute – depending on materials and application. Maximum container diameter: 6-1/2" on round and rectangle containers when operating with 9 fill valves and height per application and machine configuration. All stainless steel contact parts. Equipped with 140" long x 4-1/2" wide plastic Delran product conveyor with worm screw to star wheel in feed and discharge and container guide rails, 30" OD turret, has (18) 5/8" OD nozzles set on 5" centers with 7-1/2" long x 6-1/2" wide rising container pedestals for bottom up fill, no container / no fill with overhead product feed system. Control panel has filler and conveyor start, stop switches and start, stop, e-stop push buttons. Mounted on heavy duty base frame.
OAD: 140" L x 56" W x 95" H
