Vacuum Overflow Machines

International Filler Liquid Vacuum 11 HD

• Manufacturer: International
• Model Number: 11 HD
• Frain Number: 5F4120

Automatic, intermittent motion, inline, vacuum filler fill range and speeds – dependant on materials and application. Equipped with 28" long adjustable nozzle filling bar currently set-up with 11 filling heads on 2" centers with 1" OD nozzles with a maximum container height of 7" high. 20" long x 10" wide x 10" deep product supply tank and is capable of handling glass, metal, or any rigid cotainers.

OAD: 40" L x 32" W x 60" H

International Filler Liquid Vacuum 16 HD

• Manufacturer: International
• Model Number: 16 HD
• Frain Number: 5F4122

Automatic, intermittent motion, inline, vacuum filler with speeds dependant on materials and application. Equipped with a fifteen gallon stainless steel supply tank, 140" long x 2" wide product conveyor, 11" maximum container height, product eye sensor, sixteen filling heads, 3/8" filling nozzles, starwheel feed to discharge, and variable controls. Mounted on locking casters.

Currently set up for a 4" high x 2" diameter container.

OAD: 145" L x 39" W x 61" H

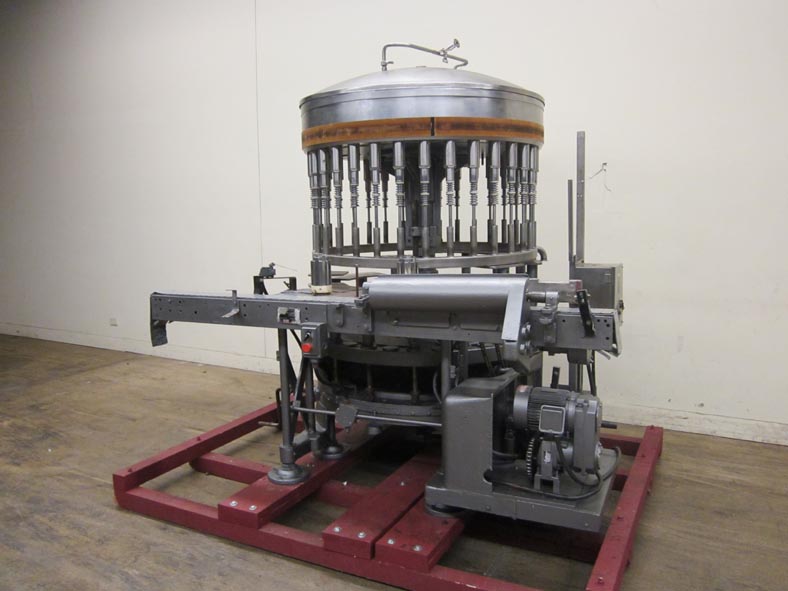

Horix Filler Liquid Vacuum 32 HEAD

• Manufacturer: Horix
• Model Number: 32 HEAD
• Frain Number: 5F4181

Horix automatic, 32 head, rotary, gravity vacuum filler rated from 50 to 270 containers per minute on 500ml fills. Maximum container diameter size: 4-1/8" round and 4-1/16" rectangle containers and up to 12" High with Fills to 500ml. Equipped with 48" diameter table has (32) 5/8" OD nozzles set on 5" centers with 9-1/2" long x 9-1/2" wide rising container pedestals, 79" long x 3-1/2" wide product conveyor with worm screw to star wheel in feed and discharge. 304 stainless steel contact parts, overhead rotary valve product feed system, bottom up fill, no container / no fill and CIP ring and mounted on painted base frame.

OAD: 79" L x 69" W x 82" H

JG Filler Liquid Vacuum MINIVAC 12

• Manufacturer: JG
• Model Number: MINIVAC 12
• Frain Number: 5B6377

JG Model Minivac 12, compact, automatic, 12 head, stainless steel, rotary vacuum filller rated from 40 to 120 containers per minute – depending on materials and application. Equipped with (12) 1/8" diameter nozzles set on 3" centers, can handle containers up to 2-1/2" in Diameter and 4" in Height, Kerr vacuum pump, automatic vacuum overflow, with push botton start / stop controls for vacuum, turn table, filler and e-stop. Last running glass containers perfumes, and colognes in a cosmetic operation.

OAD: 96" L x 45" W x 77" H

MRM Elgin Filler Liquid Vacuum R50

• Manufacturer: MRM Elgin
• Model Number: R50
• Frain Number: 5G6240

MRM Elgin, Model R-50, automatic 12 head rotary vacuum filler. Used to fill oxygen sensitive products. Rated from 40 to 120 containers per minute – depending on materials and application. Currentley set on 8" centers and has a container size range from fractional ounces to 1 gallon – depending on materials and application (with proper change parts). Equipped with a 135" long x 4½" wide container conveyor, 40" OD turntable with (12) 12¾mm OD / 3mm ID stainless steel vacuum nozzles, 1 HP vacuum pump and bottom well product feed system. Push button start/stop for filler, vacuum pump and conveyor with variable speed controller and mounted on mild steel base frame.

OAD: 142"L x 61"W x 99"H

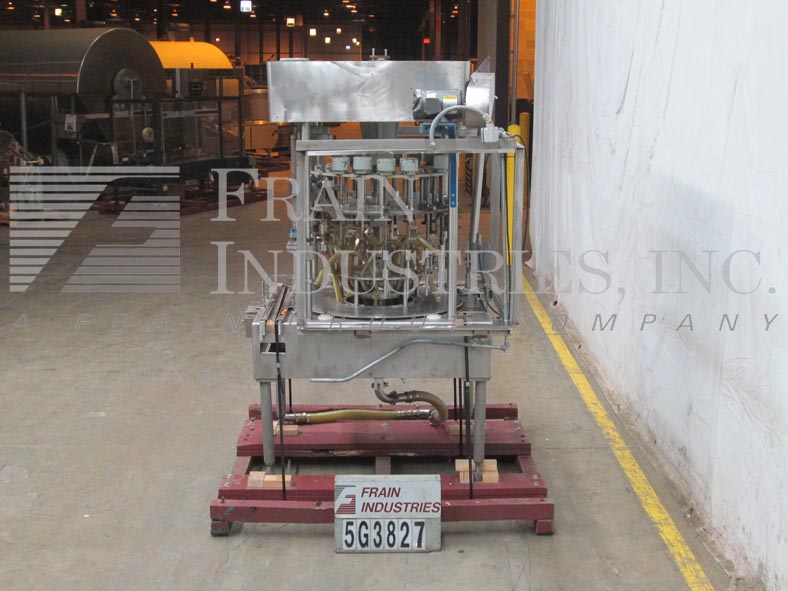

MRM Elgin Filler Liquid Vacuum 20 HD ROTARY

• Manufacturer: MRM Elgin
• Model Number: 20 HD ROTARY
• Frain Number: 5G3827

MRM, automatic, 20 head, rotary, vacuum filler rated from 40 to 180 containers per minute – depending on materials and application. Currentley set on 5" centers and has a container size range of: up to 4-1/2" in Diameter x up to 9-1/2" in height. Equipped with 40" long x 3-1/2" wide container conveyor, 36" OD turntable with (20) 1/2" OD stainless steel nozzles.with all stainless steel contact parts, overhead product feed system, bottom up fill, no container / no fill. Remote control panel with filler, vacuum pump, conveyor, controls dials with start / e-stop buttons, vari speed controller and mounted on (4) leg base frame.

OAD: 70" L x 60" W x 92" H

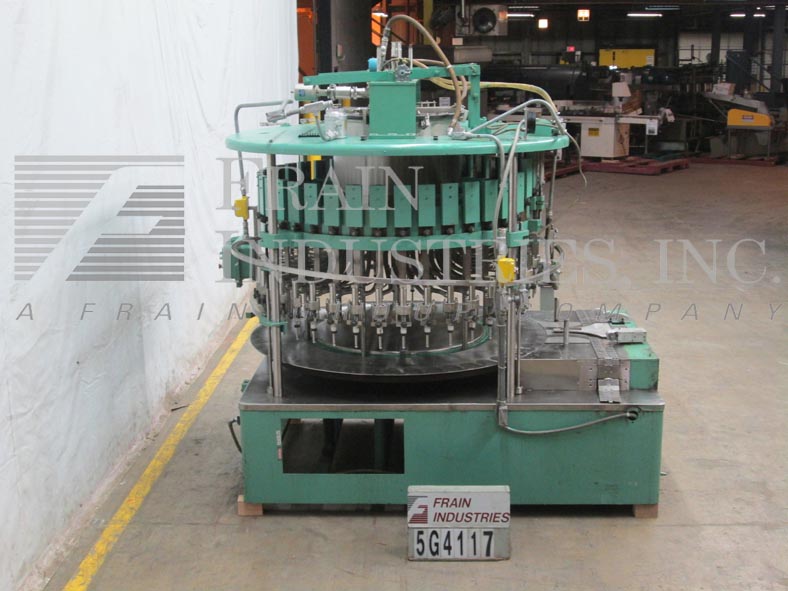

U S Bottlers Filler Liquid Vacuum VE40L

• Manufacturer: U S Bottlers
• Model Number: VE40L
• Frain Number: 5G4117

U S Bottlers Model VE40L automatic 40 head, rotary, vacuum filler rated from 40 to 340 containers per minute – depending on materials and application. Container size range: 1" to 4-3/4" in Diameter x 4-1/2" to 12" in Height. Equipped with with 48" long x 2-1/2" wide product conveyor, worm screw to star wheel in feed and discharge, 72" turrett has 40 filling heads and 5/8" OD nozzles set on 5" centers overhead product feed system with overflow, bottom up fill, no container / no fill. Control panel with product volume, machine clean on / off switches, jog, manual vacuum start and e-stop push button controls. Mounted on heavy duty base frame.

OAD: 100" L x 72" W x 83" H

U S Bottlers Filler Liquid Vacuum VE36L

• Manufacturer: U S Bottlers
• Model Number: VE36L
• Frain Number: 5G4113

U S Bottlers Model VE36L, automatic 36 head, rotary, vacuum filler rated from 40 to 300 containers per minute – depending on materials and application Container size range: 1" to 5-1/4" in Diameter x 4-1/2" to 12" in Height. Equipped with 48" long x 2-1/2" wide product conveyor, with star wheel in feed and discharge,72" turret has 36 filling heads, with 1/2" OD nozzles set on 6" centers, overhead product feed system with overflow, bottom up fill, no container / no fill. Control panel with auto, manual start and e-stop push button controls. Mounted on heavy duty base frame.

OAD: 96" L x 74" W x 89" H

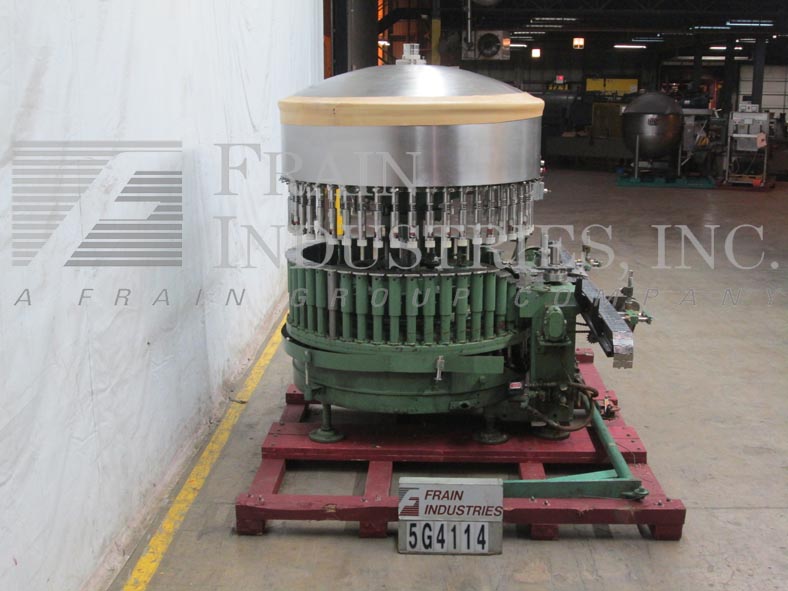

Horix Filler Liquid Vacuum HFV-48

• Manufacturer: Horix
• Model Number: HFV-48
• Frain Number: 5G4114

Horix FloFil Model HFV48, automatic, 48 head, rotary, vacuum filler rated from 48 to 245 containers per minute – depending on fill and size container. Maximum container size: 3-3/8" round and 3-1/8" rectangle, up to 12" high. Equipped with stainless steel contact 120" long x 2-1/2" wide product conveyor with worm screw to star wheel in feed and discharge, 60" diameter table with (48) 1/2" OD nozzles set on 4" centers, 4-1/4" long x 3-1/4" wide rising container pedestals, overhead rotary valve product feed system, bottom up fill, no container / no fill and CIP ring. Control panel with on/off and e-stop. Mounted on painted base frame.

OAD: 120" L x 84" W x 80" H

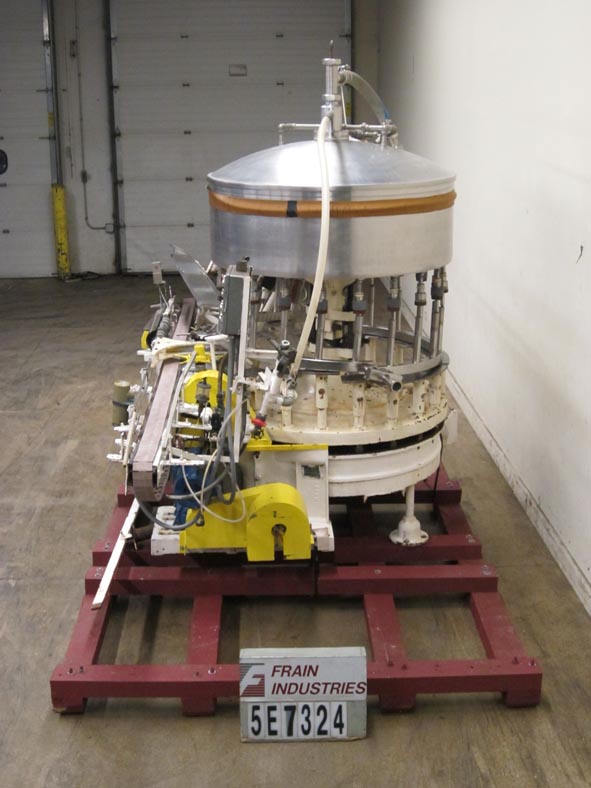

Horix Filler Liquid Vacuum 20 HD

• Manufacturer: Horix
• Model Number: 20 HD
• Frain Number: 5E7324

Automatic, 20 head, rotary, vacuum filler rated 60 to 180 container per minute – depending on materials and application. Maximum container diameter: 6-1/2" on both round and rectangle containers and up to 12" in Height Equipped with 48" diameter table, with (20) 7/8" OD and 3/4" ID nozzles set on 7-1/2" centers with 7-1/2" long x 5" wide rising container pedestals, capable of accurate fills on both low / med viscosity products. 137" long x 3-1/2" wide product conveyor with worm screw to star wheel in feed / discharge. All 304 stainless steel contact parts, overhead product feed system with overflow, bottom up fill, no container / no fill and CIP ring. Control panel with filler, vacuum and conveyor controls, start / e-stop buttons and was last running gallon wine containers.

OAD: 137" L x 72" W x 108" H

Packaging Dynamics Ltd. Filler Liquid Vacuum ESLA6

• Manufacturer: Packaging Dynamics Ltd.
• Model Number: ESLA6
• Frain Number: 5F6203

Packaging Dynamics Model ESLA, In line, 6 head, stainless steel, vacuum filler. Equipped with 54" long by 4" wide conveyor with adjustable side rails, 6 spout fill manifold, 3/16" overflow nozzles, 36" long adjustable height slide bar, container indexing system and PLC with touch pad controller. Mounted on stainless steel base frame. Handles water thin foaming or non foaming to medium viscosity fluids. Speeds 10 to 30 containers per minute – depending on materials, application and machine configuration.

OAD: 84" L x 24" W x 77" H

U S Bottlers Filler Liquid Vacuum VA32

• Manufacturer: U S Bottlers
• Model Number: VA32
• Frain Number: 5F4790

U S Bottlers Model VA32 automatic 50 head, rotary, vacuum filler rated from 50 to 320 container per minute – depending on materials and application. Container size range: 1" to 3-1/4" in Diameter x 4-1/4" to 12" in Height. Equipped with 32 filling heads, 1/2" OD and 1/4" ID nozzles set on 4" centers with 56" long x 2-1/2" wide product conveyor with worm screw to star wheel in feed and discharge, overhead product feed system with overflow, bottom up fill, no container / no fill vacuum system with diaphram pump, safety guarding and mounted on 4 leg base frame.

OAD: 72" L x 65" W x 82" H
