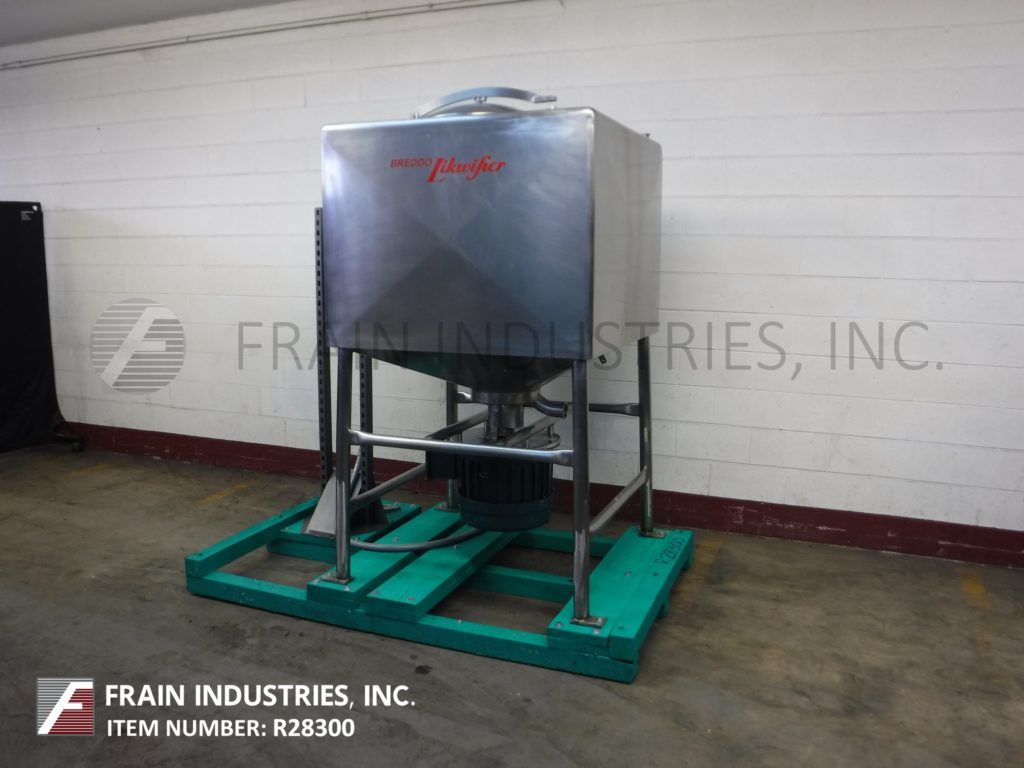

Photo of Breddo Mixer Liquid Liquefier LDD

Breddo Mixer Liquid Liquefier LDD

  Back to All Equipment

Breddo, Model LDD, 250 gallon 304 stainless steel single wall liquefier. Chamber dimensions: 43" x 43" with a 34" straight wall. Equipped with 18" diameter top man way with flip up bolt down cover, (3) 2½" OD / 2" ID and (1) 3½" OD / 3" ID tri-clamp style top inlet ports, (1) CIP spray ball, bottom 6 hole / 3 wing general purpose impeller and 3" OD / 2½" ID sanitary side bottom discharge with 20" floor clearence, bottom 25 Hp motor drive. Mounted on stainless steel (4) leg tubular frame.

OAD: 45" L x 45" W x 73" H
