Fowler Capper 8 Head of More CAPDF-9/360

  Back to All Equipment

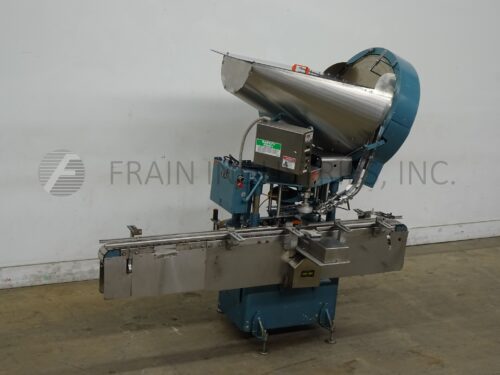

Fowler Model CAPDF-9/360, automatic, left to right, (9) head rotary, stainless steel, push-on capper and feed system designed to run insert and push-on style closures rated from 9 to 325 containers per minute – depending on materials and application. Cap and Container sizes per application with proper change parts. Equipped with 185" long x 4-1/2" wide plastic interlock container belt conveyor with 32" long worm screw to star wheel container in feed and discharge, Fowler Model WISD-600/40, stainless steel incline cleated belt feeder with 42" long bottom in feed section to 140" long product inverted feed section with 20" wide conveyor belt has 1" high cleats set on 4-1/2" centers with plastic interlock safety guarding and 190" discharge height and cap chute currently set for 63mm caps with no container / no cap, (9) push on capping heads with quick release gripper jaws set on 5" centers, with container sampling and rejection section has 4-1/2" wide secondary cross over conveyor. Remote control panel has A/B CPU controller with on board Strongarm swing arm and A/B touch pad controller with panel view and has control power on / off and cycle start, stop, reset and e-stop push bottons controls with A/B powerflex vari-speed controllers and interlock safety guarding with statis light bar. Both mounted stainless steel base frames. Used for lids, fitments, plugs, overcaps, flip tops and roller ball applications and can handle glass, metal or plastic containers.

OAD: 185" L x 60" W x 95" H Capper
70" L x 72" W x 200" H Cap Feeder
