Heat Exch Shell & Tubes 250 GAL

• Model: 250 GAL
• Category: Heat Exchanger
• Subcategory: Tube and Shell

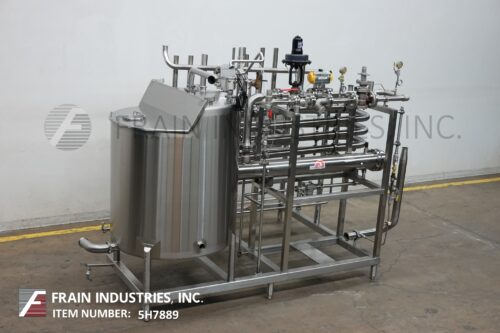

250 Gallon, 304 stainless steel, mixing tank and heat exchange system. Vessel dimensions: 42" diameter with a 42" straight wall, dome top and slant bottom with (1) 3½" OD / 3" ID tri-clamp discharge with 18" ground clearance. Equipped with an Enerquip 7"OD x 63" long tube in tube heat exchanger and 3"ID x 660" long holding tube. System mounted on a stainless steel frame.

Heat Exchange
MAWP: 150 psi @ 375°F (shell)
MAWP: 150 psi @ 375°F (tube)
MDMT: -20°F @ 150 psi (shell)
MDMT: -20°F @ 150 psi (tube)
Nat’l Brd: 8238

OAD: 125"L x 82"W x 90"H
