Holloway America Tank SS JKT 850L

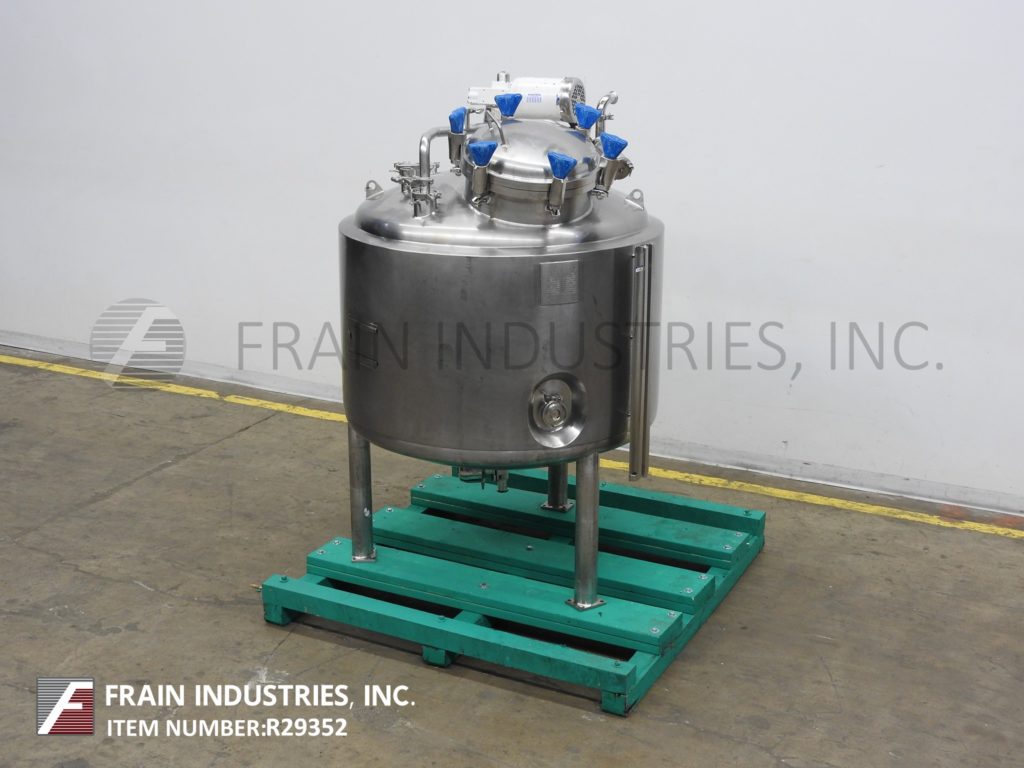

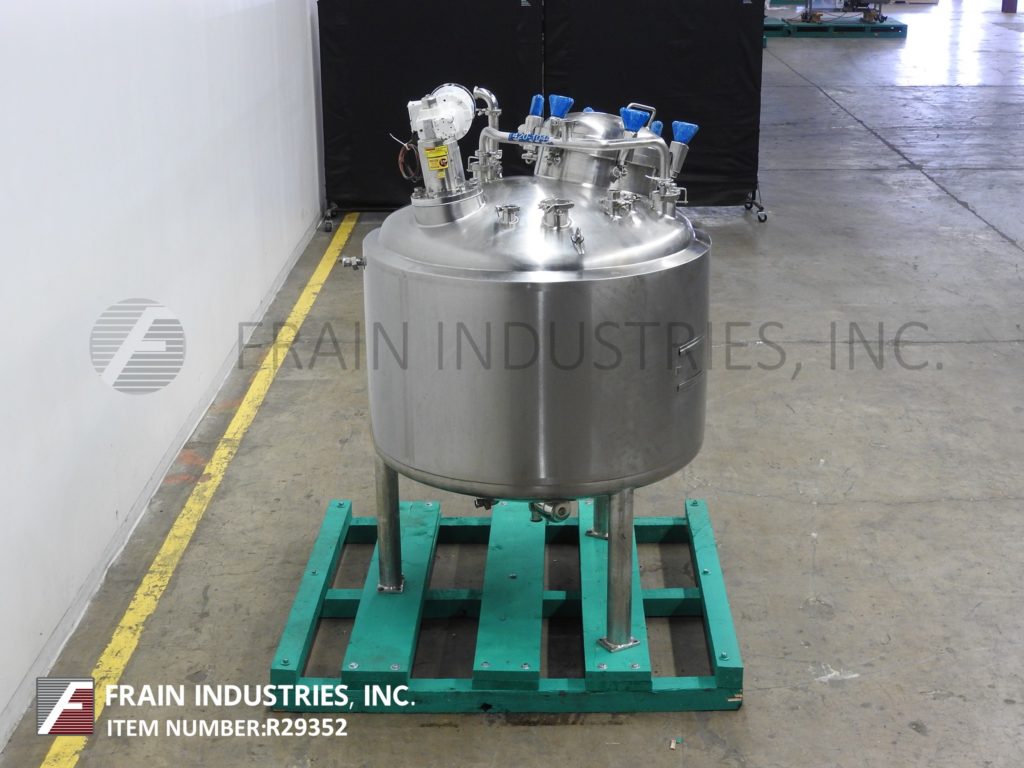

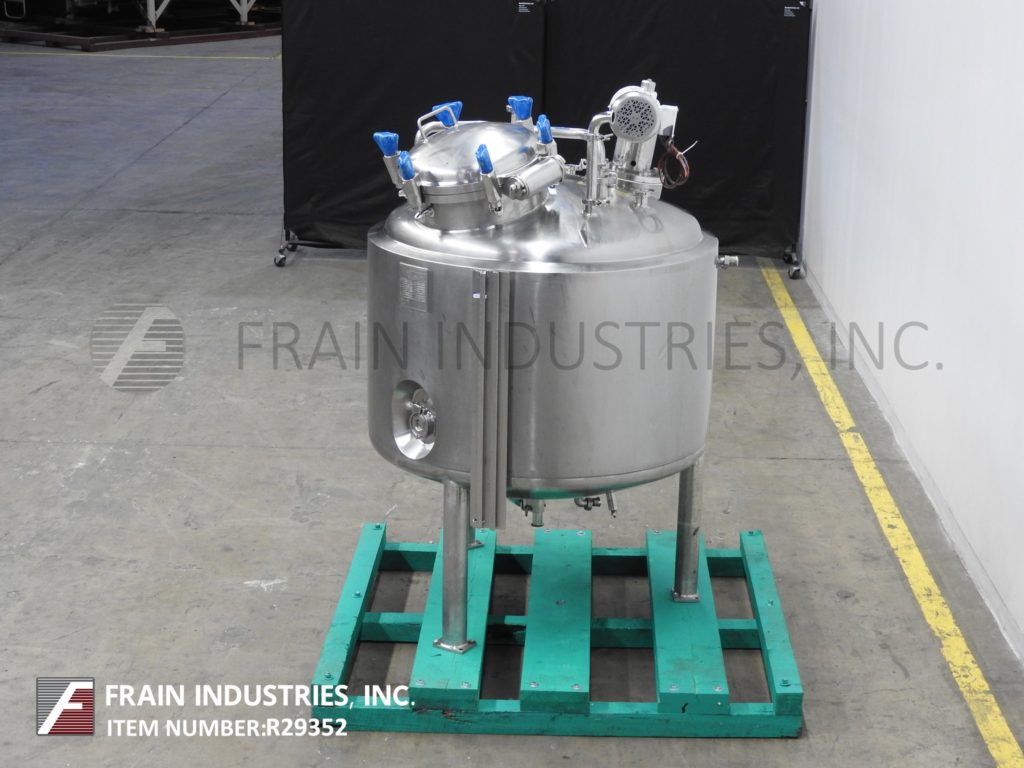

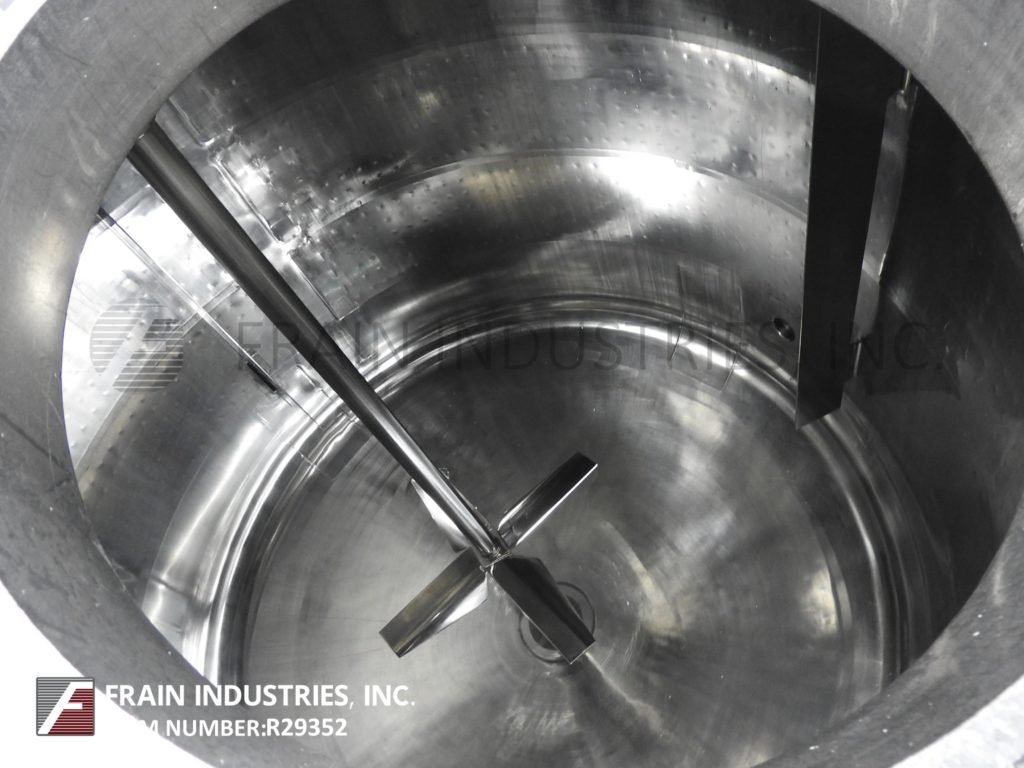

Back to All EquipmentHolloway America, 850 Liter, 316L stainless steel jacketed process tank. Vessel dimensions: 45" ID x 36" deep with 32" straight wall. Equipped with an 18" diameter bolt down manway, (2) CIP spray ball supplied by a 2"OD / 1½"ID Tri-Clamp fitting, (1) thermowells, ½ Hp top mounted dual prop agitator and 2" OD / 1½" ID tri-clamp style bottom center discharge with 19" ground clearance.
Top Ports:
(1) 3½"OD / 3"ID Tri-Clamp
(5) 2"OD / 1½"ID Tri-Clamp
Side Ports:
(1) 3½"OD / 3"ID Tri-Clamp
Jacket Ports:
(2) ¾" NPT
Vessel:
MAWP: 50 PSI @ 300°F
MDMT: -20 °F @ 50 PSI
Jacket:
MAWP: 100 PSI/FV @ 300°F
MDMT: -20°F @ 100 PSI/FV
Nat’l Brd: 497
OAD: 55"L x 52"W x 77"H
