Ishida Checkweigher Belt DACSG1500

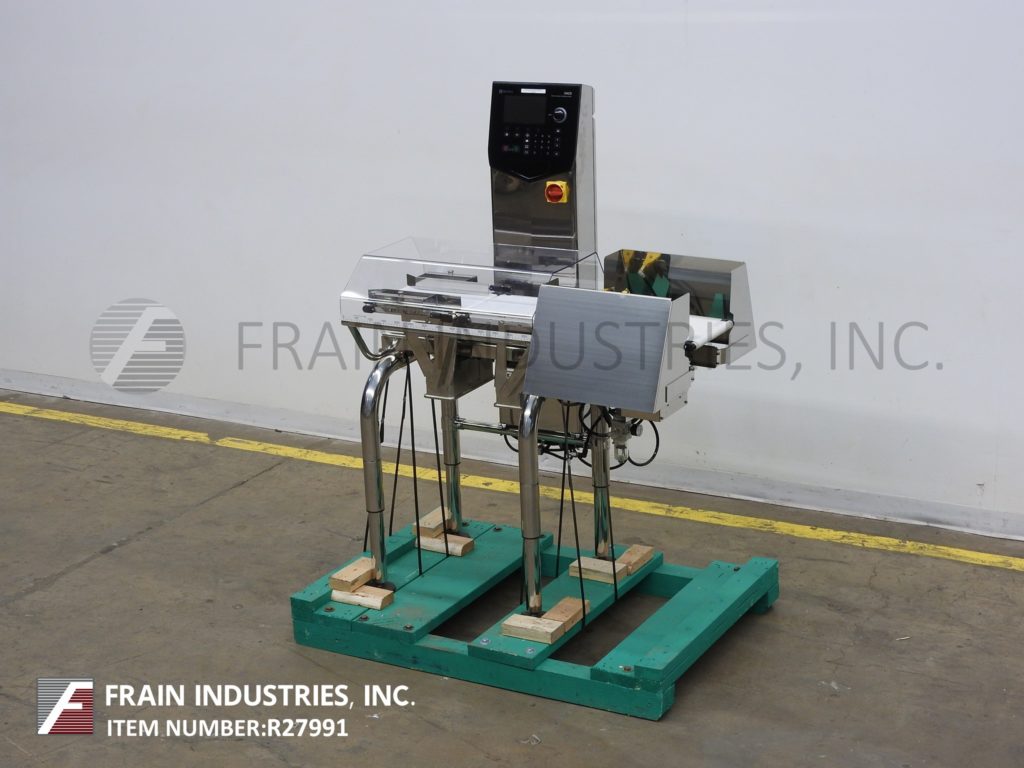

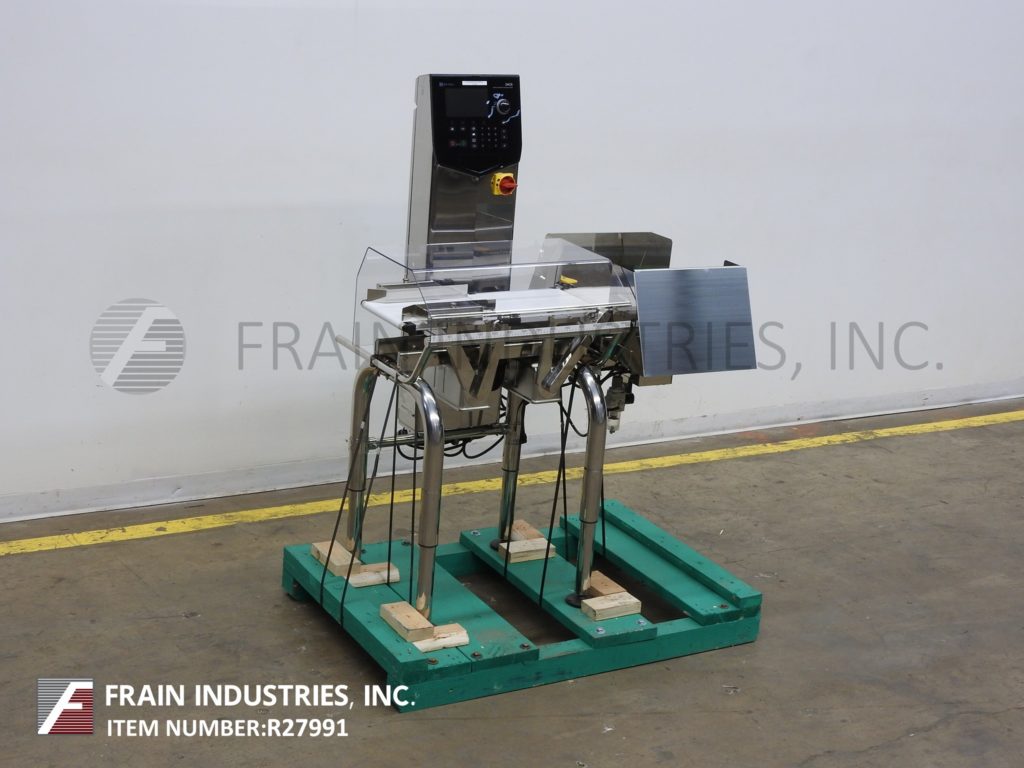

Back to All EquipmentIshida, Model DACS-GN-S015-SS-1, automatic, (3) zone, 304 stainless steel checkweigher. Rated up to 300 feet per minute with number of product – depending on materials and application. Load cell: 14" in Length; 9.5" in Width. Weight range: 6 to 1,500 grams with Accuracy: +/- 0.1 grams with accuracies dependant on materials, application, machine configuration and environment being run in. Equipped with 13.8" long x 9.5" wide neoprene in feed conveyor, stainless steel guide rails, 13.8" long x 9.5" wide neoprene weighing conveyor, 17.7" long x 9.5" wide neoprene discharge conveyor with dual air blast rejects ( one over / one under). Control panel with touch pad operator interface has 7" full color LCD display with 300 "preset" product programs, SUSB memory stick with X-bar charts and histogram and RS232 serial output of raw weight data. Mounted on (4) height adjustable legs.
OAD: 49"L x 32"W x 57"H
