Belt checkweighers are designed to check the weight of a package, product, or container as the package passes over a conveyor that is mounted on a load cell or strain gauge. Belt checkweighers are designed with a belt conveyor to carry the product over the load cell. Belt conveyors are often designed with a belt conveyor to bring the product in to the load cell conveyor and a belt conveyor to discharge the product from the belt checkweigher.
The design of the belt checkweigher requires that the package be on the load cell conveyor for a small amount of time, usually fractions of a second. The belt checkweigher design does not require that the package stop on the load cell conveyor. Belt checkweighers are designed with different length load cell conveyors. The greater the ratio of package length to load cell length, the faster the conveyor on the belt checkweigher can be run. As a general rule of thumb, the length of the load cell conveyor should be approximately one and a half times the length of the package.
This package length to load cell conveyor length ratio allows for a wide range of production speeds for the belt checkweigher. The discharge conveyor can also be used as a reject conveyor, if the checkweigher is designed to have a reject system. Checkweighers can be designed with indicator light rejects, conveyor stop rejects, air rejects, pneumatic are rejects, diverter gate rejects, or drop nose rejects.
Checkweighers are used as a quality check for a package to assure that the proper weight of product has been filled into the container, or to insure that all the components have been dispensed into the container. Belt checkweighers are designed to fit in as part of a conveyorized production line, and are designed to check the weight of a package without operator input. The weight range the checkweigher deems “acceptable” is an electronic input to the belt checkweigher’s controls. The weight range that a given belt checkweigher is limited on the upper by the capacity of the load cell and on the lower end by the mechanical “noise” of the machine. (The belt checkweigher has to be able to clearly distinguish a product on the load cell conveyor from the standard motion weight of the belt.)
Load cells and strain gauges are designed to take an electrical signal as an input and to measure the electrical output as the indicator of weight. The input electrical signal is of a given voltage and the load cell is designed to pass this signal through a resistor. As the weight on the load cell increases the resistance of the resistor also increases, resulting in an output voltage that is different than the input voltage. The checkweigher determines the weight of a package by comparing the output voltage signal to the input voltage.

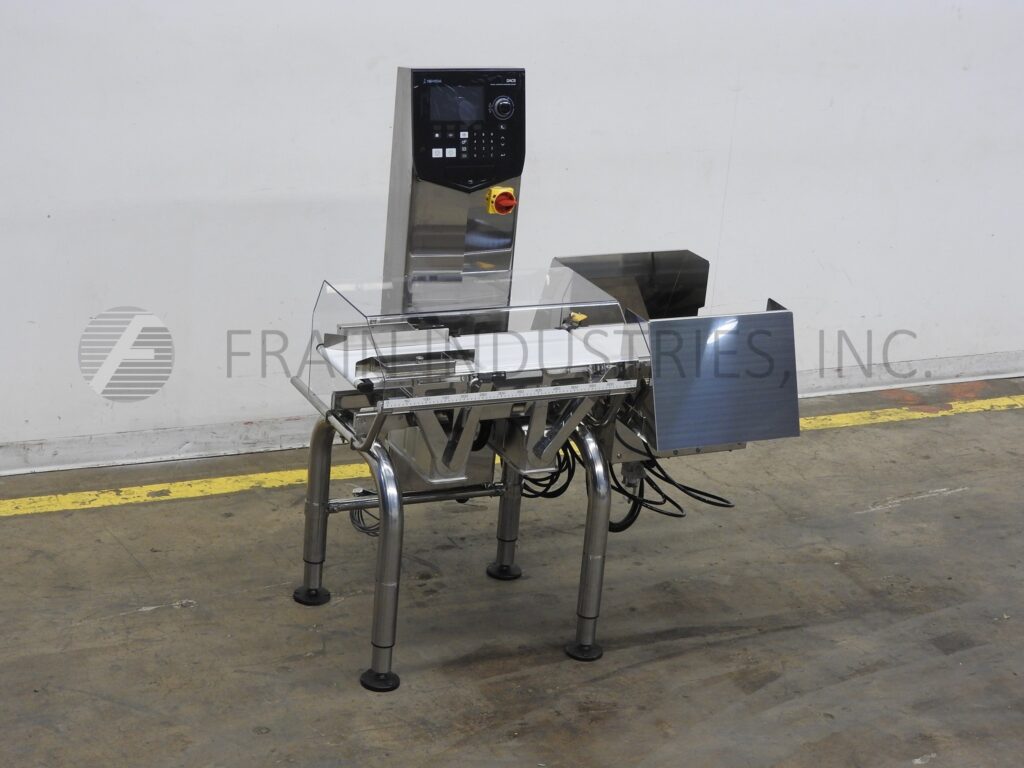

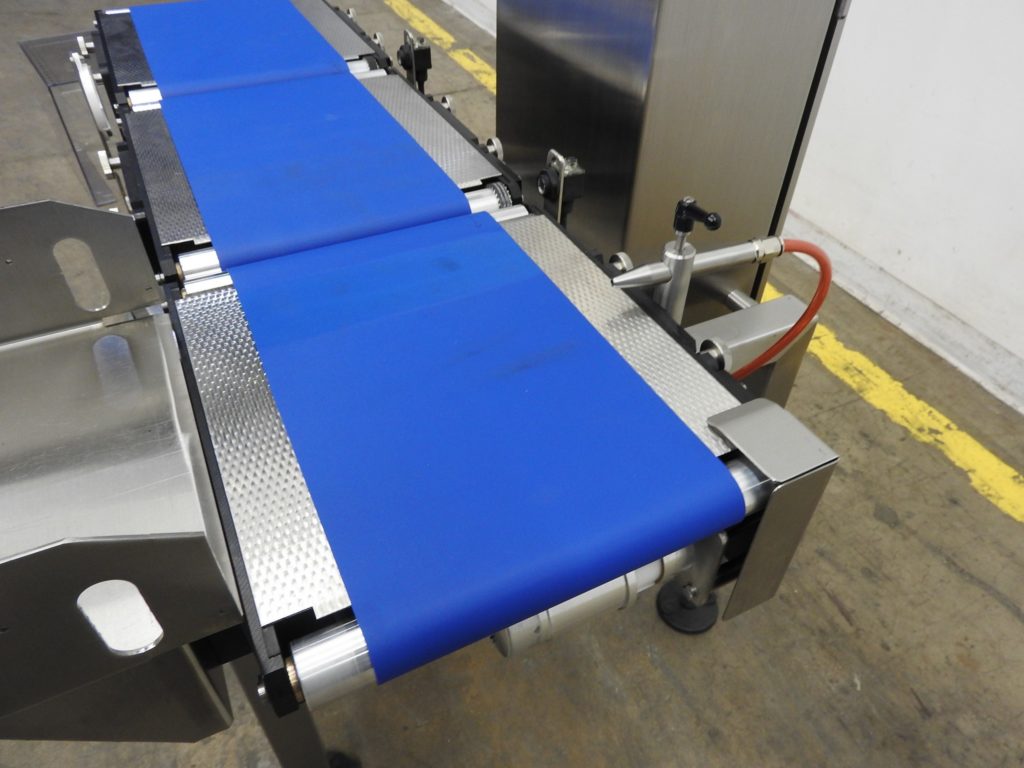

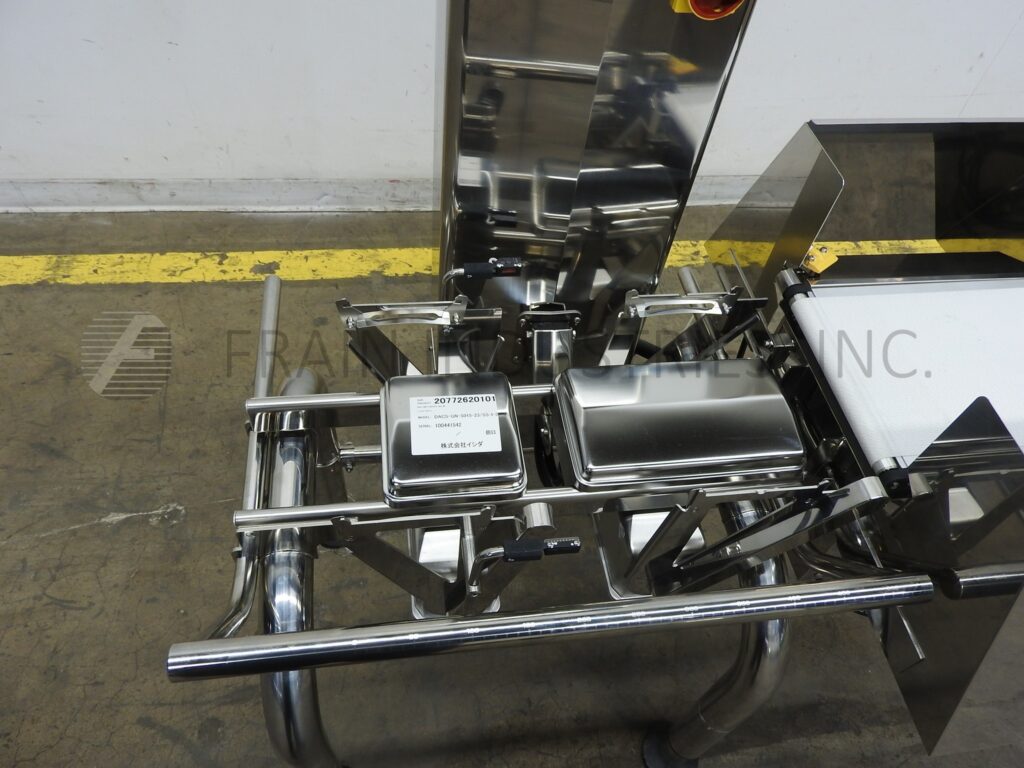

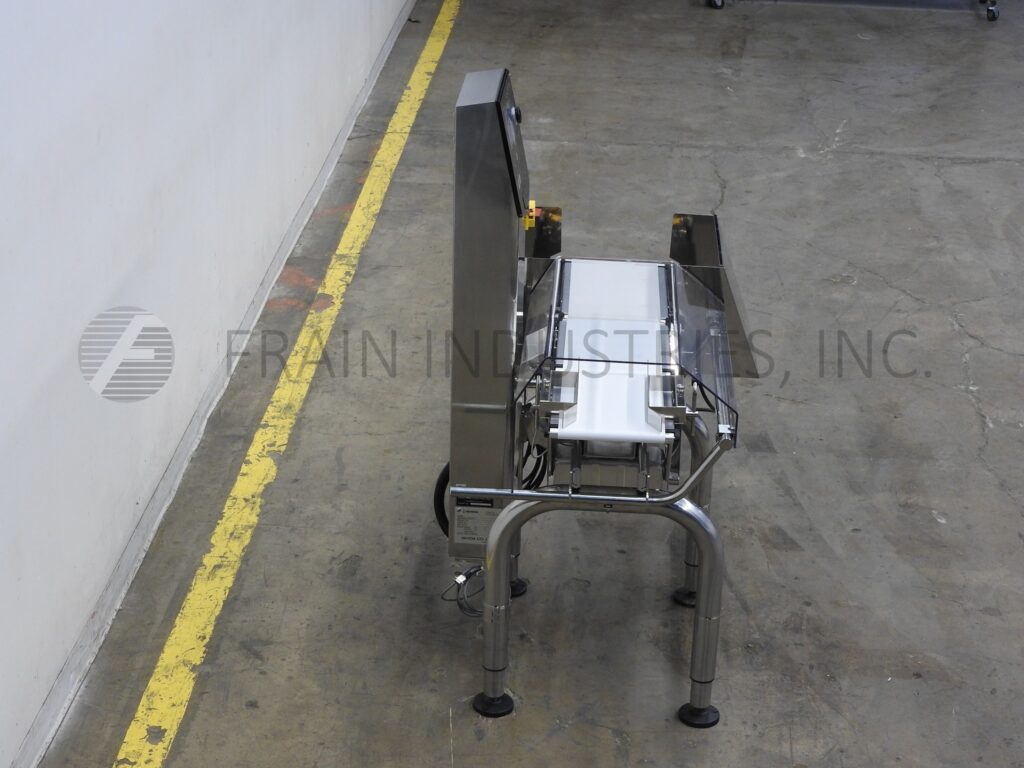

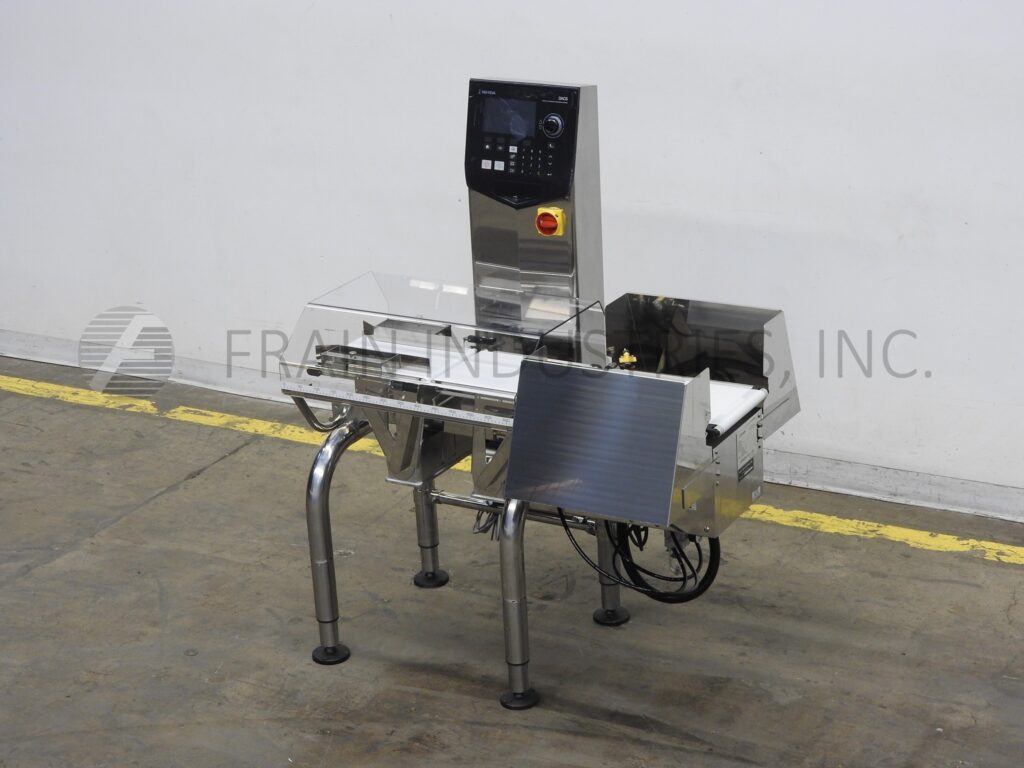

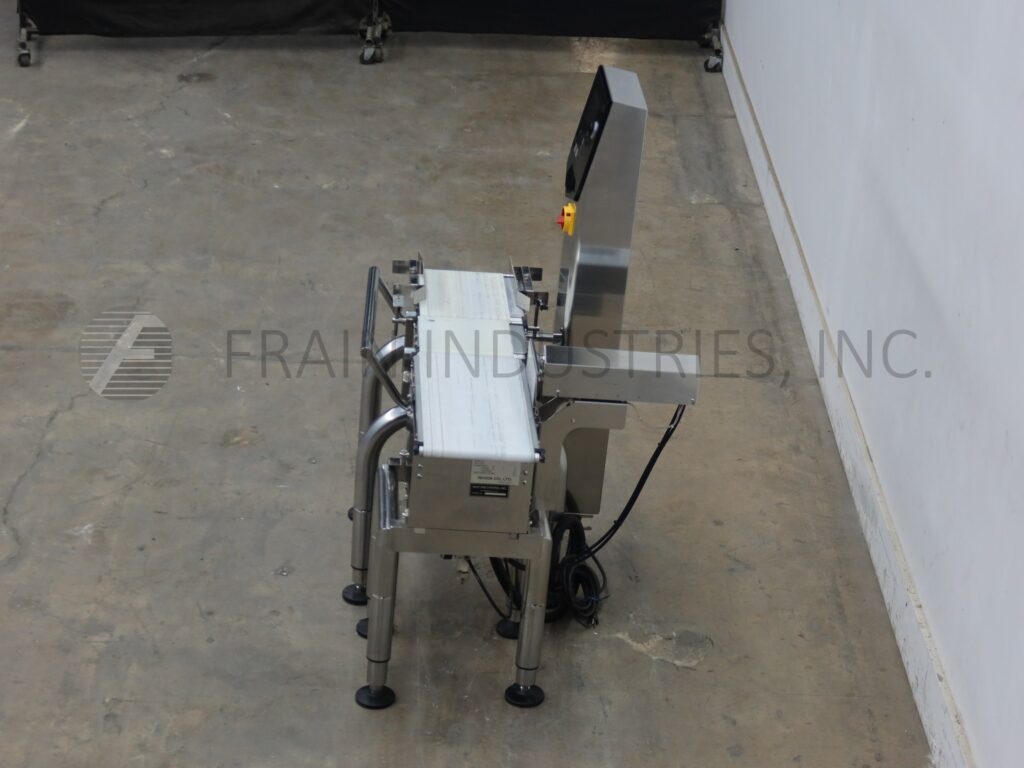

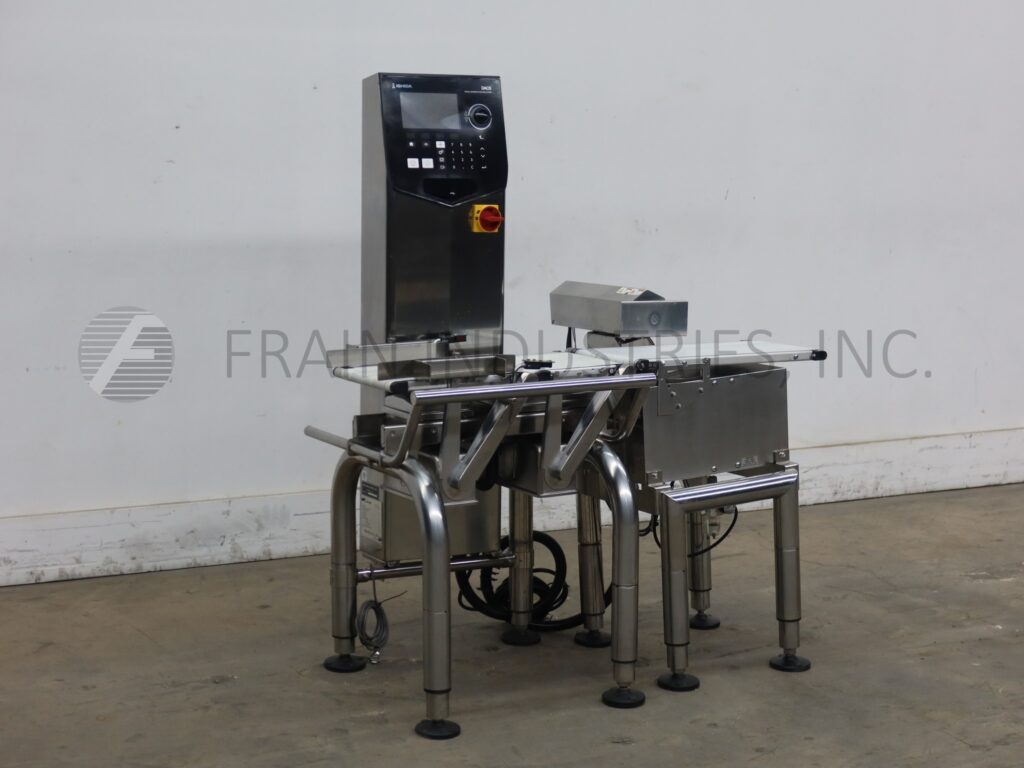

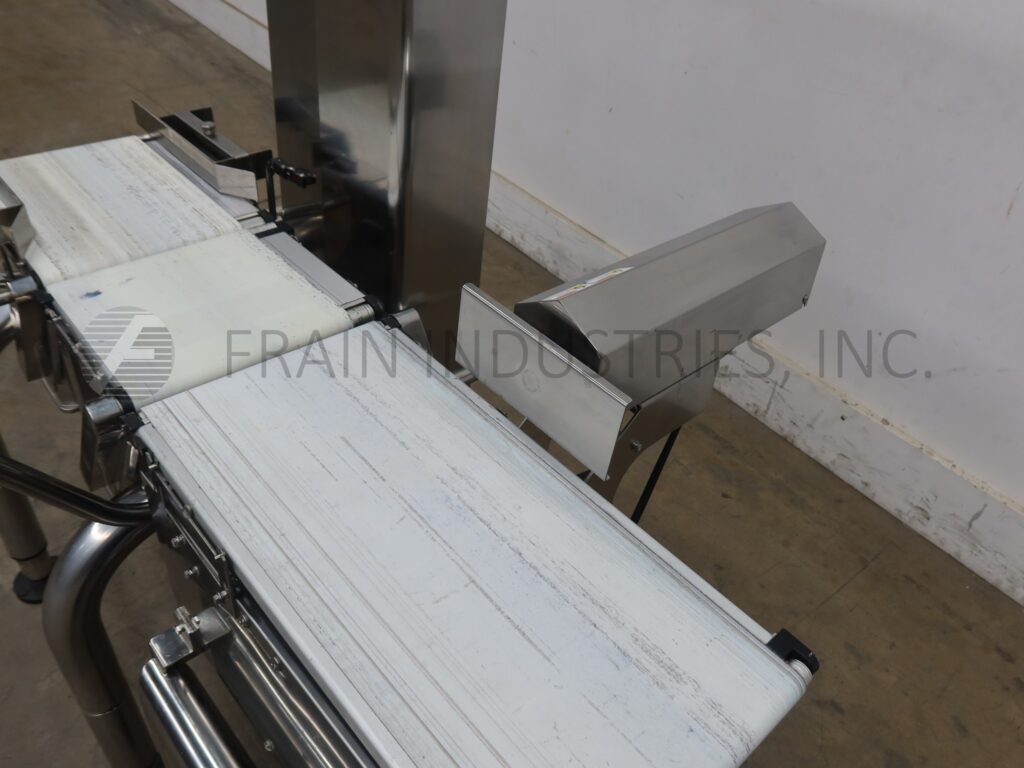

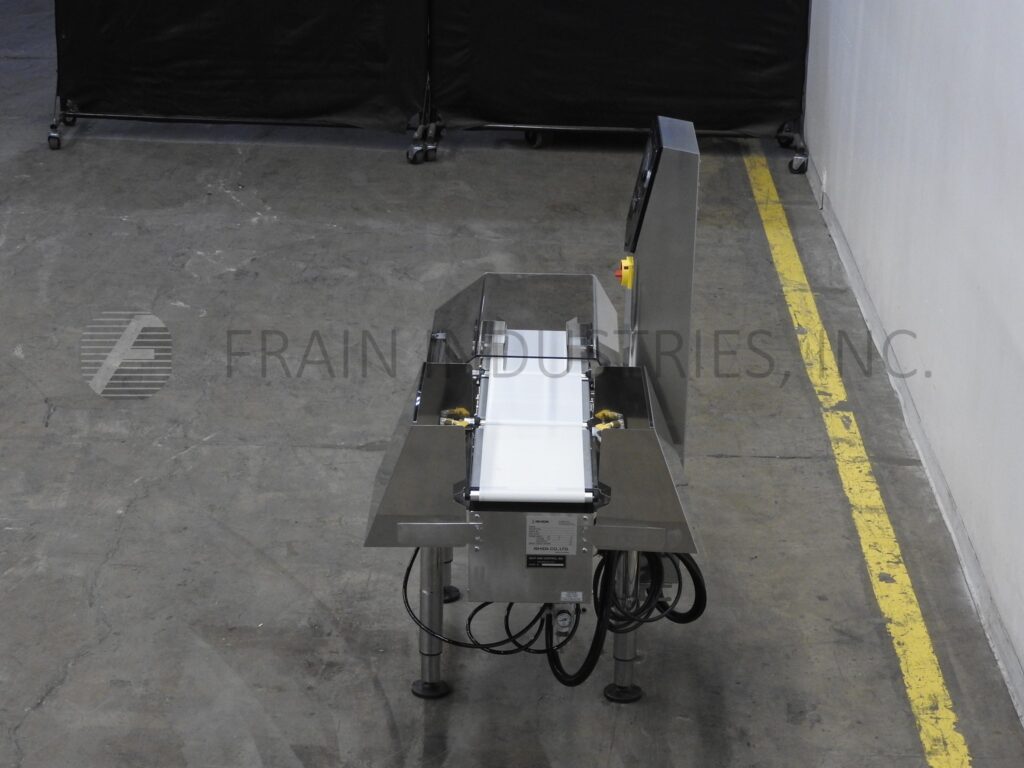

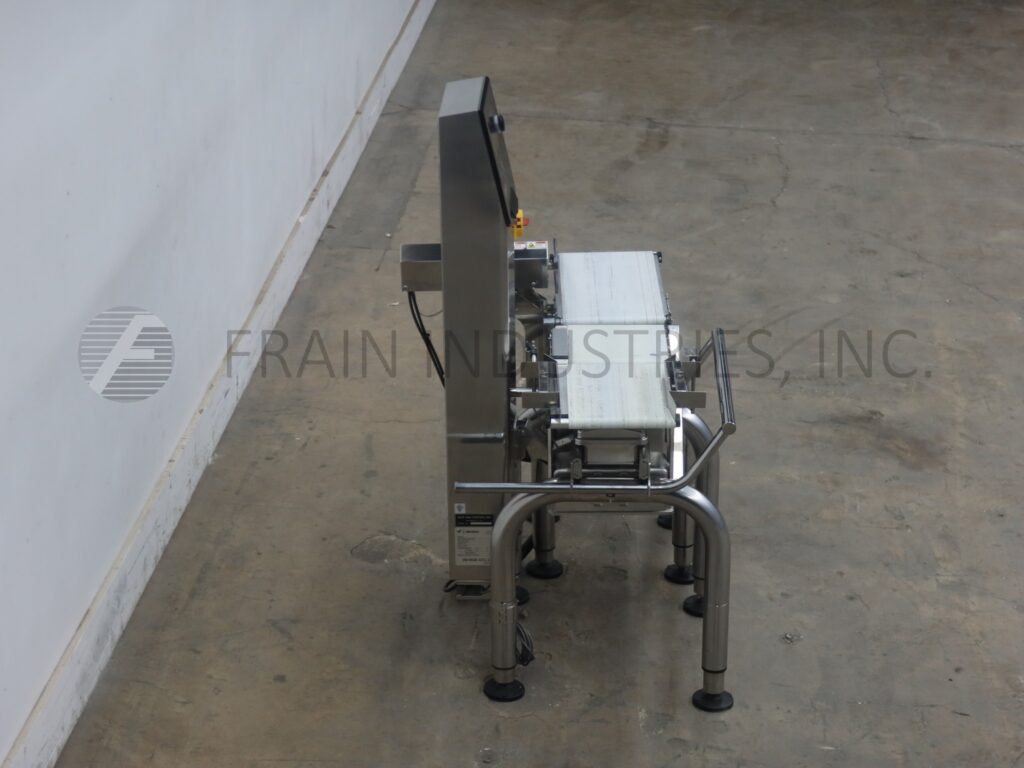

Ishida DACSG1523SSIS, Automatic, (3) zone, stainless steel checkweigher rated up to 300 feet per minute with number of product – depending on materials and application. Load cell: 14" in Length; 9.5" in Width. Weight range: from 15 to 1,500 grams. Accuracy to: +/- 1 grams depending on application with minimum graduation of 0.1 gram. Equipped with 14" long x 9.5" wide neoprene infeed conveyor belt, with stainless steel guide rails, 14" long by 9.5" wide neoprene weighing conveyor with load cell, sweep arm reject for over and under product, 18" long by 9.5" wide neoprene discharge conveyor. Touch pad operator interface with visual display. Mounted on a stainless steel frame with height adjustable legs.
OAD: 49" L x 32" W x 57" H

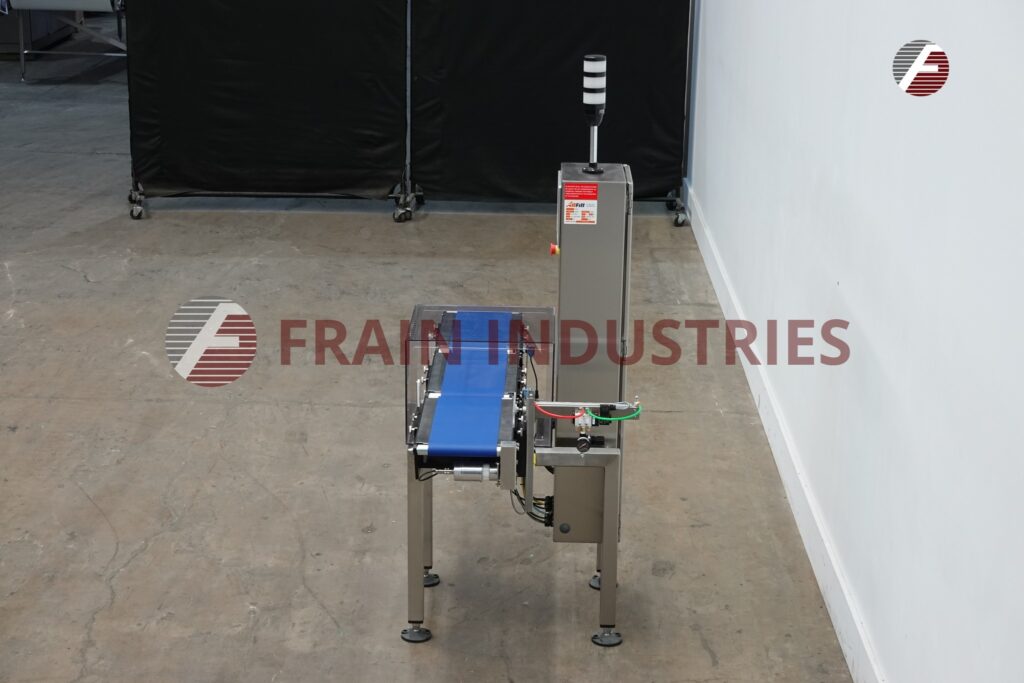

All Fill, Alpha Model PW12, Inline stainless steel, checkweigher with number of packages per minute – depending on materials and application. Equipped with 18" long x 8" wide in feed and discharge conveyors, 18" long x 8" wide load cell conveyor with lexan cover, digital strain gage load cell, capable of handling packages up to 18" in Length; 8" in Width from 5 grams to 3628 grams (8 lbs) with accuracy of +/- 1 gram depending on product. Control panel has data entry with 10" COLOR touch screen and has audible response, alphanumeric and individual weight display with push button operator interface and direct feedback, control capable, with 100 programmable product set-up memory and statis light bar. Mounted on stainless steel frame with height adjustable legs.
OAD: 58" L x 30" W x 75" H

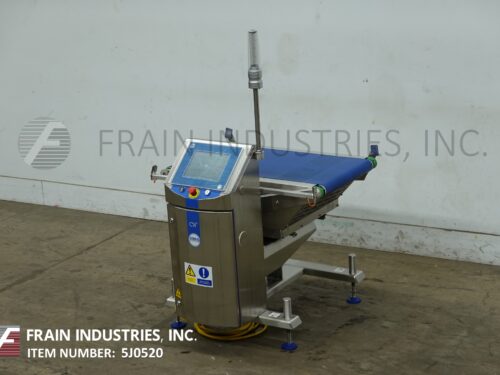

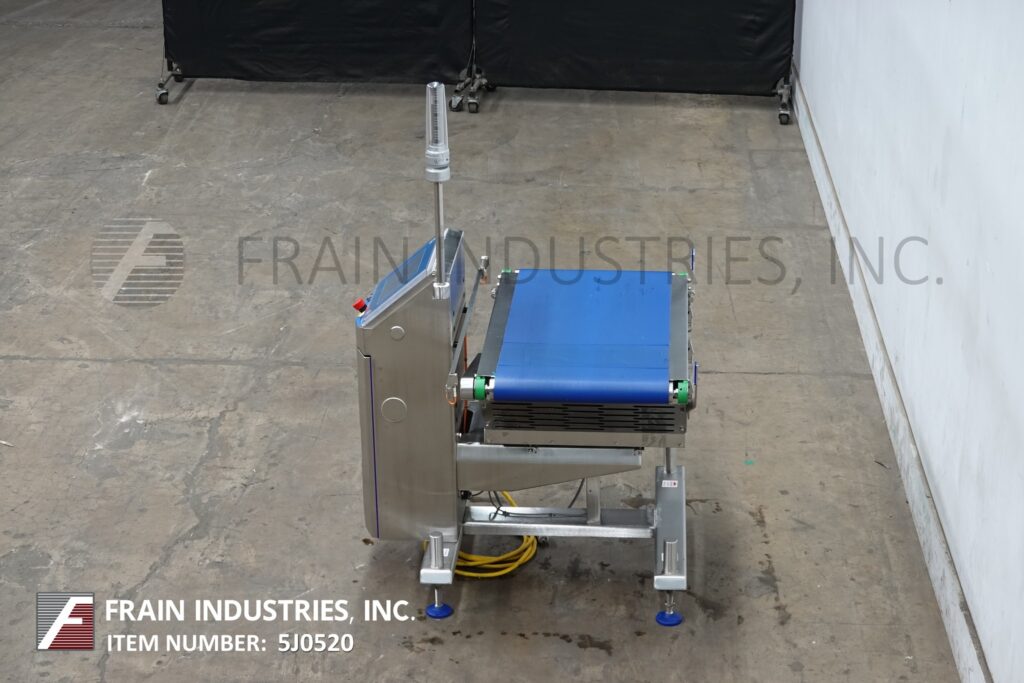

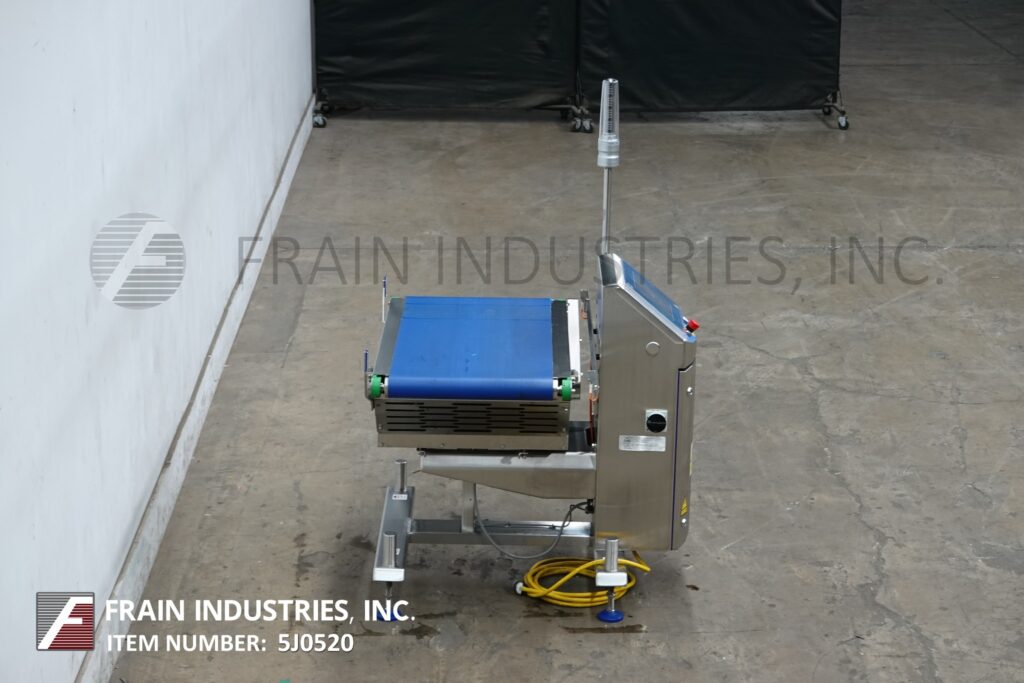

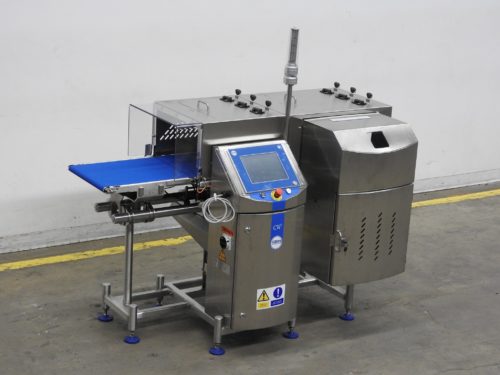

Loma, Model CW3 6000SH, inline, stainless steel checkweigher. Rated from 33 to 147 feet per minute. Weight range: 20 to 6000 grams. Accuracies +/- 0.30 gram. Operating temperatures from 0 to 40 Deg C. Equipped with 38" long x 19¾" wide load cell conveyors with accuracies dependent on materials, application and enviroment being run in, with stop belt reject. Control panel has touch screen HMI and status light bar. Mounted on height adjustable (4) leg frame.
OAD: 40"L x 42"W x 65"H

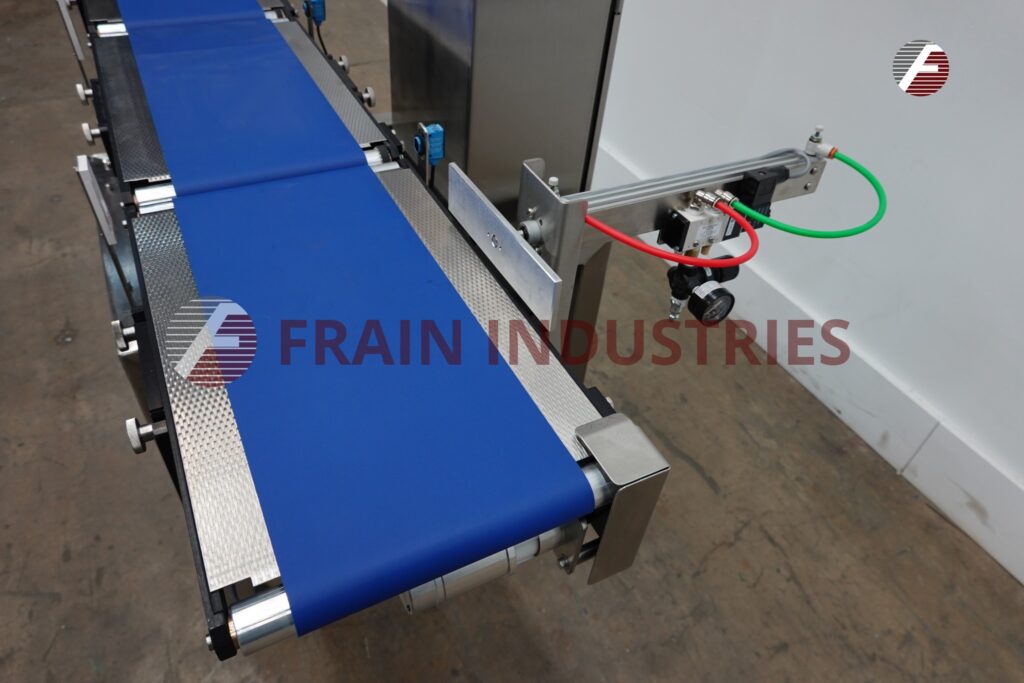

Loma Model CW3 6000M, inline, 304 stainless steel checkweigher rated from 33 to 147 feet per minute. Weight range: 20 to 6000 grams. Accuracies +/- 0.30 gram. Operating temperatures from 0 to 40 Deg C. Equipped with 19-3/4" long x 15-3/4" wide in feed, 19-3/4" long x 15-3/4" wide load cell and 28" long x 15-3/4" wide discharge anti-static conveyors with single air ram arm reject, reject collection bin and status light bar. Control panel has touch pad controller with readout, start, stop, e-stop push buttons and data retrieval is capable via USB, Ethernet, E-Net and Tracs. Mounted on height adjustable (4) leg base frame. Speed and accuracies dependent on materials, application, machine configuration and environment being run in.
OAD: 68" L x 48" W x 64" H

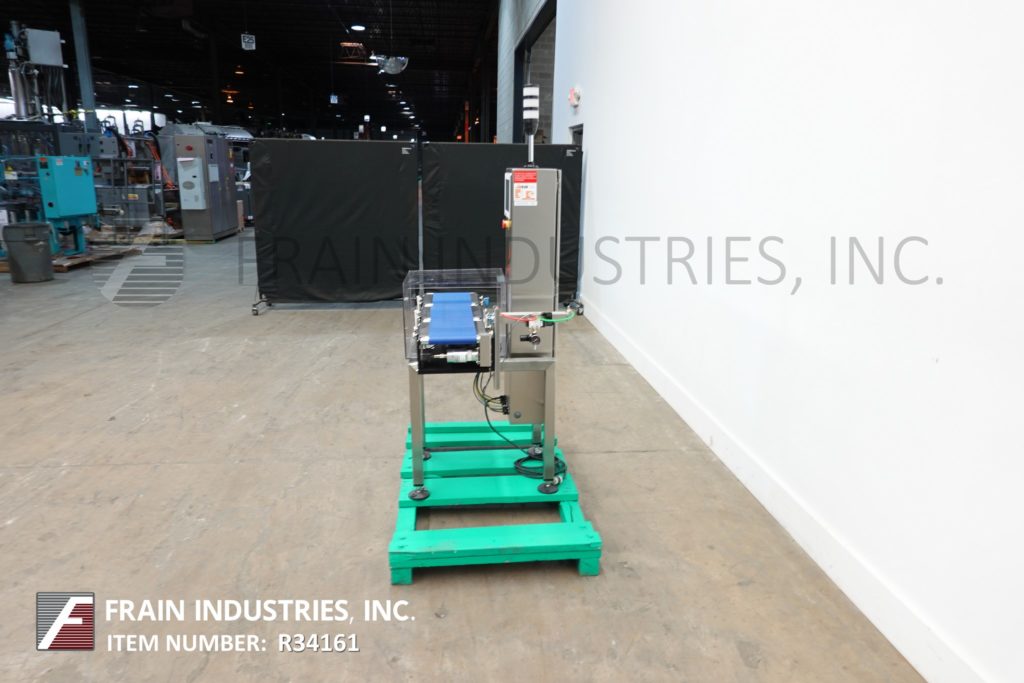

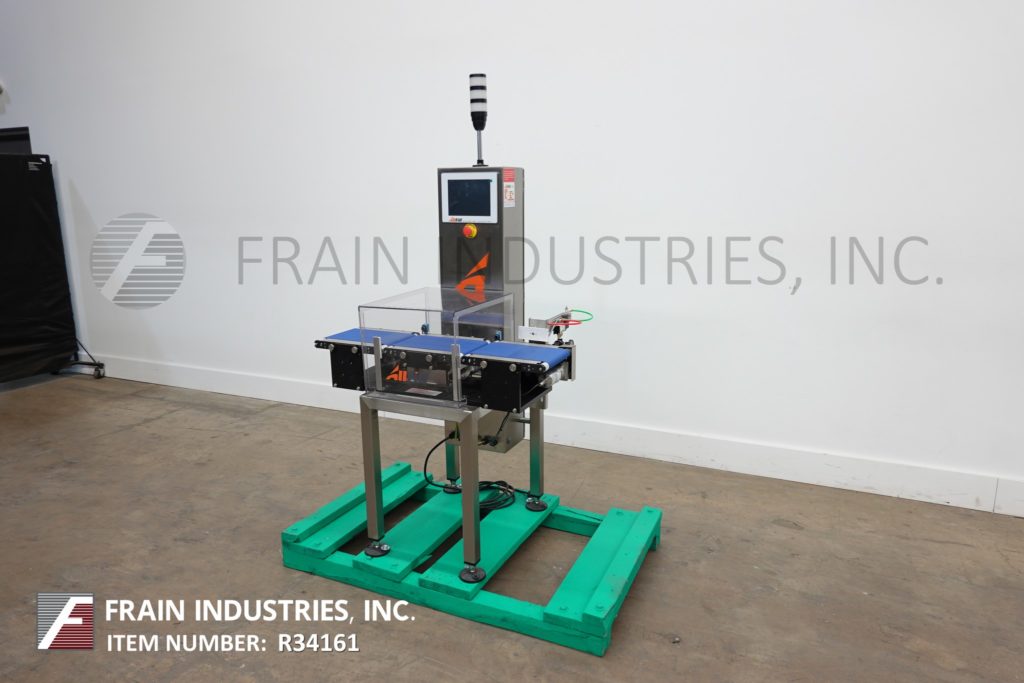

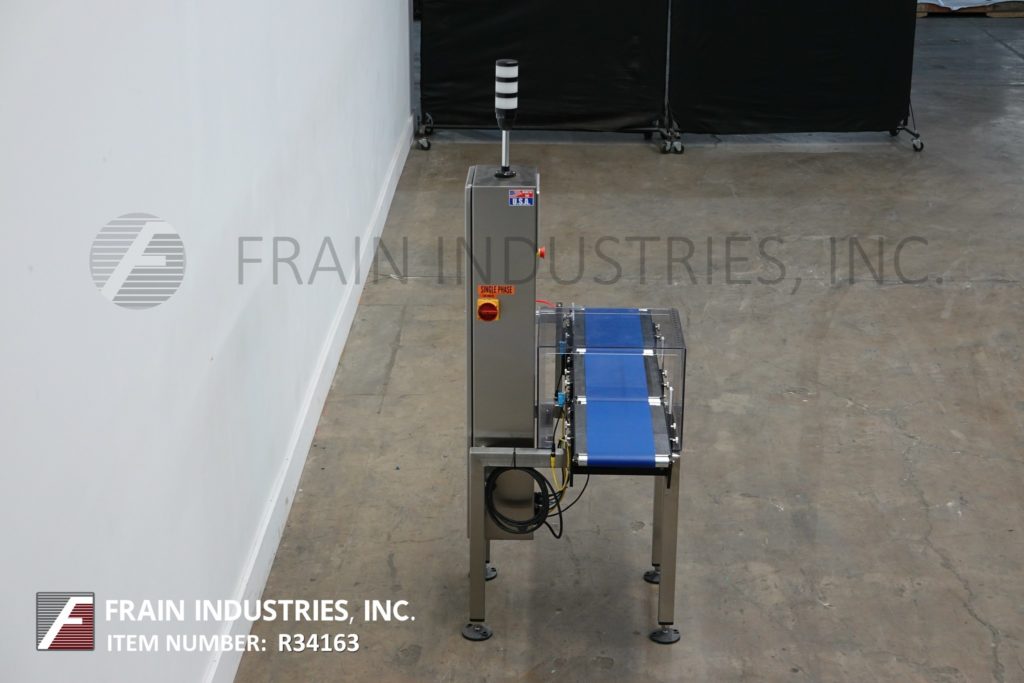

All Fill, Alpha Model PW12, stainless steel, checkweigher with number of packages per minute – depending on materials and application. Digital strain gage load cell, capable of handling packages up to 18" in Length; 8" in Width and from 5 grams to 3628 grams (8 lbs) with accuracy of + / – 1 gram depending on product. Equipped with 18" long x 8" wide in feed and discharge conveyors, 18" long x 8" wide load cell conveyor with lexan cover. Control panel with data entry has 10" COLOR touch screen with audible response, alphanumeric display plus individual weight display and push button operator interface with direct feedback and is control capable, 100 programmable product set-up memory and statis light bar. Mounted on stainless steel frame with height adjustable legs.

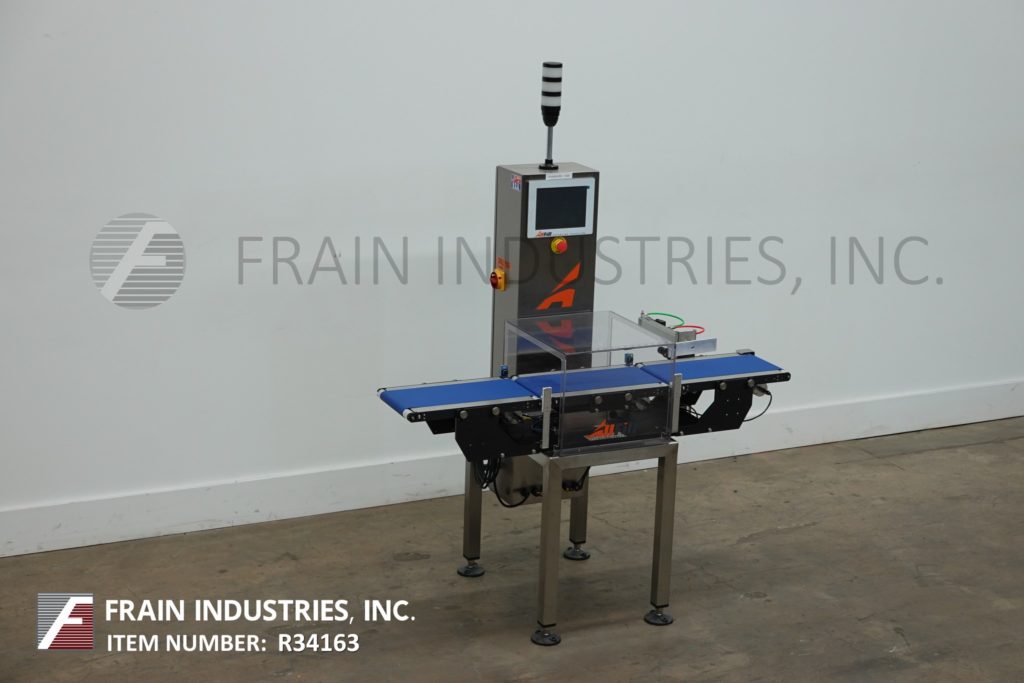

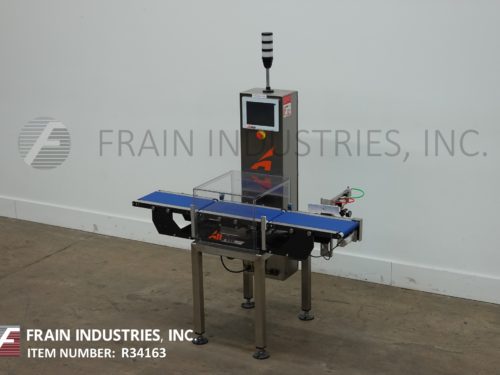

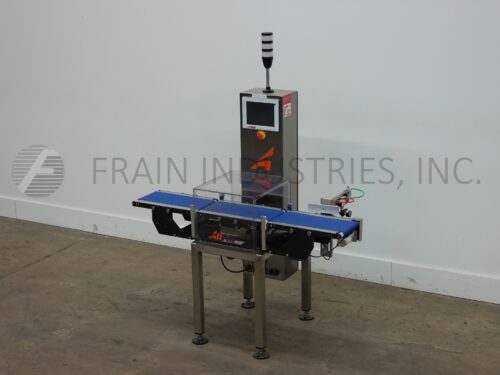

All Fill, Alpha Model PW12, stainless steel, checkweigher with number of packages per minute – depending on materials and application. Digital strain gage load cell, capable of handling packages up to 12" in Length; 8" in Width and from 5 grams to 3628 grams (8 lbs) with accuracy of + / – 1 gram depending on product. Equipped with 12" long x 8" wide in feed and discharge conveyors, 12" long x 8" wide load cell conveyor with lexan cover. Control panel with data entry has 10" COLOR touch screen with audible response, alphanumeric display plus individual weight display and push button operator interface with direct feedback and is control capable, 100 programmable product set-up memory and statis light bar. Mounted on stainless steel frame with height adjustable legs.
OAD: 40" L x 30" W x 75" H
All Fill, Alpha Model PW12, stainless steel, checkweigher with number of packages per minute – depending on materials and application. Digital strain gage load cell, capable of handling packages up to 12" in Length; 8" in Width and from 5 grams to 3628 grams (8 lbs) with accuracy of + / – 1 grams depending on product. Equipped with 12" long x 8" wide in feed and discharge conveyors and 12" long x 8" wide load cell conveyor with lexan cover over load cell. Control panel has data entry via 10" COLOR touch screen with audible response, alphanumeric display plus individual weight display with push button operator interface and is direct feedback control capable, with 100 programmable product set-ups memory and statis light bar. Mounted on stainless steel frame with height adjustable legs.
