Full case checkweighers are designed to check the weight of a full case. Full case checkweighers are used as a quality check to assure that a case is within an acceptable weight range. The acceptable weight range on a full case checkweigher can be programmed into the checkweigher controls by the full case checkweigher’s end user.
Often, a case checkweigher is configured so that under-weight readings by the full case checkweigher indicate the absence of a product or package that should be included in the case. Because of the weight of a full case, full case checkweighers are often designed with the conveyor stop reject system where the conveyor carrying the full case stops if the full case is under the allowable weight range or above the allowable weight range.

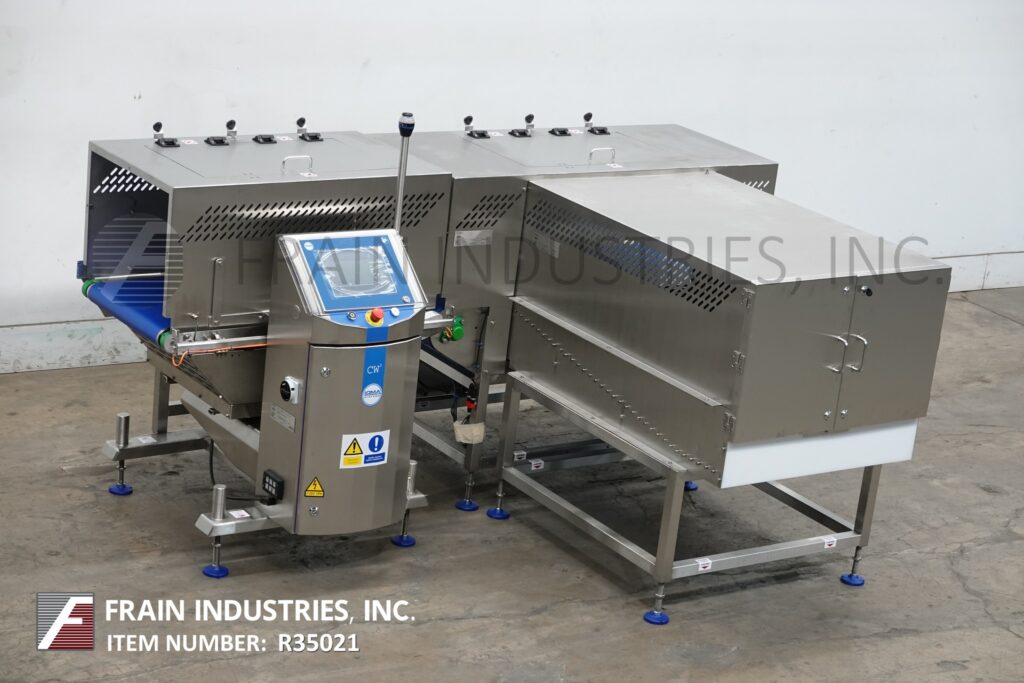

Loma, Model CW3 60000S, in line, super heavy weight, touch pad controlled checkweigher with ram arm reject and roller track discharge section. Rated up to 54 meters or 177 feet per minute with number of product – depending on materials, application, machine configuration and environment being run in. 304 stainless steel construction. Designed for weighing of large end-of-line packaged goods including big bags, boxes and cases up to 60 Kg / 60,000 grams or 132 lbs. Accuracies +/- 1.14 grams, with operating temperatures from 0 to 40 Deg C. Checkweigher equipped with 36" long x 19½" wide Blue PU product weigh belt, 50" long x 19¾" wide reject station belt, ram arm roller track reject system has a single ram reject arm to 48" long roller product discharge with (2) 15" wide roller sections. Control panel with touch screen HMI. Both mounted on height adjustable frames with top flip-up access doors.
OAD: 96"L x 92"W x 57"H

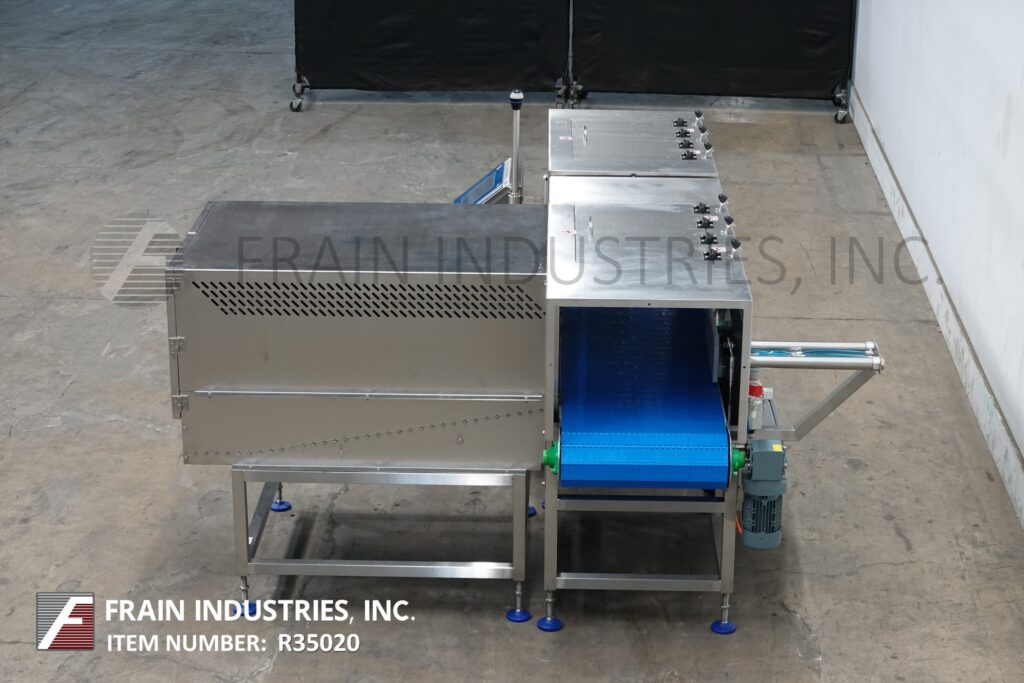

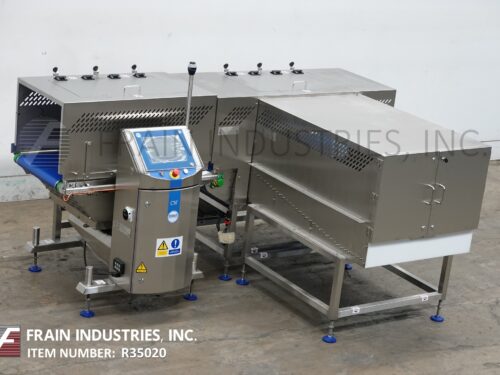

Loma Model CW3 inline, super heavy weight, touch pad control checkweigher with ram arm reject and roller track discharge section rated up to 54 meters or 177 feet per minute with number of product – depending on materials, application, machine configuration and environment being run in. 304 stainless steel construction. Designed for weighing of large end-of-line packaged goods including big bags, boxes and cases up to 60 Kg / 60,000 grams or 132 lbs. Accuracies +/- 1.14 grams, with operating temperatures from 0 to 40 Deg C. Checkweigher equipped with 30" long x 19-1/2" wide Blue PU product weigh belt. Control panel has touch pad controller with operator interface and e-stop. Data retrieval capable via USB, Ethernet, Enet, Tracs and machine running light bar. Ram arm roller track reject system has a 30" long single ram reject arm to 40" long roller product discharge has (2) 15" wide roller sections with 2"OD rollers set on 2-1/2" centers and 1/2" gaps. Both mounted on height adjustable frames with top flip-up access doors.
OAD: 130" L x 98" W x 40" H

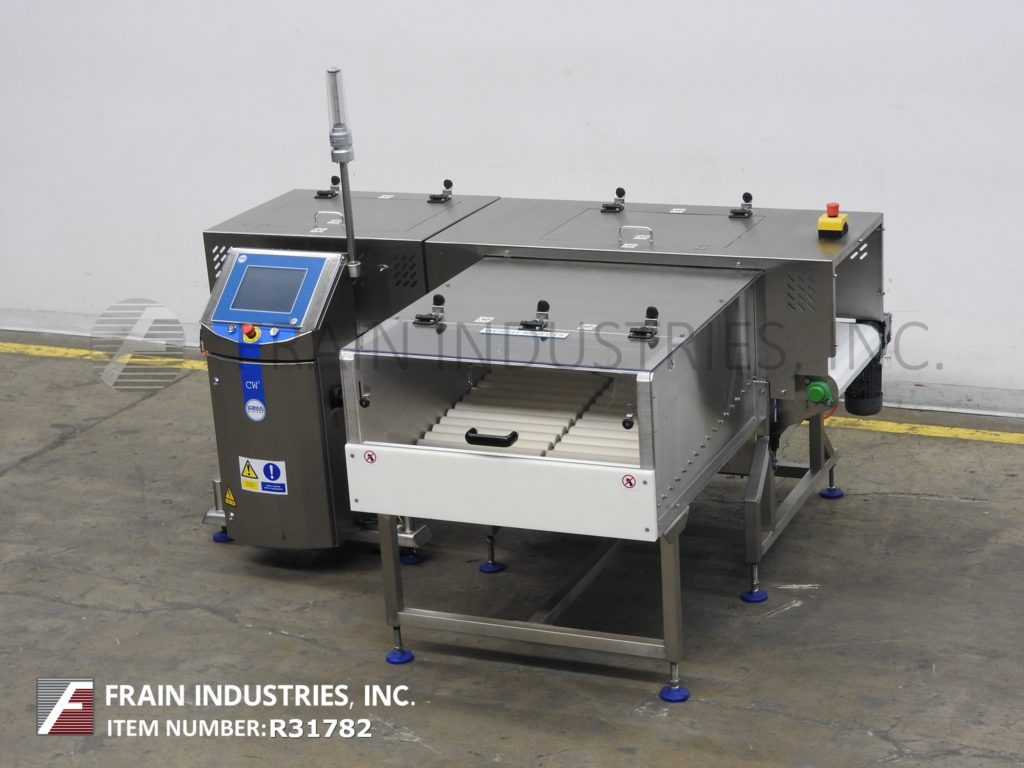

Loma Model CW3 inline, checkweigher with ram arm reject and roller track discharge. Number of product – depending on materials, application, machine configuration and environment being run in. 304 stainless steel construction. Rated up to 60 Kg. Equipped with 30" long x 19-1/2" wide product weigh belt. Touch pad controller with operator interface and e-stop. Ram arm roller track reject system has a 30" long single ram reject arm to 40" long roller product discharge has (2) 15" wide roller sections. Mounted on height adjustable frames with top flip-up access doors. Data retrieval capable via USB,
OAD: 84"L x 82"W x 63"H

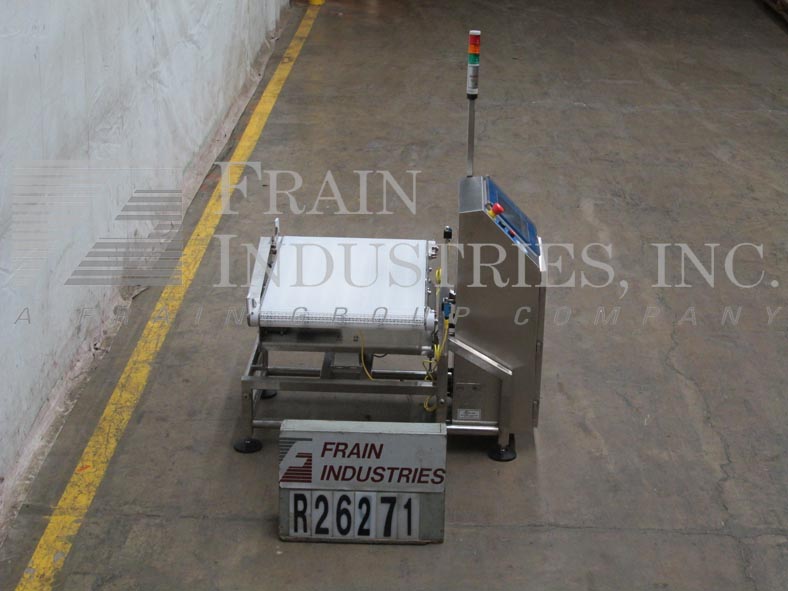

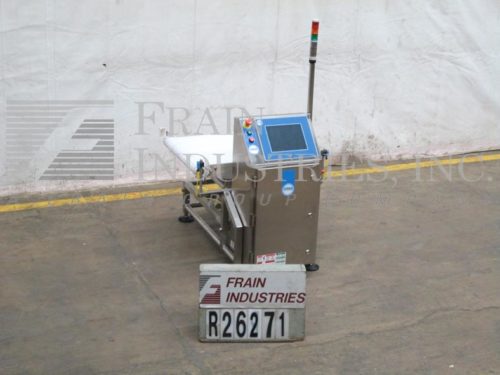

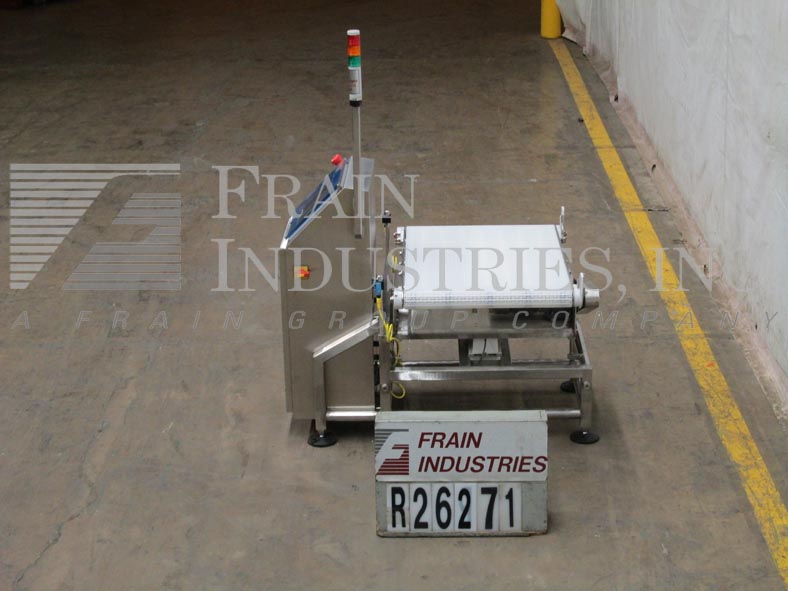

Loma Model LCW automatic, full case, heavy weight, stainless steel, checkweigher speeds – depending on materials and application. Maximum weight capacity of 99 lbs (45Kg) with accuracy to within 0.2 oz (6g) and maiximum product length of 27.5" and maximum product width of 20". Equipped with strain gauge load cell and a 24" wide x 29" long case platform with 22" wide white introlx belt. Allen Bradly controls has touch screen controller with up to 240 product memory capacity and statis light bar. Mounted on a stainless steel base frame with height adjustable leveling legs.
OAD: 32" L x 41" W x 59" H

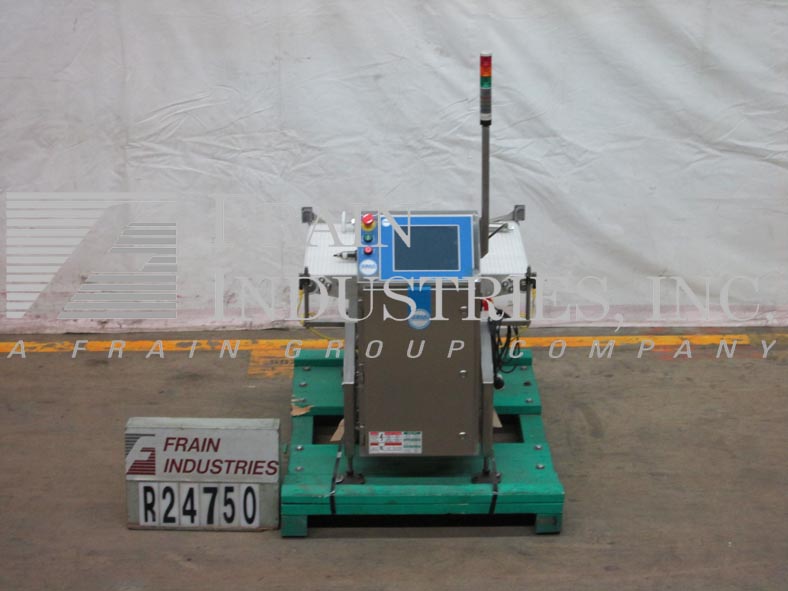

Loma Model LCW automatic, full case, heavy weight, stainless steel, checkweigher speeds – depending on materials and application. Maximum weight capacity: up to 99 lb. Accuracy: 0.2 oz (6g) Product length: up to 27.5" Product width: up to 20". Equipped with strain gauge load cell and a 24" wide x 29" long case platform with 22" wide white introlx belt. Allen Bradly controls has touch screen controller with up to 240 product memory capacity and statis light bar. Mounted on a stainless steel base frame with height adjustable leveling legs.
Full case checkweigher capable of up to 38 cases per minute – depending on materials and application. Weight capacity: up to 100 lb. Equipped with 24" wide x 28" long weigh platform with a 20" wide belt. Height adjustable legs.
OAD: 44"(L) x 31"(W) x 80"(H)
