J C Pardo & Sons Inc Kettle Single Motion 200 GAL

  Back to All Equipment

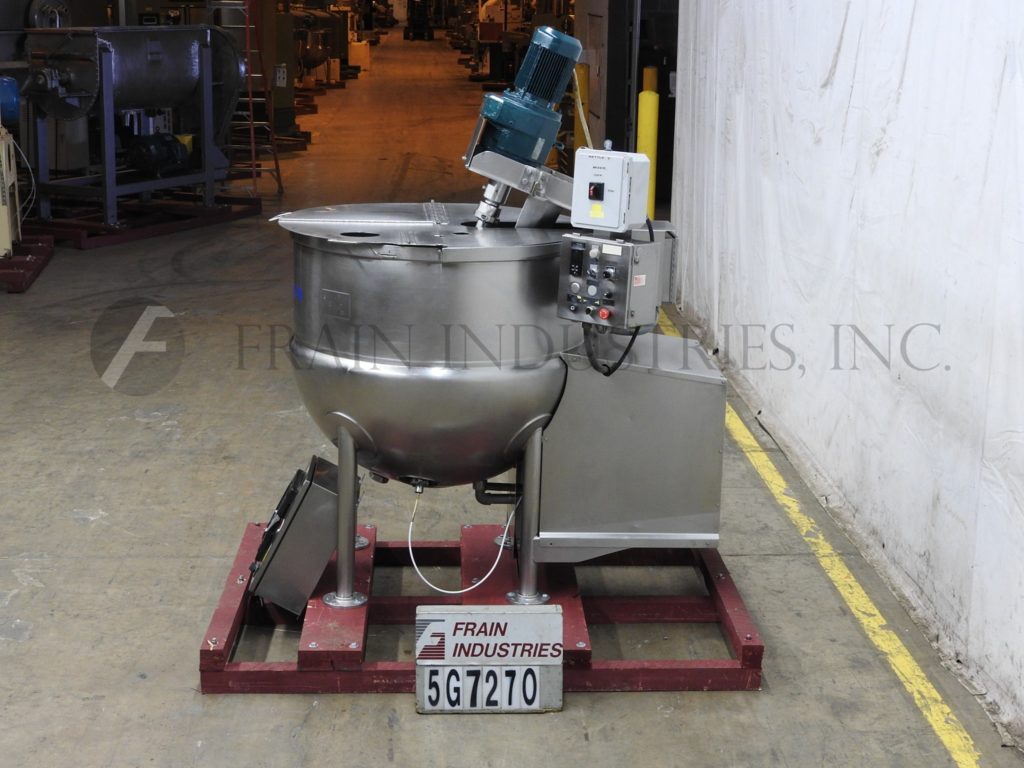

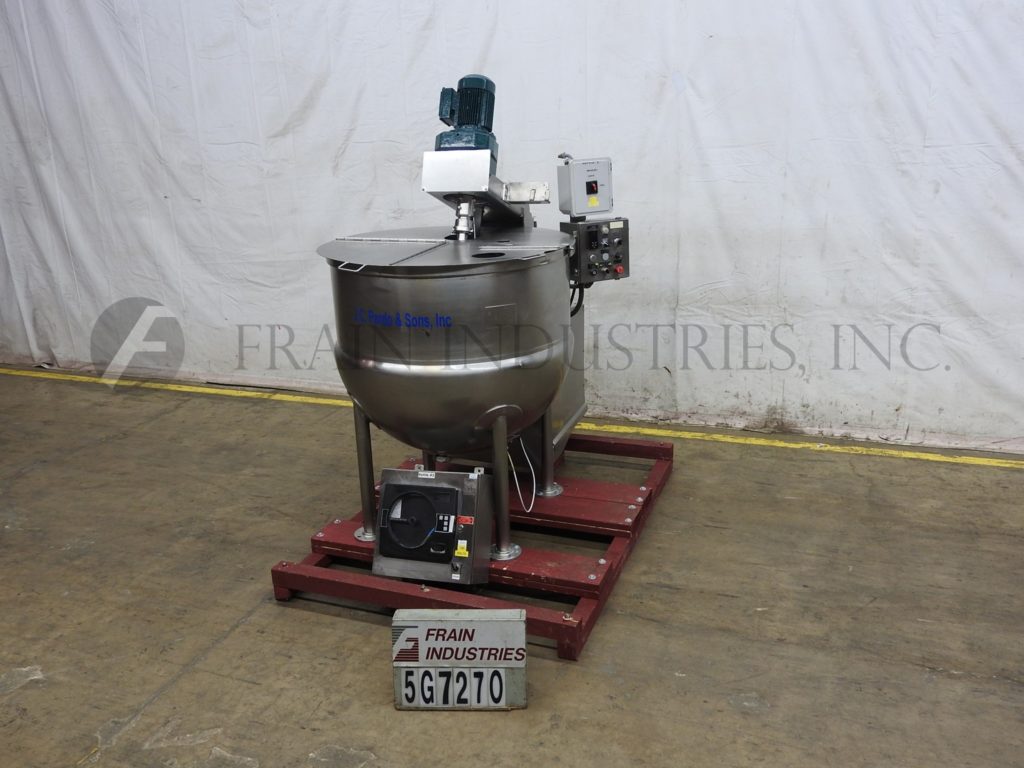

J C Pardo, 200 gallon capacity, 316 stainless steel jacketed kettle. Vessel dimensions: 46" diameter x 40" deep with 18" straight wall. Equipped with flip up covers, pressure sensor, 6" wide baffle, and chart recorder. 3 Hp side mounted slant scrape agitator with 3½" OD / 3" ID tri-clamp style bottom discharge and 16½" ground clearance.

Top Ports:
(1) 6" open vent
(1) 2½" open vent

Jacket Ports:
(4) 1¼" NPT
(1) 1" NPT

MAWP: 100 PSI @ 338°F
MDMT: -20°F @ 100 PSI
Nat’l Brd: 2498

OAD: 72"L x 60"W x 87"H
