Langen Cartoner Semi Horiz. Glue (Semi) B1

  Back to All Equipment

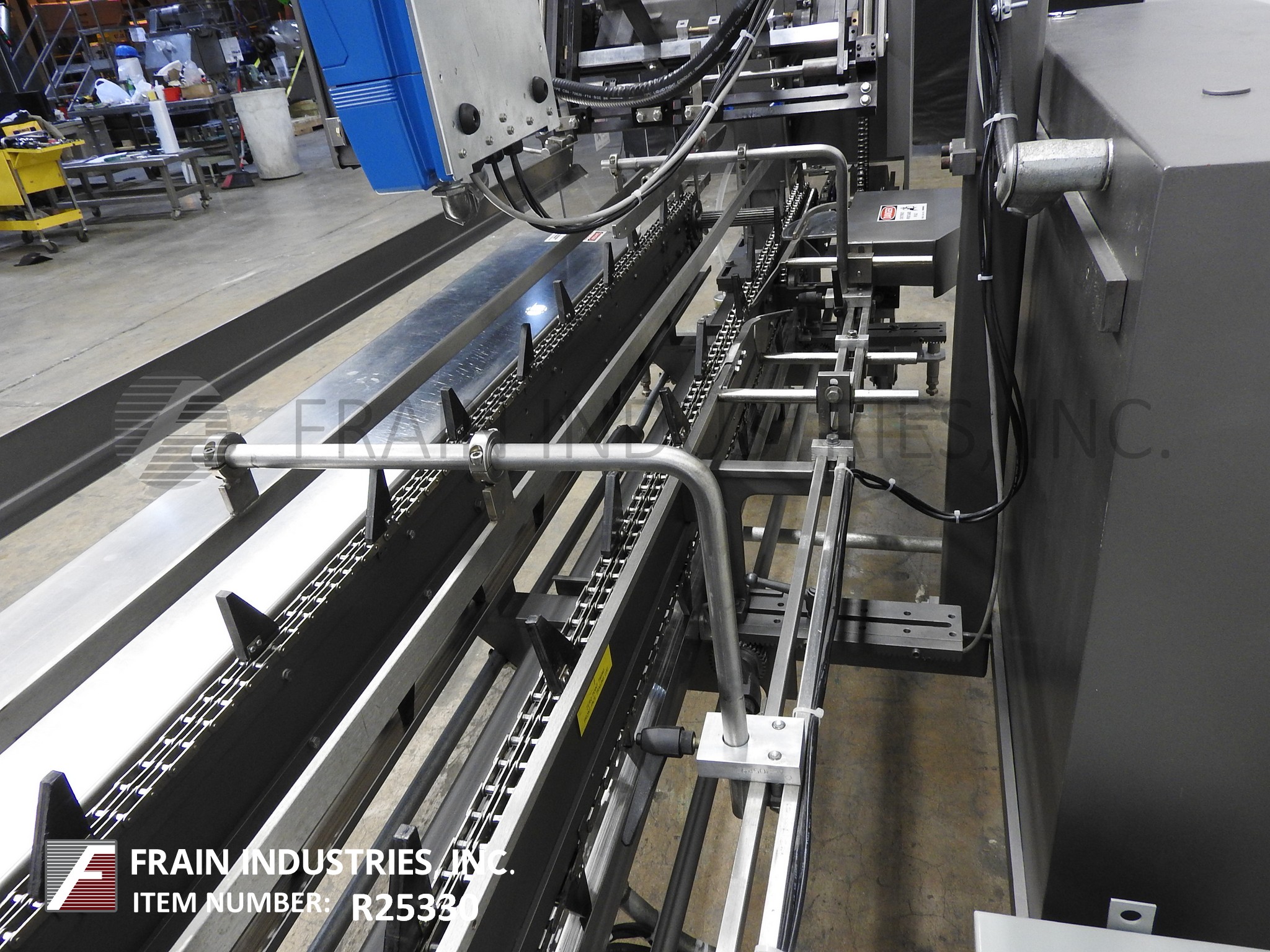

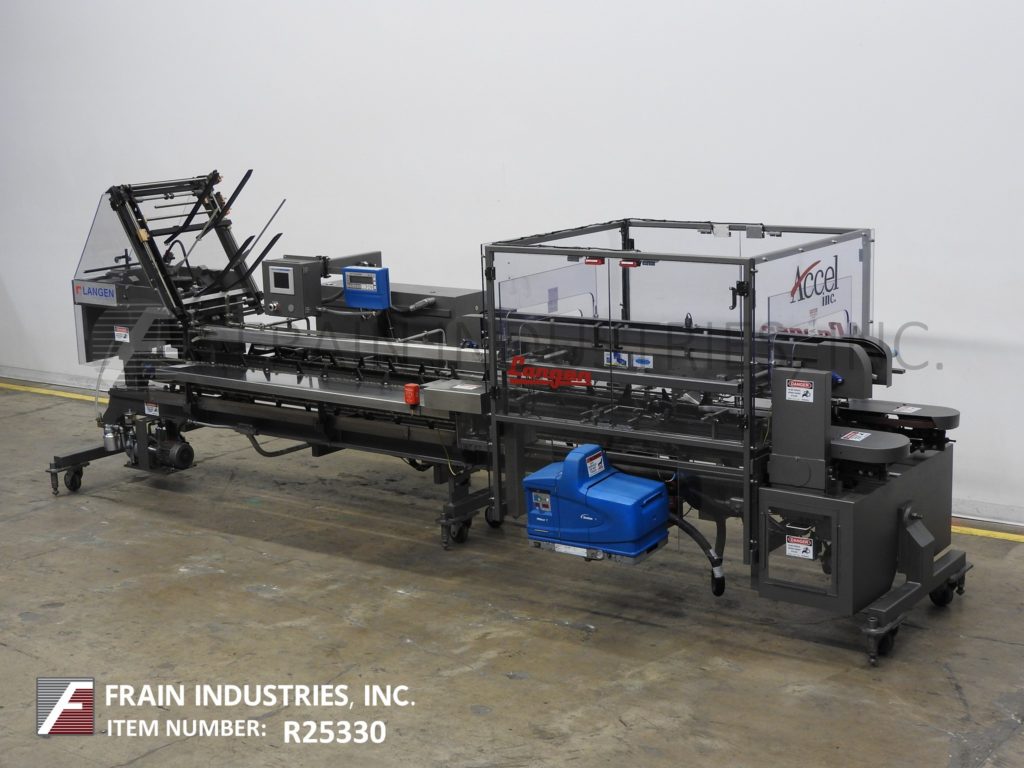

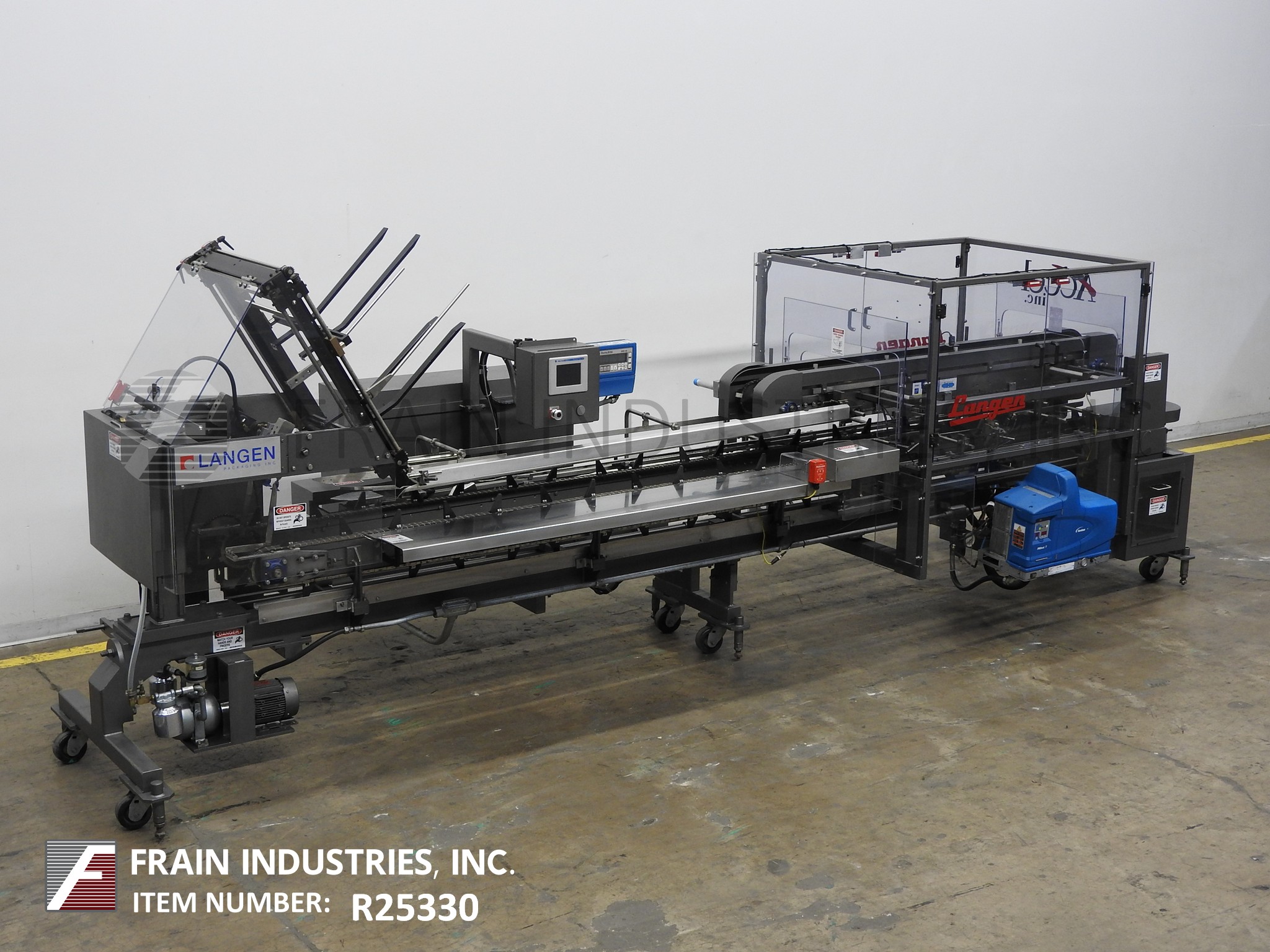

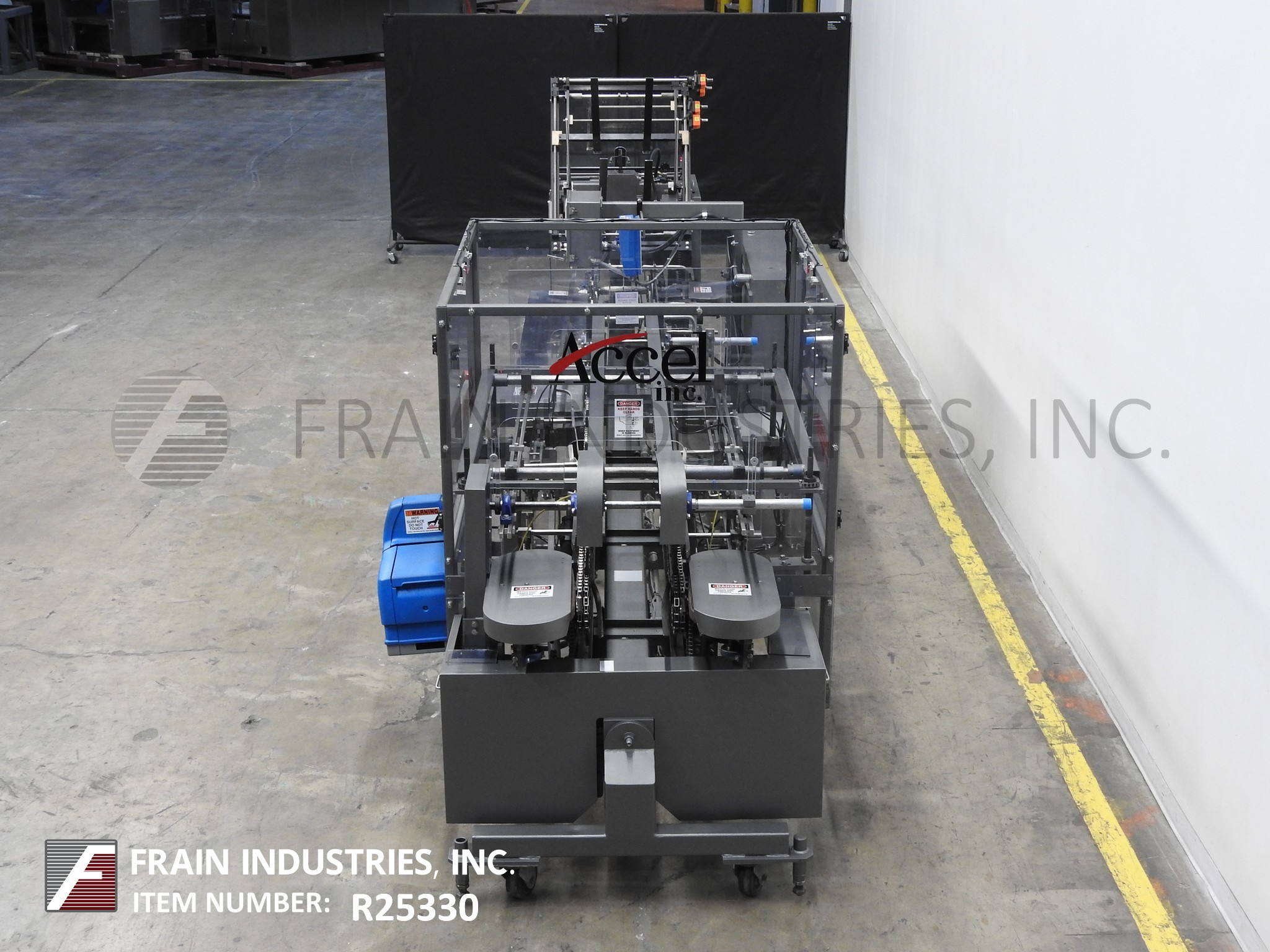

Langen Model B1-M, semi automatic, continous motion, horizontal, hot melt glue cartoner rated from 40 to 120 cartons per minute – depending on materials and application. (4) chains adjustable set on 18" centers, with 2" long x 3" high lugs. Carton size range: 1¾" to 15¾" in Length; ½" to 6" in Width; 3¾" to 14" in Depth. Equipped with 24" long blank carton magazine, (2) head rotary vacuum pic n place, 60" long product hand load area, with top squaring system, major flap plows, minor flap closers, Nordsen (2) gun hot melt glue system, 24" long dual belt compression discharge section, vacuum system Seco gages Control panel with start / stop, jog / run, glue, carton feed and vacuum pump, on and off switches with e-stop. Mounted on base frame with height adjustable legs and casters.

OAD: 224" L x 72" W x 73" H
