Lee Kettle Double Motion 100D7T

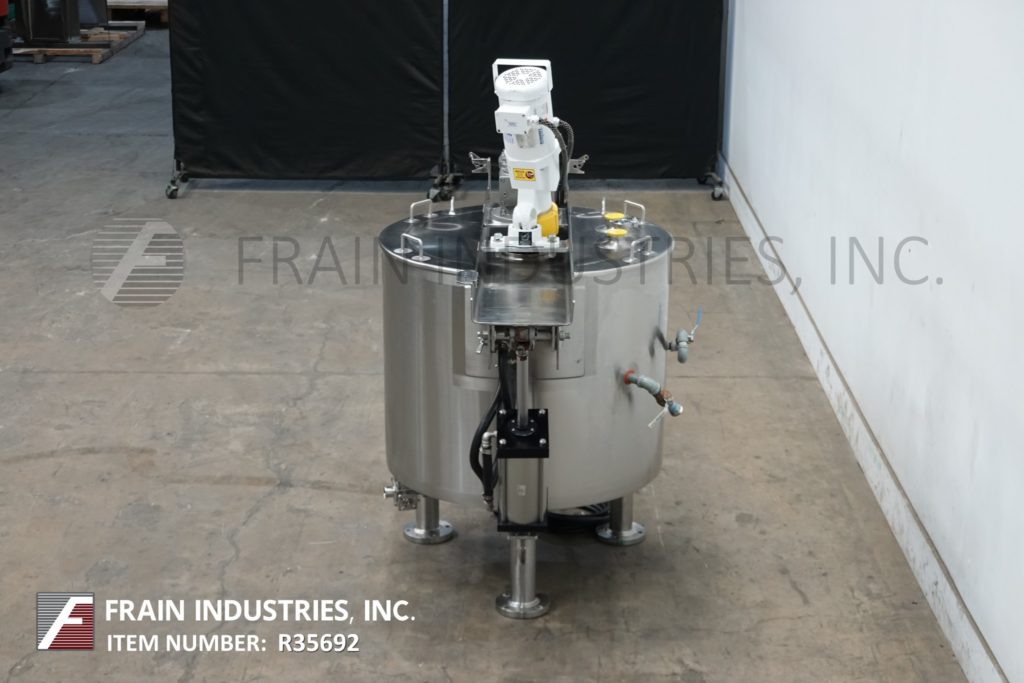

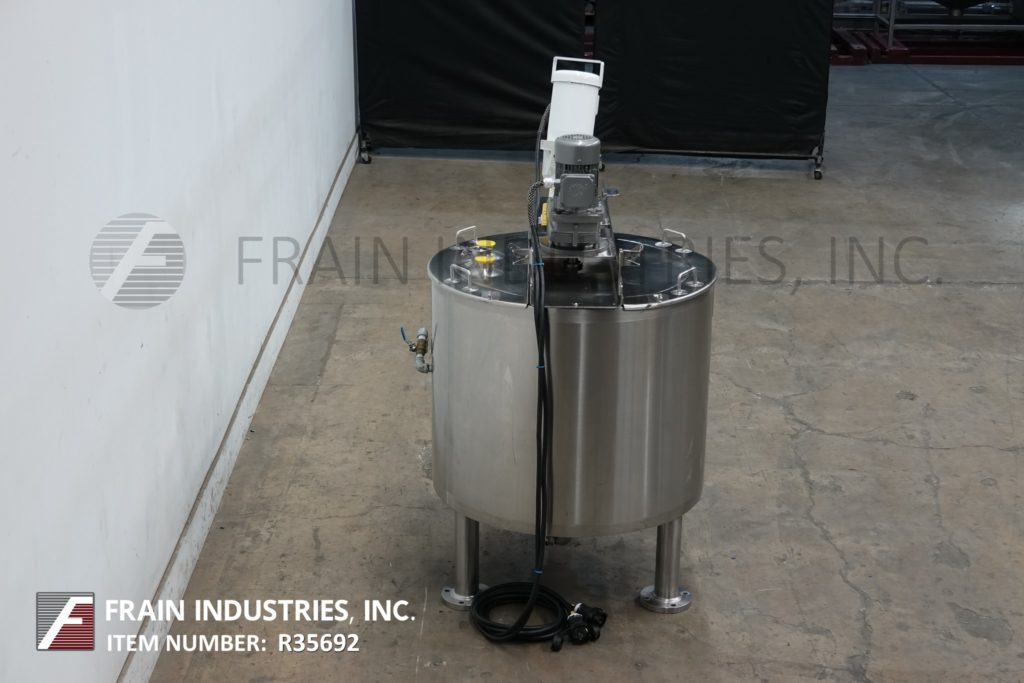

Back to All EquipmentLee, Model 100D7T, 100 gallon, 316 stainless steel jacketed and insulated double motion kettle. Vessel Dimensions: 36" diameter x 30" deep with 15" straight wall. Equipped with tilt out bridge mounted scrape surface agitation powered by a 1 hp drive and prop agitation powered by a ¼ hp drive, fixed baffle, 2"OD / 1½"ID Tri-clamp bottom discharge with 15" ground clearance. Mounted on (3) stainless steel legs.
MAWP: 90 psi @ 332°F
MDMT: -20°F @ 90 PSI
National Board: 12231
Top Access Ports:
(3) 2½"OD / 2"ID Tri-clamp
Jacket Ports:
(2) 1" NPT
(1) ¾" NPT
OAD: 62"L z 43"W x 75"H
