Lee Tank Reactor SS 1000LDBT

  Back to All Equipment

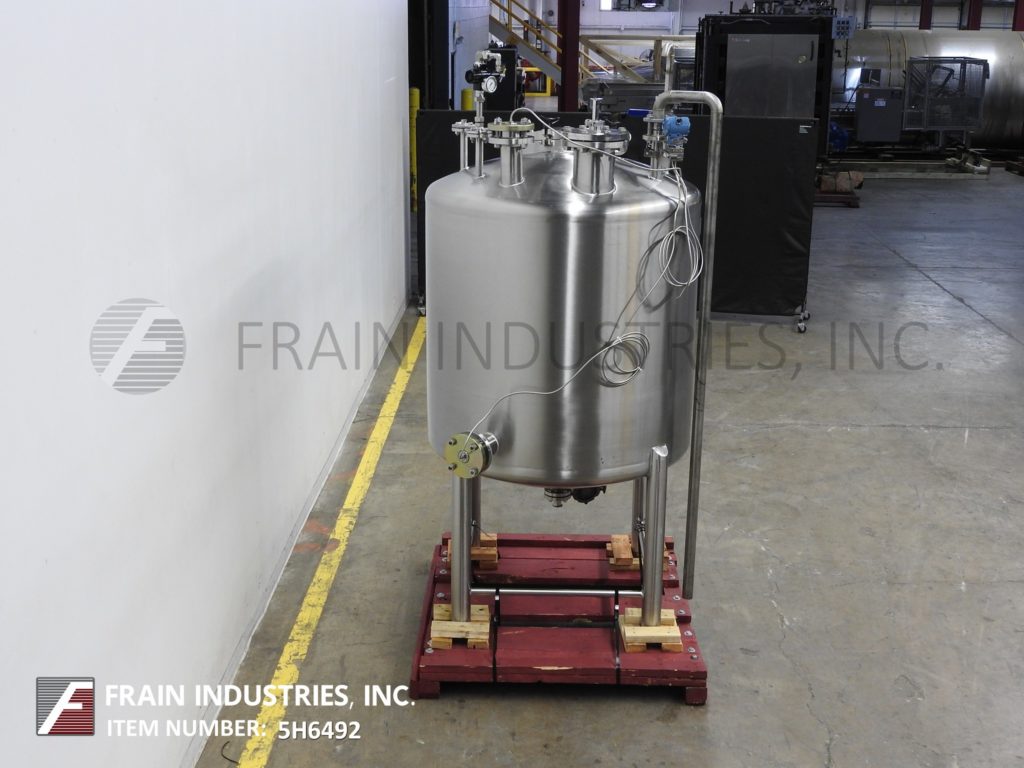

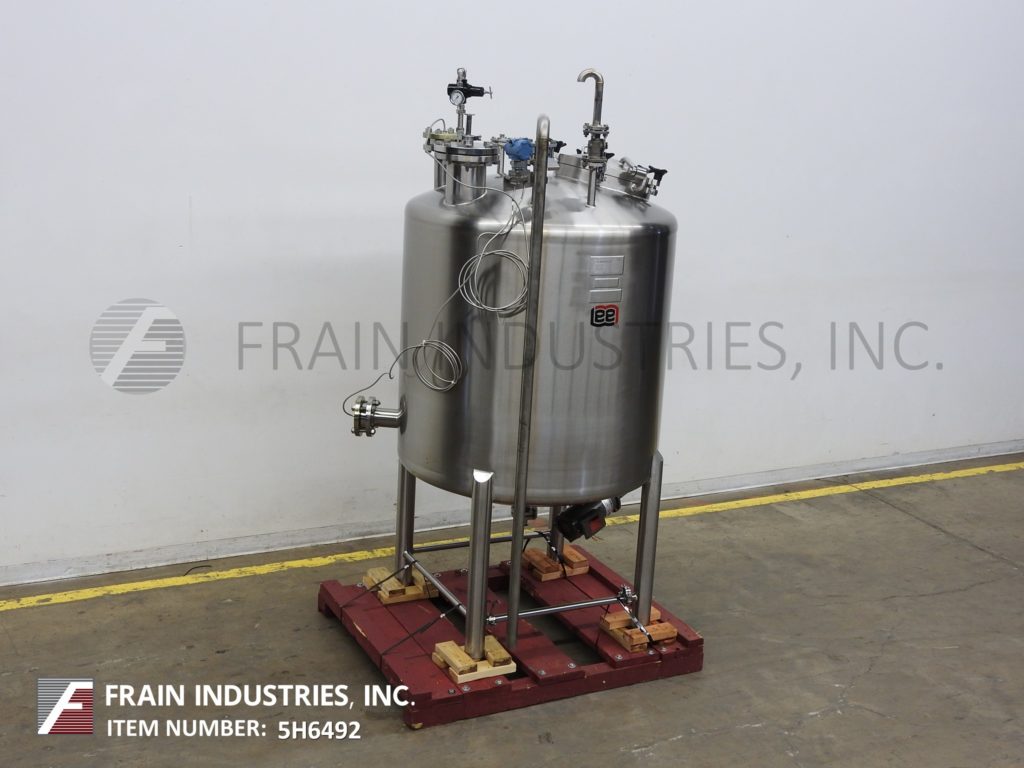

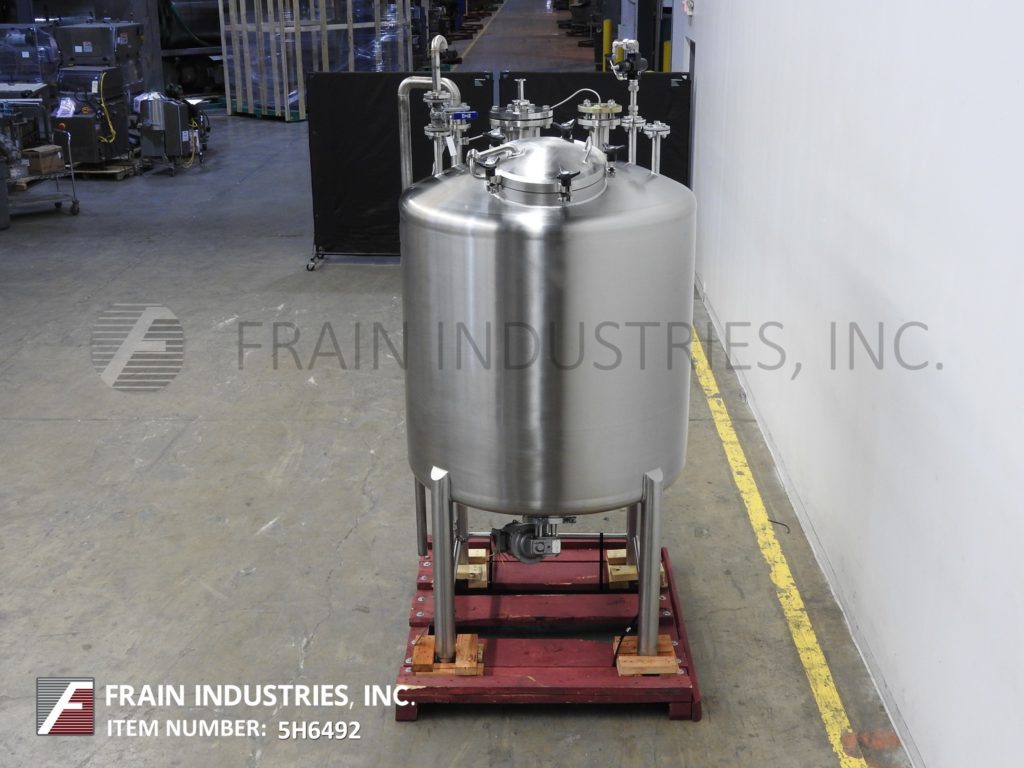

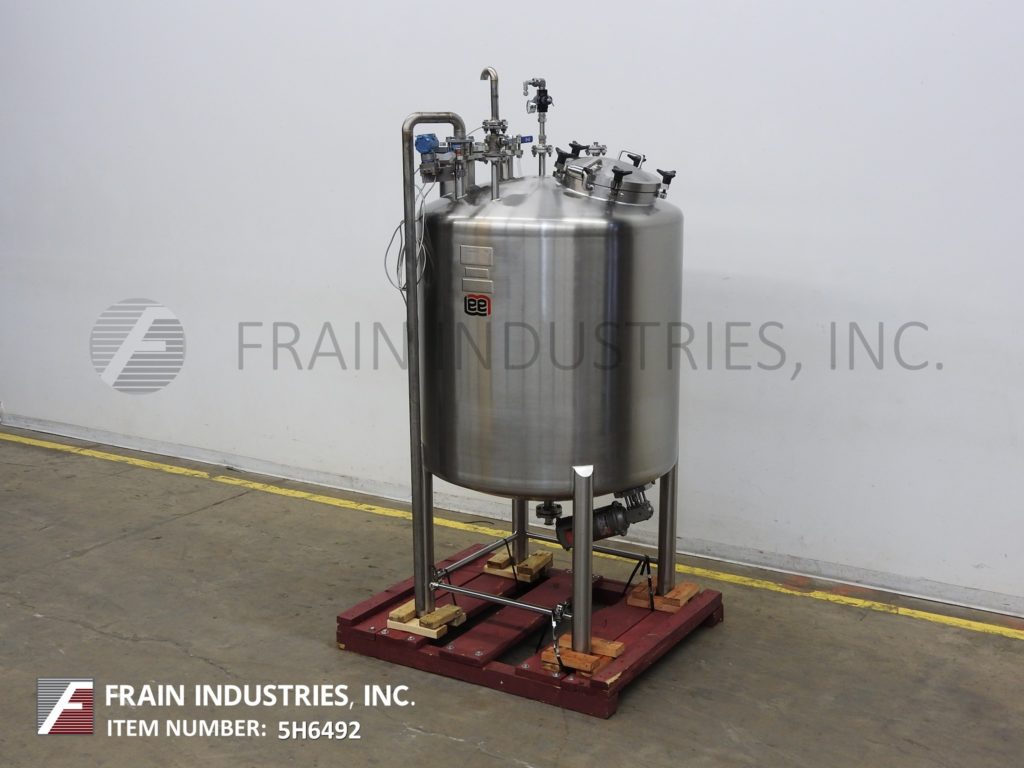

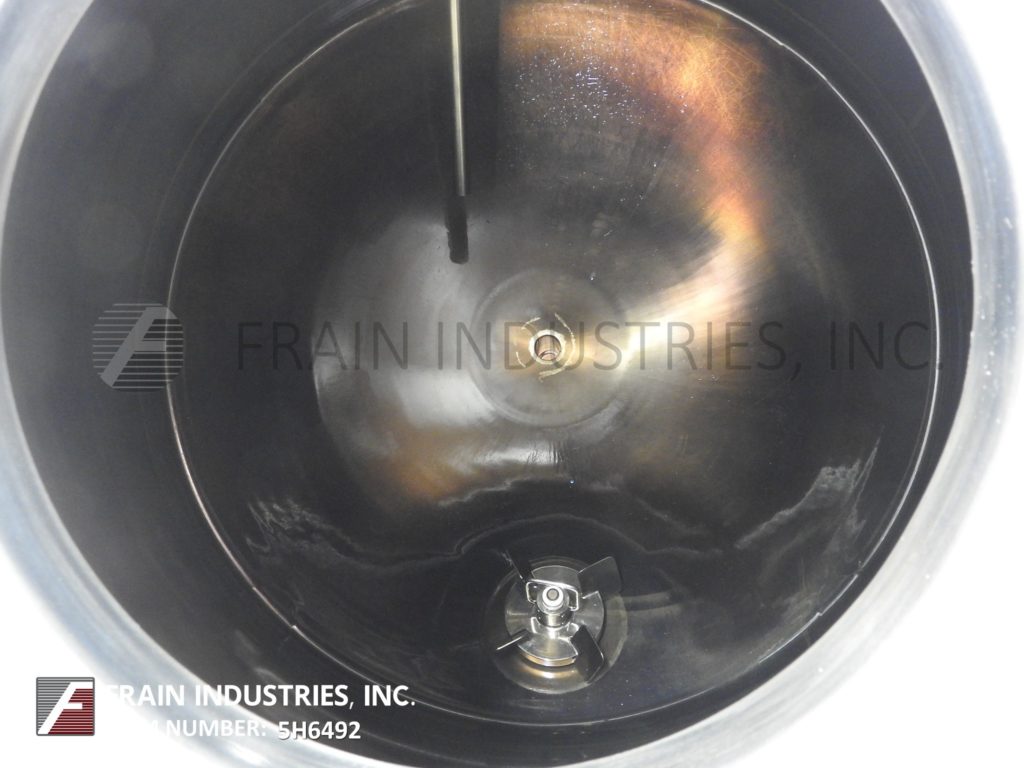

Lee, 1000 Liter capacity, 316 stainless steel, vacuum and internal pressure reaction tank. Vessel dimensions: 48" diameter x 50" deep with a 42" straight wall. Equipped with 16" diameter bolt down manway, bottom prop agitation powered by a ¾ hp drive and 2"OD / 1½"ID Tri-Clamp style discharge with 18" ground clearance. Mounted on (4) stainless steel legs.

Top Ports:
(1) 6" ID Flange
(1) 3" ID Flange
(1) 1½"ID Flange
(3) 1" ID Flange

Side Ports: (1) 3"ID Flange

Nat’l Brd: 5981
MAWP: 50 PSI @ 150°F (Vessel)
MDMT: -20°F @ 50 PSI (Vessel)

OAD: 56"L x 50"W x 105"H
