MRM Elgin Filler Can Piston RPF-16

  Back to All Equipment

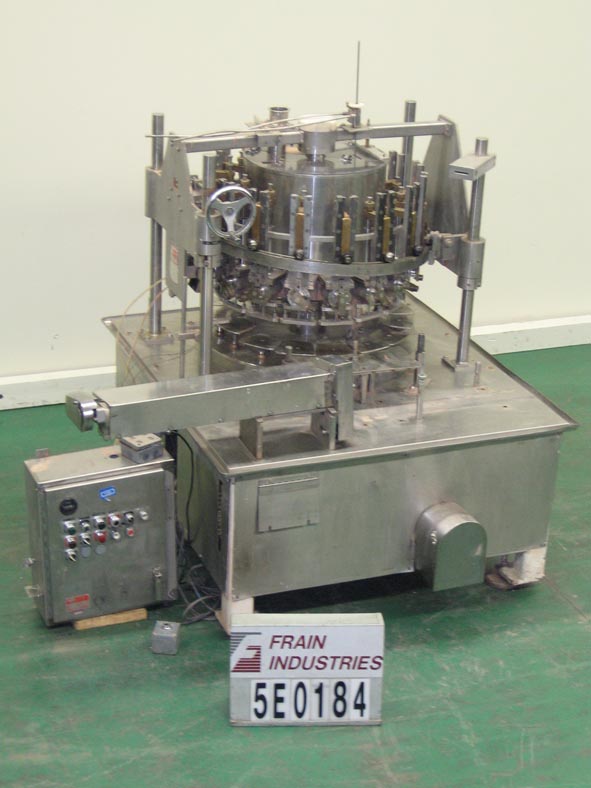

Automatic, 16 head, rotary, piston filler capable of filling up to 240 containers per minute. Containers: up to 5" diameter x up to 12"H. Currently equipped with 2.5oz pistons. wormscrew to starwheel infeed, starwheel discharge, 6"W x 5 1/2"D platforms, 1/4" diameter fill nozzles, 50 gallon product tank with float valve, 3" diameter tri-clover product inlet, E-stop, hand crank volume adjustment for all pistons, volume adjustments for individual pistons, neck centering guides, and no container / no fill. Mounted on frame with height adjustable feet and stainless steel guarding.
With proper change parts, fill volume up to 35oz.
OAD: 60"L x 84"W x 84"H
