NSI Newlands Tank SS Single Wall LT-30B

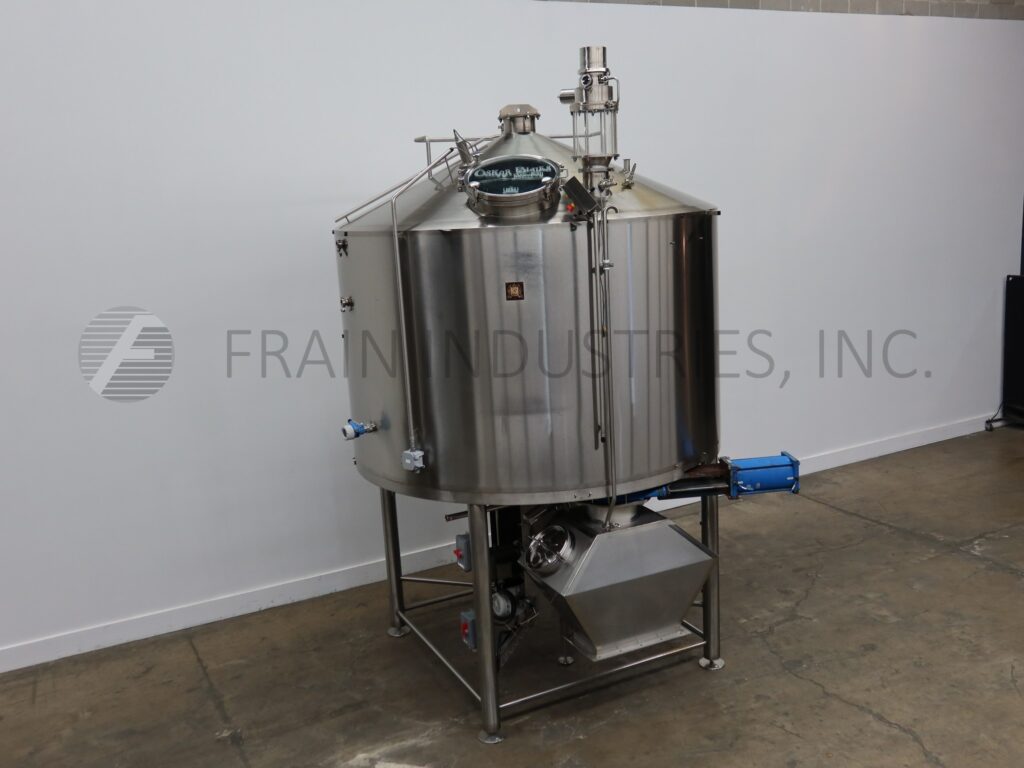

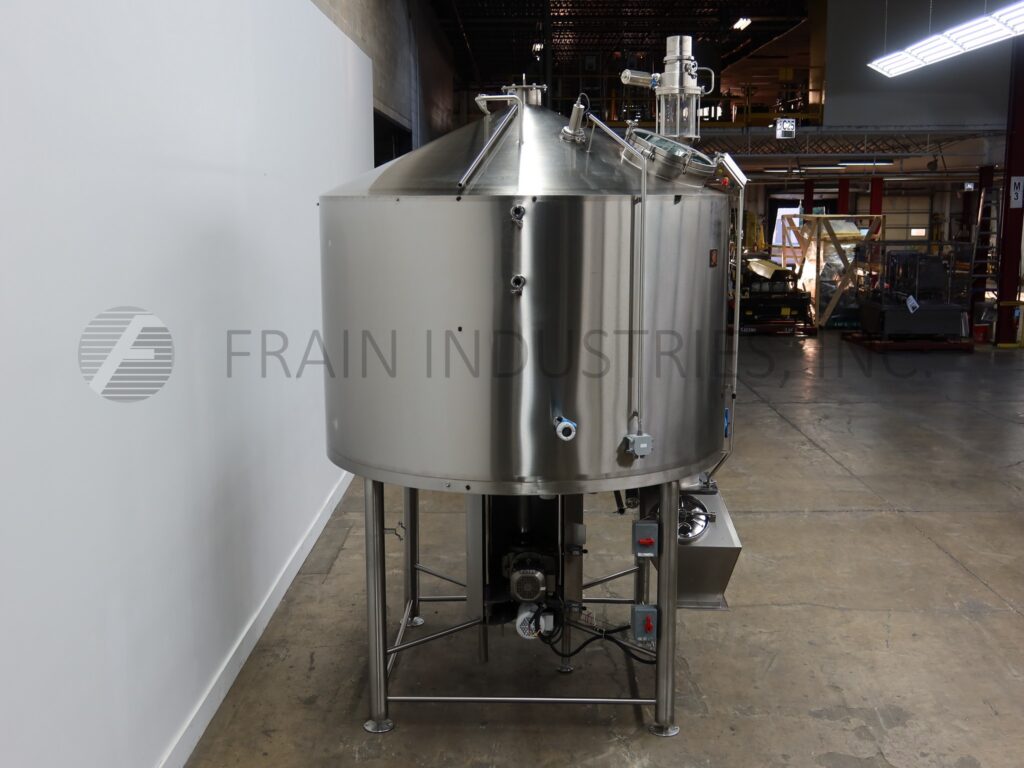

Back to All EquipmentNSI Newlands, 40 BBL, 304 stainless steel, cone top insulated tank. Vessel Dimensions: 96" ID x 63" straight wall with a flat bottom. Top 6" Tri-Clamp grist hydrator, (2) 1½" Tri-Clamp ports and spray balls. Equipped with 19" ID top manway with bolt down cover. Bottom draw off 2" Tri-Clamp, under screen 1½" Tri-Clamp, and 12" ID discharge with 16" ground clearance. Bottom mounted double angle & step rake agitation.
Top ports:
(2) 2" OD x 1½" ID Tri-Clamp
(1) 6" ID Tri-Clamp Grist Hydrator
(1) 8" ID Air In/Out to Lower/Lift The Plow
Side Port:
(2) 2" OD x 1½" ID Tri-Clamp
Bottom Port:
(1) 2" OD x 1½" ID Tri-Clamp Under Screen Sprayer
(1) 2½" OD x 2" ID Tri-Clamp Draw Off
(1) 12" ID Discharge
OAD: 120"L x 106"W x 160"H
