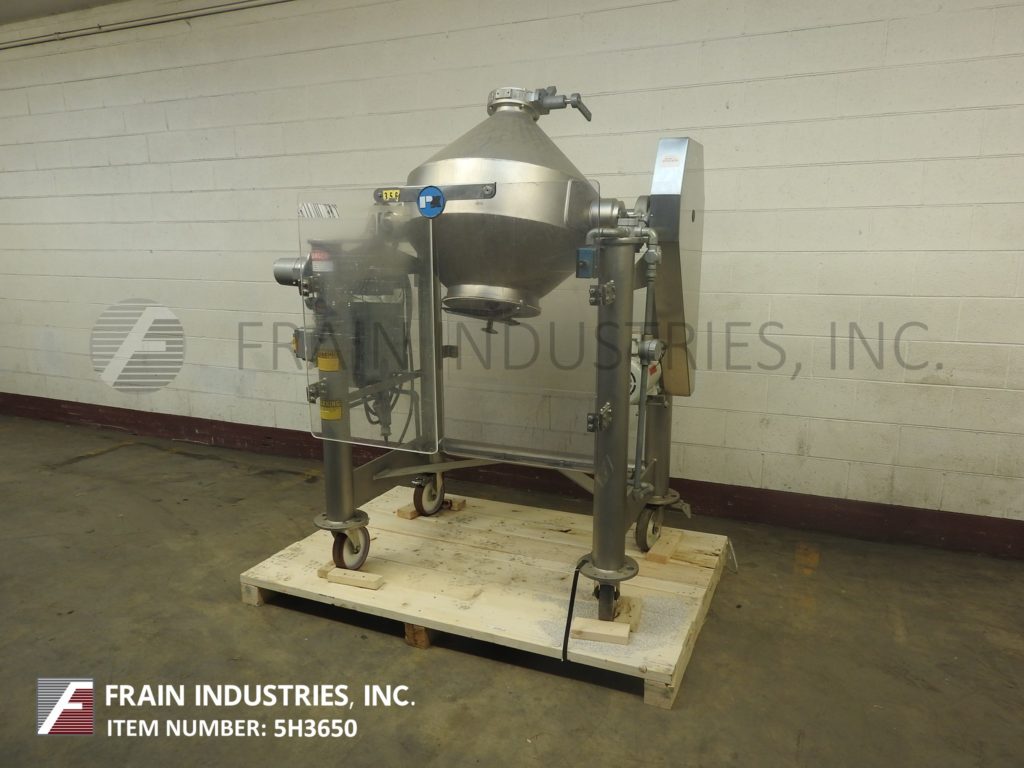

Patterson Kelley Mixer Powder Double Cone 5 FT³

  Back to All Equipment

Patterson Kelly, 5 ft³, stainless steel, double cone mixer. Rated to 106 lbs per ft³ and Ibs per hour – depending on materials, application and machine configuration. Equipped with (1) 14" ID product port with clamp down cover, 28" long x 30" diameter shell powered by 1 hp motor drive and 6" ID butterfly valve discharge. Requires 85" ceiling clearance with 20" swing radius / 40" swing diameter. Control panel, has start / e-stop and reset push buttons and run/jog control switch. Mounted on stainless steel base frame with casters and lexan guarding.

OAD: 70"L x 46"W x 80"H
