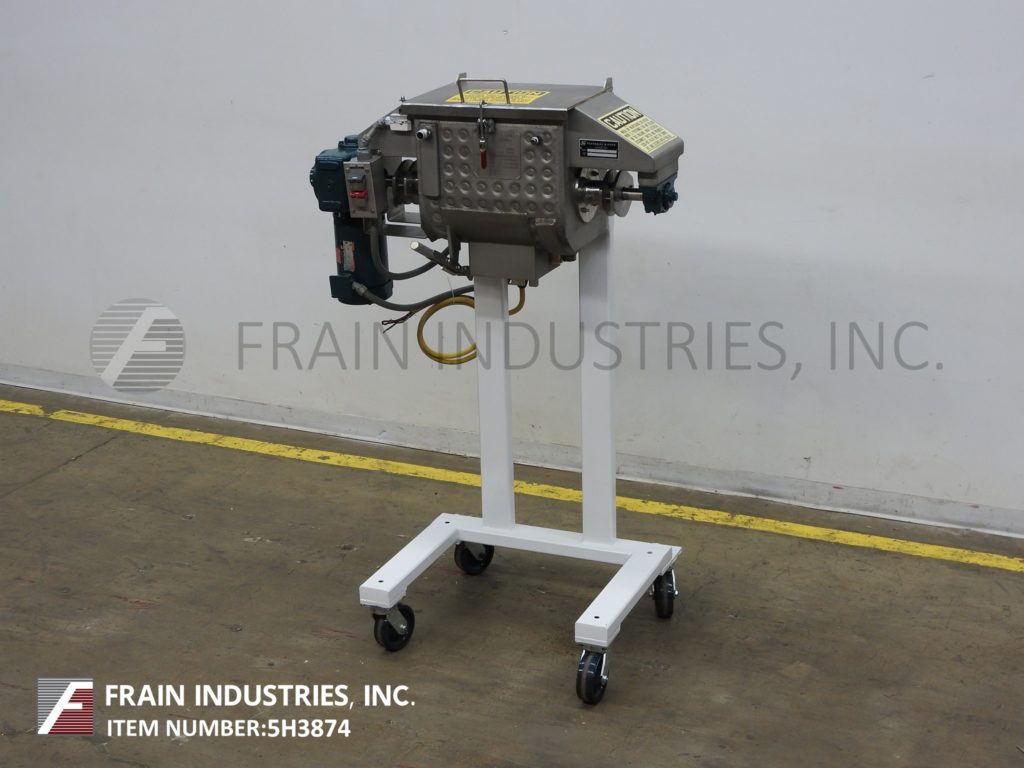

Photo of Beardsley & Piper / Sandmold Mixer Powder Ribbon S. S. PRB1

Beardsley & Piper / Sandmold Mixer Powder Ribbon S. S. PRB1

  Back to All Equipment

Beardsley & Piper, Model PRB1, 1 ft³ workable, jacketed double ribbon mixer with 304 stainless steel contact parts. Inner mixing chamber dimensions: 18" in Length; 12½" in Width; 16" in Depth. Equipped with flip up cover, 1½" OD mixing shaft with 1" wide x ¼" thick (outer) and 1½" wide x (1/8)" thick (inner) stainless steel ribbons powered by 2 Hp motor drive. 3" OD center bottom manual flush mount gate discharge with 47" ground clearence. Mounted on painted base with casters.

Jacket Fittings:
(1) 1" NPT
(2) ¾" NPT

MAWP: 110 psi @ 350°F
Nat’l Brd: 671

OAD: 48"L x 34"W x 70"H
