Seidenader Pharmaceutical Tab/Cap Ins. DS10/L650

  Back to All Equipment

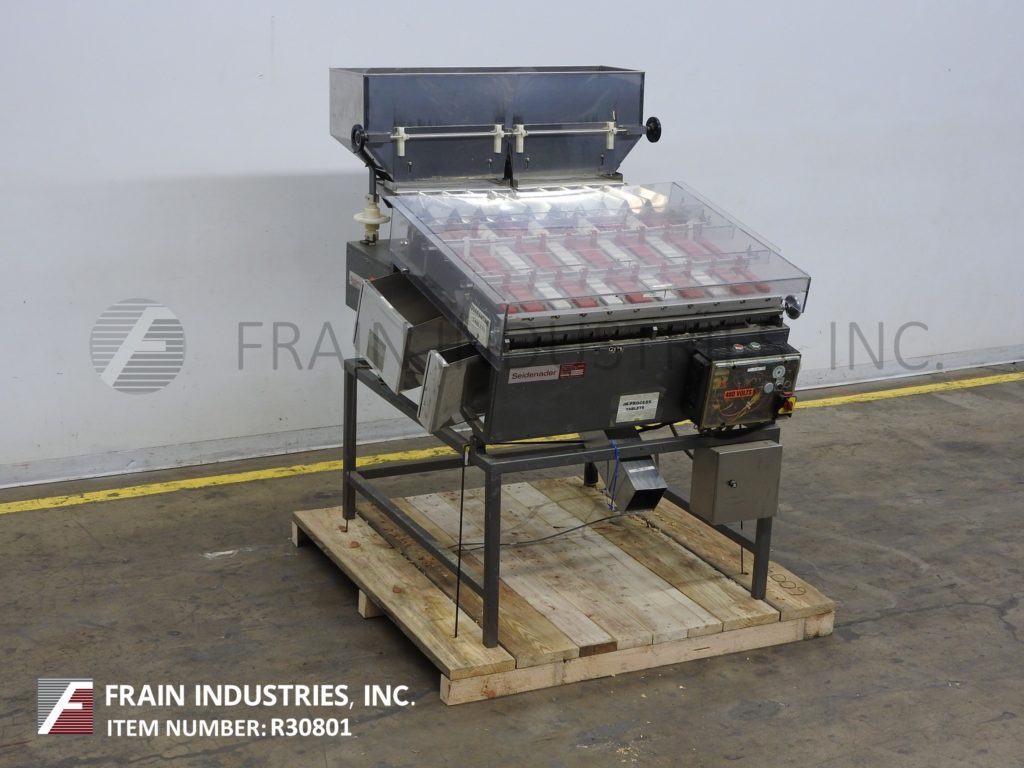

Seidenader Model DS10/L65, stainless steel, tablet sorter, rated up to 1000 kg of tablets per hour – depending on materials and application. Equipped with dual 23" long x 10" high x 10" slant bottom, stainless steel tablet feed hoppers with (10) 12" long vibratory tablet feed chutes to (10) hand crank adjustable sorting lanes for different size channel widths for different size tablets and has 28" long dual tablet transfer rollers per lane and has fast lane adjustment for new tablet formats and (3) discharge chutes for too thin, too thick and good tablet thickness and is capable of sorting tablet thickness down to tolerances of + / – 0.05mm. Control panel has vibratory controller with start, stop, e-stop controls. Mounted on (4) leg stainless steel base frame.

OAD: 64" L x 54" W x 69" H
