Pharmaceutical Machines are designed to hand various operations in the packaging of pharmaceutical products. Frain Industries offers a complete line of fillers for the pharmaceutical, animal health, ophthalmic, biotech and related markets. These fillers are available as stand-alone machines, equipment or as part of turnkey systems.

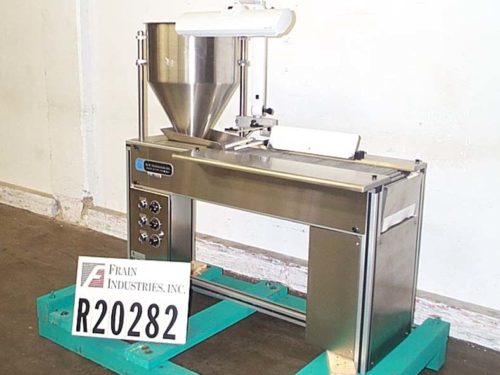

Automatic thickness and length sorting system for both tablets and capsules with number of tablets or capsules per minute – depending on materials and application, product size, shape and frictional characteristics. Equipped with 2 cubic foot hopper, vibratory plate and (3) classifying bins (2 for reject and 1 for acceptance) and variable speed. Hand crank adjustments for roller size and slope angle.Control panel has start, stop controls. Mounted on base frame.
OAD: 62" L x 48" W x 72" H

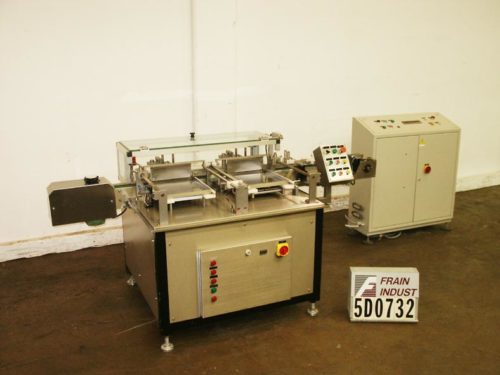

BE.Mak Automatic right to left direction of travel. tray loader that loads containers into 3 sided trays with number of container and trays per minute – depending on materials and application. Stainless steel contact parts. Tray size dimensions: 11.5" wide by 15.5" deep. Equipped with variable speed 2" wide stainless steel mesh conveyor and interlocking guarding, container row pusher stacking arm. Control panels have start,stop ande-stop controls.
OAD: 96" L x 44" W x 44" H

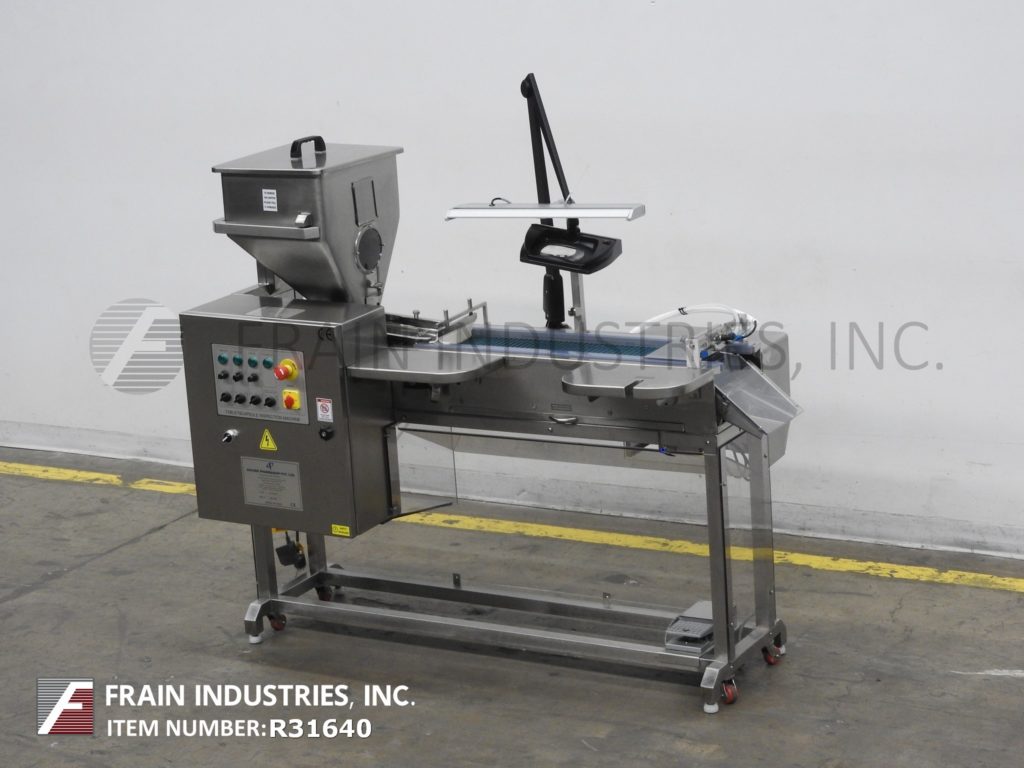

Accura Pharmaquip PVT. LTD. Model AP-TCI, single operator inspection belt, rated up to 150,000 capsule per hour – depending on materials, application and operator dexterity. 316 stainless steel contact parts. Equipped with 14" wide x 16" long x 20" deep product hopper with lift off cover, vibratory feeder, 32" long x 8" roller belt has 8" long x 1/2" OD rollers with 32" long inspection area and 360 Deg rotation of product, overhead lamp with inspection magnifing glass. Control panel with vibrator, conveyor, roller on / off switch with speed control dials, main machine static eliminator and inspection lamp on / off and e-stop controls. Mounted on stainless steel base with casters, leveling legs and foot pedal controller.
OAD: 60" L x 36" W x 64" H

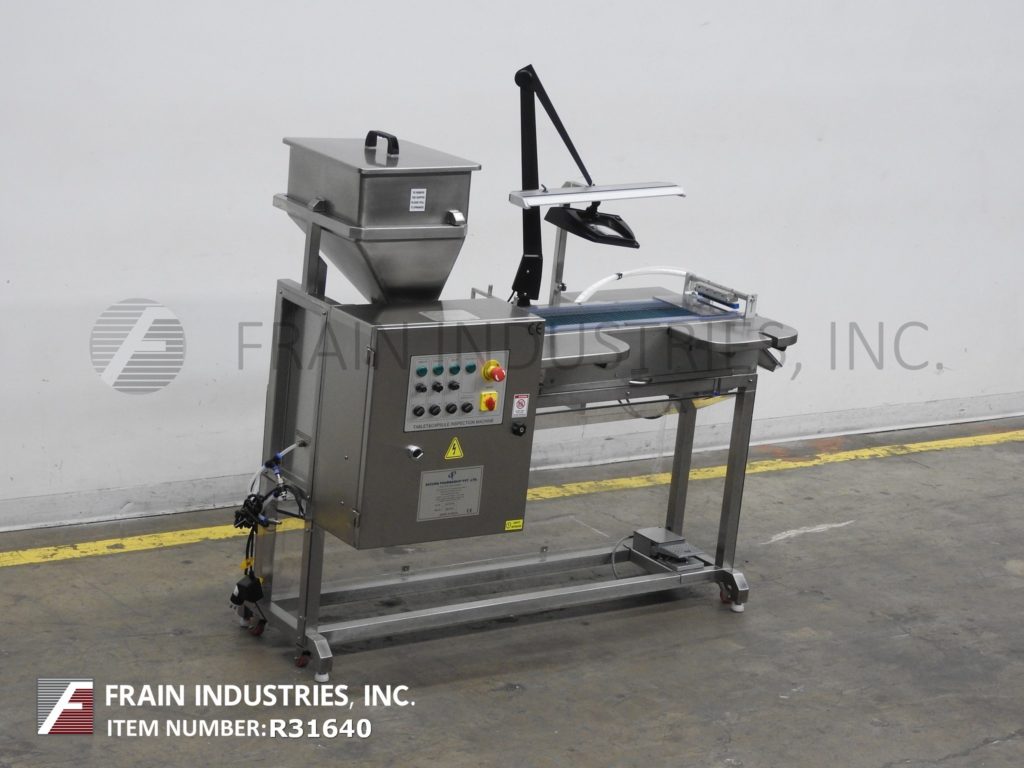

Accura Pharmaquip PVT. LTD. Model AP-TCI, single operator inspection belt, rated up to 150,000 capsule per hour – depending on materials, application and operator dexterity. 316 stainless steel contact parts. Equipped with 14" wide x 16" long x 20" deep product hopper with lift off cover, vibratory feeder, 32" long x 8" roller belt has 8" long x 1/2" OD rollers with 32" long inspection area and 360 Deg rotation of product, overhead lamp with inspection magnifing glass. Control panel with vibrator, conveyor, roller on / off switch with speed control dials, main machine static eliminator and inspection lamp on / off and e-stop controls. Mounted on stainless steel base with casters and leveling legs and foot pedal controller.

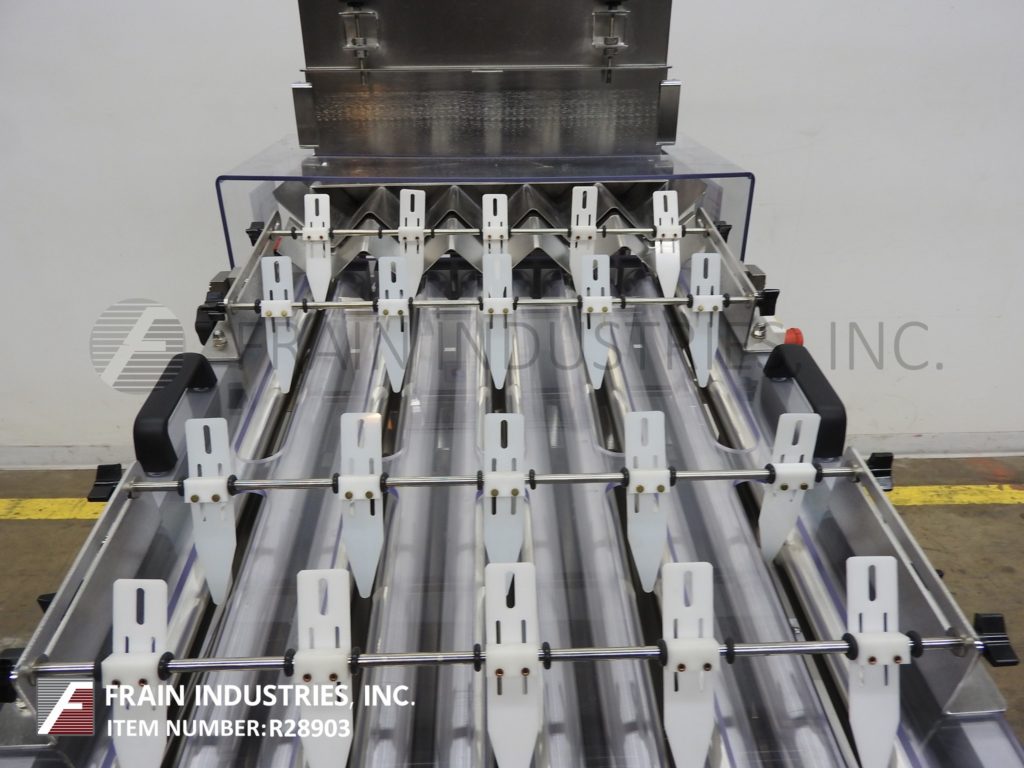

Seidenader Model DS10/L65, Stainless steel, tablet sorter, rated up to 1000 kg of tablets per hour – depending on materials and application. Equipped with dual 23" long x 10" high x 10" slant bottom, stainless steel tablet feed hoppers with (10) 12" long vibratory tablet feed chutes to (10) hand crank adjustable sorting lanes for different size channel widths and different size tablets has 28" long dual tablet transfer rollers per lane and has fast lane adjustment for new tablet formats and (3) discharge chutes for too thin, too thick and good tablet thickness and is capable of sorting tablet thickness down to tolerances of + / – 0.05mm. Control panel has vibratory controller with start, stop, e-stop controls. Mounted on (4) leg stainless steel base frame.
OAD: 64" L x 54" W x 69" H

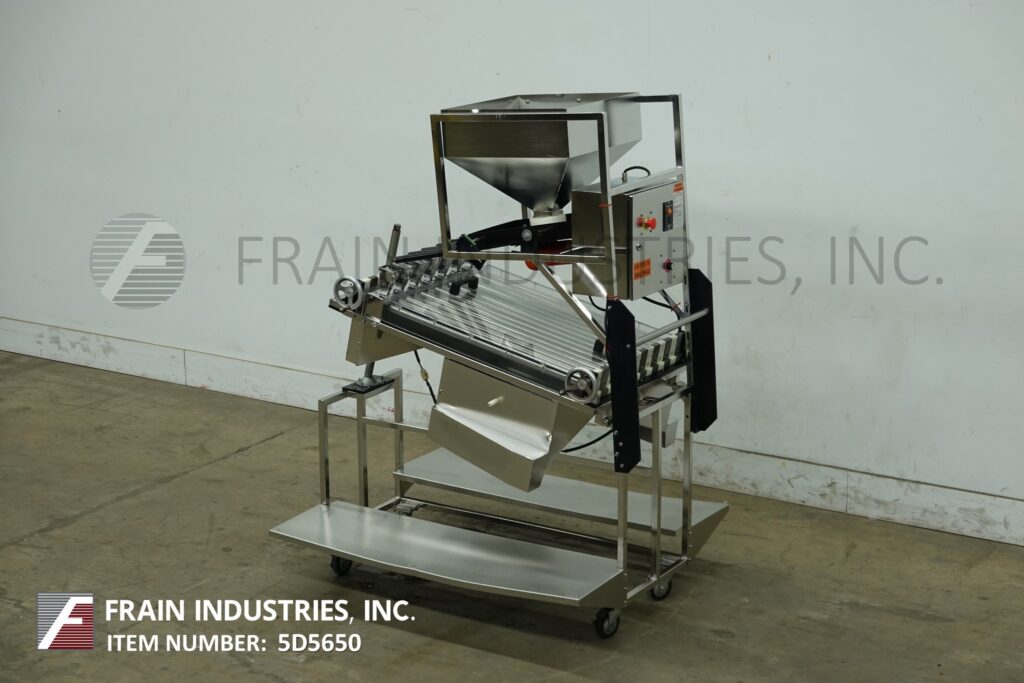

Eisai, Model RMS-200-5, Plain and coated tablet, soft gelatine, capsule and hard candy, plain and coated tablet sorter rated up to 500,000 tablets per hour – depending on materials, application and machine configuration. Equipped with 18" wide x 8" long x 14" deep product hopper with stepper driven lift for easy loading, (5) channel vibratory feeder and tablet sorter with adjustable width and angle channel rollers with (3) discharge zones. High throughput, high precision, thickness sorting and is accuracy adjustable up to ± 1/20 mm. Control panel has AB controller with touch pad display e-stop and statis light bar. Mounted on a stainless steel frame.
Operation:Product to be inspected is placed into the hopper is then lifted by linear actuator, where the hopper is rotated to the production position by the operator. The hopper then lowered into position for inspection operation. Front hopper gate is opened, by operator, to a gap of 1.5 to 2.0 times the thickness of the tablets. vibratory feeder tray beneath the hopper feeds product onto the rollers and are adjusted with smaller gap at the top and larger gap at the bottom. This gapping enables product to be sorted into undersize, acceptable and oversize categories. The rotation of the rollers and the downward angle of the roller carriage cause the product to move forward. The product drops through the rollers onto angled dividers, then into discharge chutes and then into the containers.
OAD: 57"L x 42"W x 85"H
