Skinetta Shrink Bundler ASK450

  Back to All Equipment
  • Manufacturer: Skinetta
  • Model: ASK450
  • Frain Number: 5G8190
  • Category: Shrink
  • Subcategory: Bundler
  • Condition: Used, in excellent condition
  • Availability: In Stock

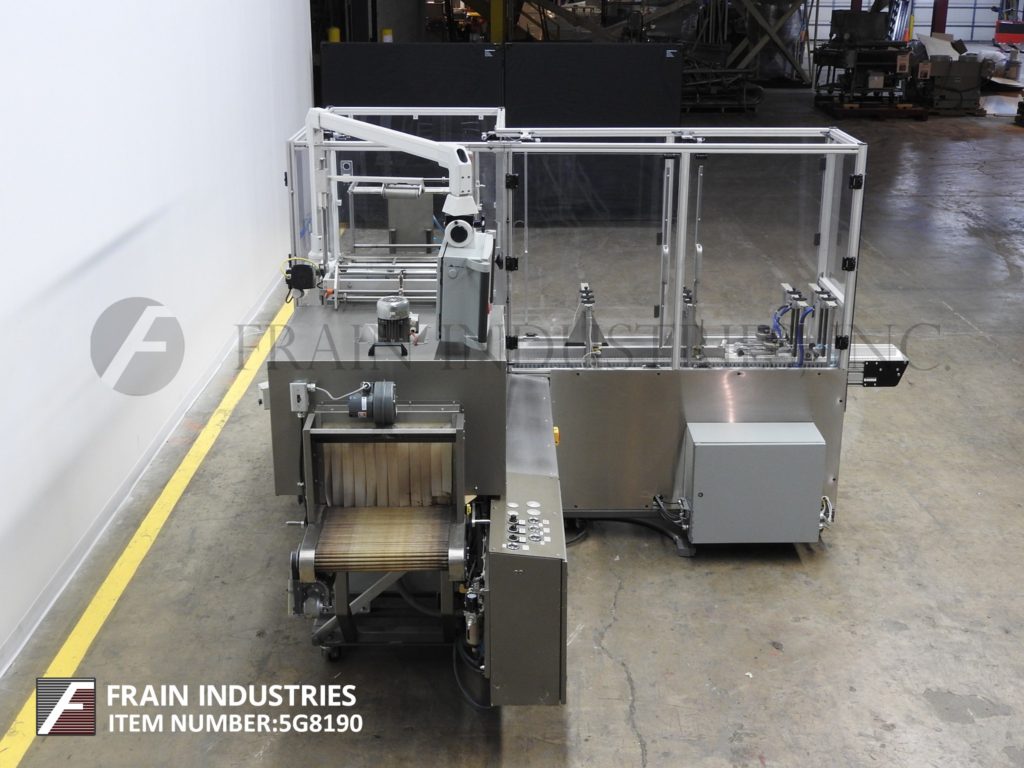

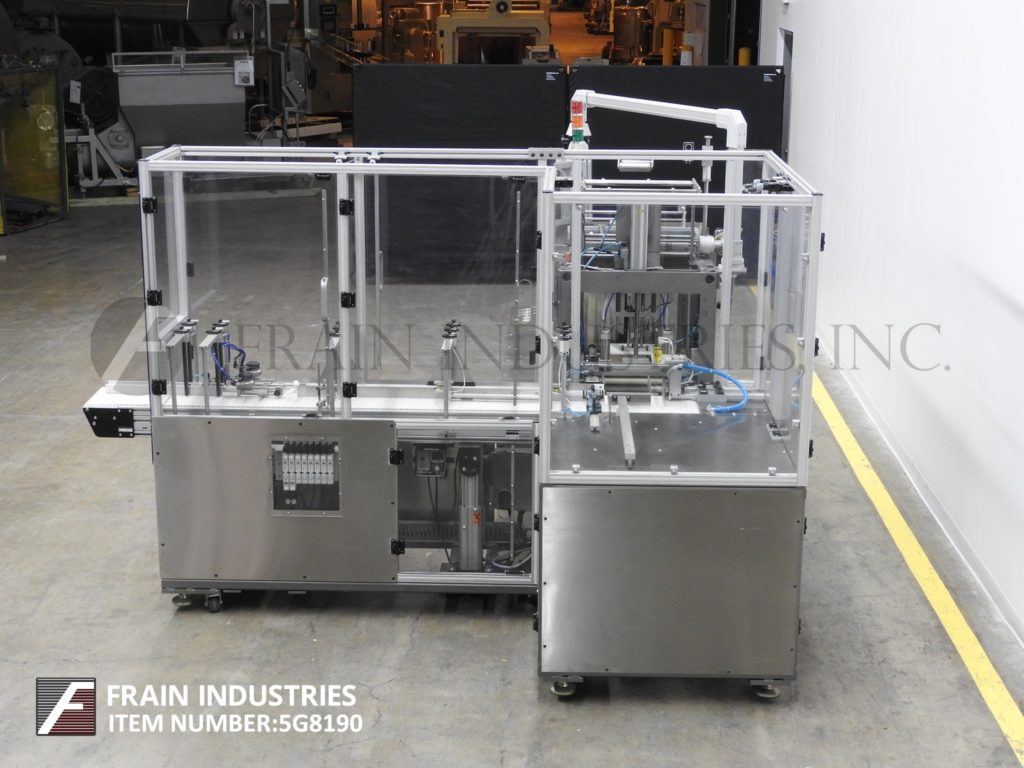

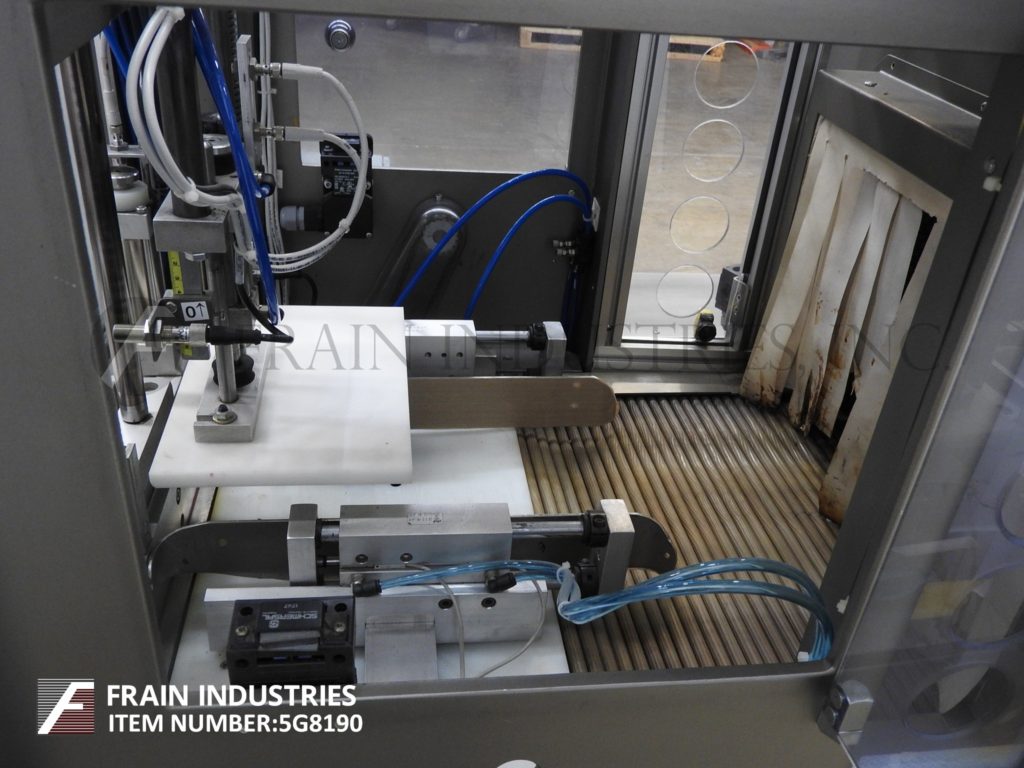

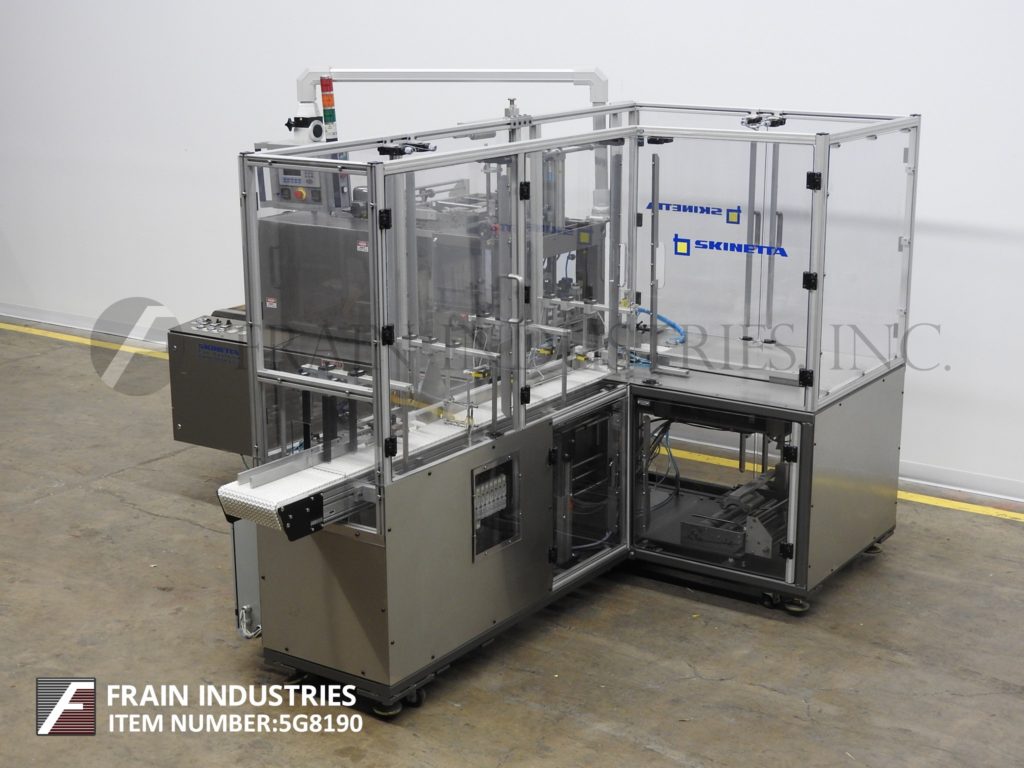

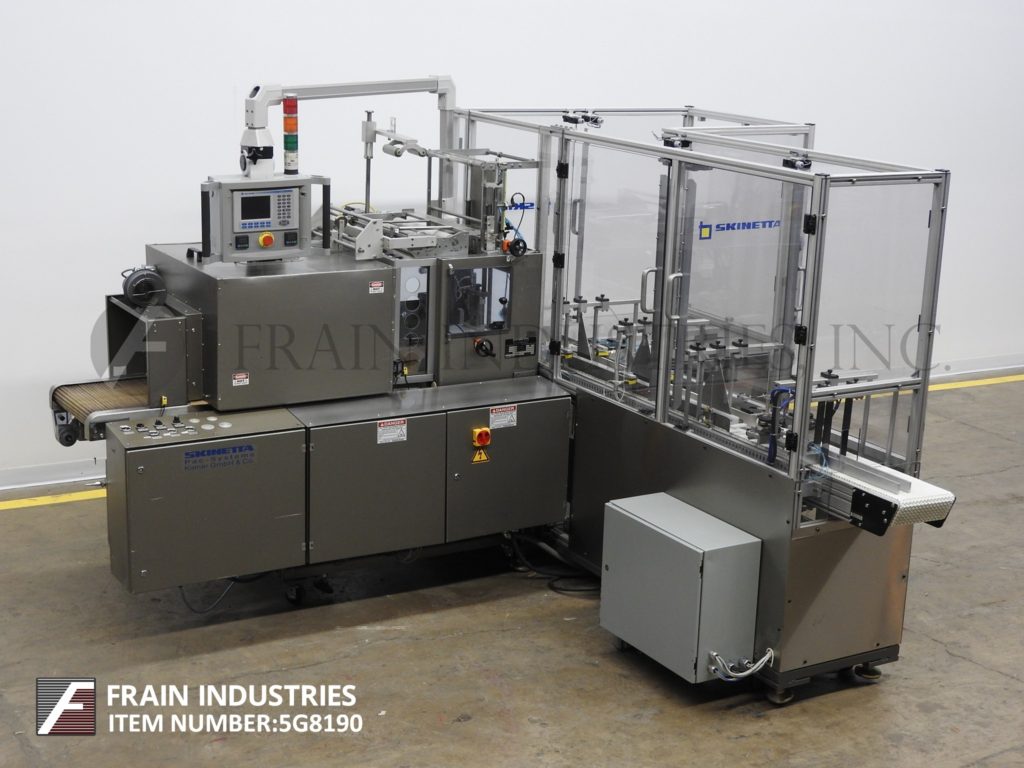

Skinetta, Model ASK 450, automatic, intermittent motion, shrink bundler and tunnel. Rated from 5 to 30 cycles per minute – depending on materials, application, pack pattern and machine configuration. Product size range: 1" to 10" in Length; 1" to 12" in Width; up to 10" in Height. Equipped with a 10" wide x 96" long, one to two lane, in feed conveyor with an adjustable collation area up to 10" wide x 12" long and right angle pneumatic transfer arm. Bundler has top and bottom film rolls for an up to 17" wide web, top film perforation wheel, 18" wide heat seal jaws and product top hold down pad to hold bundle while being sealed. Integrated shrink tunnel with 12" High x 17" Wide x 30" Long heat chamber, with 60" long x 17" wide live roller conveyor and cooling fan. Control panel has an AB PLC with an AB PanelView Plus 600 display screen with touch pad controls, push button start / stop and digital temperature controllers for seal and tunnel.

OAD: 133"L x 120"W x 84"H
